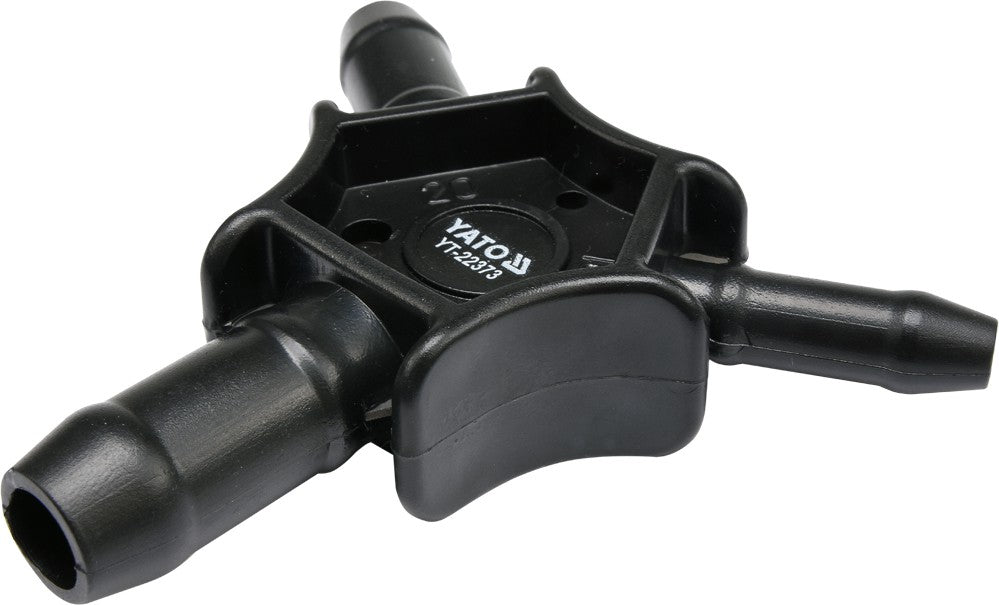

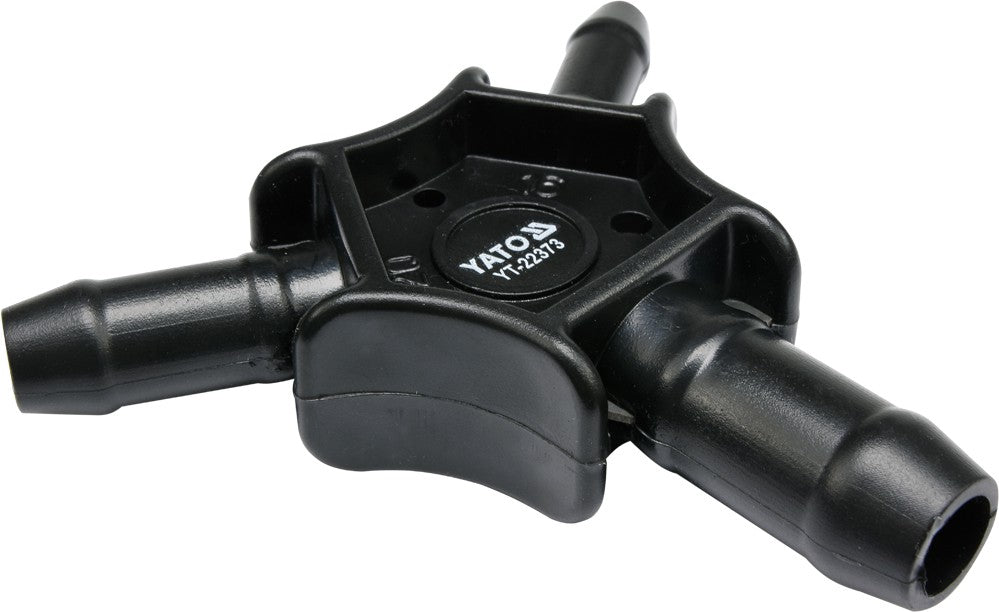

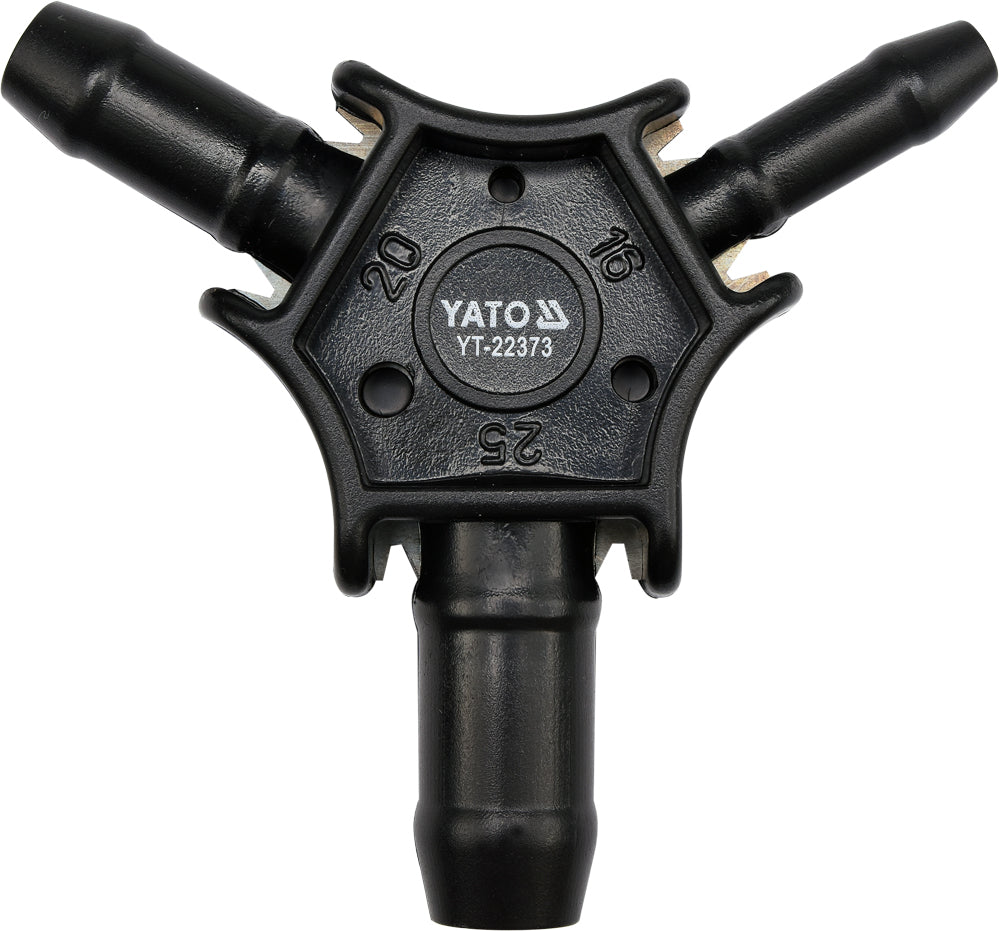

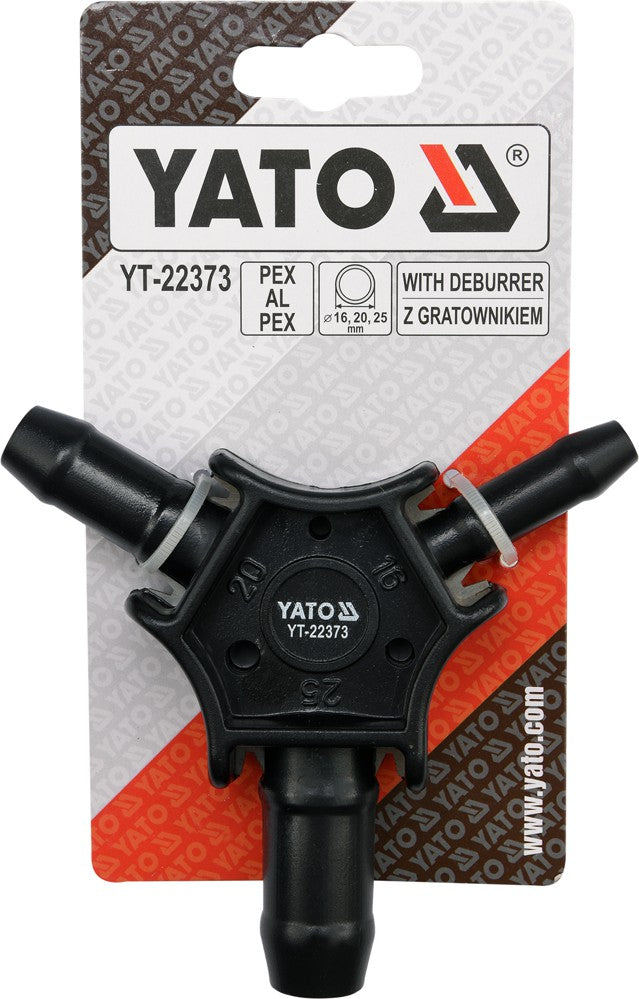

PIPE CALIBRATOR 16/20/25 W. DEBURER (YT-22373)

The YATO calibrator is very useful for any work with PEX-Al-PEX or PERT-AL.-Pert pipes. Designed for pipe diameters:
- 16mm
- 20mm
- 25mm

When cutting a pipe, its profile actually needs to be flattened. Then, installing any joint on it can lead to leaks, which is a very expensive repair.
YATO calibrators also combine the function of internal and external deburring.
Each size of the calibrator has special internal and external blades on both sides. With this construction, all processed pipes, calibrated at the same time, are given a perfectly circular cross-section, ensuring tightness and grinding, leveling the edges, and allowing even pressing of the tube to the end of the fitting.
The advantages of YATO calibrators:
1. Speed of work - calibration and deburring are performed in one operation
2. Precision of connections - each size has a separate calibrator and deburring tool with precisely defined dimensions
3. Quality of connections - a pipe with a perfectly circular cross-section ensures the sealing of the joints
4. Versatility - the most popular sizes in one tool

Product description
The YATO calibrator is very useful during all works using PEX-AL.-PEX or PERT-AL.-PERT pipes. Intended for pipes with diameters:
- 16mm
- 20mm
- 25mm

When cutting these pipes, their profile flattens. Then, by installing any connectors on them, leakage and very costly repairs may occur.
The YATO calibrators also combine the function of an internal and external deburrer.
Each size of the calibrator has special internal and external blades on both sides. Thanks to this design, all processed tubes are simultaneously calibrated to give them a perfectly round cross-section to ensure tightness of the joint and then deburred to even out the edges and to evenly press the tube to the very end of the coupling.
The advantages of using YATO calibrators:
1. Speed of work - calibration and deburring performed in one operation
2. Connection precision - each size has an individual calibrator and deburrer with strictly defined dimensions
3. Quality of connections - pipes with a perfectly round cross-section ensure tightness at the connectors
4. Versatility - the most popular sizes in one tool
Purpose / use
Designed for calibrating PEX-AL.-PEX or PERT-AL.-PERT pipes with diameters 16 / 20 / 25mm
Usage
Attach the calibrator to the end of the tube, turning it clockwise and counterclockwise. Then, perform 2-3 rotations after 360 degrees to play the tip.
Technical data
Index number YT-22373
EAN 5906083223730
Brand Yato
PCS unit
Gross weight (kg) 0.0750
