PETROL TRENCHING MACHINE | DEPTH 60 CM | CAPACITY 420 CM3 (YT-86140)

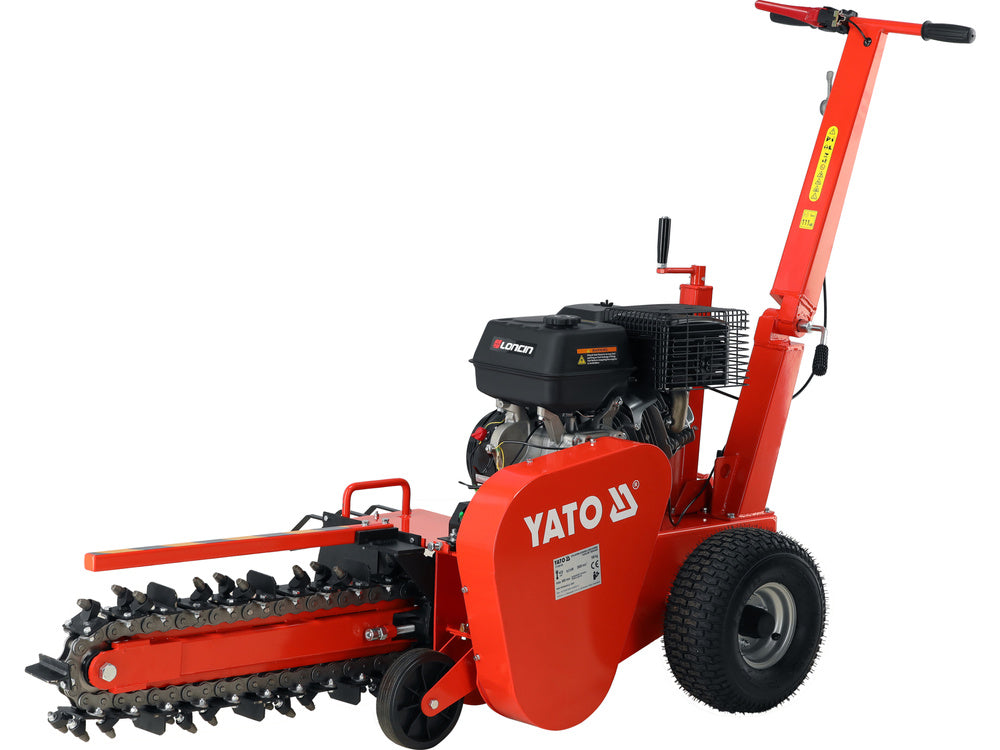

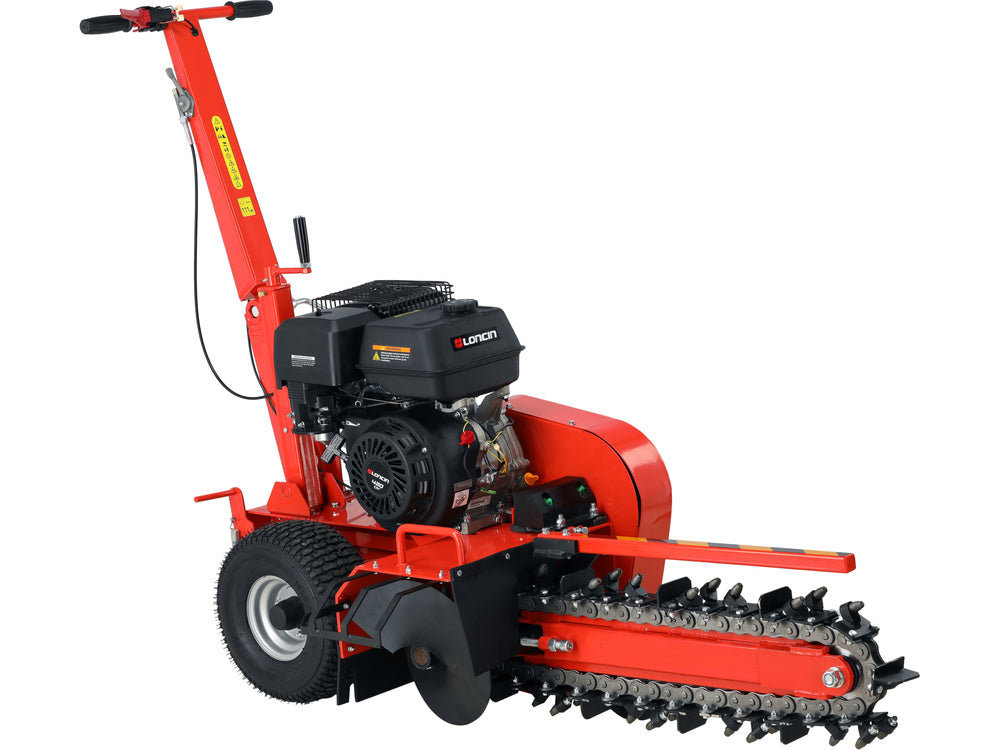

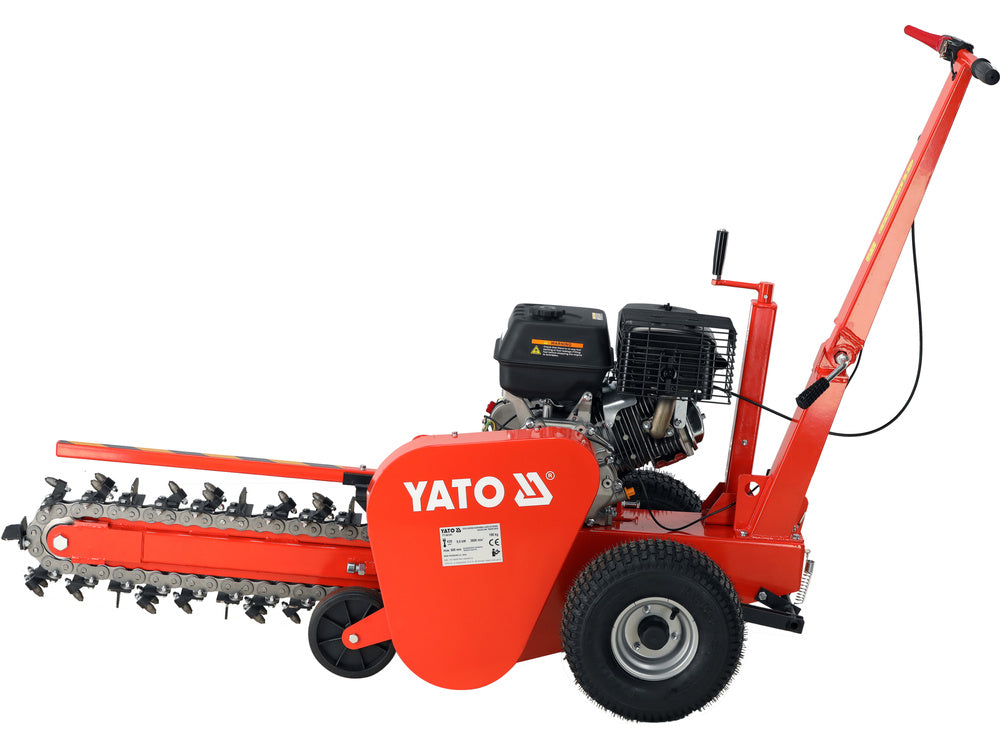

YATO YT-86140 Petrol Trencher - 420 cm3 engine, 600 mm digging depth

The YATO YT-86140 is a professional petrol trencher, engineered for precise and fast excavation work. This machine is an indispensable aid for laying water pipes, electrical cables, irrigation systems, drainage, and preparing fence foundations. The compact design of the unit allows for efficient and effortless excavation even in areas with extremely limited space where heavy construction machinery cannot access.

Key Technological Features and Benefits:

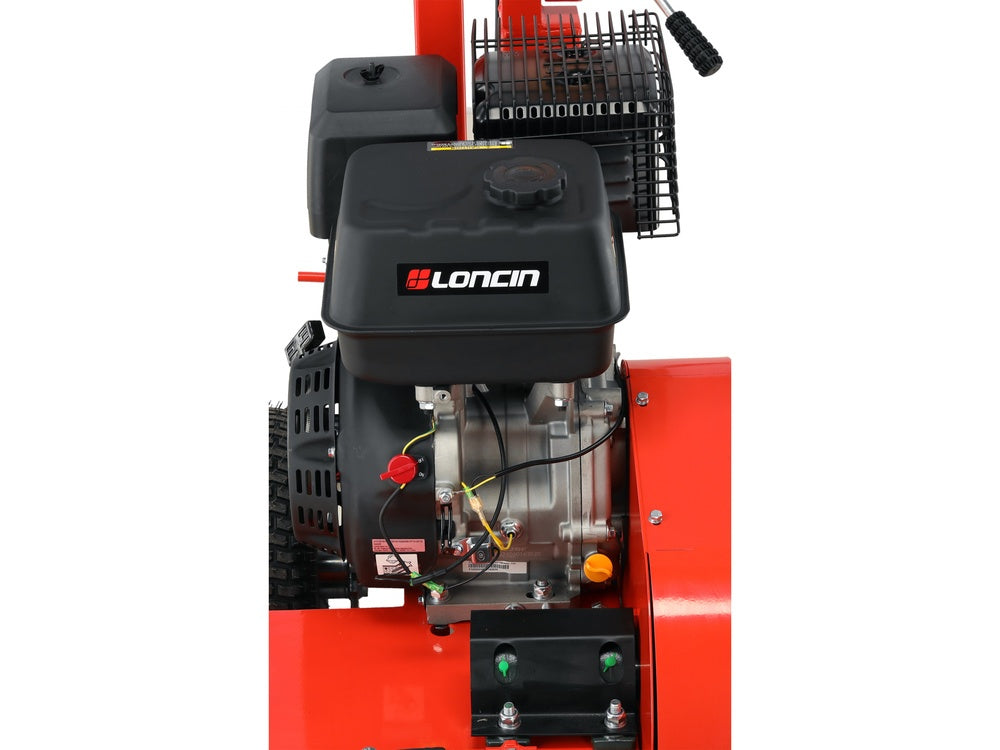

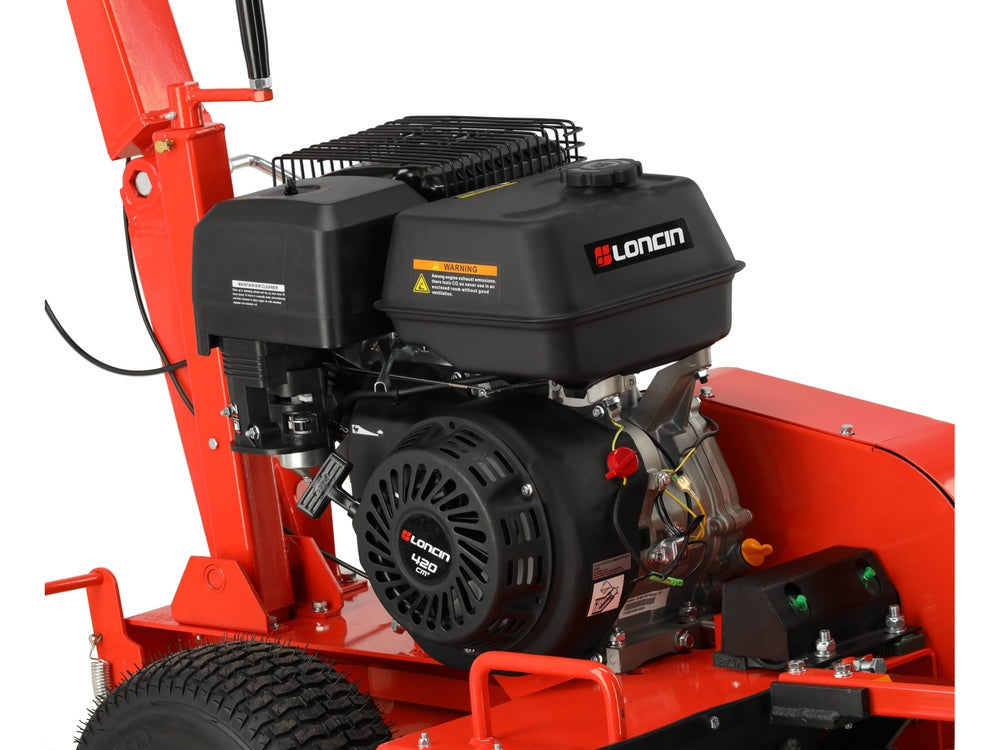

• Powerful Loncin Engine: The trencher is equipped with a time-tested four-stroke Loncin G420F engine. Its 420 cm3 displacement and 9 kW (12.24 HP) power guarantee high performance and stable operation even under maximum loads in hard soil.

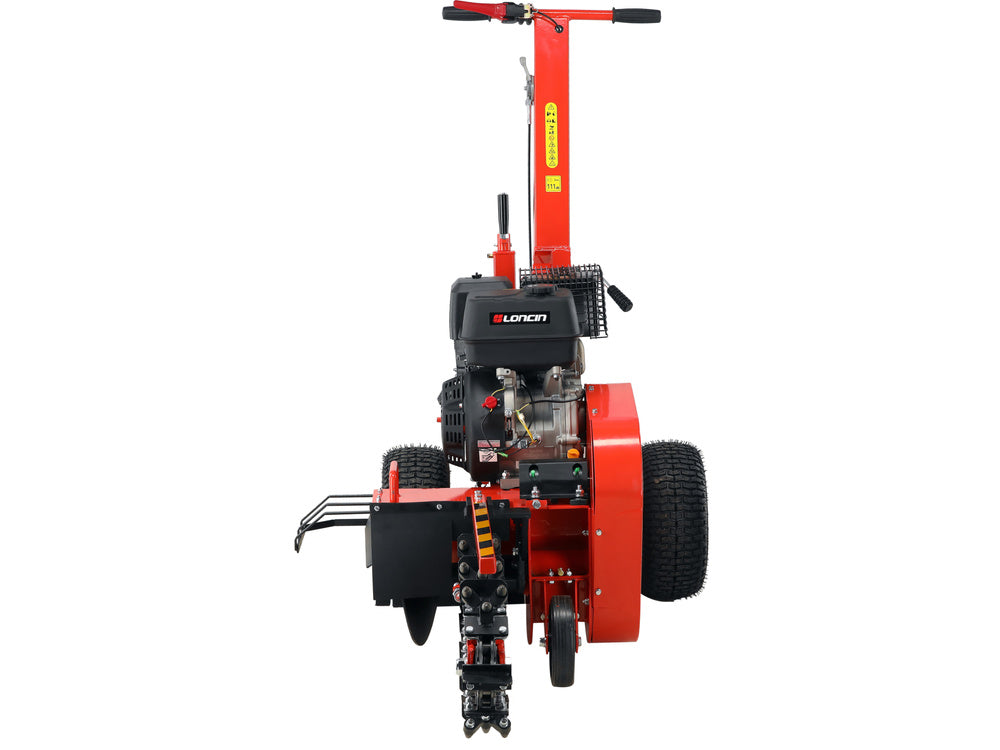

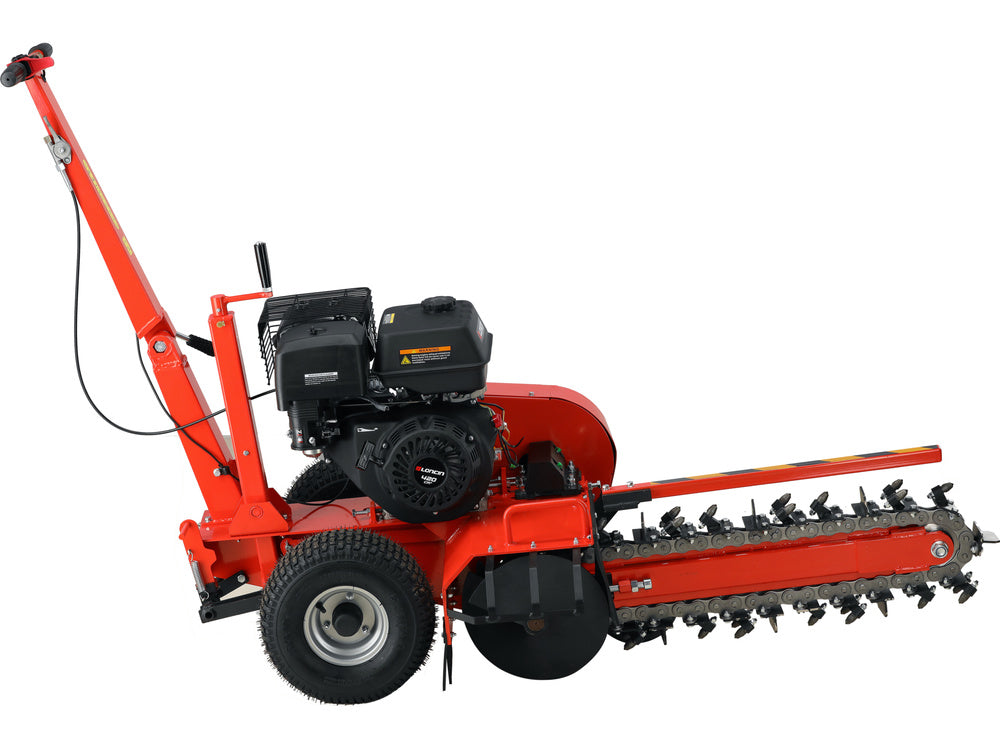

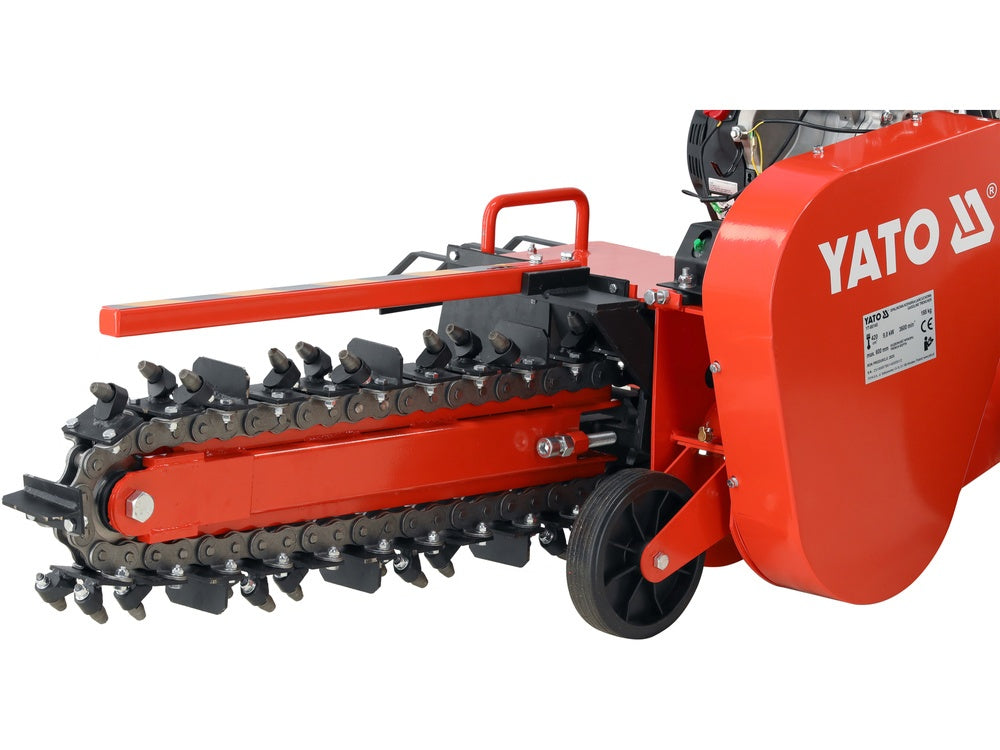

• Efficient Digging Mechanism: The chain system with 27 strong teeth smoothly cuts through the soil, forming a perfectly uniform trench 100 mm wide. The maximum digging depth achieved is 600 mm, which fully meets the standard requirements for laying installation systems.

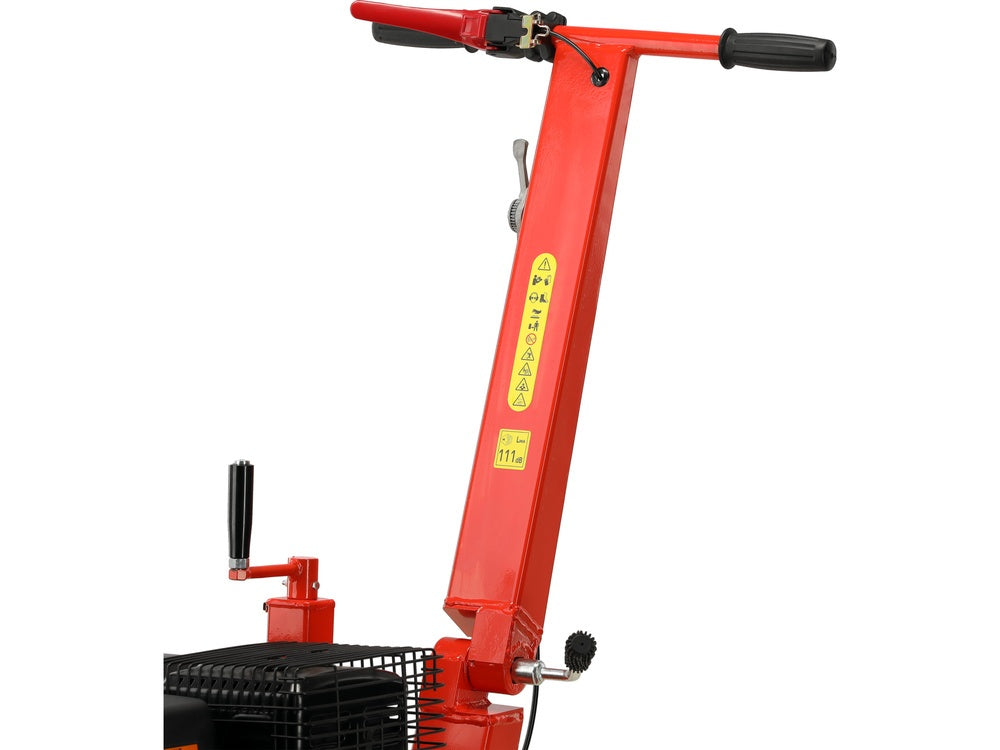

• Safety and Control: The device has an integrated emergency stop function, which allows the engine to be immediately shut off in critical situations, thus maximally protecting the operator.

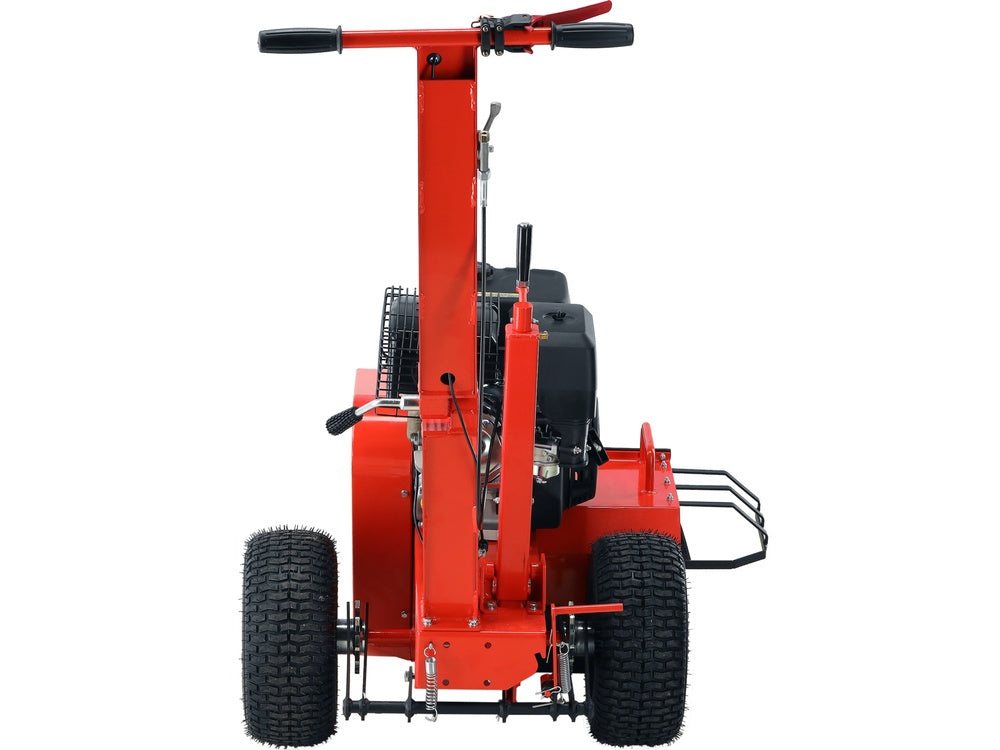

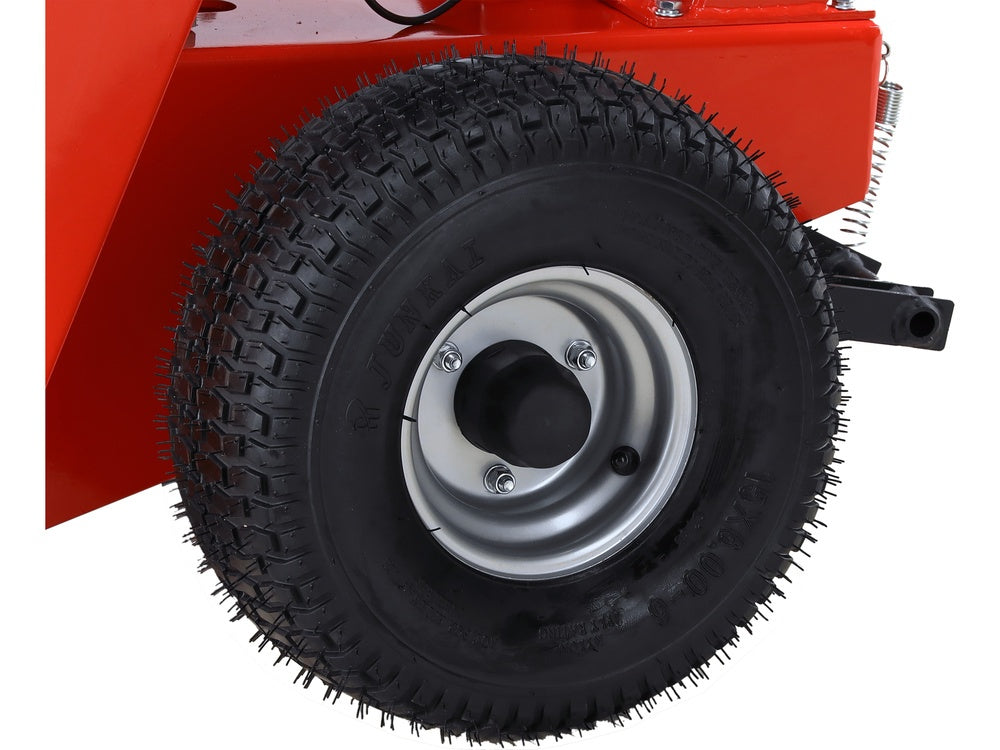

• Durability and Mobility: The metal body withstands harsh construction site conditions, and two large pneumatic wheels ensure easy maneuvering of the 188 kg unit on various types of surfaces.

Detailed Technical Specification:

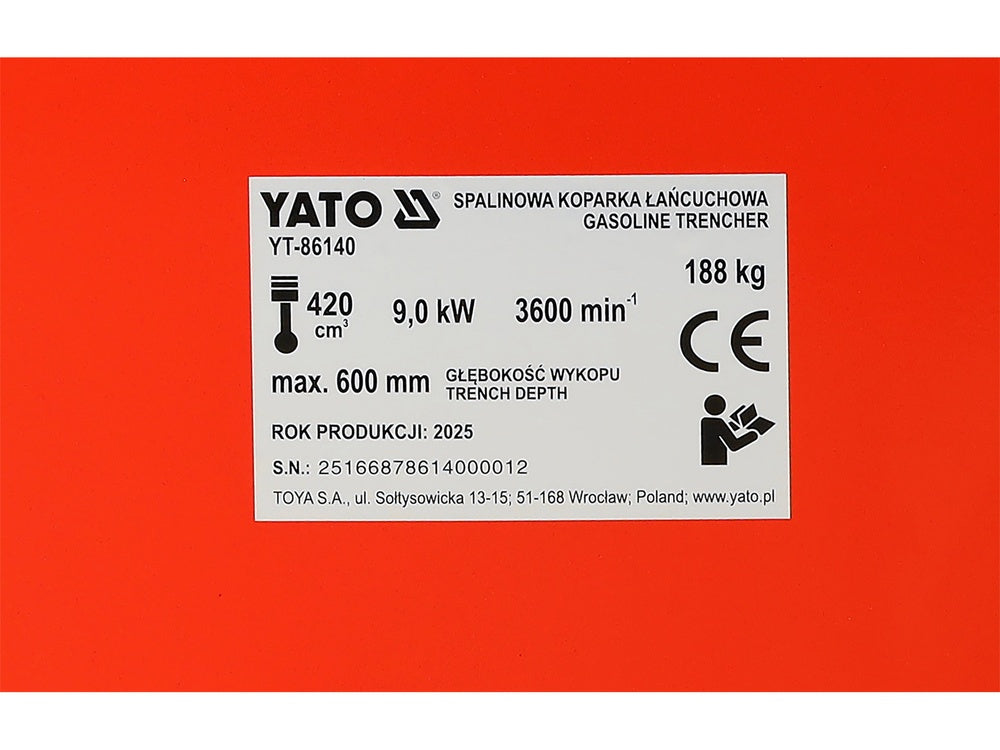

• Product code: YT-86140

• Series: GRF

• Responsible entity in the EU: TOYA S.A.

• Engine type: Internal combustion, four-stroke, single-cylinder, air-cooled

• Engine model: Loncin G420F

• Displacement: 420 cm3

• Maximum power: 9 kW / 12.24 HP

• Engine speed: 3600 rpm

• Digging width: 100 mm

• Maximum digging depth: 600 mm

• Number of digging chain teeth: 27

• Fuel type: Unleaded petrol E10

• Fuel tank capacity: 6.5 l

• Oil type and capacity: SAE 15W-40, capacity 1.1 l

• Starting system: Manual starter

• Spark plug type: F7RTC

• Wheels: 2 pcs., pneumatic

• Housing material: Metal

• Overall dimensions (Length x Width x Height): 2100 x 720 x 1100 mm

• Operating and storage temperature: 5 to 30 C

• Noise level: Sound pressure 88.6 dB(A), sound power 109.28 dB(A)

• Vibration level: 9.99 m/s2

• Unit weight: 188 kg

• Purpose: Precise trenching for water, electrical installations, and irrigation systems
