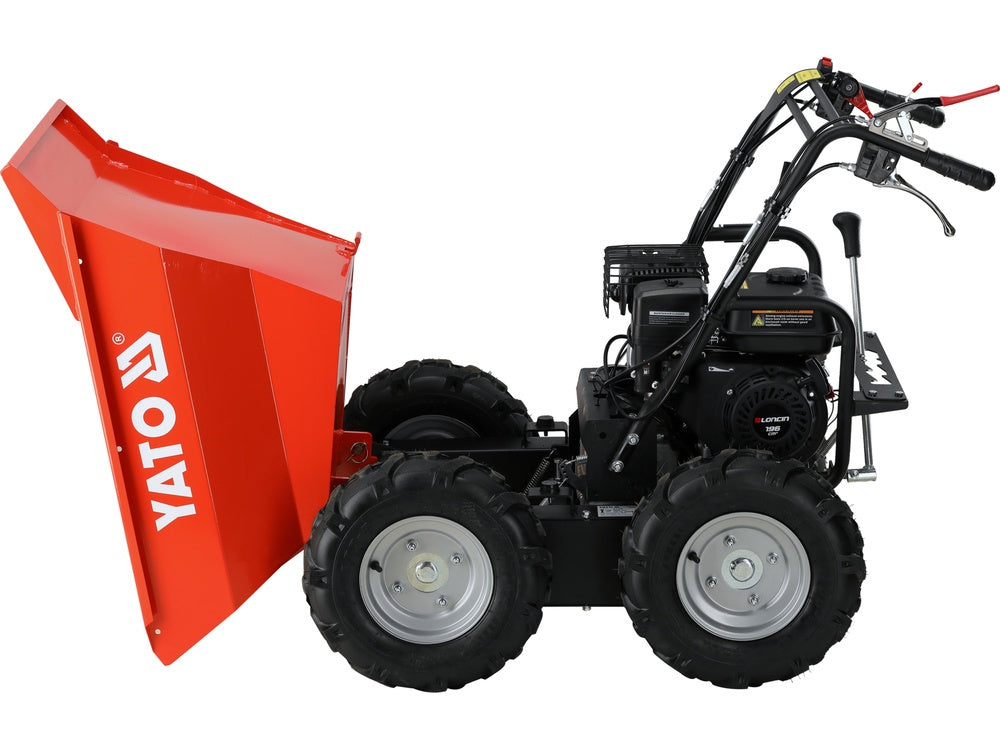

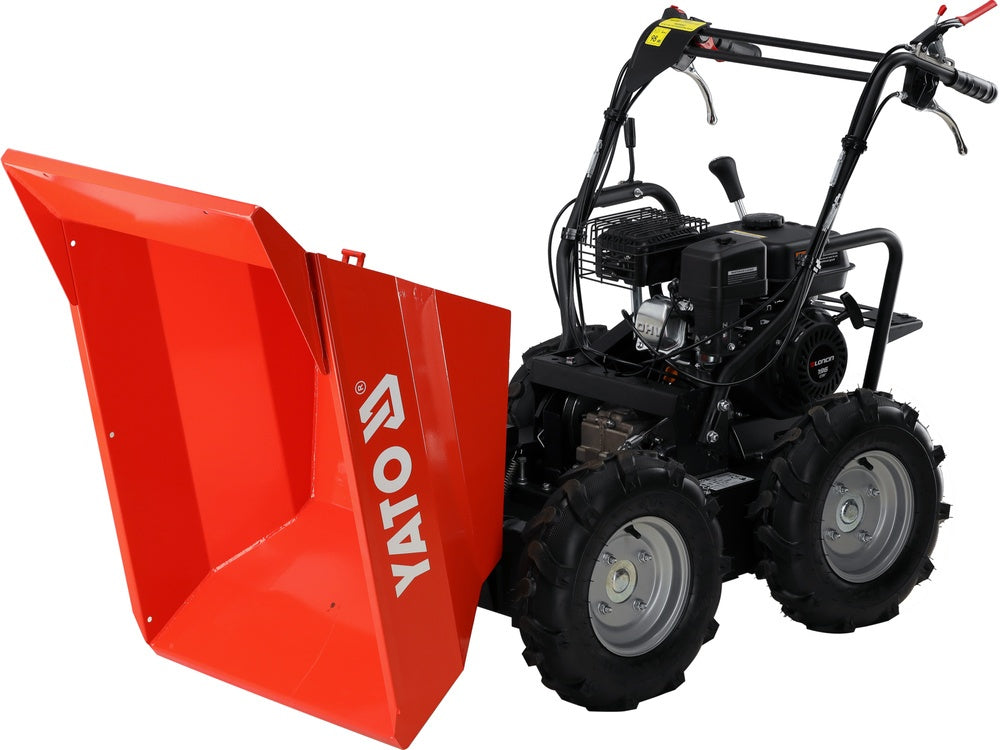

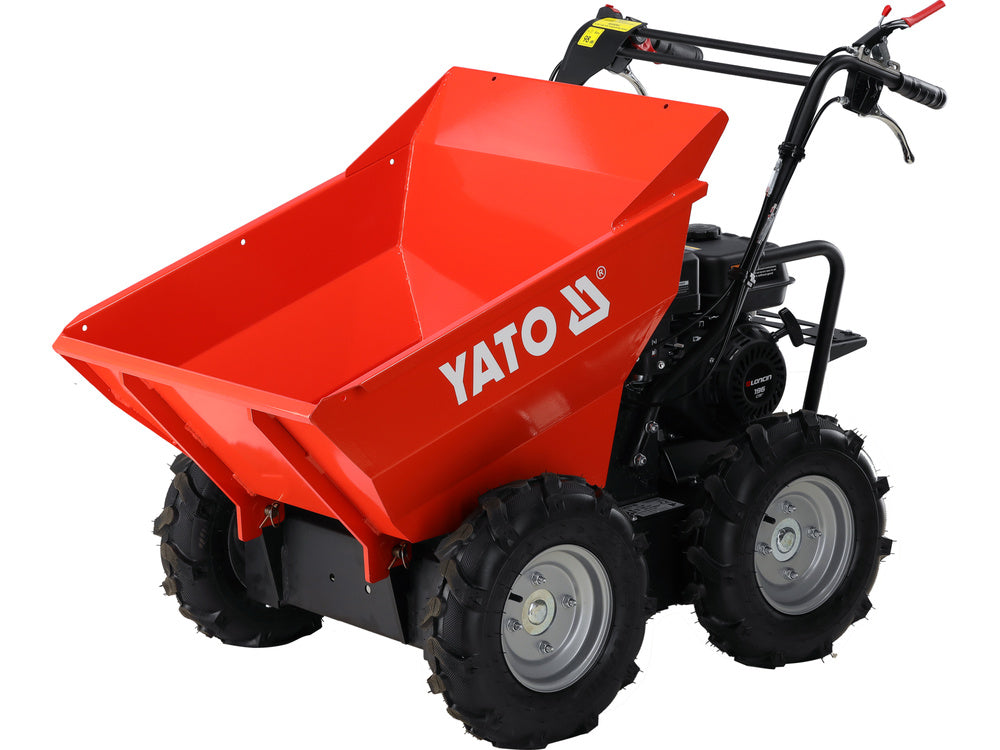

PETROL DUMPER | MINI | 300 KG | 196 CM3 (YT-86115)

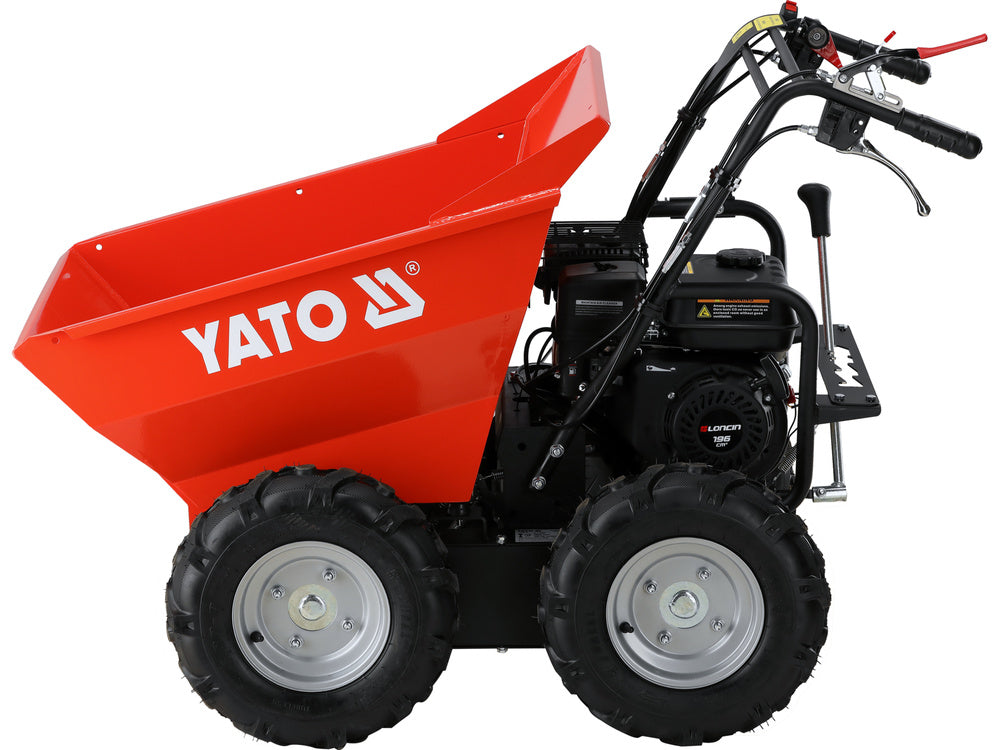

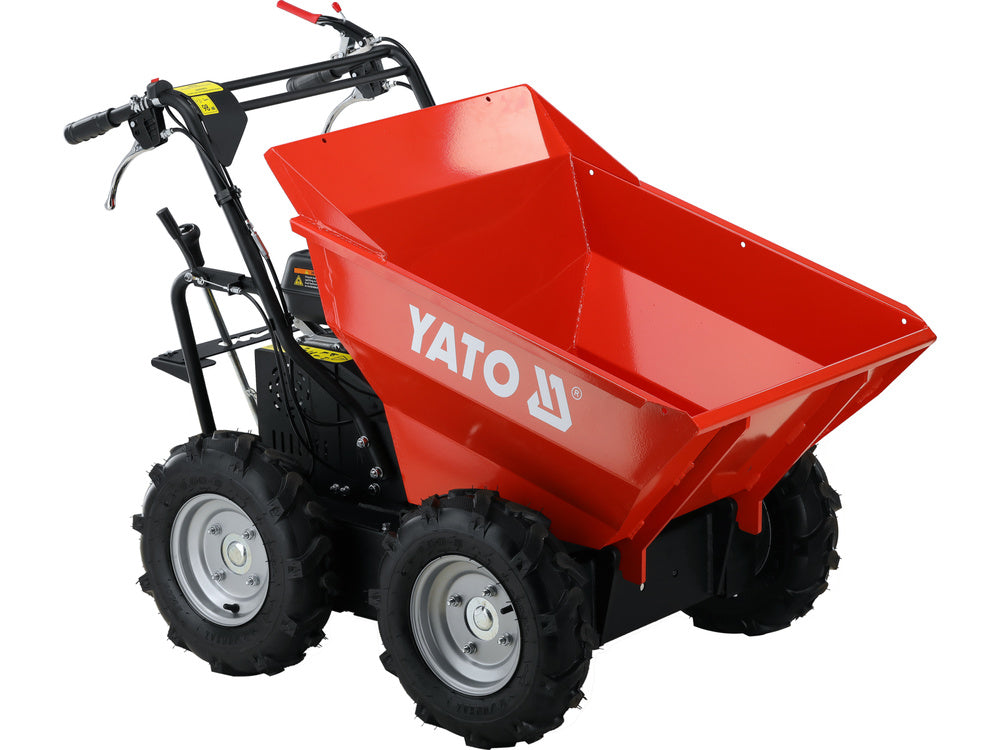

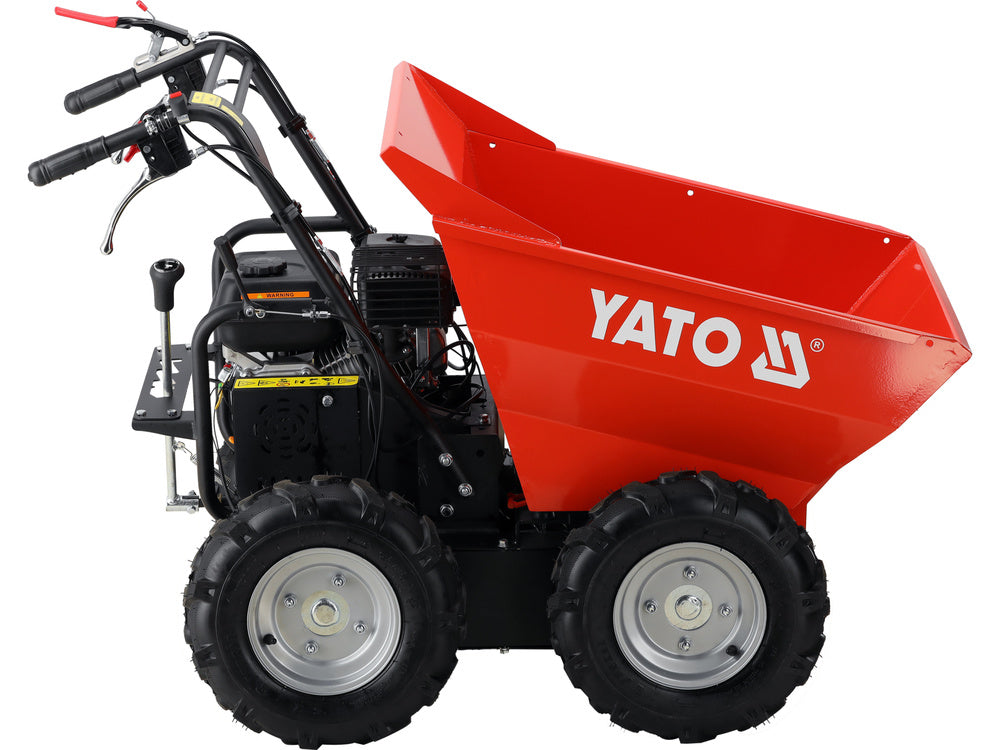

YATO YT-86115 petrol mini dumper – 300 kg load capacity, 196 cm3 engine

The YATO YT-86115 is a versatile and extremely compact petrol-powered transport device, engineered for transporting heavy and bulk materials in challenging terrain conditions. With its all-wheel drive system (4x4), this motorized wheelbarrow ensures maximum mobility on construction sites, farms, and municipal facilities where standard transport equipment is too large or inefficient.

Key technological and operational advantages:

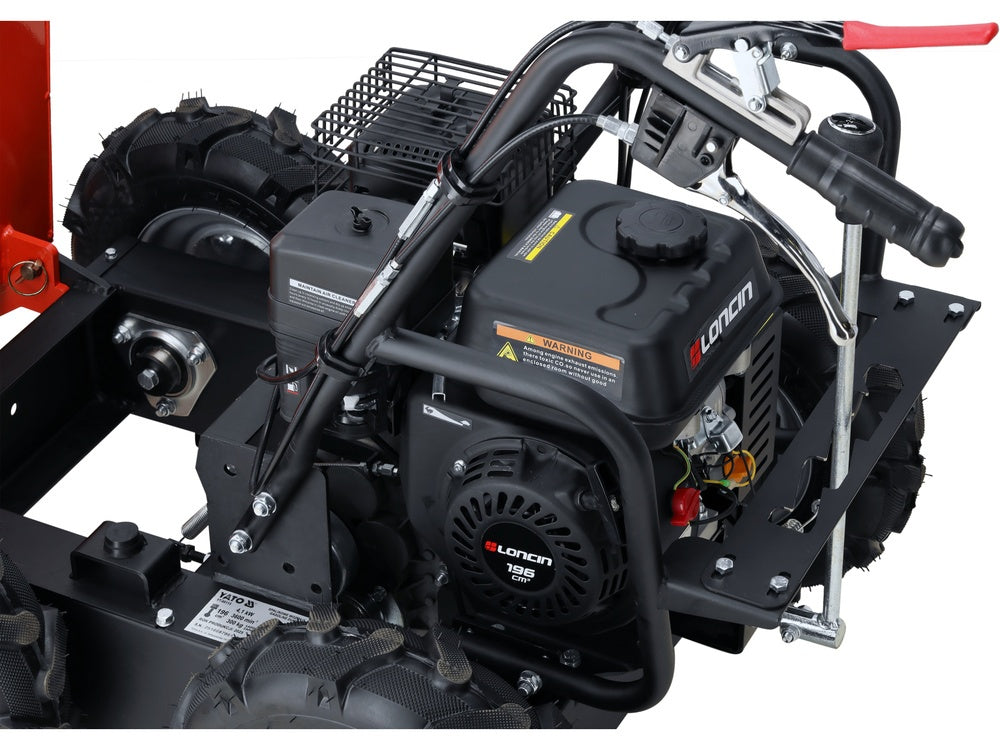

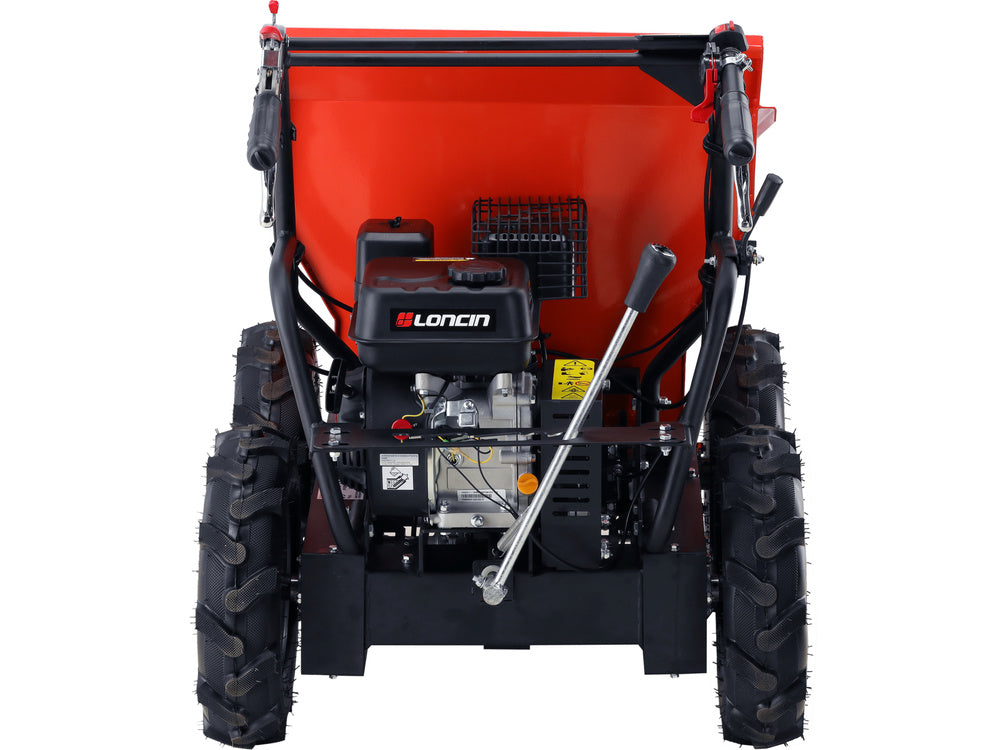

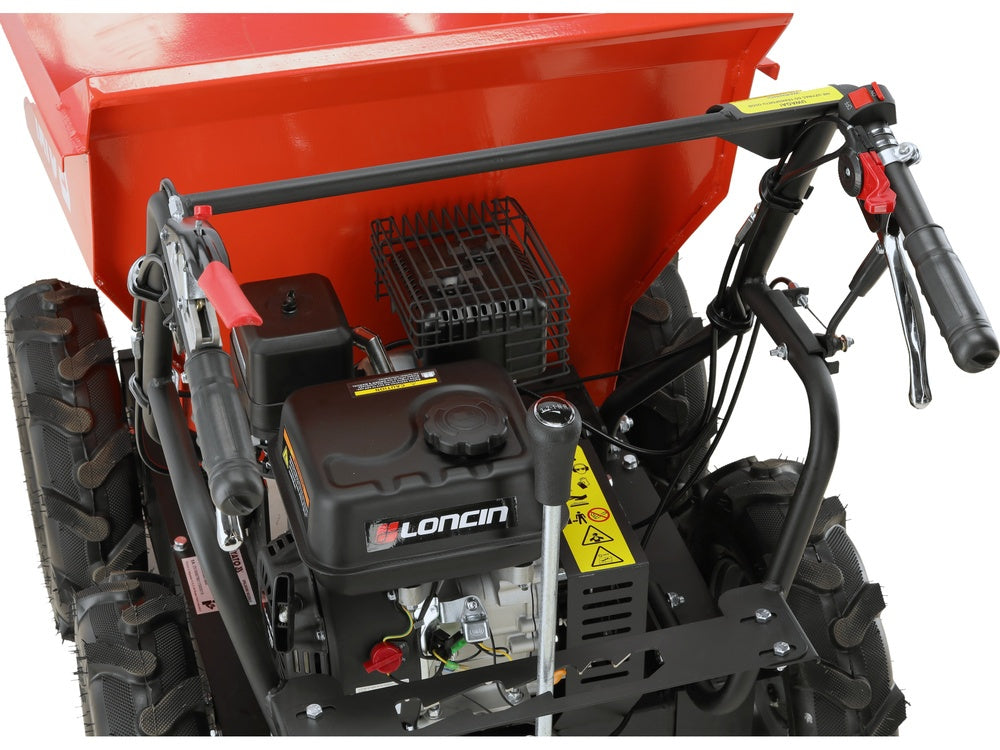

• Power and performance: The device is equipped with a time-tested LONCIN G200F four-stroke engine with a displacement of 196 cm3. The developed power of 4.1 kW (5.58 HP) and torque of 3600 rpm guarantee stable and smooth operation even when transporting the maximum weight of 300 kg.

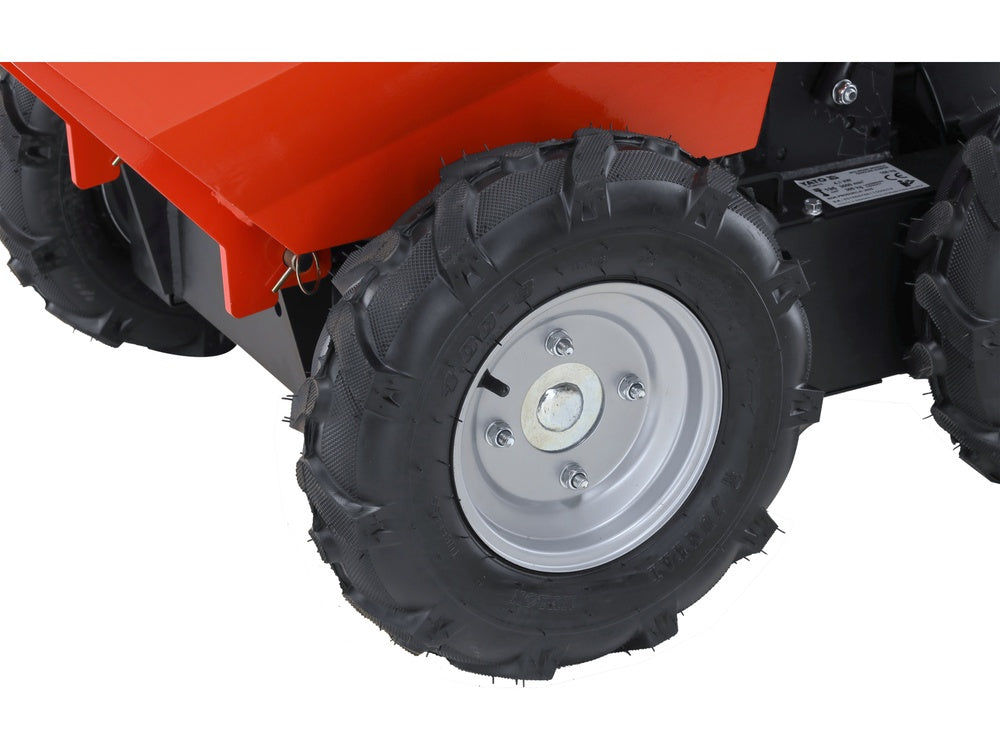

• Impeccable off-road capability: Four large 16-inch (400 mm) pneumatic wheels together with 4x4 drive allow easy traversal of muddy ground, slopes, and uneven surfaces.

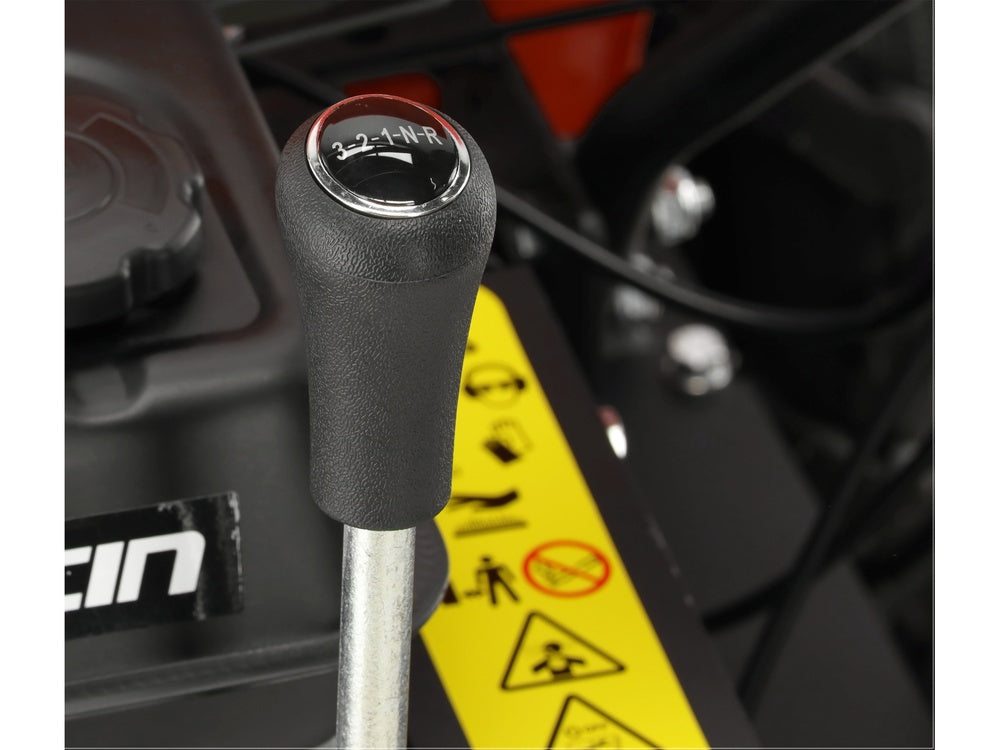

• Adaptive transmission: The mechanical gearbox has 3 forward and 1 reverse gears. This allows the operator to precisely control the device and select the optimal speed (up to 3.6 km/h) depending on the load weight and road surface conditions.

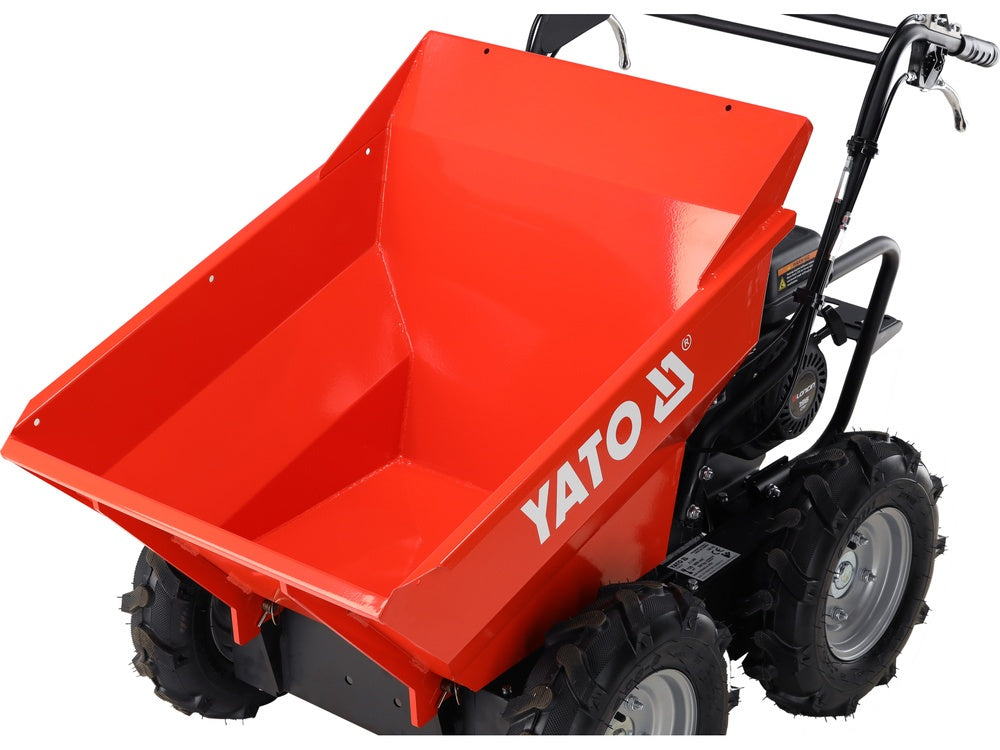

• Durability and ergonomics: The metal body and sturdy frame are designed for intensive industrial use. The overall dimensions of 1368 x 746 x 950 mm allow free maneuvering in narrow spaces, passing through standard gates or garden paths.

Wide range of applications:

• Construction sector: transportation of sand, gravel, cement, bricks, and concrete blocks.

• Agriculture and horticulture: transportation of soil, fertilizers, plants, wood, feed, and tools.

• Municipal works: removal of construction debris, waste, excavated soil, and snow.

Detailed technical specifications:

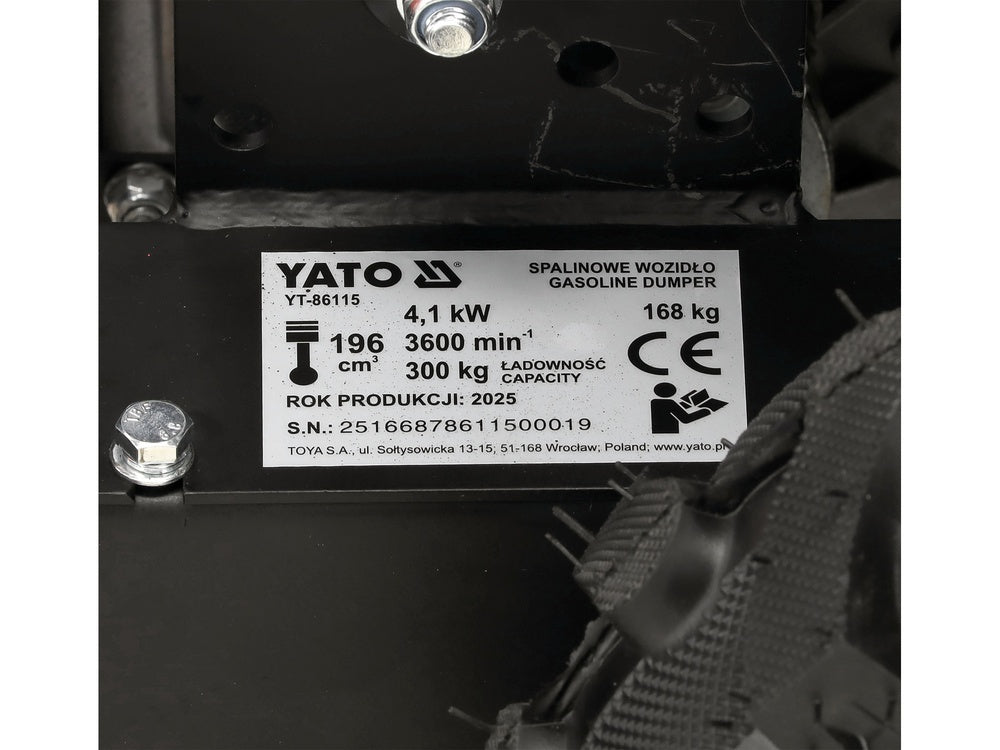

• Product code: YT-86115

• Series: GRF

• Engine type: LONCIN G200F (internal combustion, four-stroke, 1-cylinder, air-cooled)

• Engine displacement: 196 cm3

• Maximum power: 4.1 kW / 5.58 HP

• Maximum load capacity: 300 kg

• Drive system: 4x4 (all-wheel drive)

• Gearbox: 3 forward gears, 1 reverse gear

• Maximum speed: 3.6 km/h

• Starting system: Manual starter

• Fuel type: Unleaded petrol E10 (tank capacity 3.6 l)

• Engine oil: SAE 15W-40 (crankcase capacity 0.6 l)

• Transmission oil: GL-5 SAE 80W-90 (capacity 0.65 l)

• Spark plug: F7RTC

• Wheel type and size: Pneumatic, 400 mm (16 inches) diameter

• Body material: Metal

• Overall dimensions (Length x Width x Height): 1368 x 746 x 950 mm

• Noise level: Sound pressure 82.2 dB(A), sound power 97.45 dB(A)

• Vibration level: 2.48 / 3.25 m/s2

• Device weight: 168 kg

• Responsible entity in the EU: TOYA S.A.
