OIL PRESSURE TEST KIT (YT-73031)

Brand
Yato
Symbol
YT-73031
Series
GRD
Application
for measuring oil pressure, for all types of engines

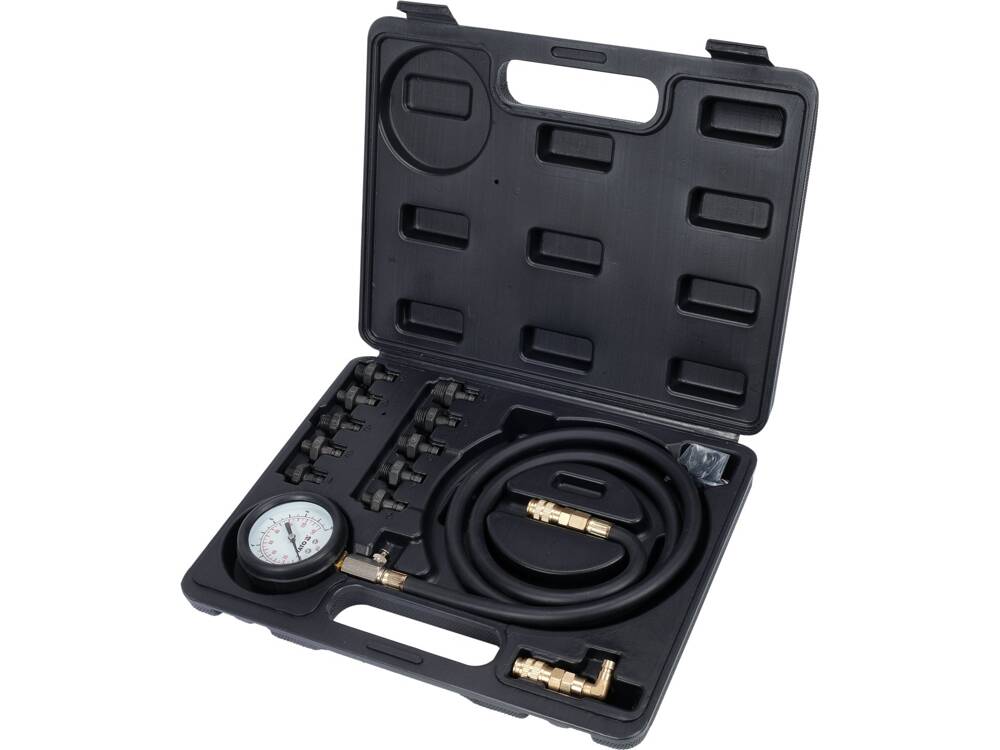

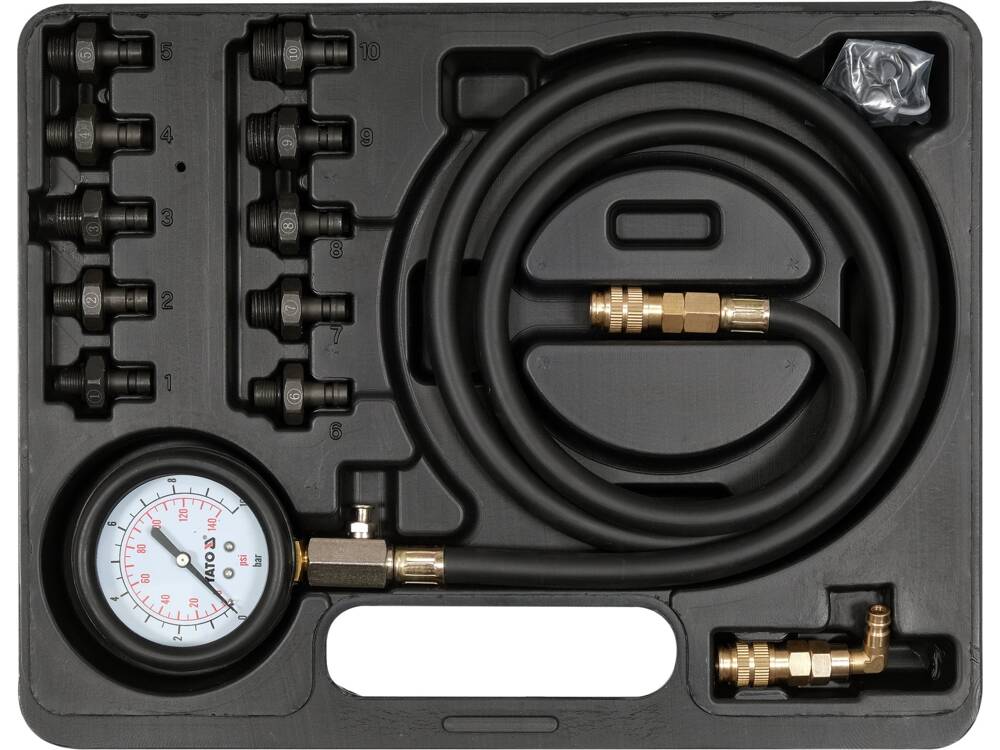

Set contents
meter, hose, adapter x10 (R1/8 DIN 2999, 1/8" 27 NPT, 1/4" 18 NPT, 3/8" 20 UNF, 1/2" 20 UNF, M10 x 1.0, M12 x 1.5, M14 x 1.5, M16 x 1.5, M18 x 1.5)
Hose length
125 cm
Measurement range
0-1 / 0-140 MPa/PSI
Pressure gauge diameter
70mm
Number of pieces in set
12

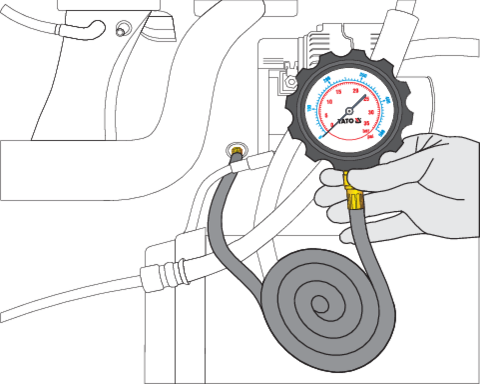

Professional oil pressure gauge. The set includes 10 reductions, thanks to which the meter supports most engines. The pressure gauge housing is additionally protected by a rubber cover.

measurement range: 0-1 MPa / 0-140 psi
hose length: 125 cm
90 degree angle connection
pressure gauge diameter: 70 mm
adapters:
R1/8 DIN 2999
1/8" 27 NPT
1/4" 18 NPT
3/8" 20 UNF
1/2" 20 UNF
M10 x 1.0
M12 x 1.5
M14 x 1.5
M16 x 1.5
M18 x 1.5
