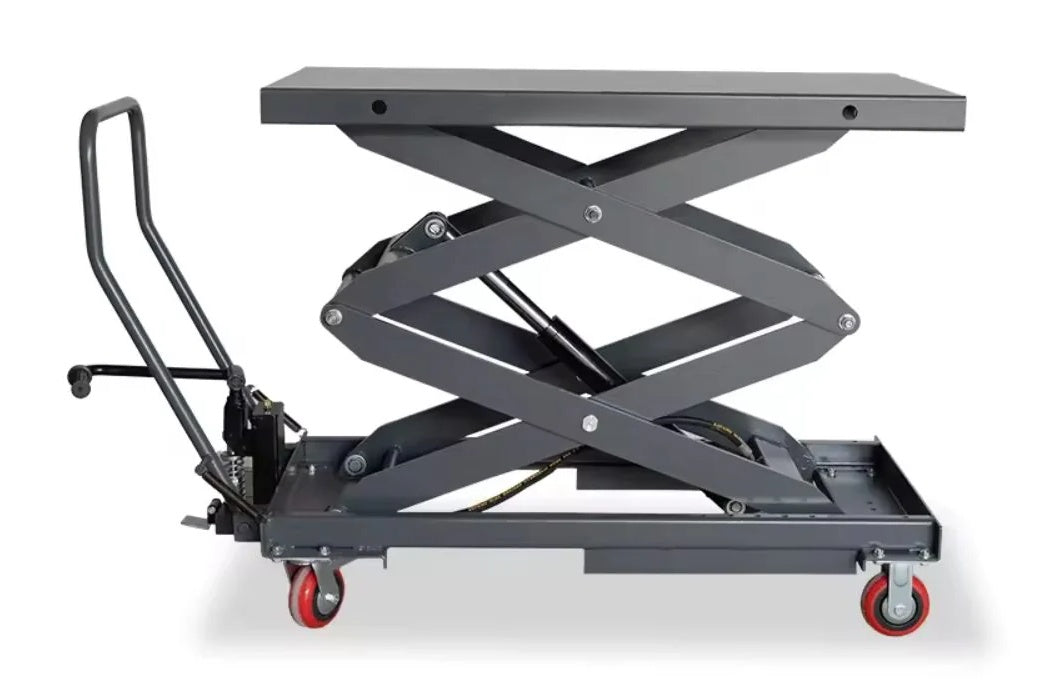

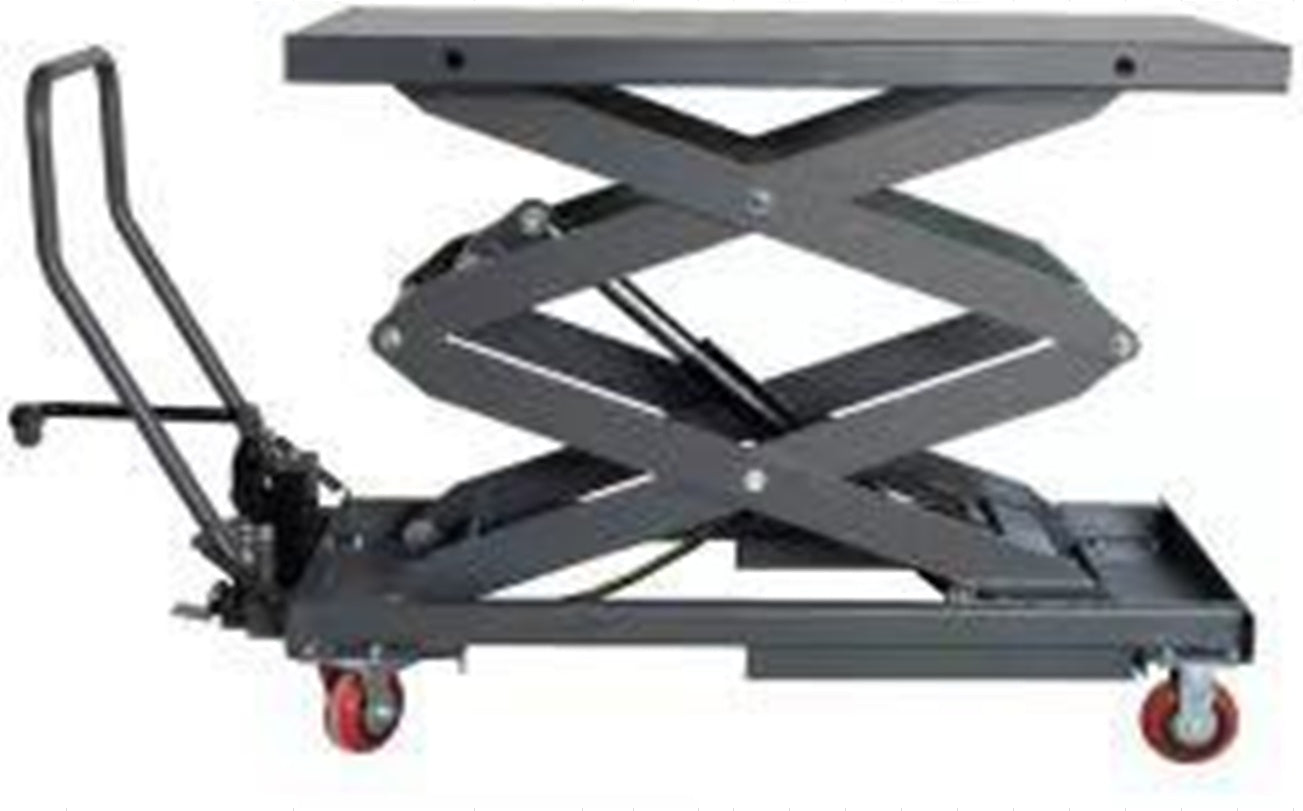

MULTIFUNCTIONAL SCISSOR PLATFORM | ELECTRIC VEHICLE BATTERY LIFTING PLATFORM (H2280)

The H2280 multi-purpose hydraulic lift for car repair shops is a PRO-class device designed for quick and convenient lifting of heavy loads such as electric vehicle batteries, engines, gearboxes, fuel tanks, and other components.

The robust steel construction works on the principle of a scissor lift with the help of a hydraulic mechanism with a sealed hydraulic piston. Split-Flow technology is used for smooth lifting of loads with uneven weight distribution. Steel locking pins are included for additional safety.

The platform is mounted on wheels, allowing for easy maneuvering in the workplace.

Technical specifications:

Lifting height [mm]: 400-1750

Maximum load [kg]: 800

Working platform dimensions [mm]: 1200x600

The electro-hydraulic platform H2280 for electric vehicle battery installation has a CE certificate, indicating that the product complies with occupational safety and environmental protection standards required for sale in the European Economic Area [EEA].

Overall weight [kg]: 180
