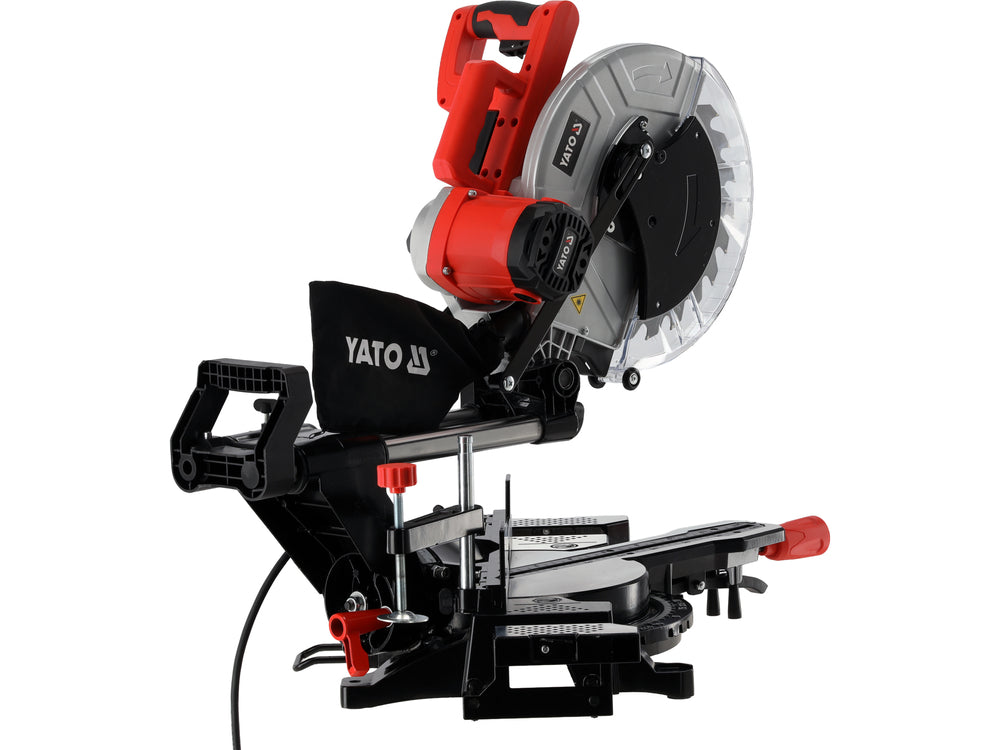

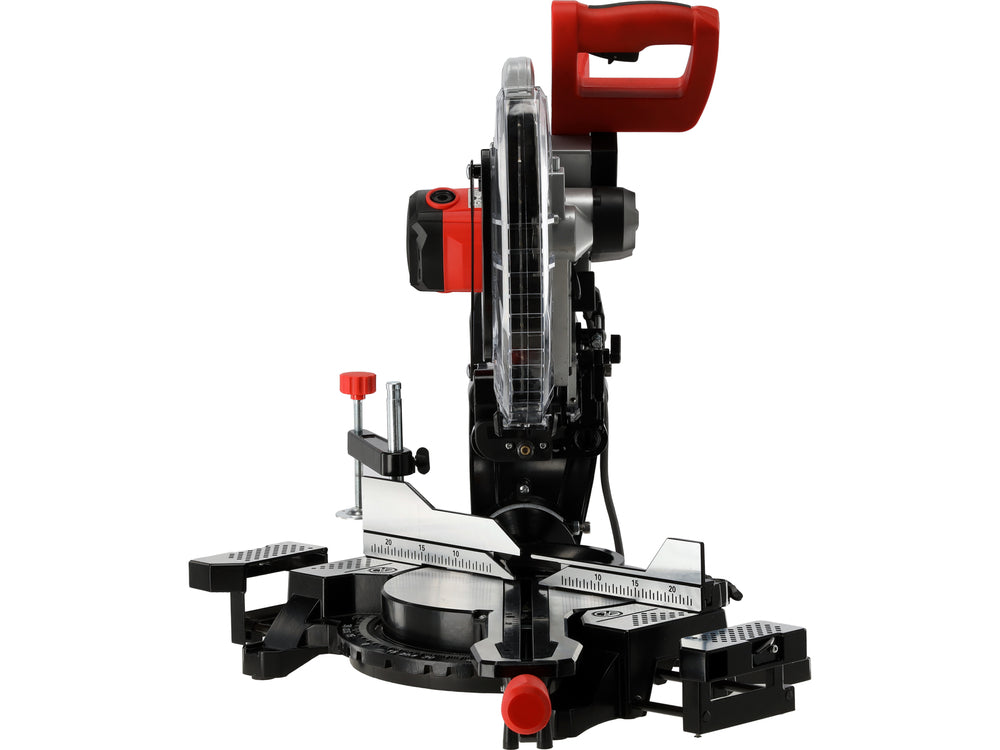

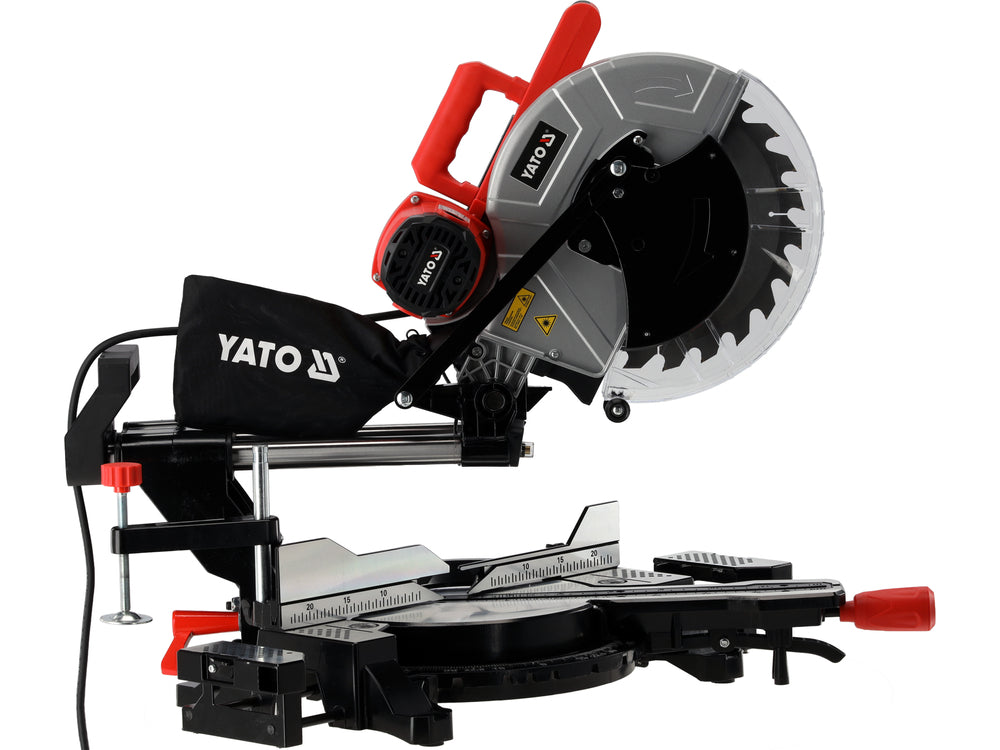

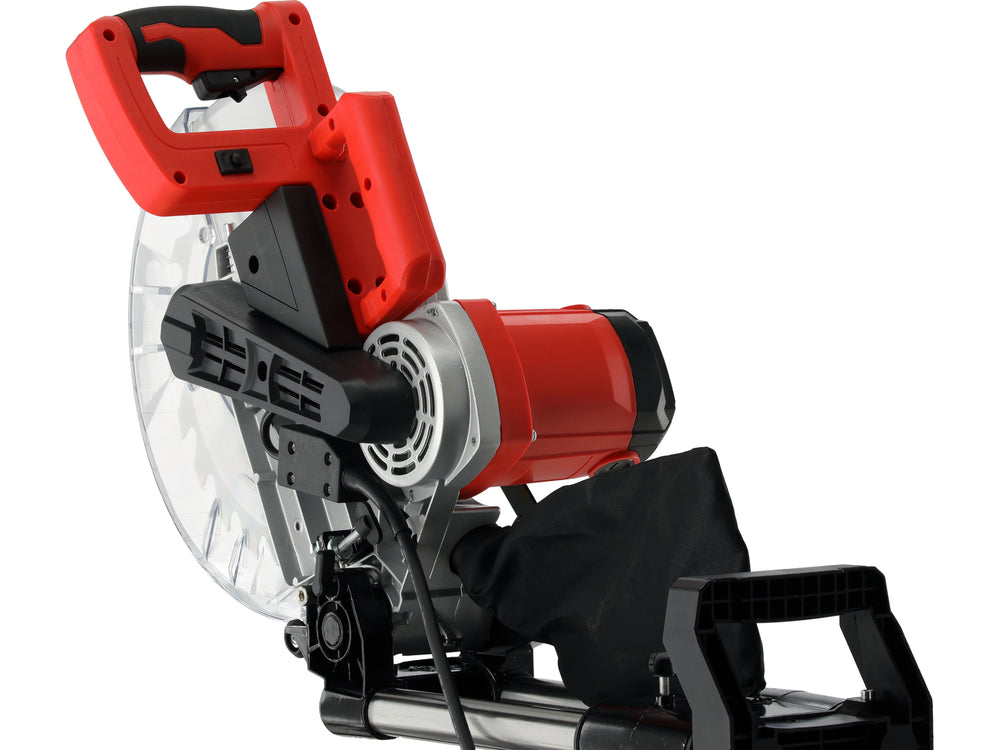

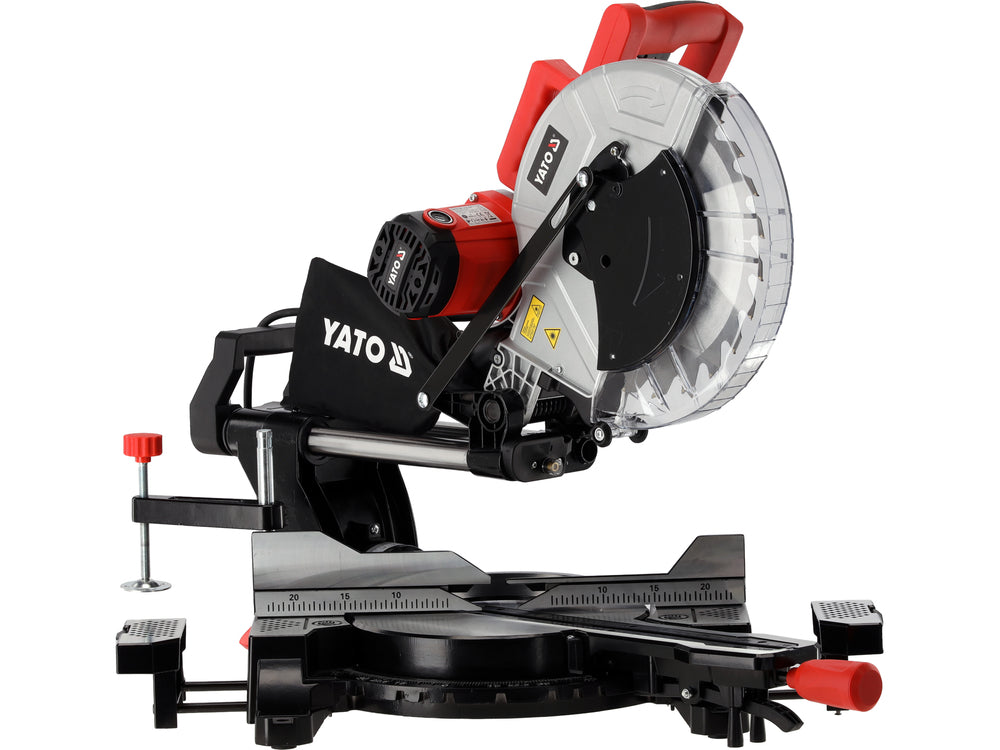

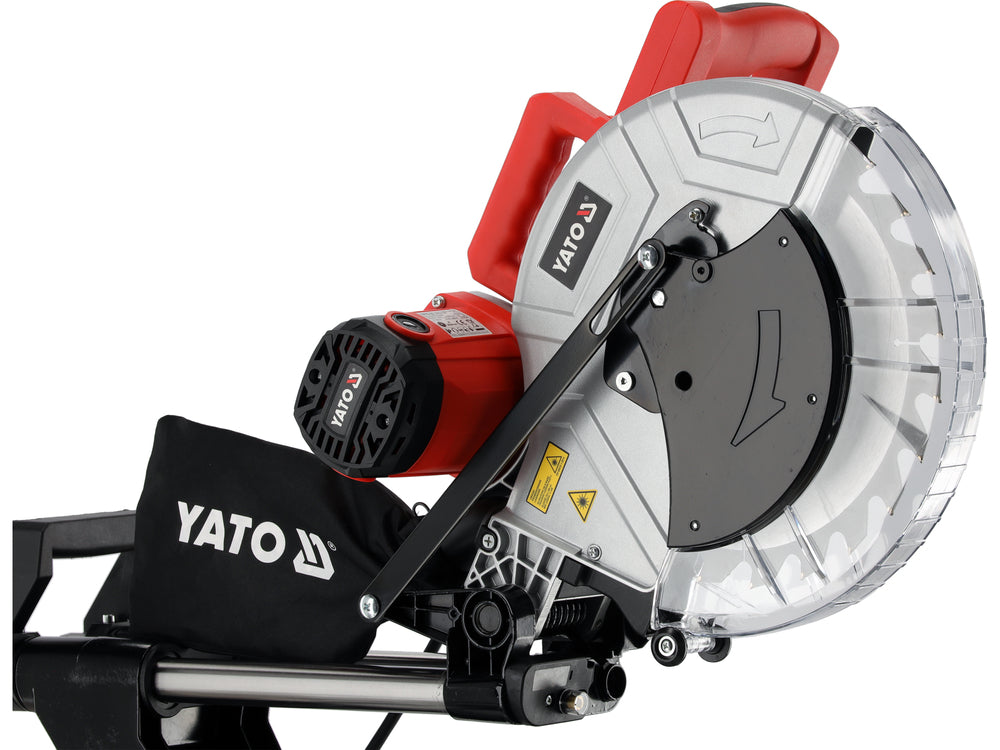

MITRE SAW WITH LASER | 2000 W | Ø305 MM | DOUBLE-BEVEL HEAD | SLIDING HEAD (YT-82176)

The YT-82176 miter saw is designed for precise and repeatable cutting of wood and wood-based materials during carpentry, assembly, and finishing work. Its large 305 mm diameter blade, wide adjustment range, and guide-guided head enable efficient processing of workpieces with larger cross-sections and lengths. Designed for straight, miter, and double-angle cutting, the saw allows for complex angled joints requiring high accuracy.

A powerful 2000 W motor and a stable operating system ensure smooth blade guidance during intensive workshop and assembly work. A rotating worktable with a clear angle scale, a feed lock option, and a laser cutting line indicator increase material positioning precision and facilitate serial cuts at a preset angle.

Key Features and Parameters:

Belt Drive
Maximum Power: 2000 W
Speed: 3800 rpm
Saw Blade: 305 x 30 x 2.8 mm
Included Blade: 24 T
Mitre Cutting Range: -45 to +45
Head Tilt: 45 on Both Sides
3 m Power Cord
Insulation Class: II
Device Weight: 20.7 kg
Maximum Cutting Range:

105 x 330 mm Straight Cut 0 / 0
105 x 230 mm Mitre 45 / 0
60 x 330 mm 45 Left Bevel
60 x 230 mm 45 Left Bevel + 45 Left Bevel
35 x 330 mm 45 Right Bevel Right
35 x 230 mm 45 miter + 45 tilt to the right
Design and functionality:

Sliding head on guides for cutting wide workpieces
Feed lock option for standard cuts without head movement
Rotating worktable with ratchets for standard angle settings
Laser cutting line indicator for increased material guidance
Two-sided head tilt system for complex angle cuts
Table extensions for improved support of long workpieces
Material clamp stabilizes the workpiece during operation
Spindle lock for easy blade changes
Effective dust extraction system with the option of connecting a dust bag or external dust extractor
Ergonomic transport handle for easy portability
Standard equipment:

24T saw blade
Dust collection bag
Worktable clamp
Cutting head movement adjustment screws
Acoustic parameters:

Sound pressure level LpA: 95.2 3.0 dB(A)
Sound power level LwA: 108.2 3.0 dB(A)
The device is designed for intermittent operation at S6 40% duty cycle, making it ideal for intensive workshop work. Smooth head travel along guides allows for wide-width cuts, while the slide lock function provides increased control during precise cutting of shorter workpieces. The combination of high power and extensive adjustment options makes the YT-82176 model suitable for the production of carpentry units and the processing of structural components requiring precise material matching and a wide cutting range.
