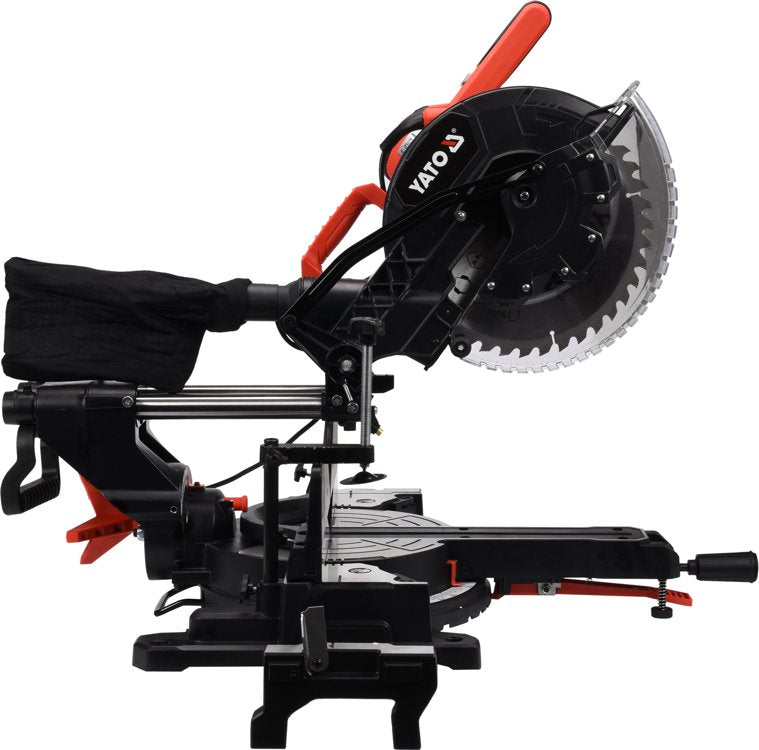

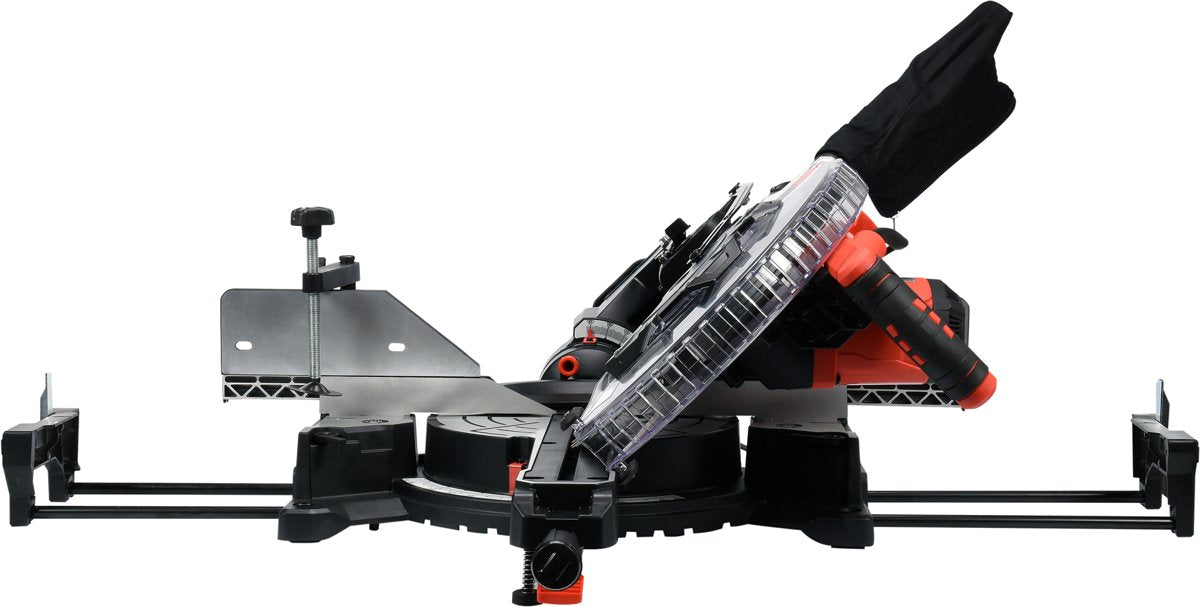

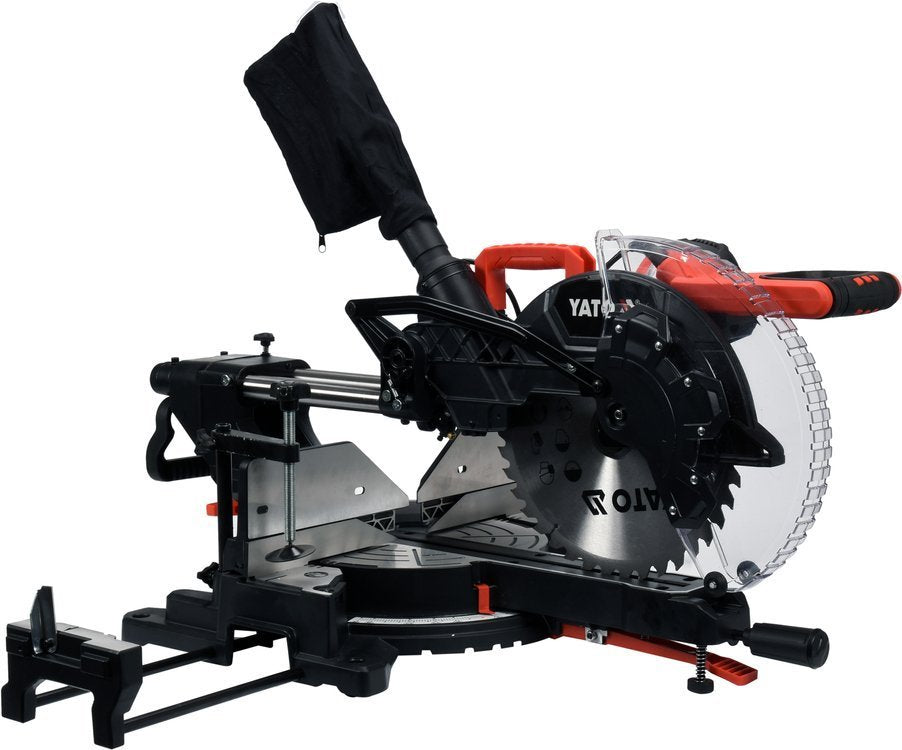

MITRE SAW 305MM 1800W WITH LASER (YT-82175)

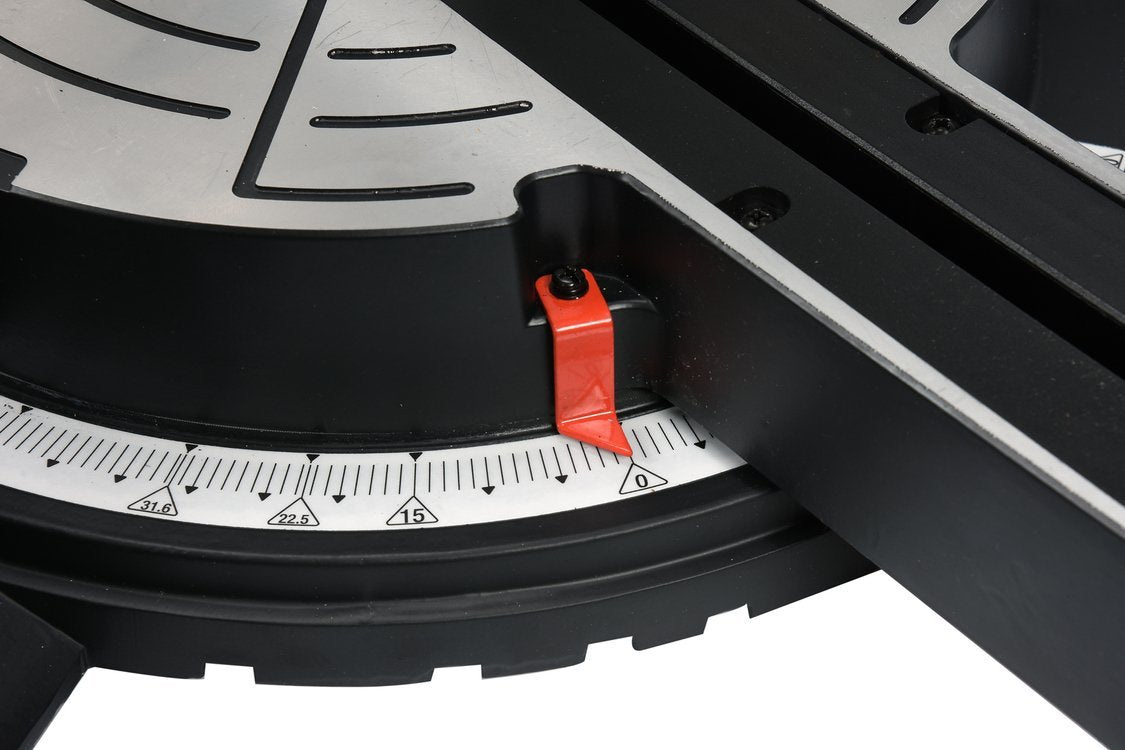

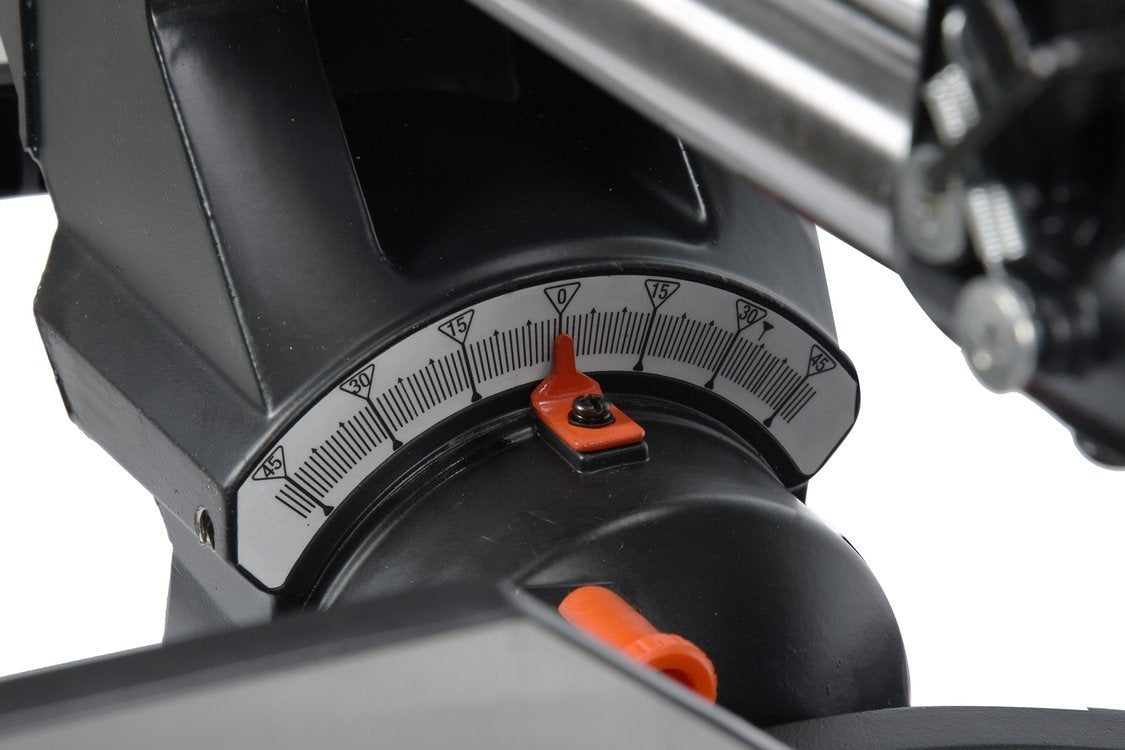

The YATO YT-82175 cross-cut saw is a multifunctional PRO class cutting tool designed for fast and precise cutting of large wooden workpieces, posts, beams, and similar materials. It features an integrated laser cutting line marker. The base is stable and flat with precise vertical and horizontal cutting angle adjustment. Side supports are provided for cutting long elements. Fast and secure clamping of the workpiece. Integrated dust extraction system.

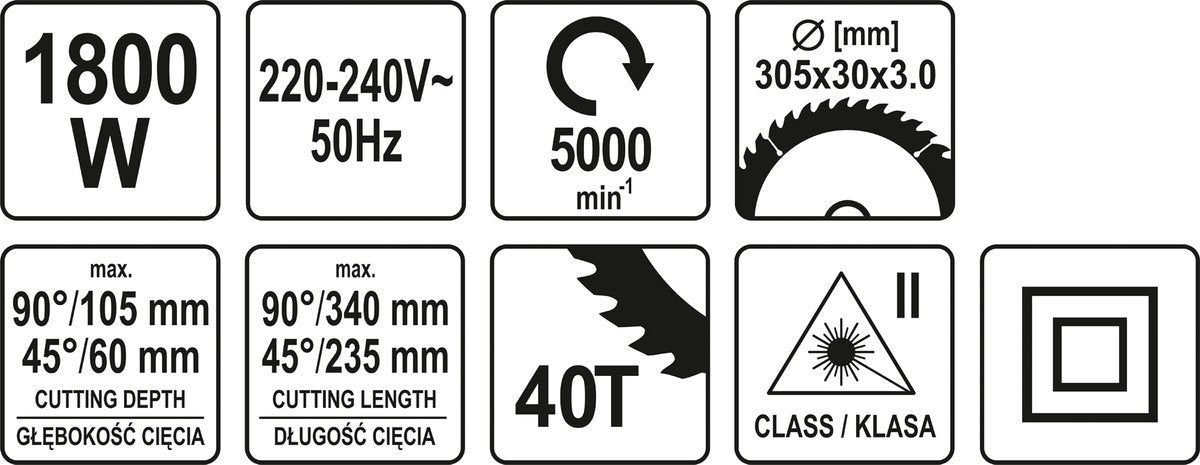

Nominal speed: 5000 min-1

Motor power: 1800W

Maximum cutting depth:

- 0° / 0°: 105x340mm

- 45° / 0°: 105x235mm

- 0° / 45°: 60x340mm

- 45° / 45°: 60x235mm

Saw blade dimensions: 40T 305x30x3.0mm

Minimum workpiece dimensions: 20x200x20mm

The YATO YT-82175 cross-cut saw complies with the following European standards: EN 62841-1:2015, EN 62841-3-9:2015 + A1:2017, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014 and EN 61000-3-3:2013, and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements, 2014/30/EU Electromagnetic compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

Model year: 2019

Total weight [kg]: 21.0

YATO YT-82175 user manual PDF
