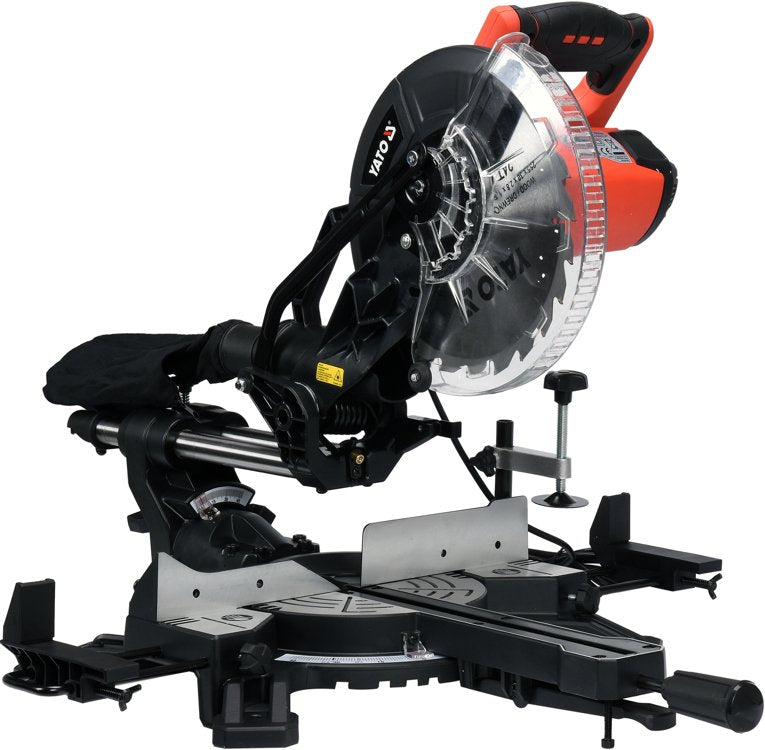

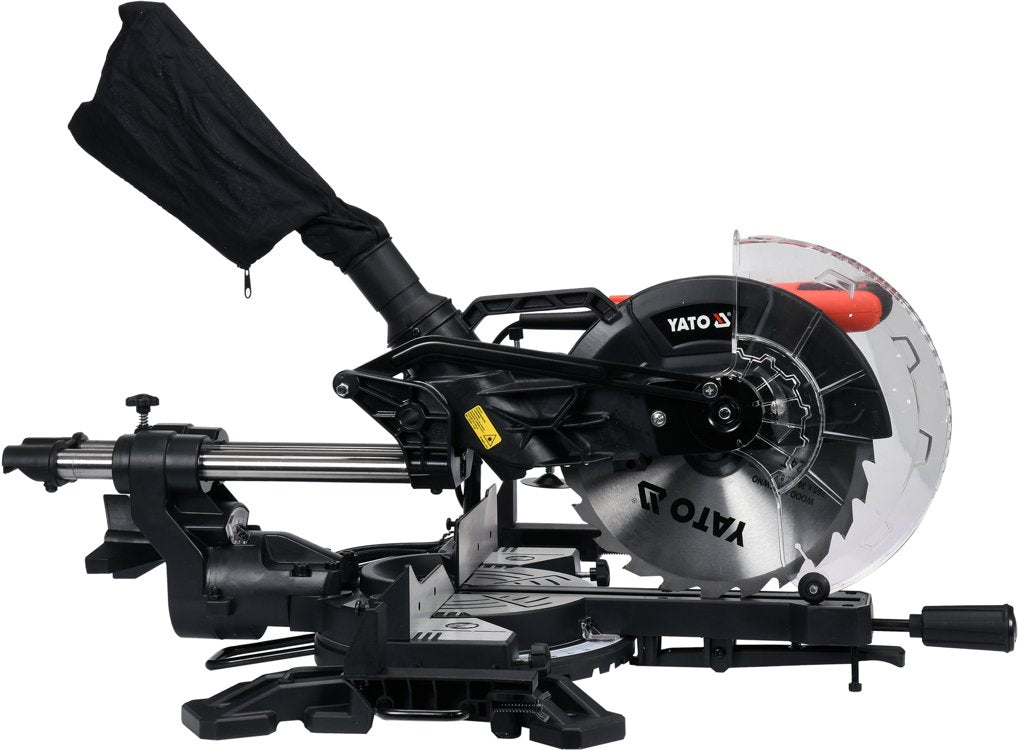

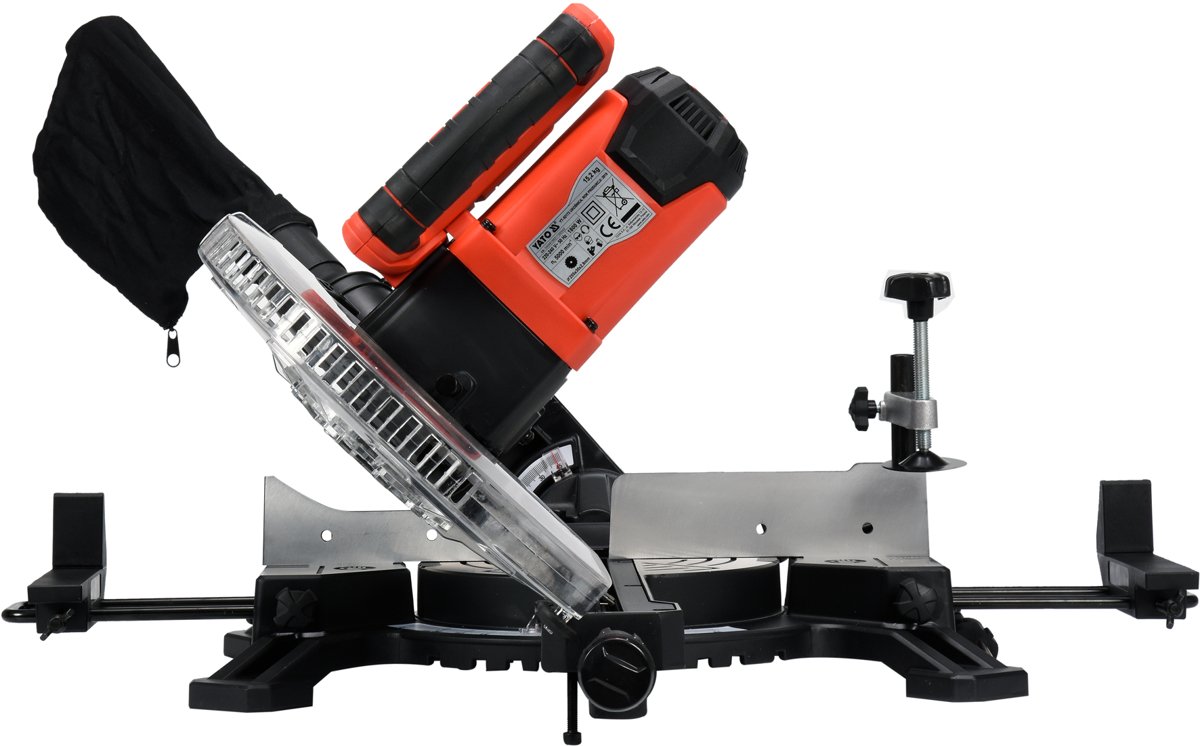

MITRE SAW 255MM 1800W WITH LASER (YT-82173)

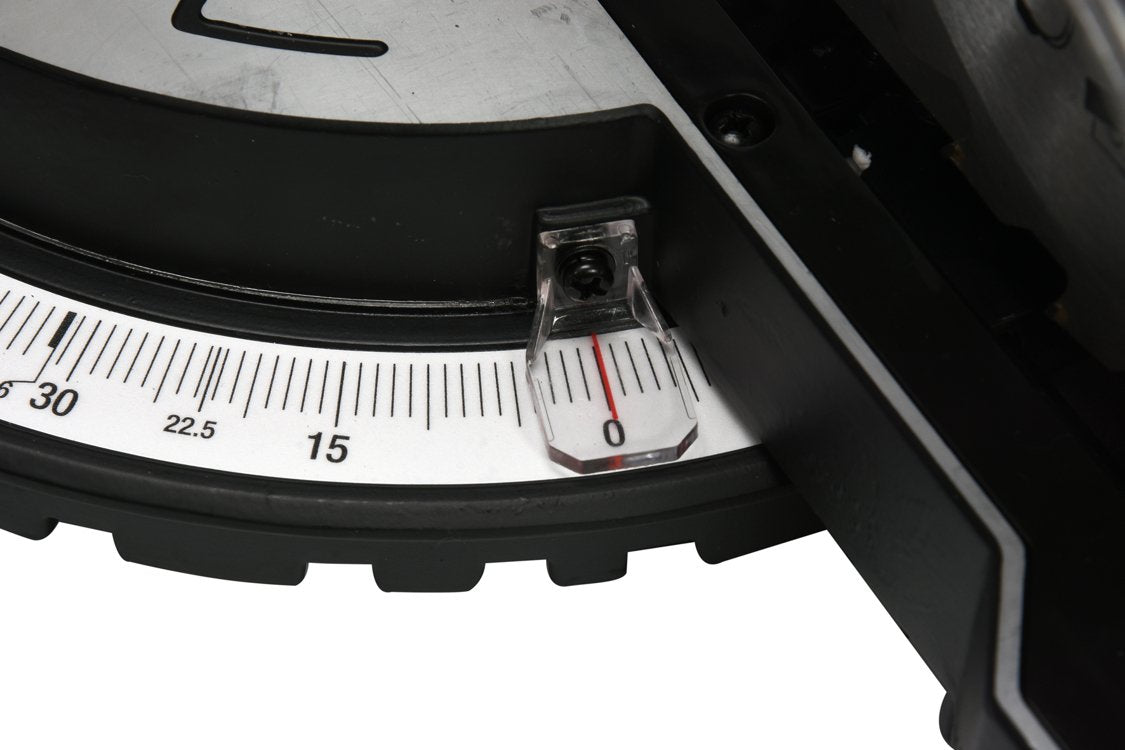

The YATO YT-82173 miter saw is a multifunctional PRO class cutting tool designed for fast and precise cutting of skirting boards, wood panels, parquet flooring, battens, and other similar materials. It features an integrated laser cutting line marker. It has a stable and flat base with precise vertical and horizontal cutting angle adjustment. Side supports are included for cutting long elements. It offers quick and secure workpiece clamping. An integrated dust extraction system is also included.

Nominal speed: 5000 min-1

Motor power: 1800W

Maximum cutting depth:

- 0° / 0°: 70x305mm

- 45° / 0°: 70x210mm

- 0° / 45°: 35x305mm

- 45° / 45°: 35x210mm

Saw blade dimensions: 24T 255x30x3.0mm

Minimum workpiece dimensions: 20x200x20mm

The YATO YT-82173 miter saw complies with the following European standards: EN 62841-1:2015, EN 62841-3-9:2015 + A11:2017, EN 55014-1:2006 + A1:2009 + A2:2011, EN 55014-2:2015, EN 61000-3-2:2014 and EN 61000-3-3:2013 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements, 2014/30/EU Electromagnetic compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

Model year: 2020

Gross weight [kg]: 15.2

YATO YT-82173 User Manual PDF
