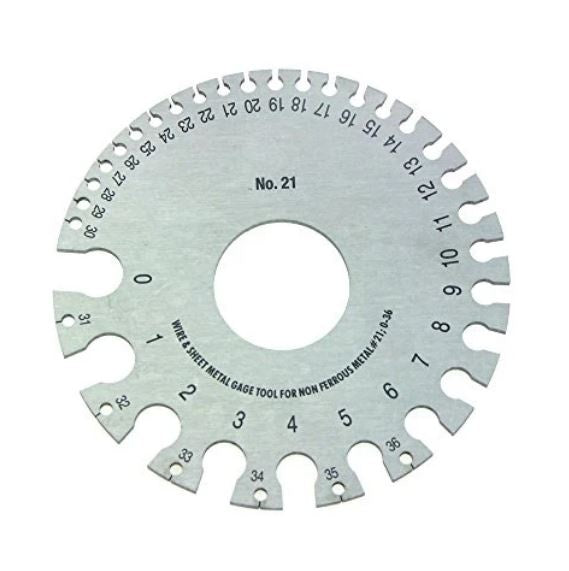

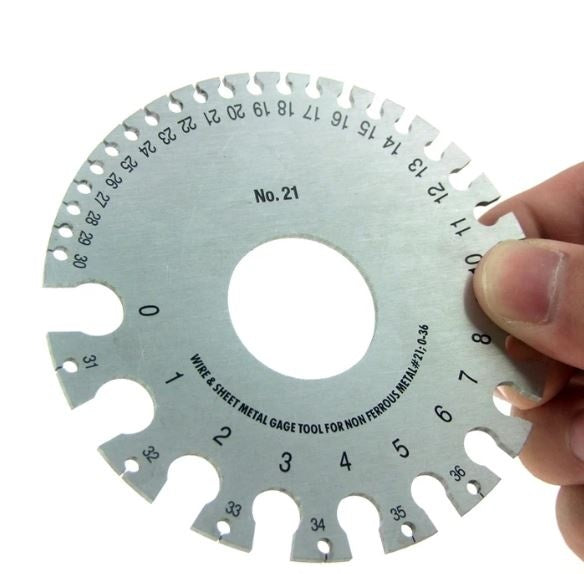

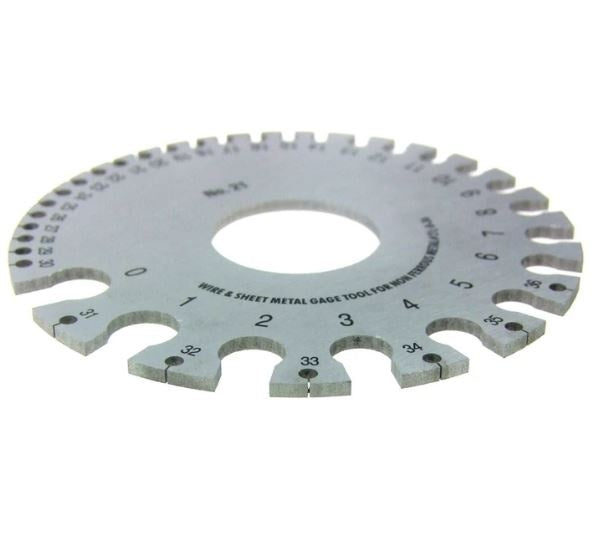

METAL PLATE THICKNESS / WIRE DIAMETER GAUGE (WG07)

This gauge is a boon for Wire manufacturers, Plate manufacturers, Fabricators, Traders, Students and Jewelers.
The preciseness of the dimensions has made wire gauge a very popular Measuring Tool among Jewelers.
Wire Gauge is a very handy and day to day usage precise tool to measure thickness of Metal Plate or Dia of a Wire.

Type: Wire & Sheet Metal Gage
For use with: sheets. wire. plates of non ferrous metal such as brass. copper. aluminum
American standard size: #0-#36
Maximum Size (wire): #0 (.3125")
Minimum Size (wire): #36 (.007")
Diameter: 3-1/4"
Product application

For gaging ferrous metal such as copper. brass. aluminum.
Product features

Made of hardened steel heavy gage
Satin chrome finish
Laser marks of gage size on front and decimal equivalent on back side

Specifications

Wire Gauge Sizes: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36

Decimal Equivalents: .005", .0056, .0063, .007, .008, .009, .010, .011, .012, .014, .016, .018, .020,
.022, .025, .028, .032, .036, .040, .045, .051, .057, .064, .072, .081, .091, .102,
.114, .128, .144, .162, .182, .204, .229, .257, .289, .325
