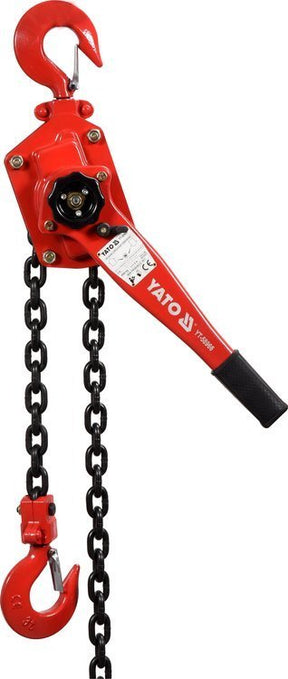

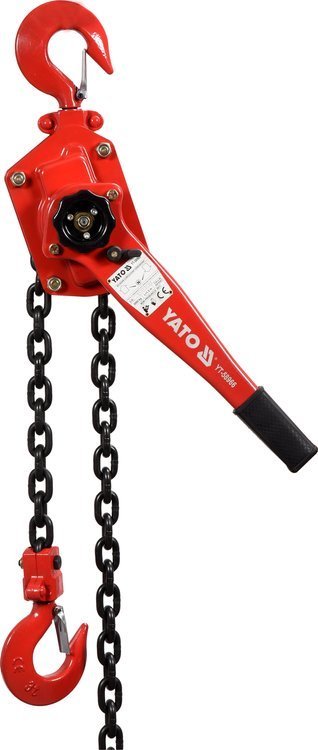

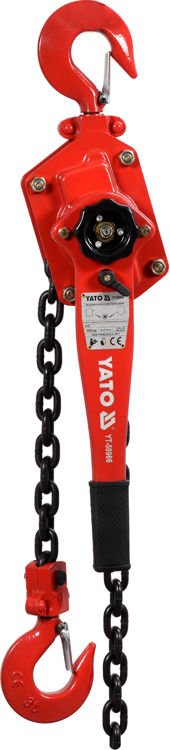

LEVER BLOCK 3 T (YT-58966)

A NEW LINE OF YATO CHAIN LEVER HOISTS.
Yato chain hoists are designed for intensive use
in industrial conditions in manufacturing and transport enterprises, shipyards, mines and warehouses.
They allow lifting heavy loads, structural elements, machine foundations, as well as pre-tensioning ropes and effectively securing heavy loads.
Hoists are equipped with hooks of a special design to increase work safety. The lifting height is 1500 mm.
The new line of hoists is distinguished by a compact, all-steel, damage-resistant, anti-corrosive construction.
The precise lever mechanism minimizes the force required to lift loads.
The complete product line includes lever hoists with a lifting capacity from 750 kg - 9 tons ...
Detailed data available in the technical documentation of the devices.
Hoists are serviced during and after the warranty.
Manual hoists with a lifting capacity exceeding 2000 kg are subject to notification and approval by the Office of Technical Inspection.
Purpose / Application
For lifting heavy loads, stretching, positioning.
Usage
Please read the operating instructions before use.
Technical data
Index number YT-58966
EAN 5906083012556
Brand Yato
Gross weight (kg) 19.0000
Master Carton MC 1
Pal 32
Lifting capacity [kg] 3000
Lifting height [m] 1.5
Load capacity [kg] 3,000
