LED MULTI-FUNCTION TORPEDO LEVEL (YT-30340)

Brand
Yato
Symbol
YT-30340
Series
GRE
Dimensions
230x20x47mm
Material
ABS, aluminum
Vials
2
Laser
Yes
Laser class
2
Laser wavelength
630-670nm
Laser indication type
linear
Laser pointer color
red
Operating temperature range
10~40 C
Storage temperature
0~50 C
Power supply
rechargeable
Magnet
YES
Length
230mm
Weight
200 g
Display type
LED
Battery capacity
300 mAh
Laser accuracy
3mm/0.5-20m
Laser power
1 mW
Functions
distance measurement (single, continuous), vertical or horizontal marking, level illumination
Number of magnets
3
Battery voltage
3.7 V d.c.
Battery type
Li-Ion
Charger
USB Type-C
Working range
10 m
Battery energy
1.11 Wh
Automatic shutdown
3 min

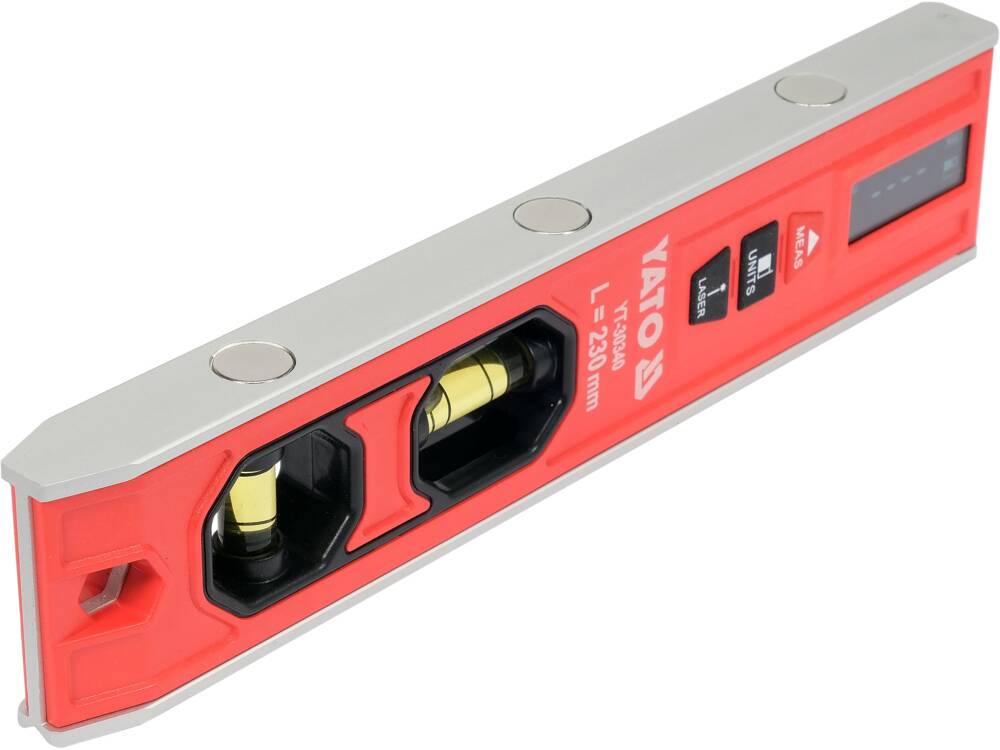

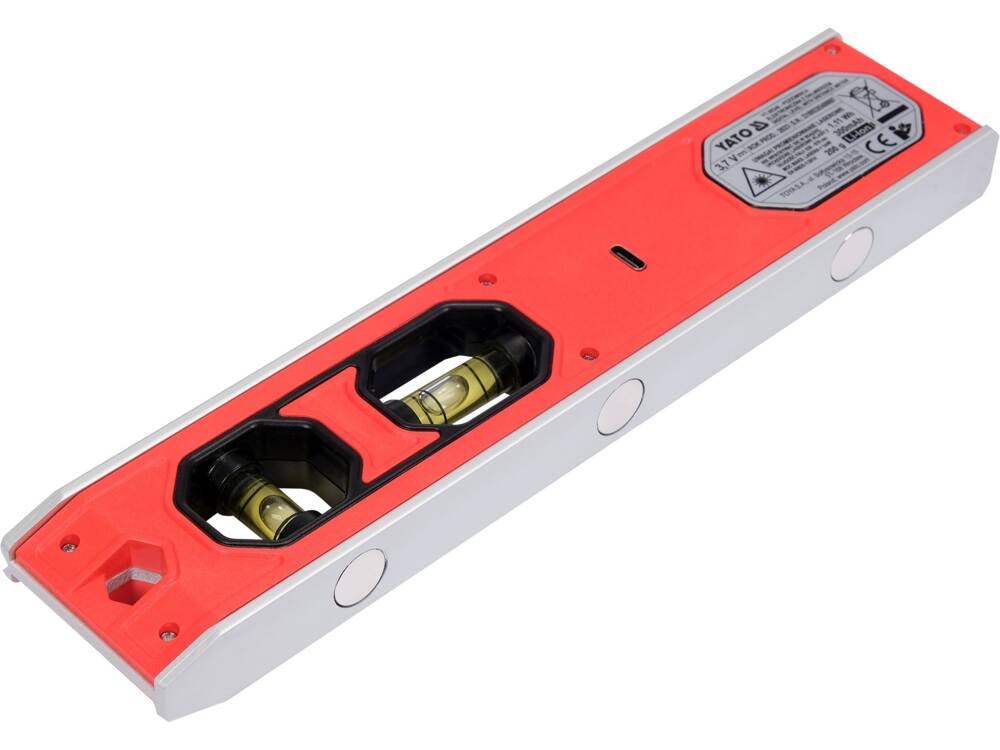

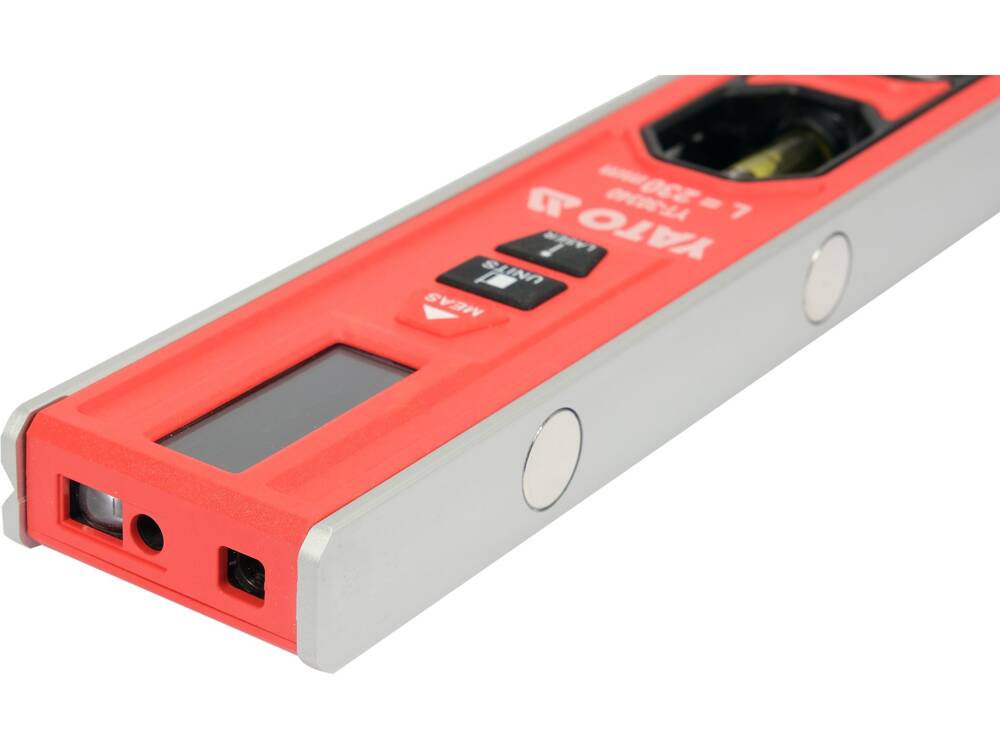

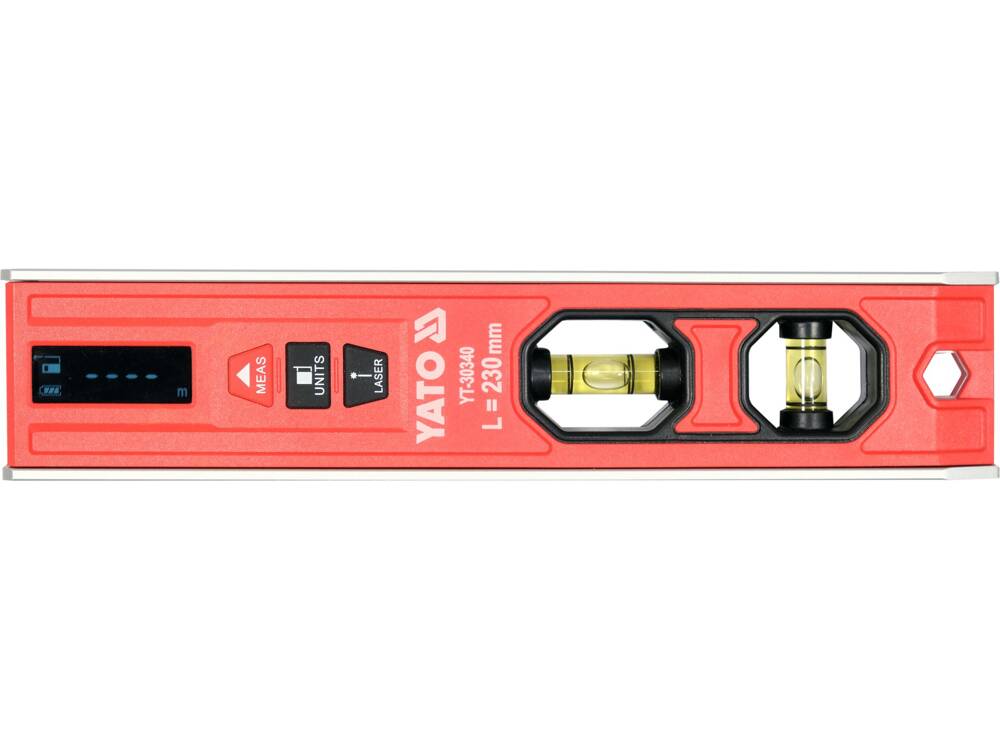

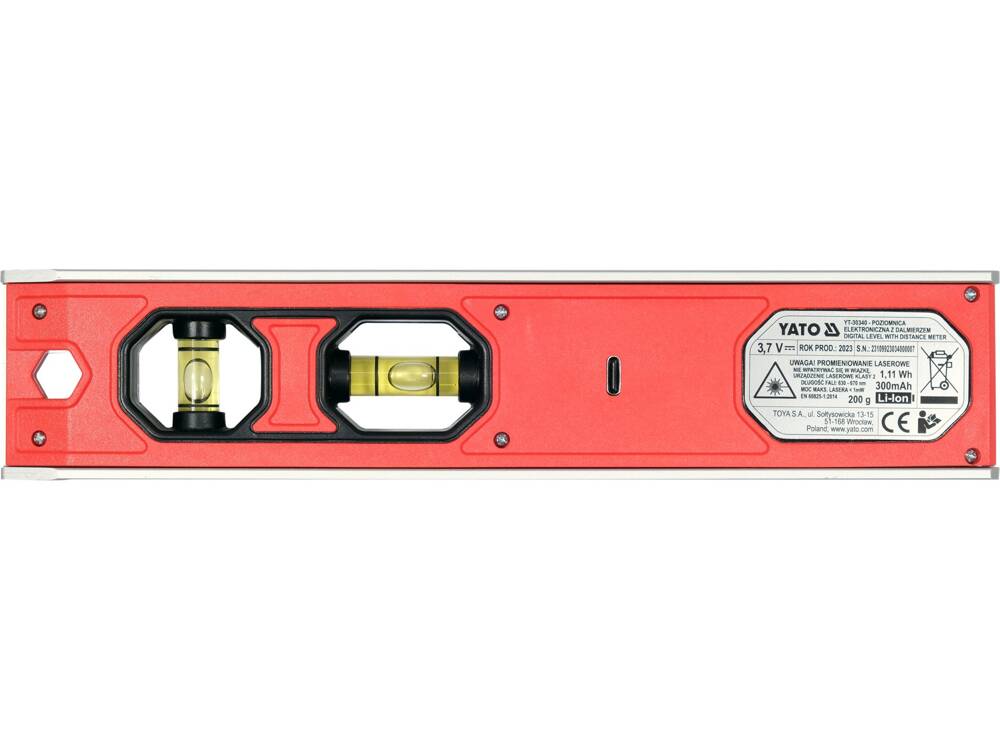

Electronic torpedo level 230 mm with a laser, used for measuring distances and determining horizontal or vertical lines. The rangefinder can operate in stationary or dynamic mode (distance change during measurement). It can measure from the front or back edge. Results are displayed on the LCD screen. A groove (prism) is cut into the top surface of the housing. The spirit level has two glass vials that can be illuminated independently. There are 3 strong magnets mounted in the base. Body made of aluminum profile, housing made of ABS.

laser accuracy: 3 mm / 0.5-20 m
laser: class 2, red color
automatic shutdown after 3 minutes
operating temperature: 10 to 40 C
power supply: 300 mAh 3.7 V lithium batteries
dimensions: 230x20x47 mm
