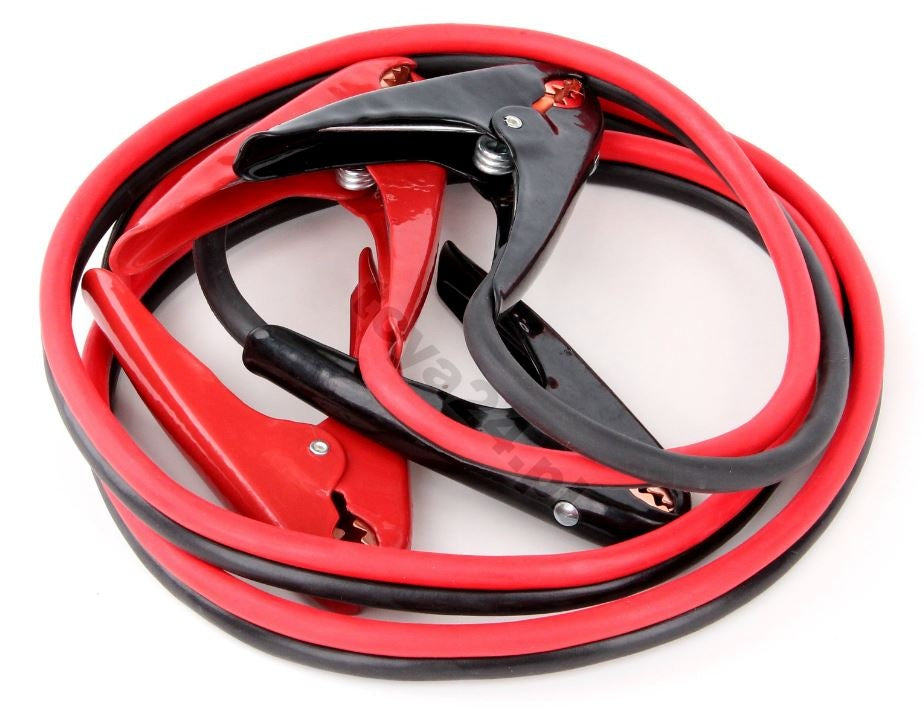

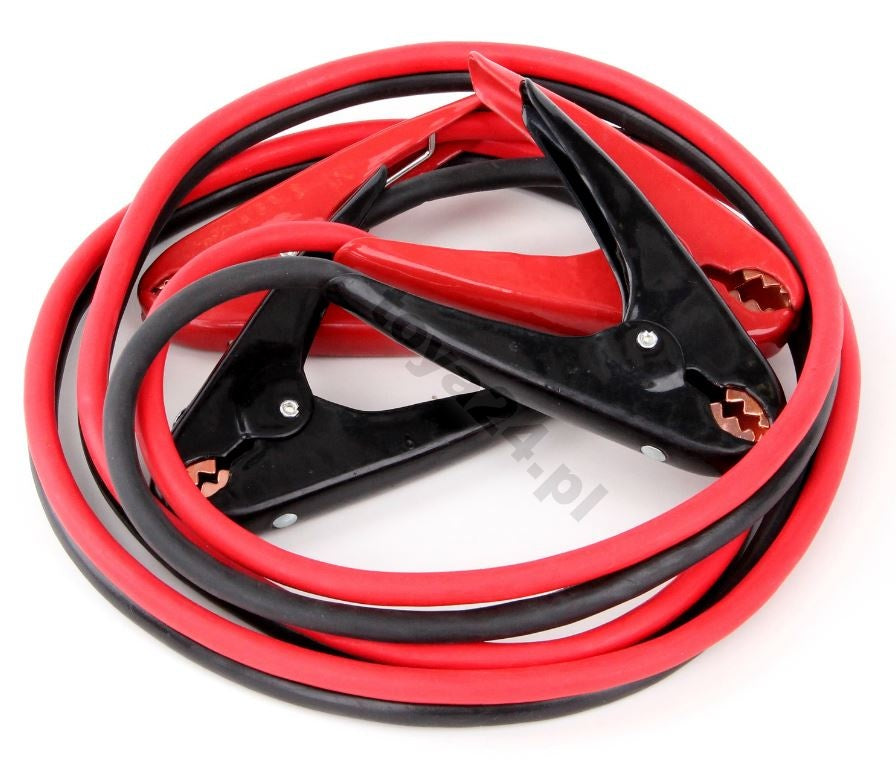

JUMPSTART WIRES 600A (YT-83153)

Number YT-83153
EAN 5906083831539
copper material
Weight (kg) 1.3
length (m) 2.5
insulation thickness 2mm
Current max. (A) 600

Product description
Wires made of copper wire, which guarantees high conductivity and flexibility even at the lowest cross-sections. Cable insulation made of rubber retains high flexibility at low temperatures and perfectly dissipates heat. The cables have been placed in a case that facilitates transport and storage.
Purpose / use
For emergency engine starting from an external battery.
Technical data
Index number YT-83153
EAN 5906083831539
Brand Yato
unit KPL
Gross weight (kg) 1.4500
Master Carton MC 12
Pal 216
length 2.5
Nominal load [A] 600

AMPERAGE: 600A; DIAMETER OF EACH WIRE: 0.32; NUMBER OF WIRES: 235; OUTER DIAMETER: OD 10.5; LENGTH: 2.5M; 300A: VOLTAGE DROP 1.5V, 500A: VOLTAGE DROP 2.5V, 600A: VOLTAGE DROP 3.5V; CUT AREA OF EACH WIRE: 18.5MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 20MM2
