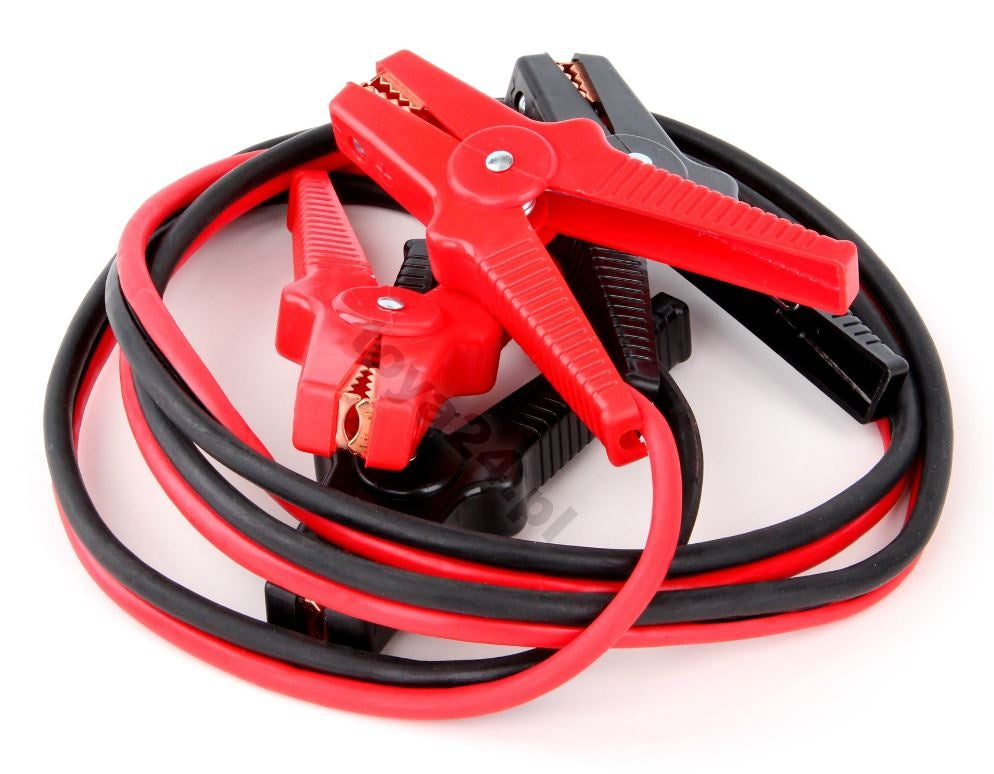

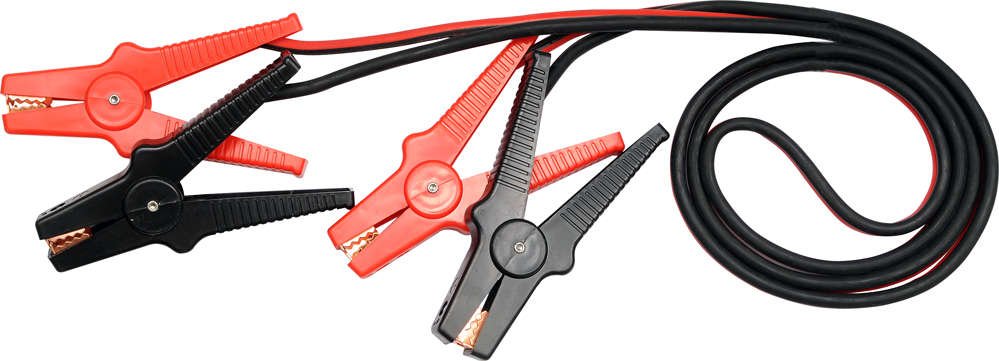

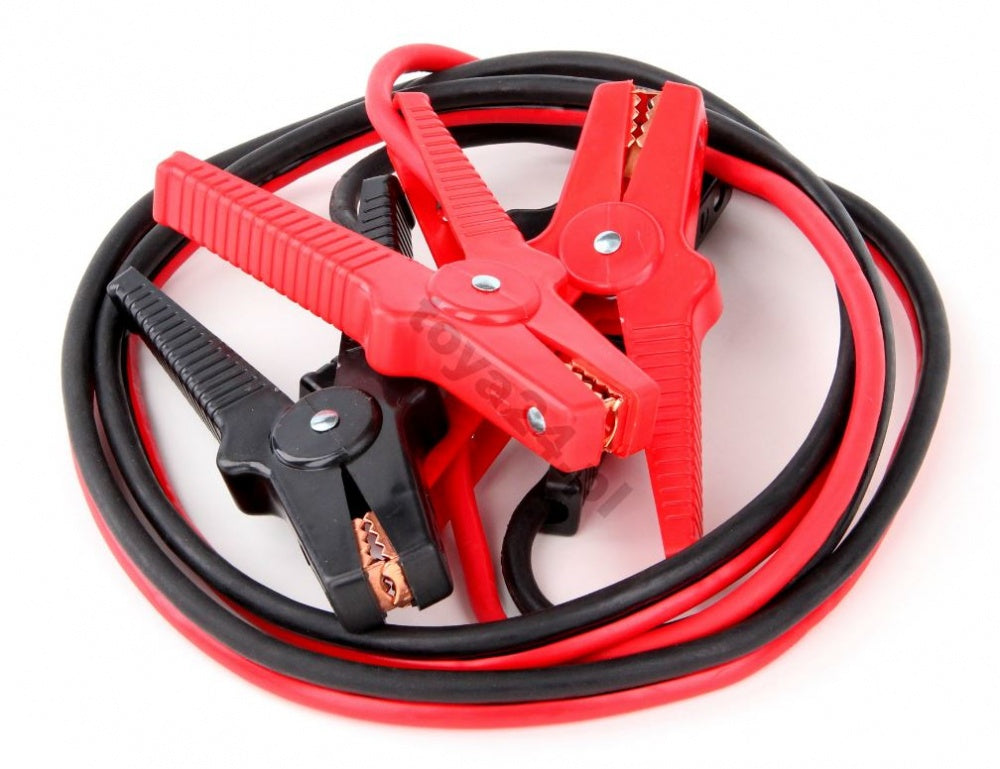

JUMPSTART WIRES 400A (YT-83152)
€1249
€1369
Unit price
Tax included, shipping calculated at checkout.
JUMPSTART WIRES 400A (YT-83152) is backordered and will ship as soon as it is back in stock.
Description
Description
Item number YT-83152
EAN 5906083831522
material copper
Current max. (A), 400A
AMPERAGE: 400A; DIAMETER OF EACH WIRE: 0.3; NUMBER OF WIRES: 120; OUTER DIAMETER: OD 9; LENGTH: 2.5M; 200A: VOLTAGE DROP 1.5V, 300A: VOLTAGE DROP 2.5V, 400A: VOLTAGE DROP 3.5V; CUT AREA OF EACH WIRE: 8.5MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 12MM2
EAN 5906083831522
material copper
Current max. (A), 400A
AMPERAGE: 400A; DIAMETER OF EACH WIRE: 0.3; NUMBER OF WIRES: 120; OUTER DIAMETER: OD 9; LENGTH: 2.5M; 200A: VOLTAGE DROP 1.5V, 300A: VOLTAGE DROP 2.5V, 400A: VOLTAGE DROP 3.5V; CUT AREA OF EACH WIRE: 8.5MM2;
THICKNESS OF INSULATION: > 2MM; CONNECTION BETWEEN THE CONNECTOR AND WIRE WITHSTAND A PULLING WITH FORCE 100N MIN; TEMPERATURE RANGE: -40OC +100OC; CONDITIONING IN EACH TERMINAL TEMPERATURE FOR A 4 HOURS; WIRE CUT: 12MM2
