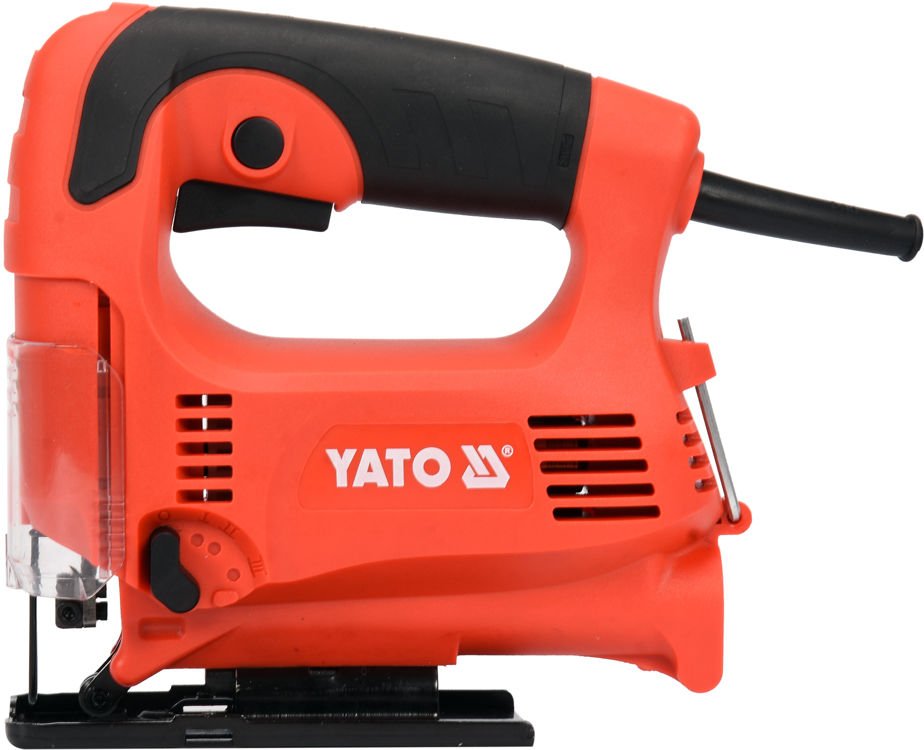

JIG SAW 450W LOW-VIBRATING (YT-82274)

The YATO YT-82274 electric jigsaw with a special vibration damping system is a reliable DIY+ class tool designed for cutting boards, chipboard, sheet metal, PVC, cellular polycarbonate, organic glass, and similar materials using appropriately selected saw blades. The tool is adapted for cutting round and irregularly shaped holes, notches, and long, straight cuts with perpendicular edges. Its compact size allows the tool to easily maneuver along the chosen line, and it is also well-controlled in hard-to-reach places. The foot is adjustable at a 45-degree angle in 4 positions. The YATO YT-82274 jigsaw has a four-level pendulum function, allowing the blade to move in an elliptical shape: level 0 is for rotary cutting, and levels I, II, III are responsible for straight-line cutting.

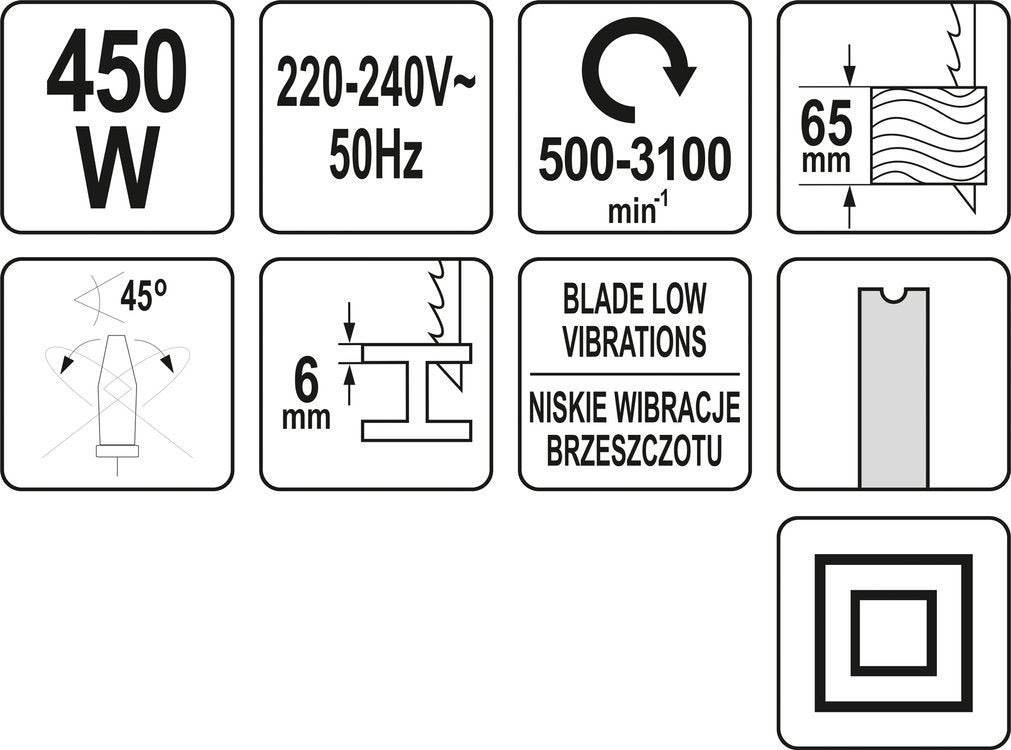

Nominal speed: 500-3100 min-1

Motor power: 450W

Maximum cutting depth:

- wood: 65mm

- polyethylene / polypropylene: 6mm

- metal: 6mm

The YATO YT-82274 jigsaw complies with the following European standards: EN 62841-1:2015, EN 62841-2-11:2016, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014 and EN 61000-3-3:2013 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements, 2014/30/EU Electromagnetic compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

Model year: 2020

Total weight [kg]: 2.0

YATO YT-82274 user manual PDF
