INTERCH.FORK SPRING COMPRESSOR /REM.TOOL (YT-2536)

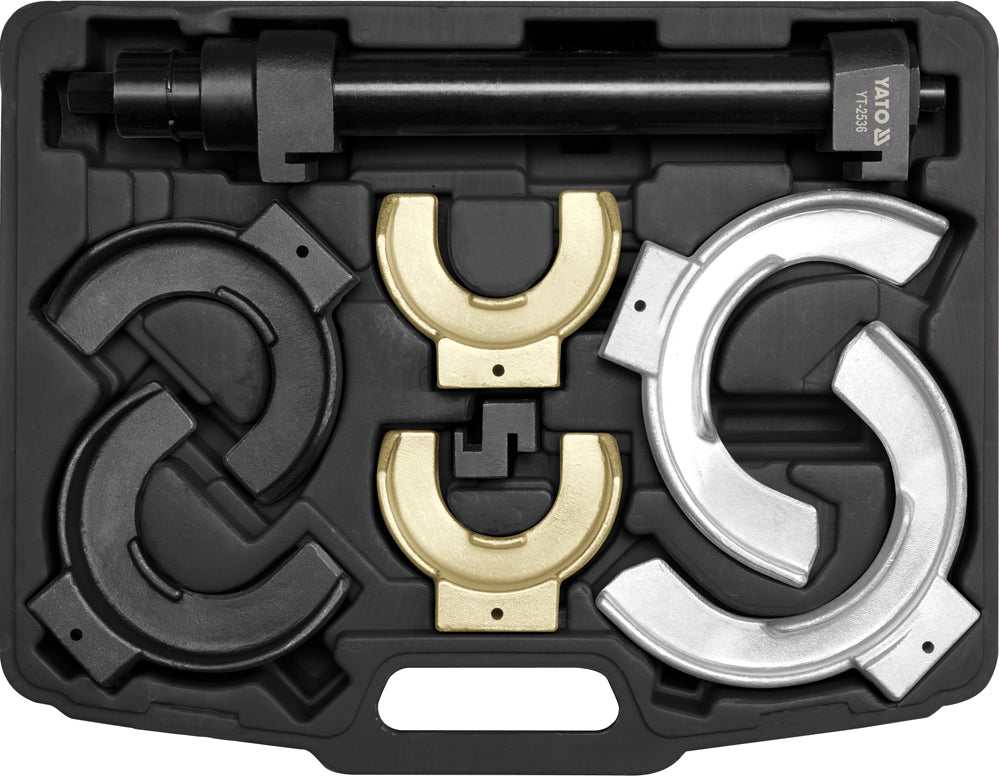

McPherson Professional spring pull cord with replaceable grips. 7-element set.
Destination / Application
Set for replacing the McPherson Suspension Suspension.
The puller has removable handles to handle springs with diameters from 65 mm to 212 mm.
Material: CrMo SCM415 alloy steel, phosphate surface.
Single-column puller with 45 mm pipe diameter.
Drive: 21 mm screw with fine-threaded trapezoid thread.
Three point, adjustable handles adapted to the curvature of the spring.

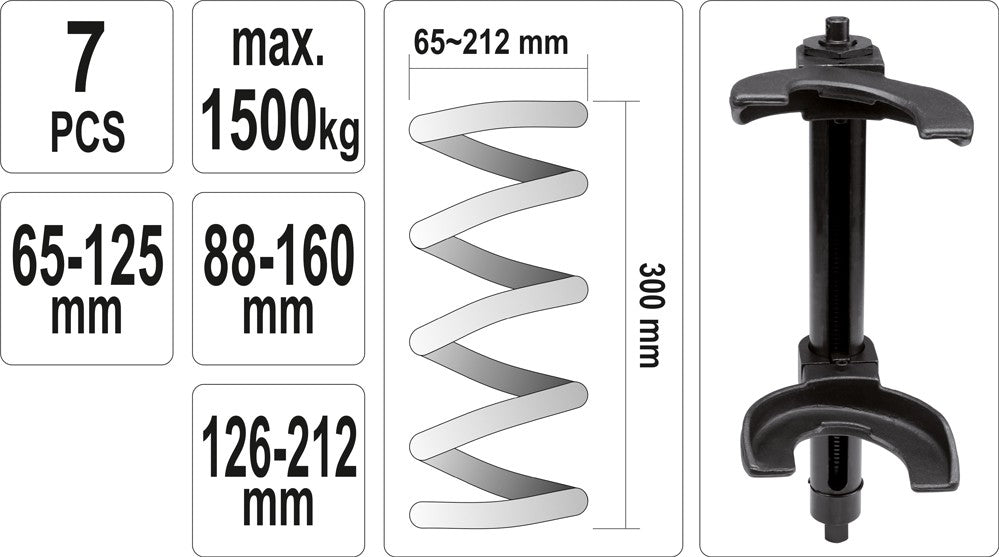

Adjustment range: 65 mm - 125 mm, 88 mm - 160 mm, 126 mm - 212 mm.
Overall length 400 mm (spring height 300 mm).
Maximum pulling force: 1500 kg.


Technical data
Index number YT-2536
EAN 5906083925368unit KPL
Gross Weight (kg) 15.8000
Master Carton MC 1
Number of arms 2
Size [mm] 65-212
Strength [kg] 1500
Length [mm] 400
Number of items 8
