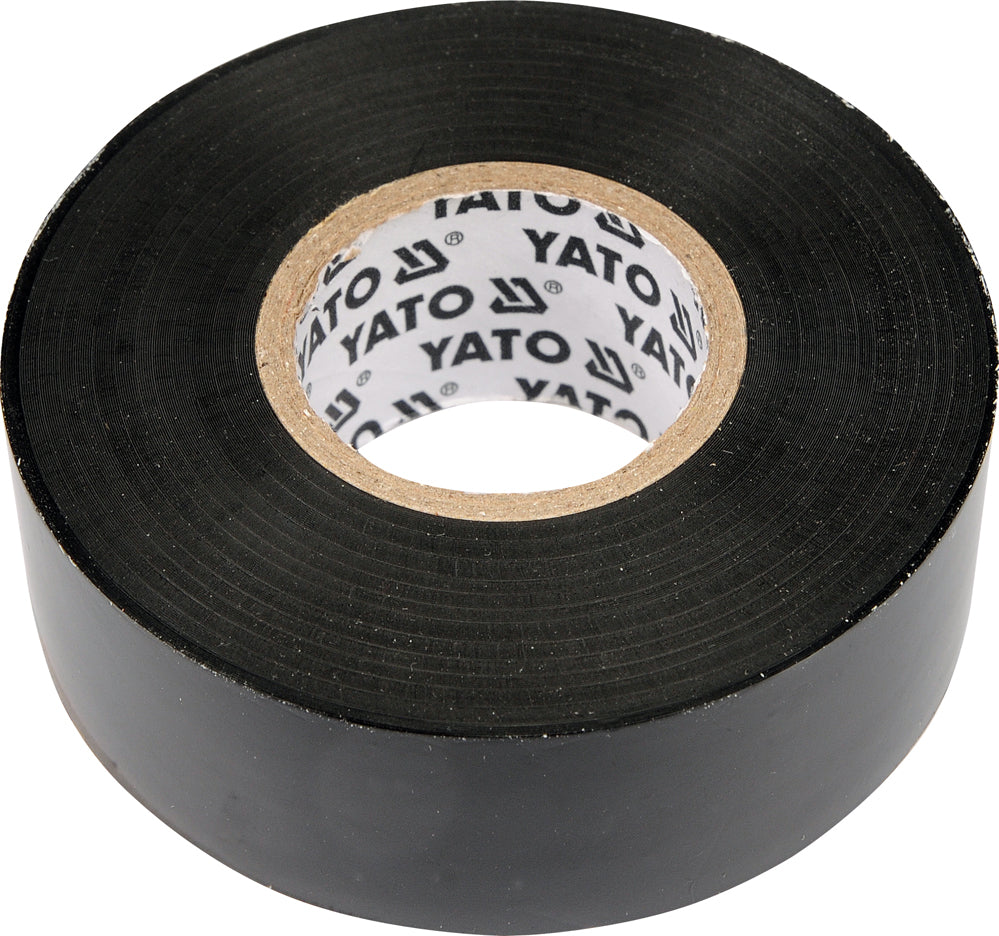

INSULATION TAPE 0.13MM 12MMX10M BLACK (YT-8152)

Numeris YT-8152
Bar kodas 5906083981524
PVC material + rubber
length (m) 10
width (mm) 12
quantity per package 96/384
Thickness (mm) 0.13
4000 V insulation
standard EN60454-3-1-1/F-PVC/60/R-Tp
Weight (g) 26

Product description
PVC insulating tape with dimensions 12mm x 10m x 0.13mm. Black Colour. Dielectric strength> 40kV / mm. Elongation> 125%. Storage temperature +10 ~ +40 degrees C. Temperature of use +5 ~ +50 degrees C. Highest quality resin according to EN60454-3-1-1 / F-PVC / 60 / R-Tp.
Application / Application
- Used primarily in electrical installation work in the construction and automotive industry, including: construction and maintenance of electrical installations - cable bundling - cable marking Protective functions: - against mechanical damage (abrasion, bending, etc.) - physical (UV radiation, processes aging - Chemical (water and various chemicals) - Corrosion - Fireproof
Technical data
Index number YT-8152
EAN 5906083981524
Brand Yato
PCS unit
Gross Weight (kg) 0.0280
Master Carton MC 384
Inner Box IB 96
Color Box AC 16
Pal 11520
Quantity [pcs] 1
Insulation 40 Kv / mm
Black Colour
PVC material
Length [m] 10
Thickness [mm] 0.13
Width [mm] 12
