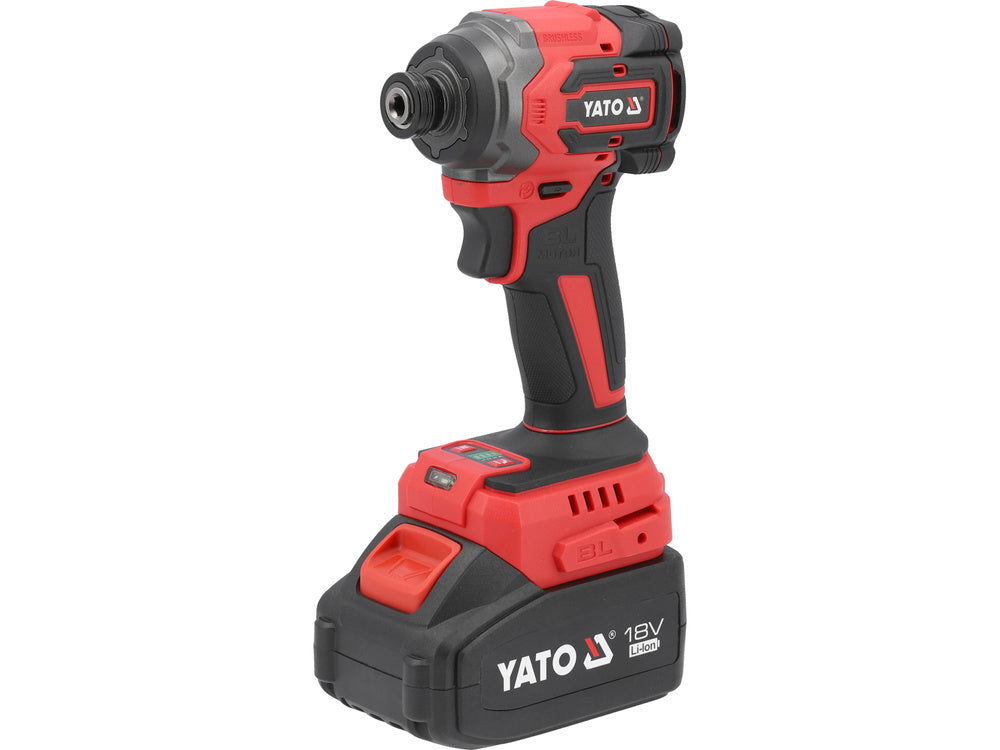

IMPACT SCREWDRIVER 18V HEX 230NM - 4AH (YT-82798)

The four-speed extremely powerful and compact 1/4" [6.35 mm] cordless impact driver YATO YT-82798 is a versatile portable DIY+ class tool, suitable for driving various screws and bolts, installing cable trays, working with HVAC systems, formwork, roofing, installation work, and the like. Suitable for driving M6-M14 screws.

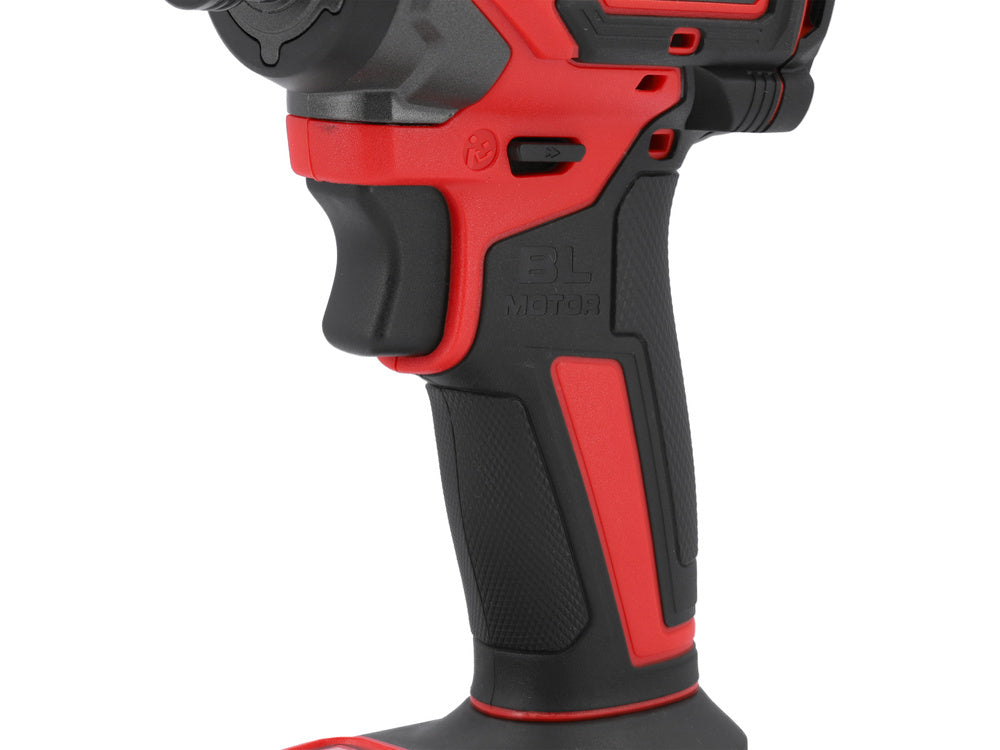

One of the main advantages of the YATO YT-82798 is its comfortable, extremely compact body, only 90 mm long, with an ergonomic, rubber-coated handle, which allows efficient work in hard-to-reach places and perpendicular screw driving. The four-position torque adjustment protects the user from screw breakage or overtightening. The spindle brake allows for quick bit changes.

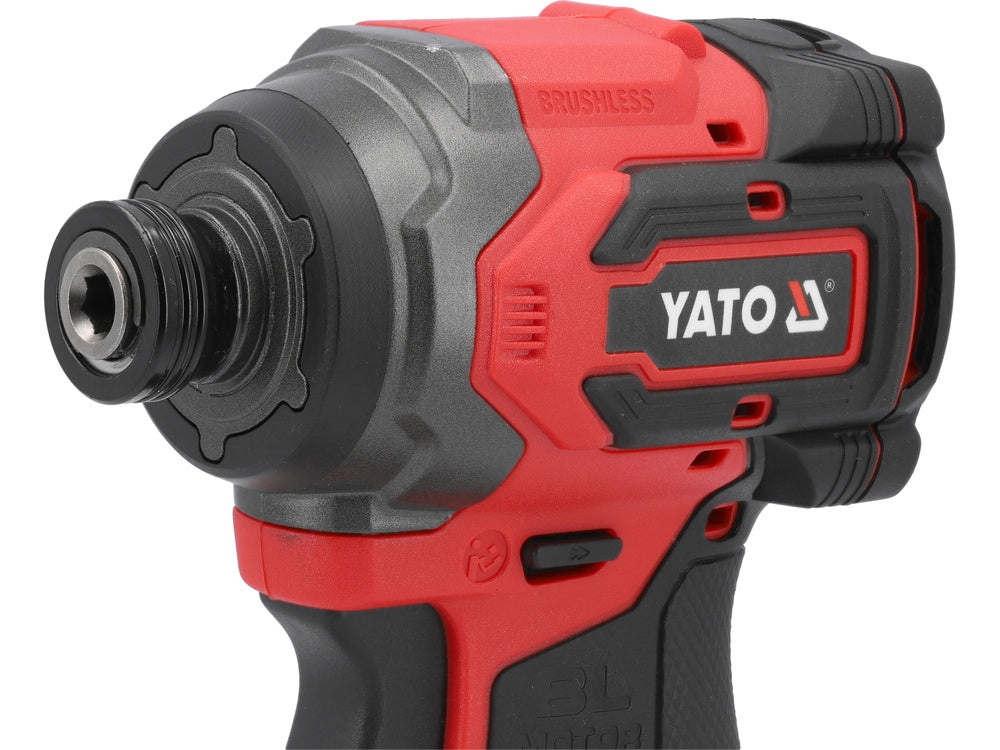

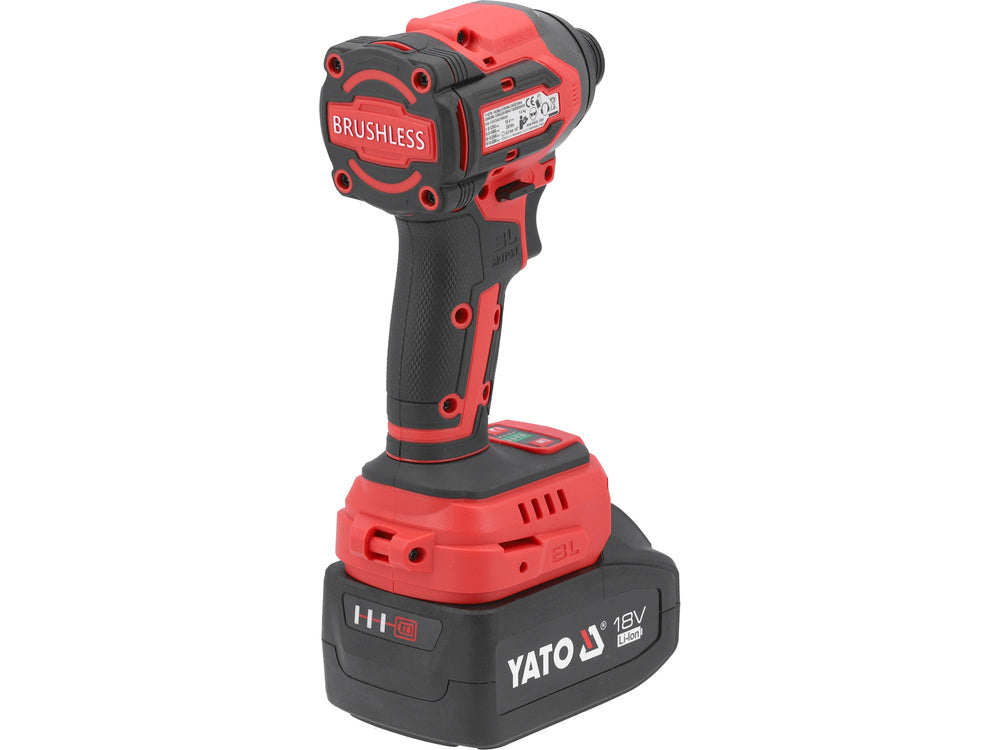

The tool is powered by a top-class brushless electronically commutated motor without carbon brushes [brushless]. The operating speed of the device is precisely controlled electronically. The tangential impact mechanism helps to distribute the impact force more evenly, not only improving driving power but also reducing wear on bits and screw heads, thus ensuring a longer service life for the tool and its accessories. In addition, the tangential mechanism prevents the bit from slipping out of the screw head. Such features are especially useful for heavy-duty tasks where precision and reliability are important.

Optimally distributed center of gravity.

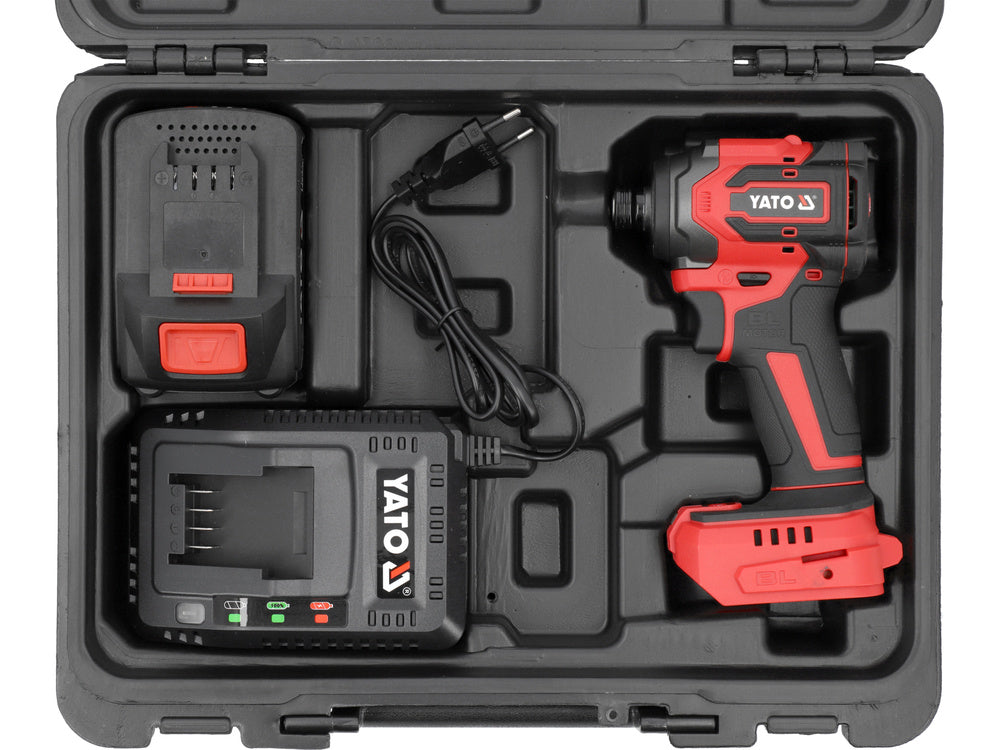

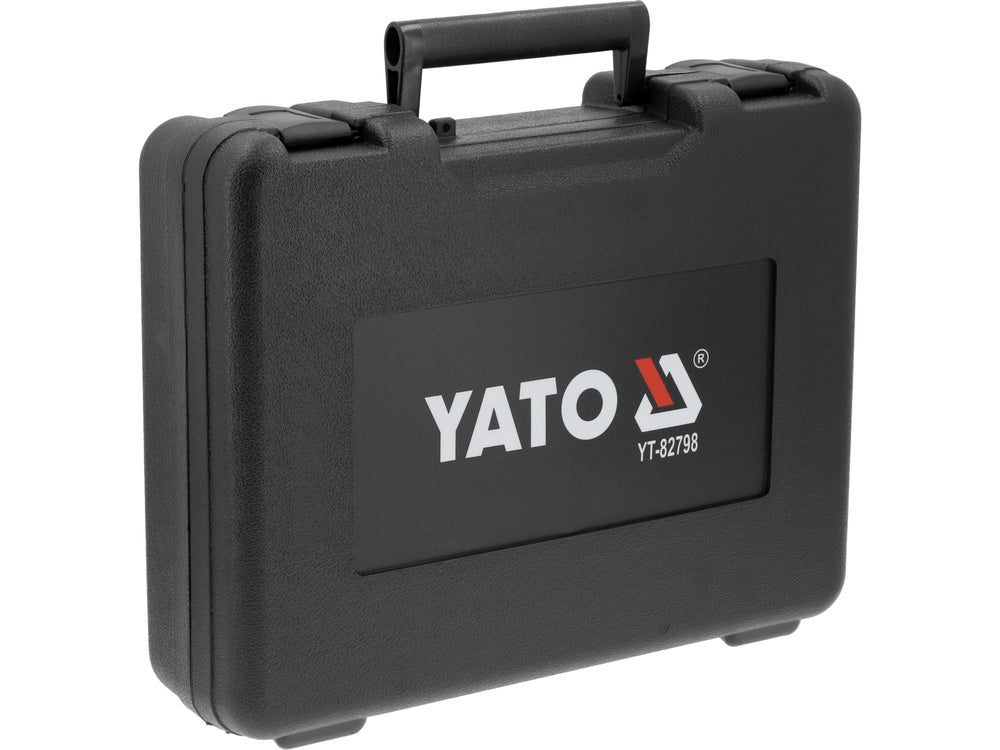

The tool comes in a sturdy branded YATO case.

Technical specifications:

operating voltage [V]: 18 DC

max torque. [Nm]: 230

revolutions [min⁻¹]: 0-1200 / 0-1900 / 0-2500 / 0-3200

impact frequency [min⁻¹]: 3000

acoustic pressure [dB]: 99.0 ± 3.0 dB(A)

acoustic power [dB]: 107.0 ± 3.0 dB(A)

vibration [m/s²]: 12.9 ± 1.5

battery capacity [Ah]: 4

charging time [min]: 120

battery type: Li-ion

chuck type: 1/4" [6.35 mm] HEX

impact mechanism: YES

electronic speed control: YES

spindle brake: YES

direction change switch: YES

workplace lighting: YES

electrical insulation class: III

degree of protection: IPX0

The YATO YT-82798 impact driver complies with the following European and international standards: EN 62841-1:2015 + A11:2022, EN 62841-2-2:2014, EN IEC 55014-1:2021 and EN IEC 55014-2:2021 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2014/30/EU Electromagnetic Compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

The product package includes a 4.0 Ah lithium-ion battery with a 4-level charge indicator and a fast charger, which will fully charge the battery in 120 minutes. YATO SYSTEM 18V universal batteries are suitable for all YATO tools of this series. The batteries have overheating protection.

model year: 2024

total weight [kg]: 1.0

YATO YT-82798 user manual PDF

YATO YT-82798 diagram PDF
