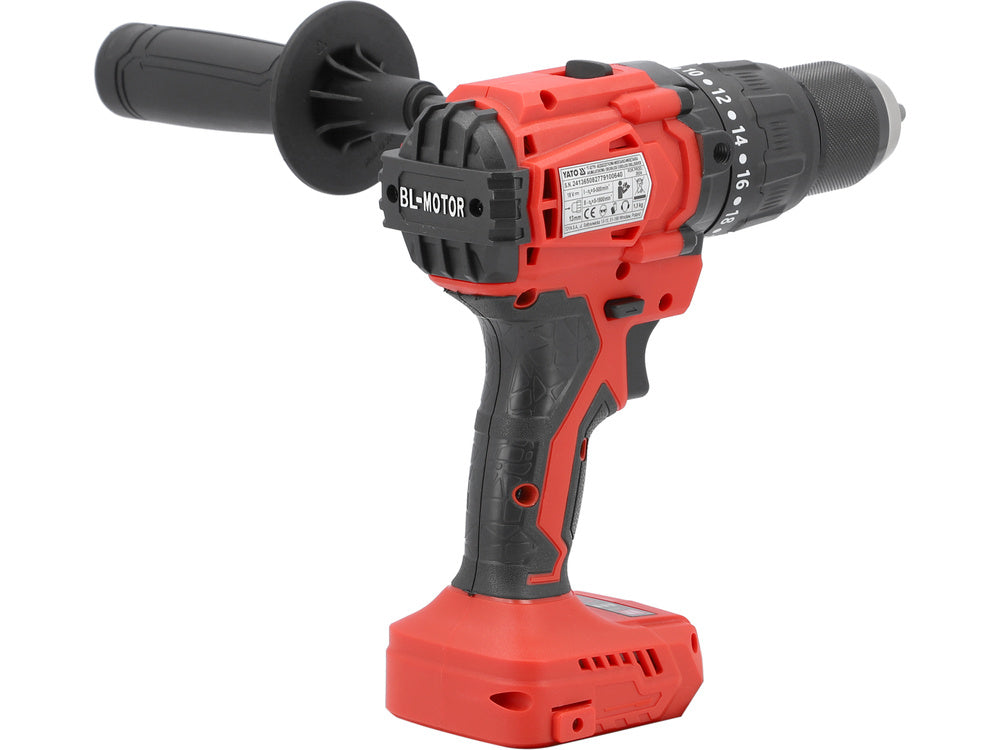

IMPACT DRILL DRIVER 18V 120NM - BODY (YT-827791)

The two-speed powerful yet lightweight impact cordless drill driver with side handle YATO YT-827791 is a versatile portable DIY+ class tool suitable for driving various screws and bolts, two-speed impact drilling, working with standard, tungsten carbide drills, and core drills.

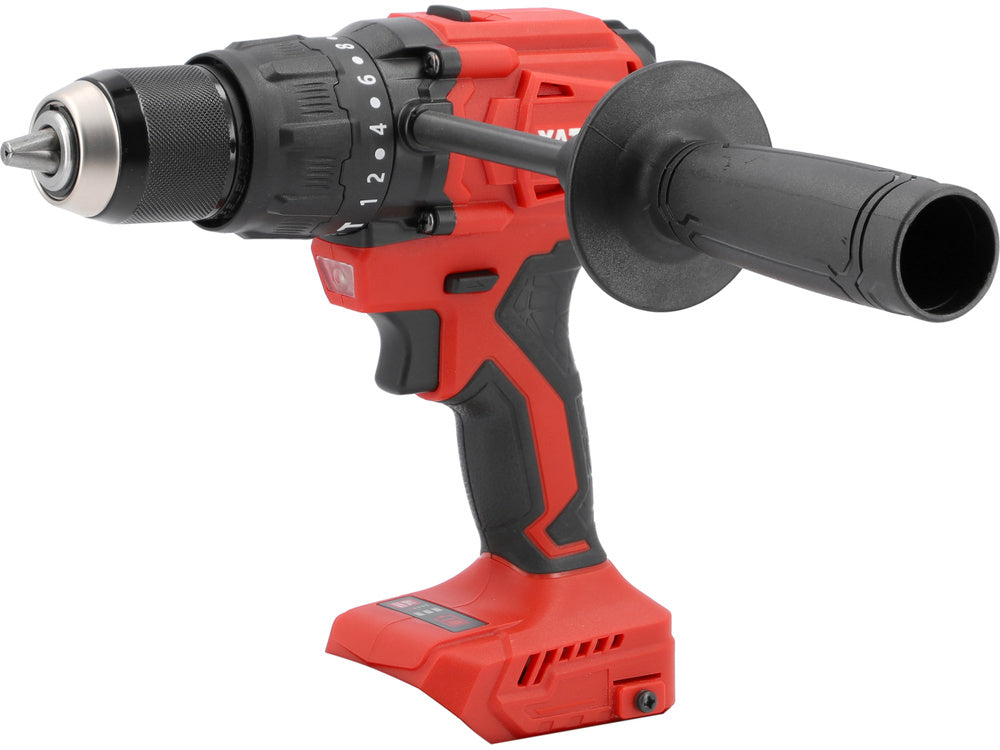

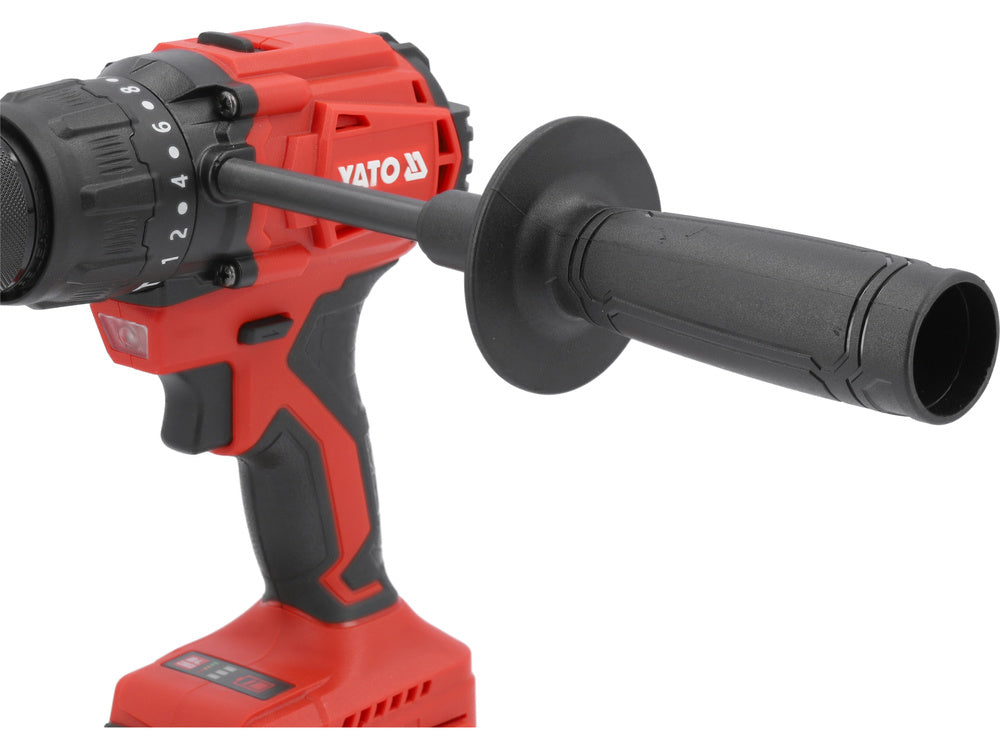

The side handle ensures stable tool control and strong pressure, which is very useful when drilling metal with step drills. The housing features an ergonomic, rubber-coated handle. Torque adjustment protects the user from screw breakage or overtightening. The spindle brake allows for quick bit changes.

The tool can work with tungsten carbide drills up to 16 mm in diameter, for drilling bricks and hard concrete. Drilling in metal is possible using twist drills up to 20 mm in diameter and step drills up to 38 mm. Wrist protection function upon tool stop.

The tool is powered by a top-class brushless electronically commutated motor [brushless]. The device's operating speed is precisely controlled electronically.

Technical specifications:

operating voltage [V]: 18 DC

max torque. [Nm]: 120

max drilling diameter.:

- in wood [mm]: 25

- in steel [mm]: 10

revolutions [min⁻¹]: 0-500 / 0-1800

impact frequency [min⁻¹]: 0-8500 / 0-29750

acoustic pressure [dB]: 82.0 ± 5.0 dB(A)

acoustic power [dB]: 90.0 ± 5.0 dB(A)

vibrations [m/s²]: 11.5 ± 1.5 / 1.3 ± 1.5

chuck type: 13 mm | self-centering

impact mechanism: YES

electronic speed control: YES

spindle brake: YES

direction change switch: YES

operating mode switch: YES

work area lighting: YES

electrical insulation class: III

protection degree: IPX0

The YATO YT-827791 impact driver complies with the following European and international standards: EN 62841-1:2015 + A11:2022, EN 62841-2-1:2018 + A11:2019 + A1:2022 + A12:2022, EN IEC 55014-1:2021 and EN IEC 55014-2:2021 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2014/30/EU Electromagnetic Compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

The product does not include a battery and charger.

This product is compatible with YATO SYSTEM 18V universal batteries and chargers, which you can purchase here:

Charger YATO YT-828498 | 2.2 A | 18V | CE

Double Charger YATO YT-828499 | 2.2 A | 18V | CE

Battery YATO YT-828461 | Li-ion | 18V | 2 Ah | 36 Wh | CE - charging time 60 min

Battery YATO YT-828462 | Li-ion | 18V | 3 Ah | 54 Wh | CE - charging time 90 min

Battery YATO YT-828463 | Li-ion | 18V | 4 Ah | 72 Wh | CE - charging time 120 min

Battery YATO YT-828464 | Li-ion | 18V | 6 Ah | CE - charging time 180 min

model year: 2024

total weight [kg]: 1.3

YATO YT-827791 User Manual PDF

YATO YT-827791 Diagram PDF
