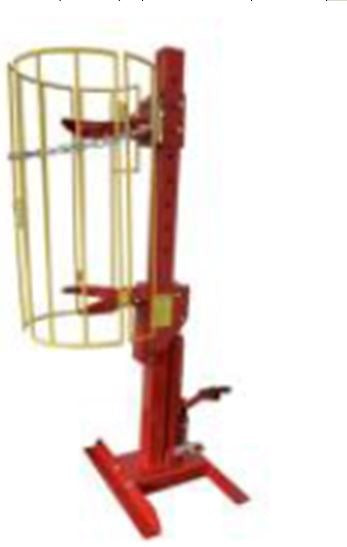

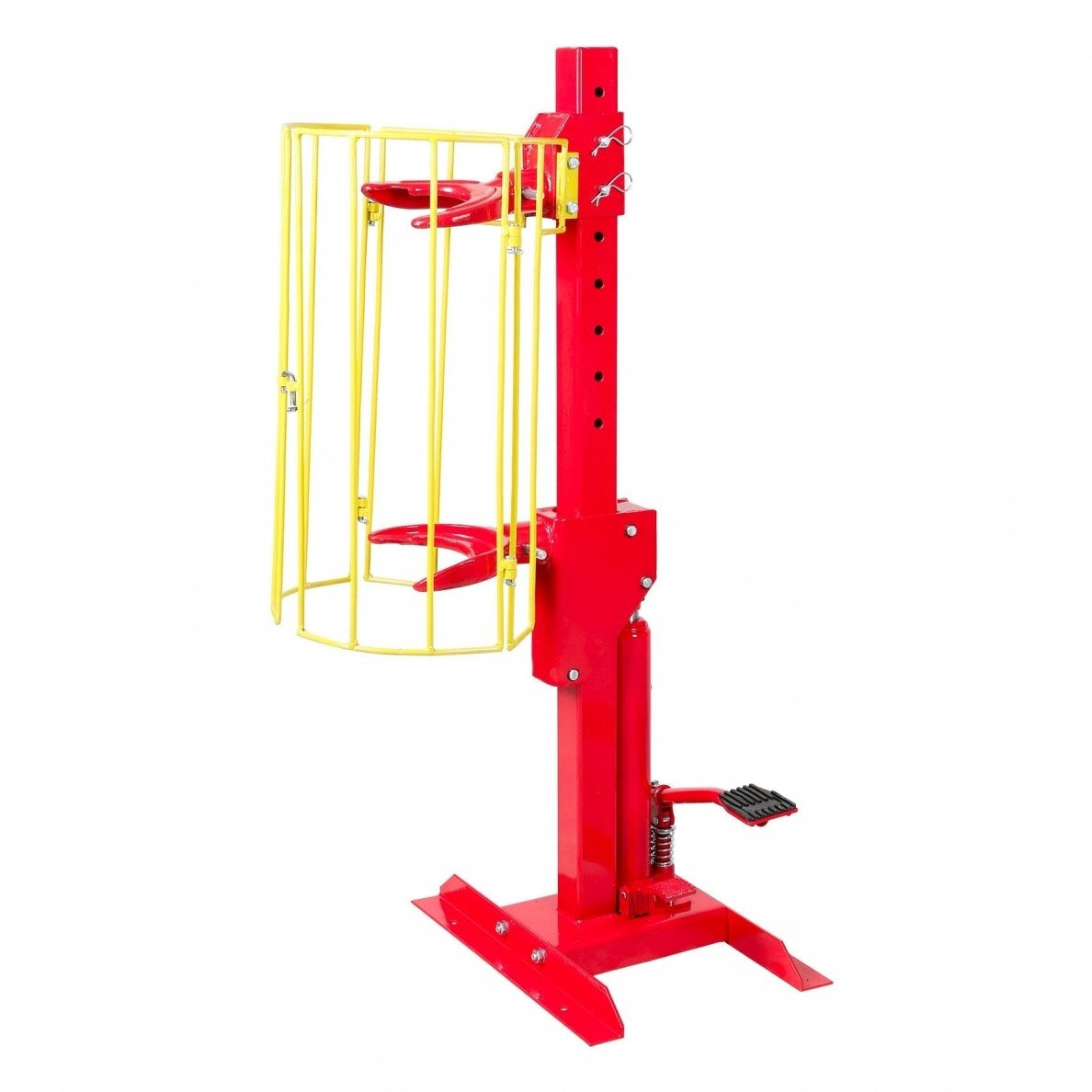

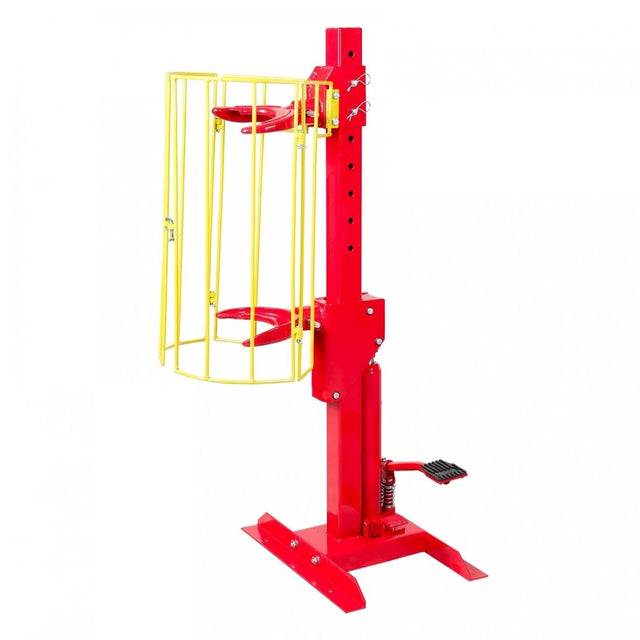

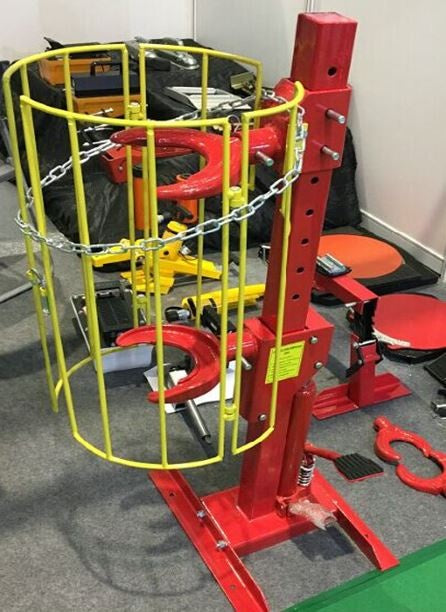

HYDRAULIC SPRING COMPRESSORS | WITH GUARDS | 1000 KG | 210 - 570 MM (SC01)

1. Load Pressure: 1 ton
2. Max Travel: 324mm
3. Compression spring diameter: 102-254mm
Features:

Hands-free foot-operated hydraulic action with quick release
Smooth, long-stroke hydraulic actuator
Includes two sizes of spring yokes 100mm - 158mm
Adjustable spring yokes hold the strut spring very securely.
Fitted with Safety Guard
Specifications:

Spring Coil Diameter: 10-16mm (Never exceed maximum of 16mm)
Compression Length: 210-570mm (Never exceed maximum of 570mm)
Maximum Spring Pitch: 110mm
Strut Tube Diameter: 100-160mm
Maximum Stroke: 315mm
Safety Guard Inner Diameter: 360mm
Dimensions: 1180x510x680mm
Net Weight: 38kg
