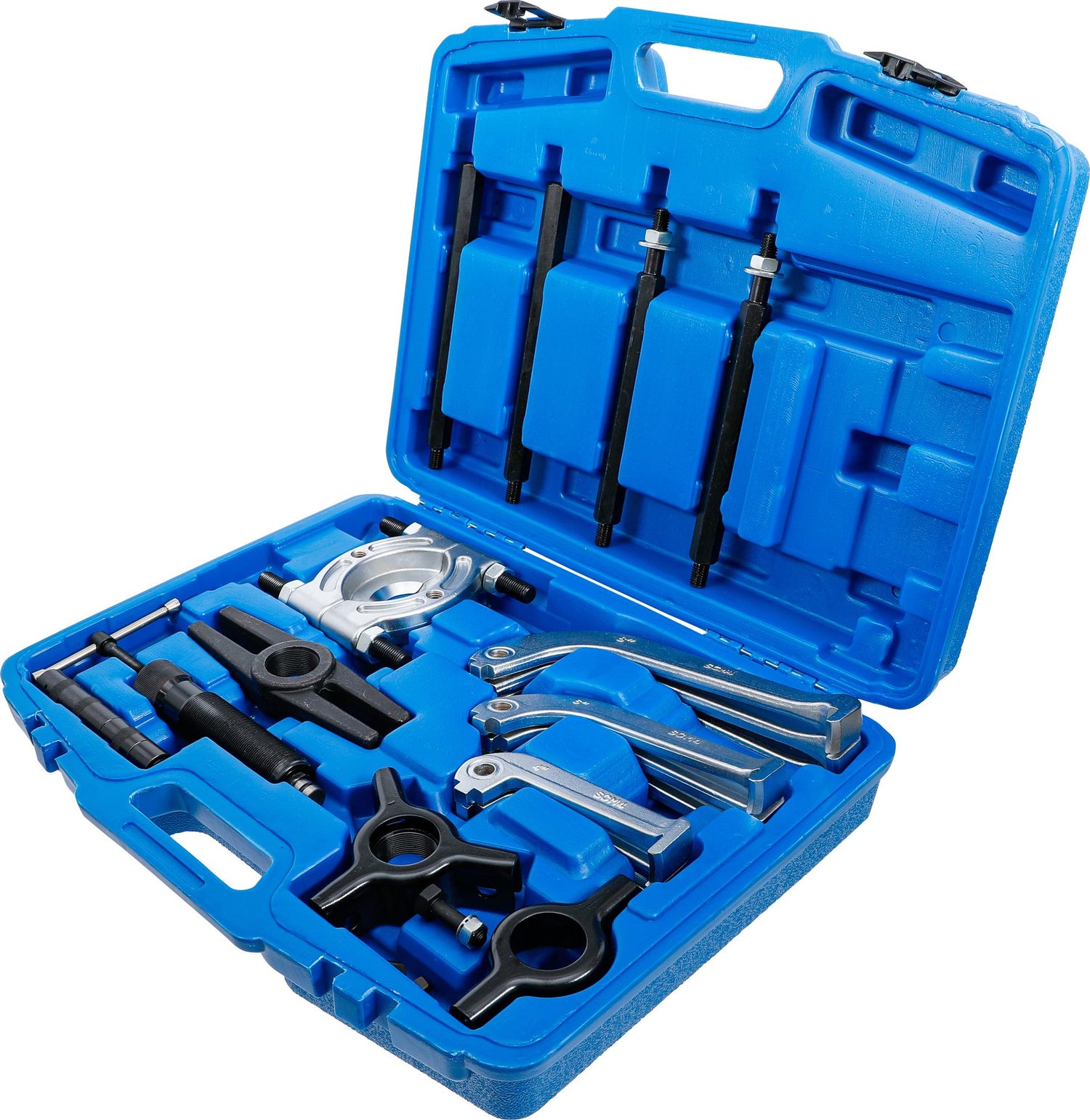

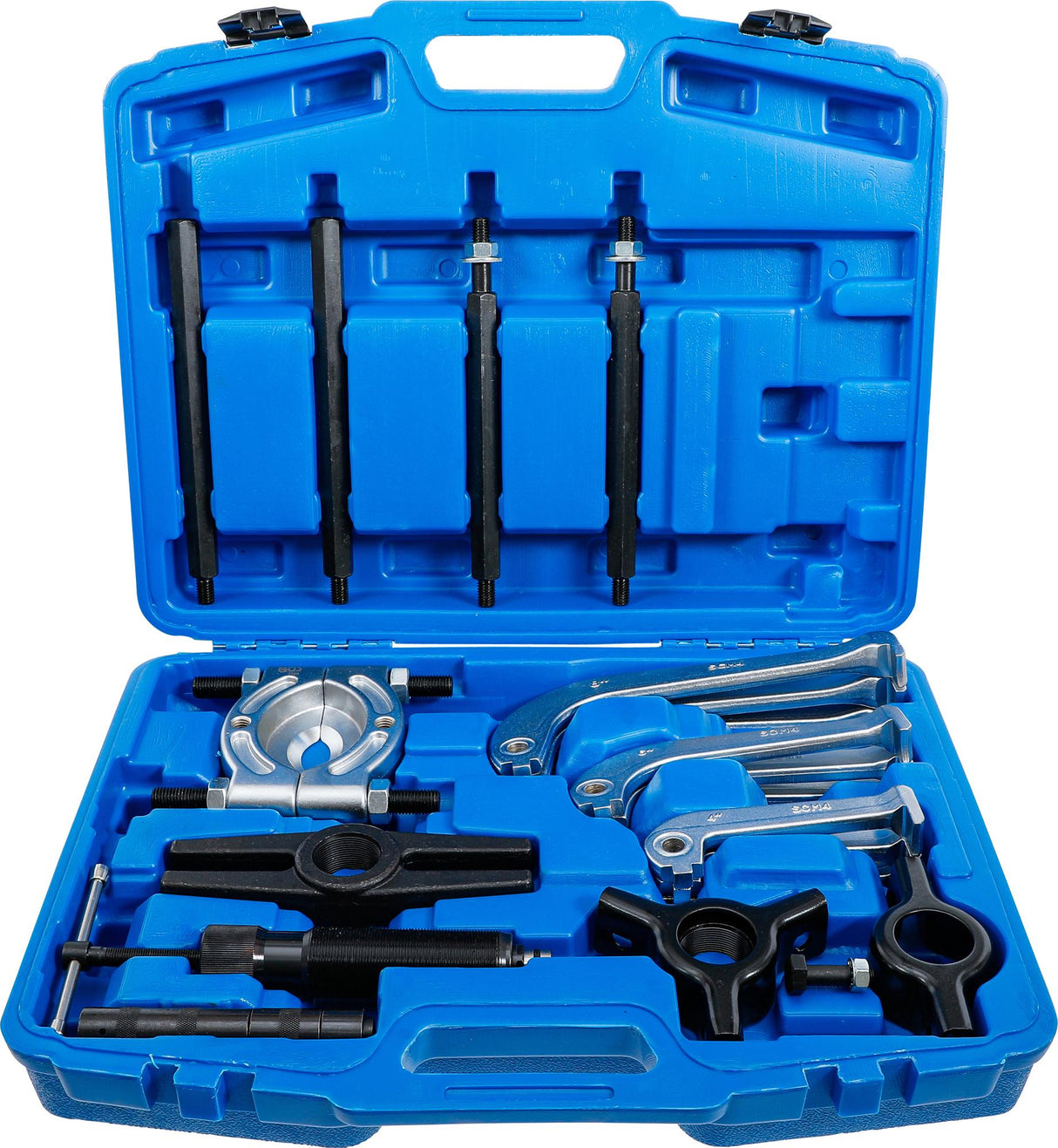

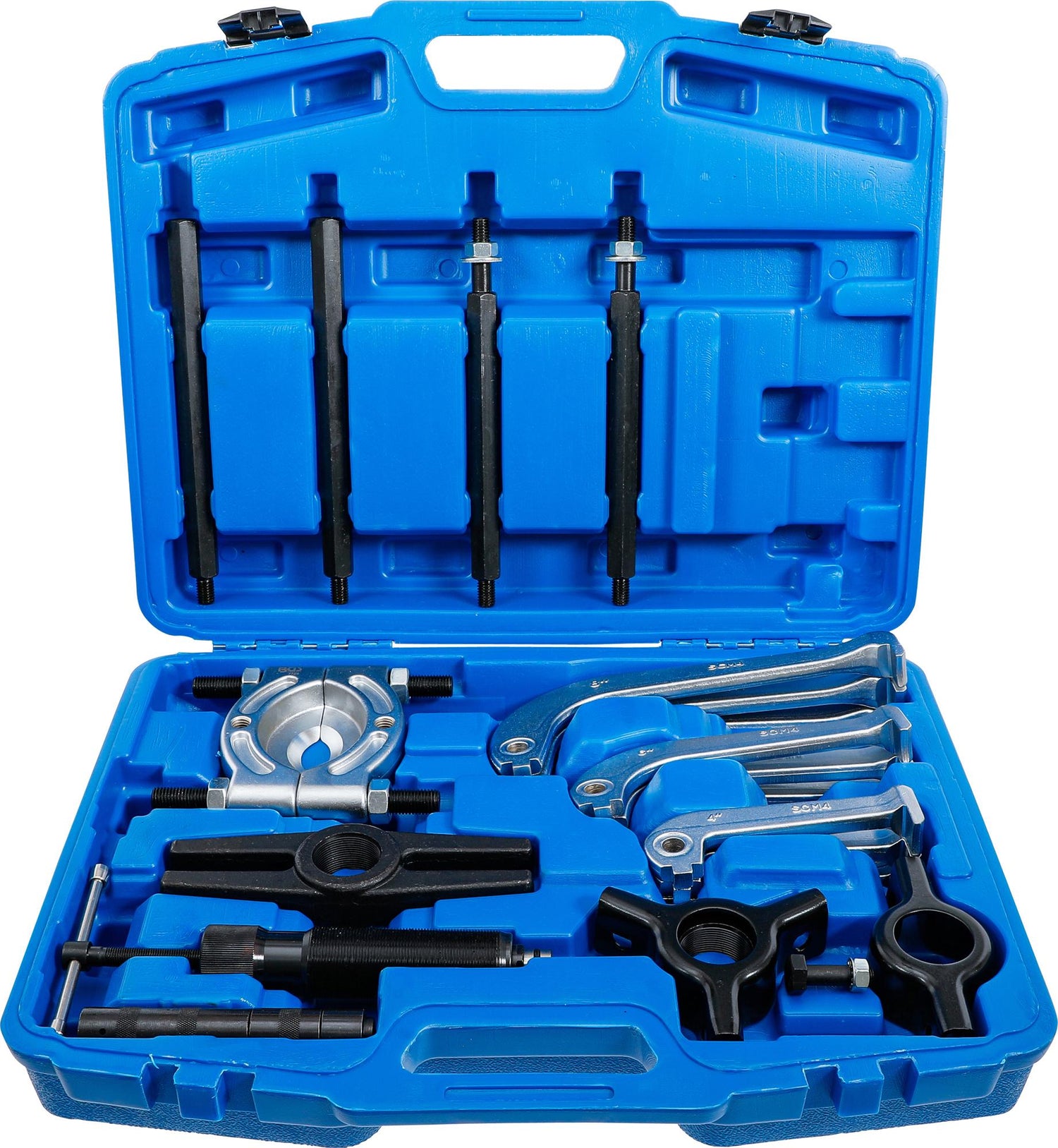

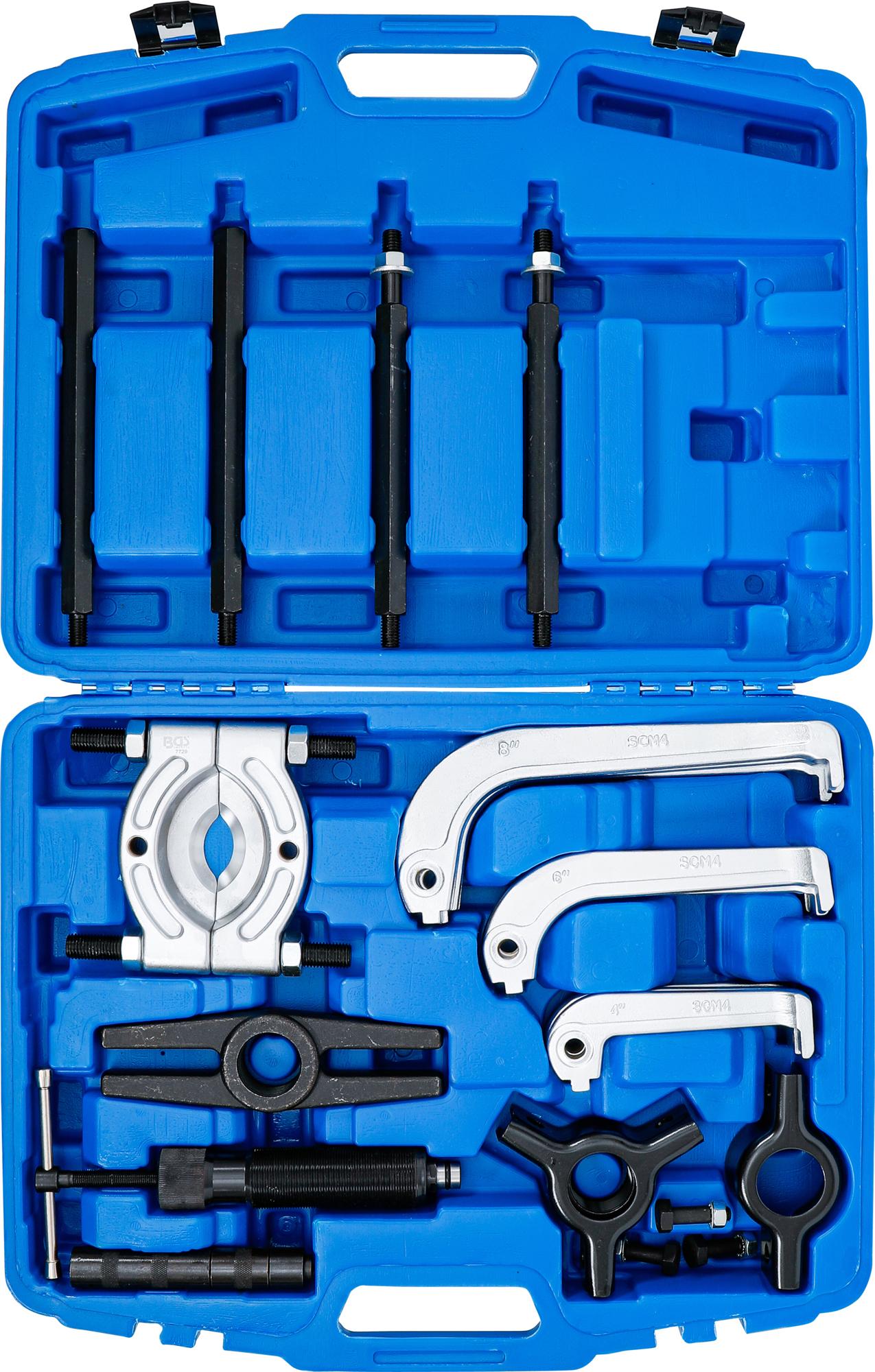

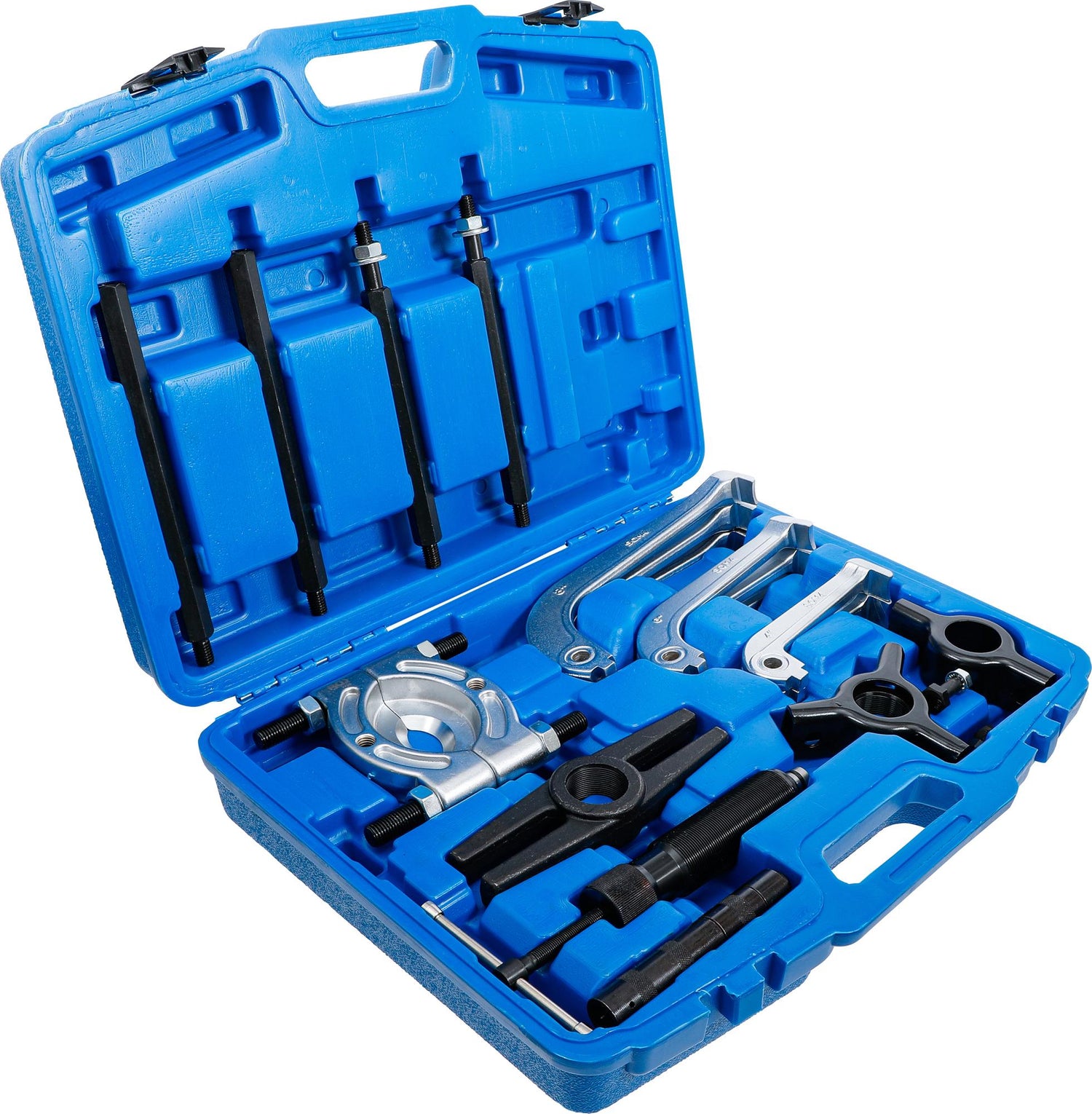

HYDRAULIC PULLER SET | 10 T | 25 PCS. (7729)

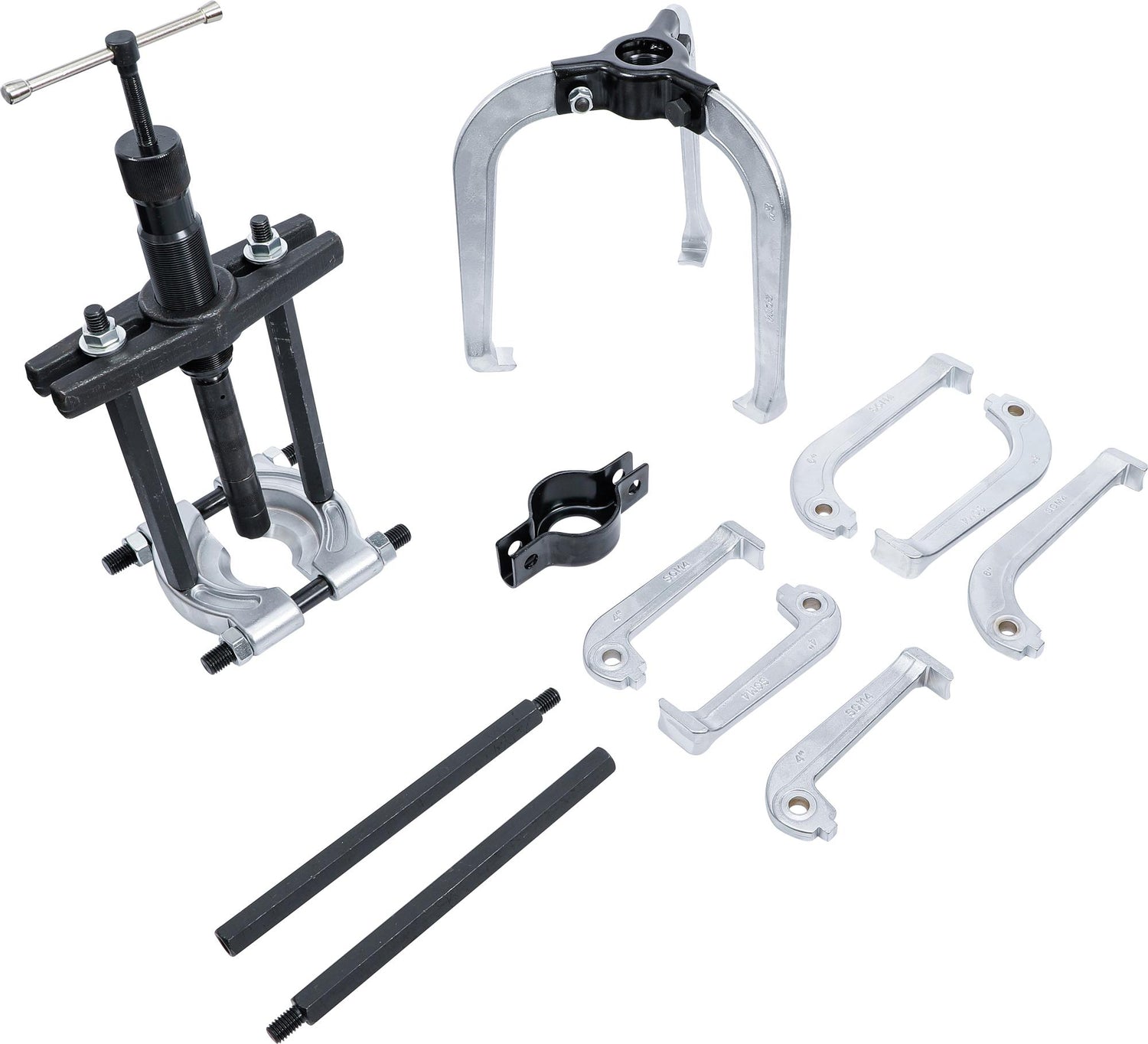

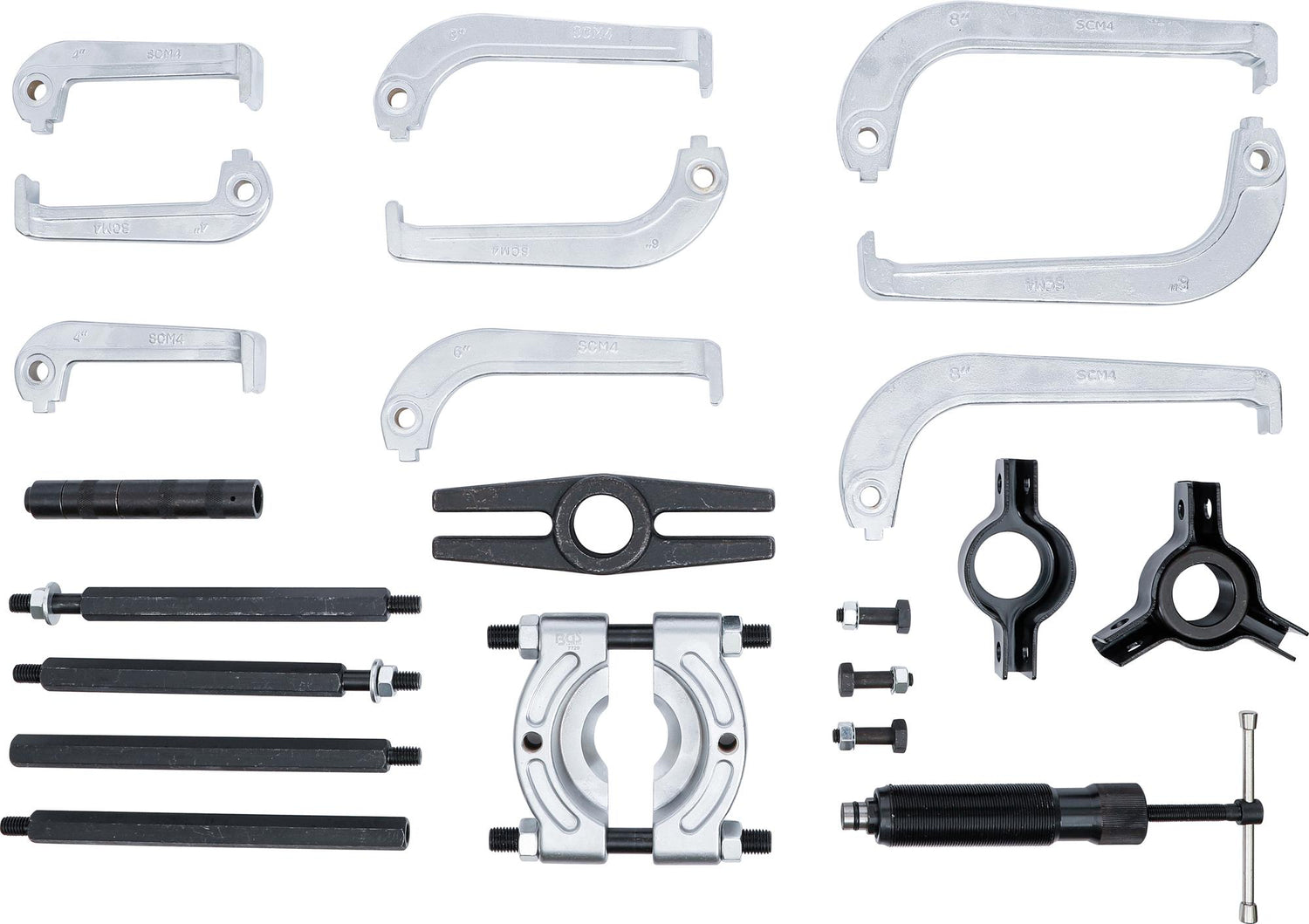

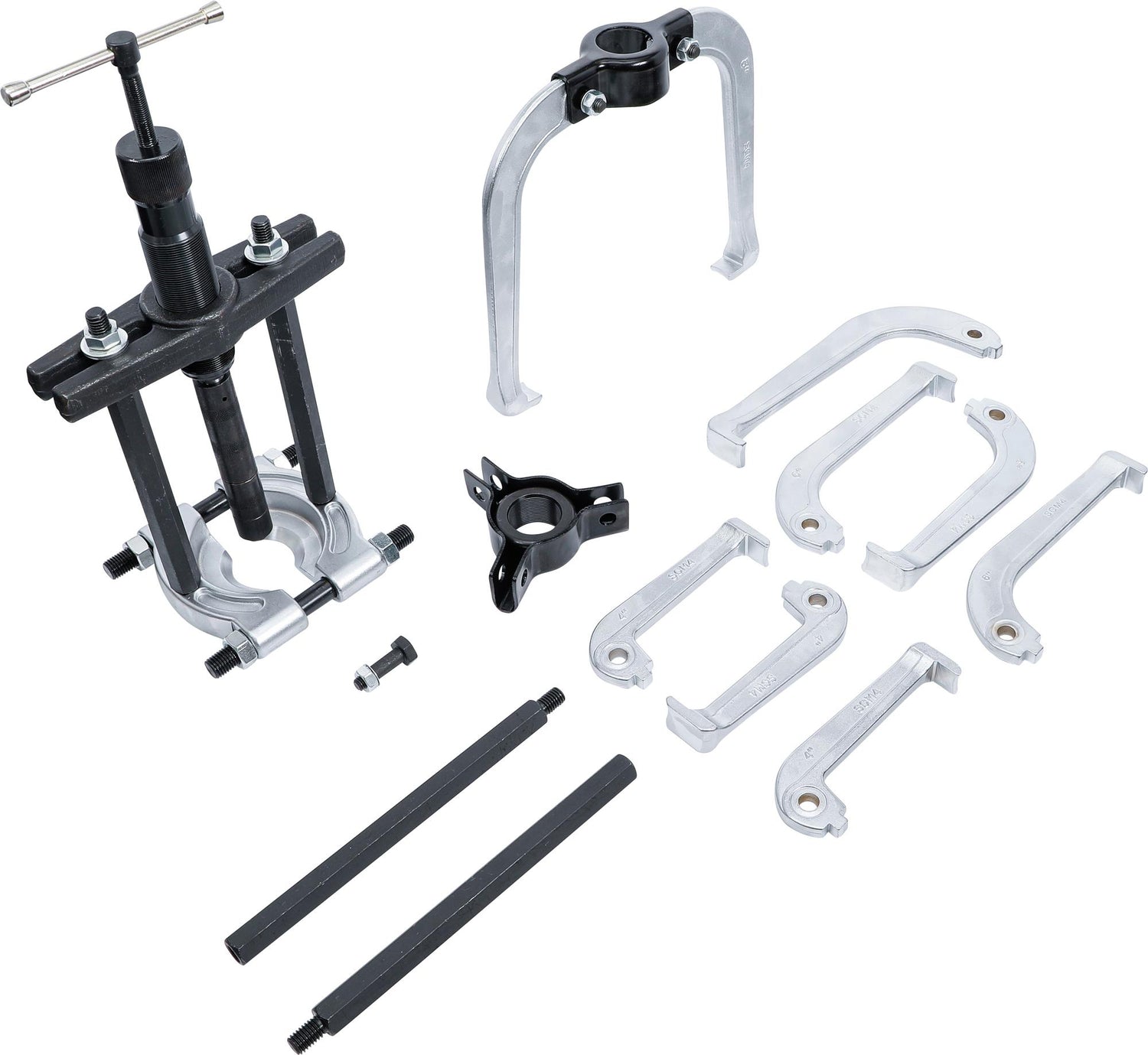

hydraulic ram 10 ton
2 extension rods
one twin head and one triple head
3 legs each in following lengths: 100, 150 and 200 mm
max. pulling width
240 mm at 100 mm puller legs length
280 mm at 150 mm puller legs length
300 mm at 200 mm puller legs length

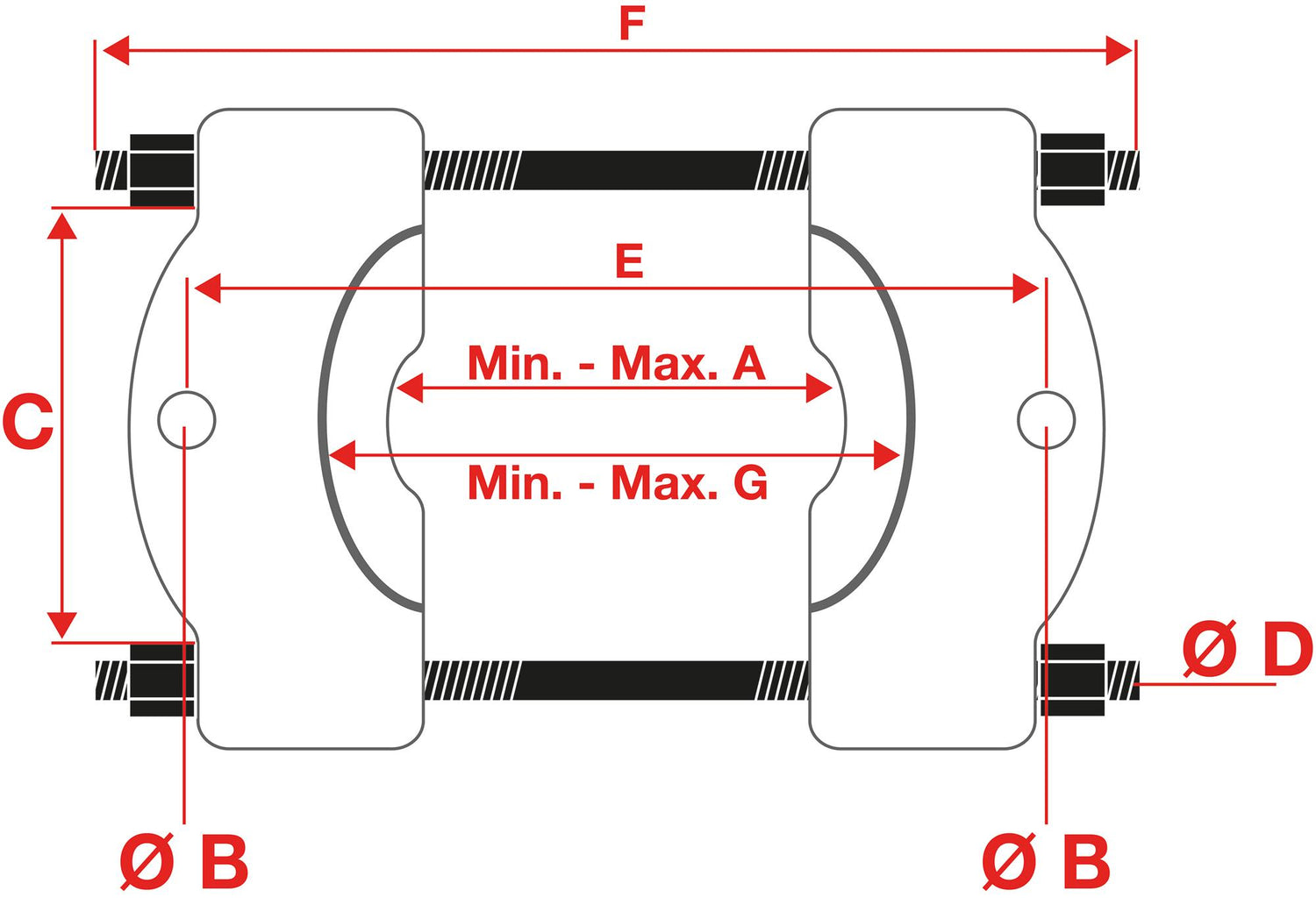

clamping width (A) min. / max. in mm: min. 14 mm / max. 62 mm
puller bolt receiving thread (B): 5/8" x 18 UNF
clamping bolt distance (C) in mm: 111 mm
clamping bolt thread (D): 5/8" x 18 UNF
puller bolt distance (E) min. / max. in mm: min. 64 mm / max. 210 mm
Technical data
Gross weight18240 g
