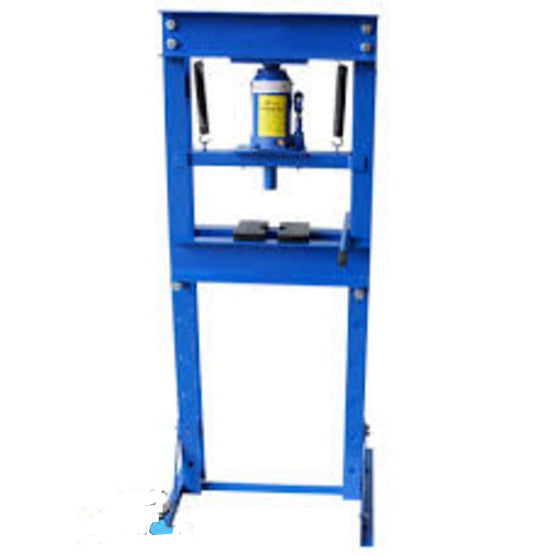

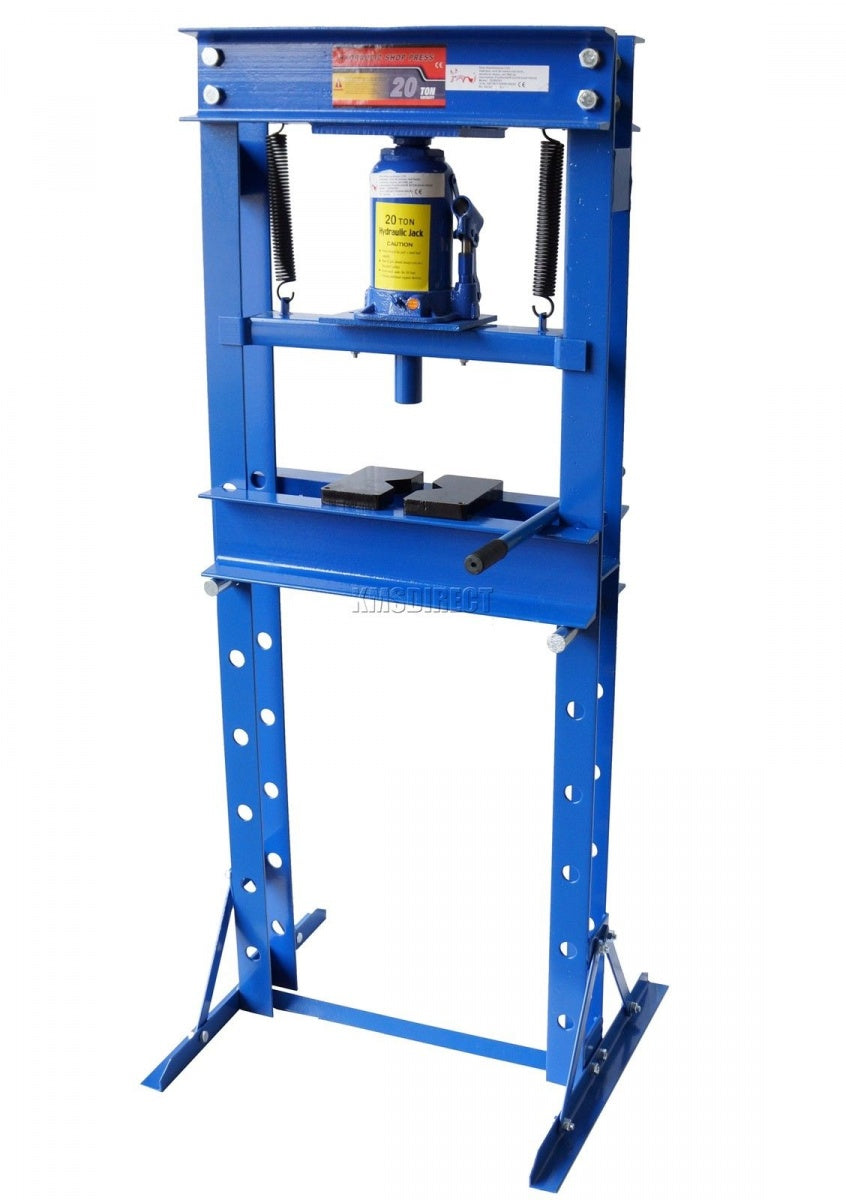

HYDRAULIC PRESS | 20 TON (ZX0901C)

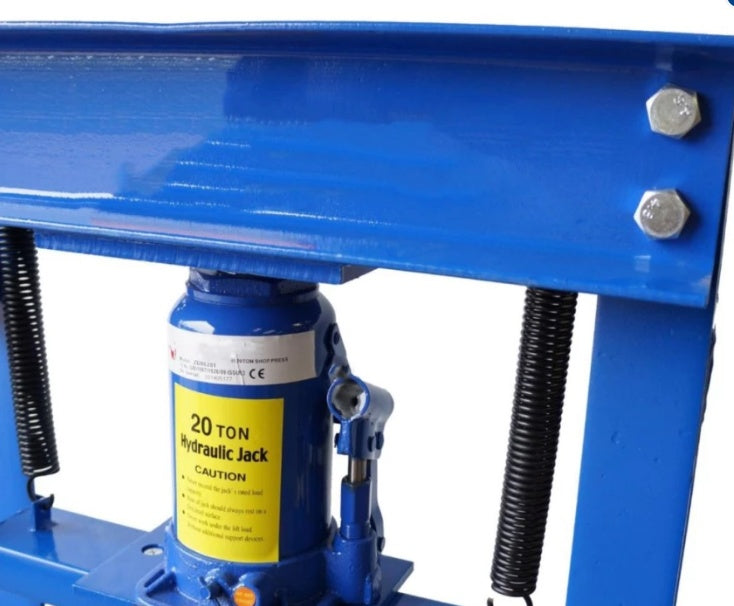

The vertical hydraulic press ZX0901C is a DIY class device designed for quickly and safely processing (pressing, stamping, straightening, bending) various products and parts with high pressing force. The press is made of high-quality steel, powder-coated, and corrosion-resistant. Double return springs ensure safe and smooth operation. Single-acting hydraulic cylinder with 180 mm stroke. Robust chrome-plated piston rod. Removable pump and cylinder.

Hydraulic presses facilitate work with wheel bearings, transmission shaft bearings, rubber bushings, and similar components. Hydraulic presses are also widely used for assembling and disassembling various units (for repair and assembly work). The support surface of the ZX0901C hydraulic press is adjustable in 8 positions.

Nominal force [t]: 20

Working range [mm]: 0-915

Stroke [mm]: 180

Dimensions [mm]: 1565x600x700

Press plate dimensions [mm]: 190x100x25

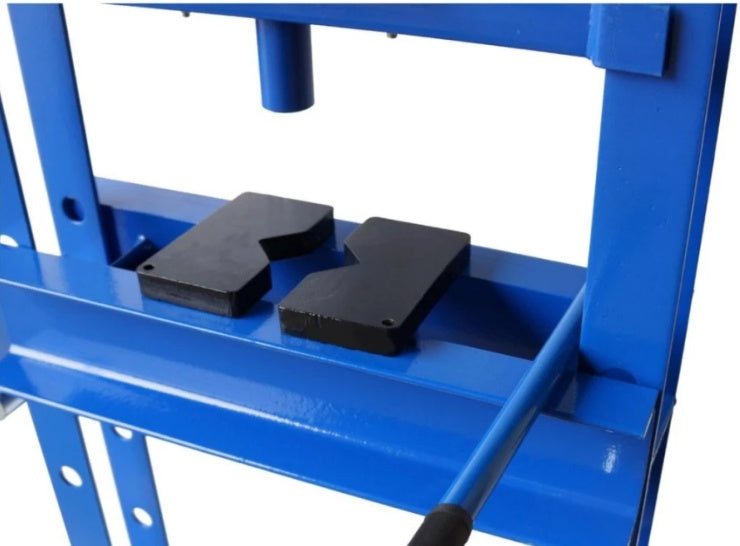

The device comes with V-type press plates.

Total weight [kg]: 48.000
