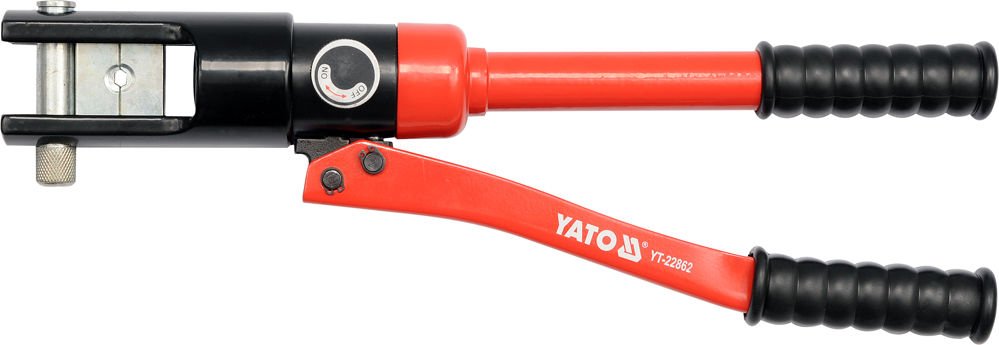

HYDRAULIC PLIERS 16-300MM2 (YT-22862)

Handheld pliers with hydraulic cylinder. Designed to crimp electrical conductors or tighten ropes

Number YT-22862
EAN 5906083228629
steel
length (mm) 470
number of parts (pcs.) matrix 16/25/35/50/70/95/120/150/185/240/300 mm 2
Weight (kg) 6.0
Working range AL 16-240mm 2 Cu 16-300mm 2
force (t) 20

Product description
Hand operated hydraulic cylinder. Designed for effective crimping of terminals on electric wires or crimping cables.

Thanks to the hydraulic cylinder, clamping of large ends does not require effort.

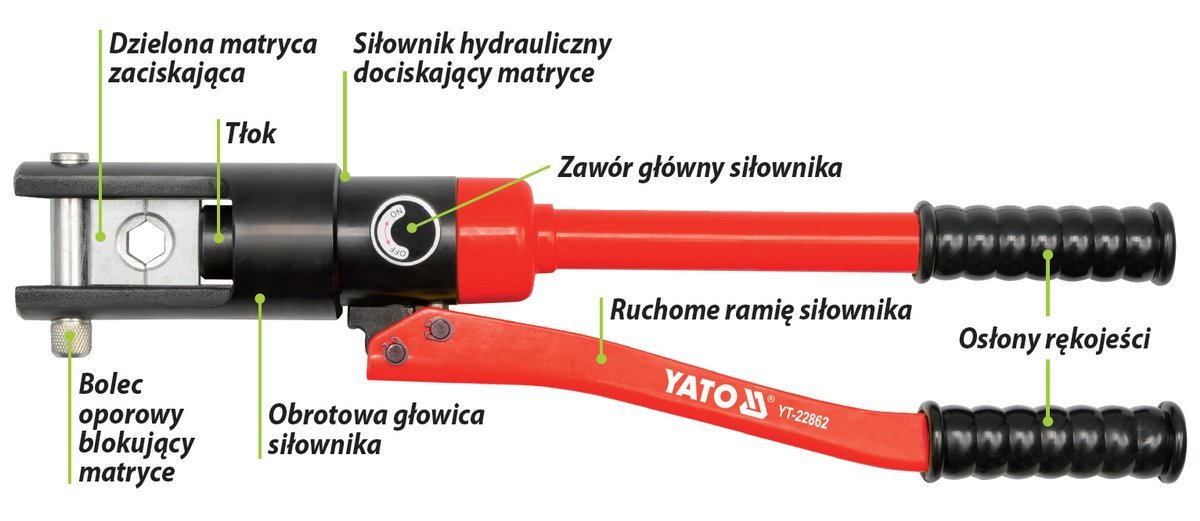

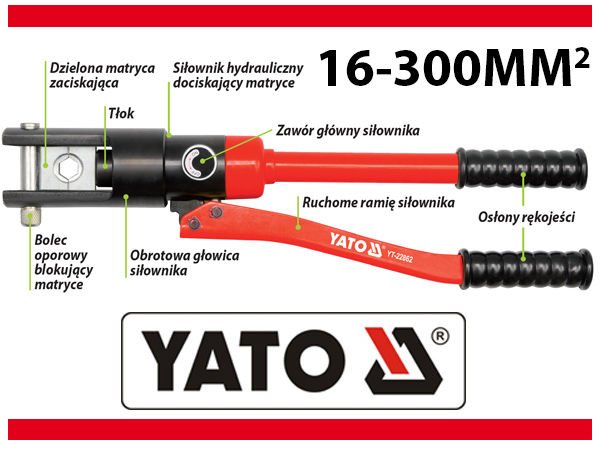

Features of the Prague brand YATO

- Retaining bolt blocking the matrix
- Divided crimping matrix
- Piston
- Rotary actuator head
- Actuator main valve
- The movable arm of the actuator
- Handle guard

Crimping range:
Aluminum: 16-240 mm2
Copper: 16-300 mm2

Length: L = 470mm
Pressure: 18-20T

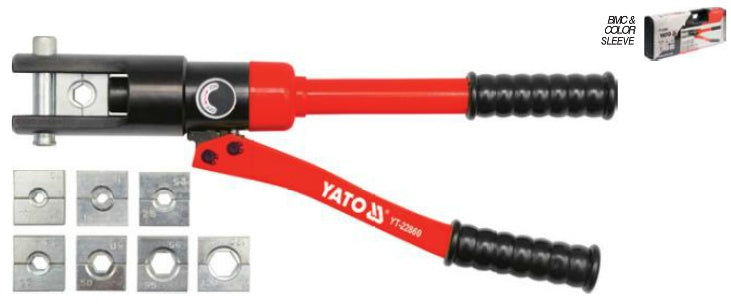

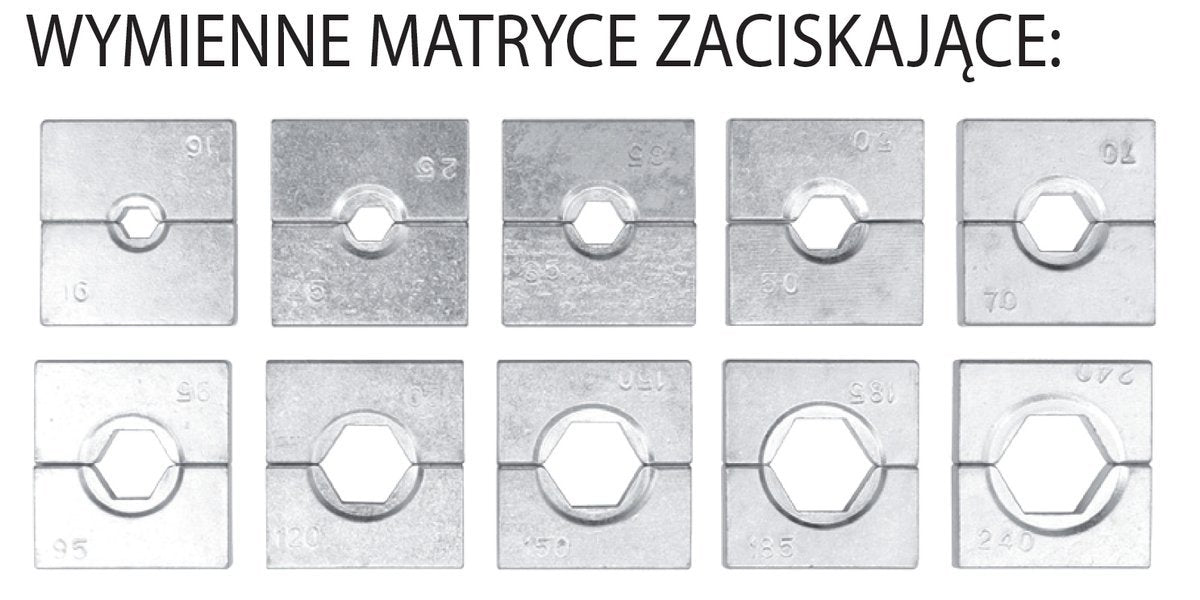

Size of clamping jaws (mm2): 16; 25; 35; 50; 70; 95; 120; 150; 185; 240; 300
Destination / Application

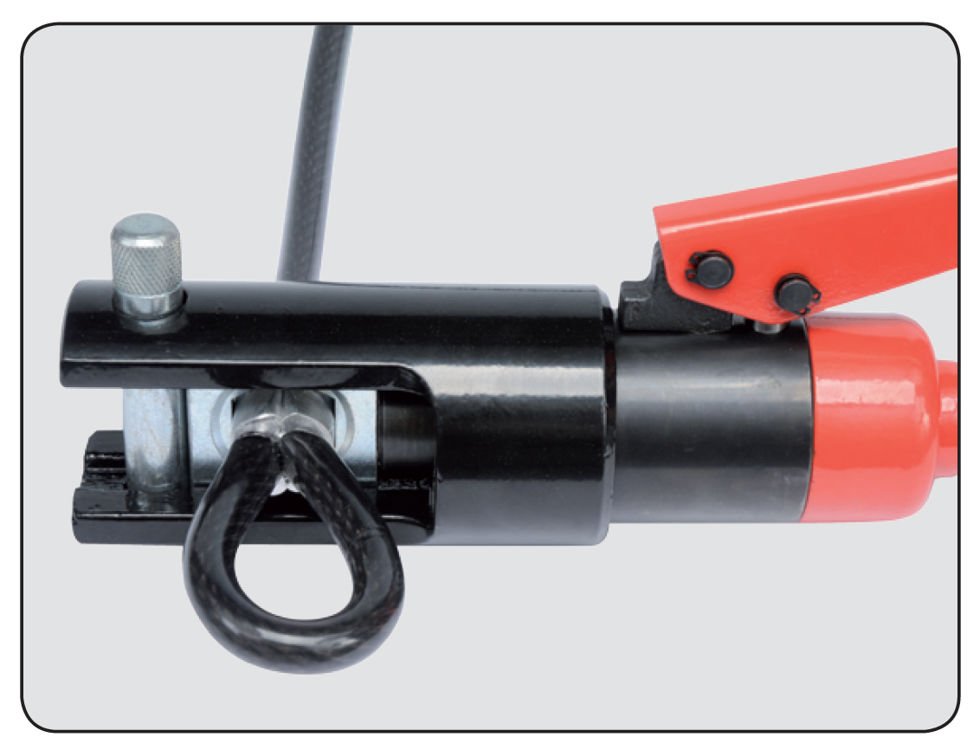

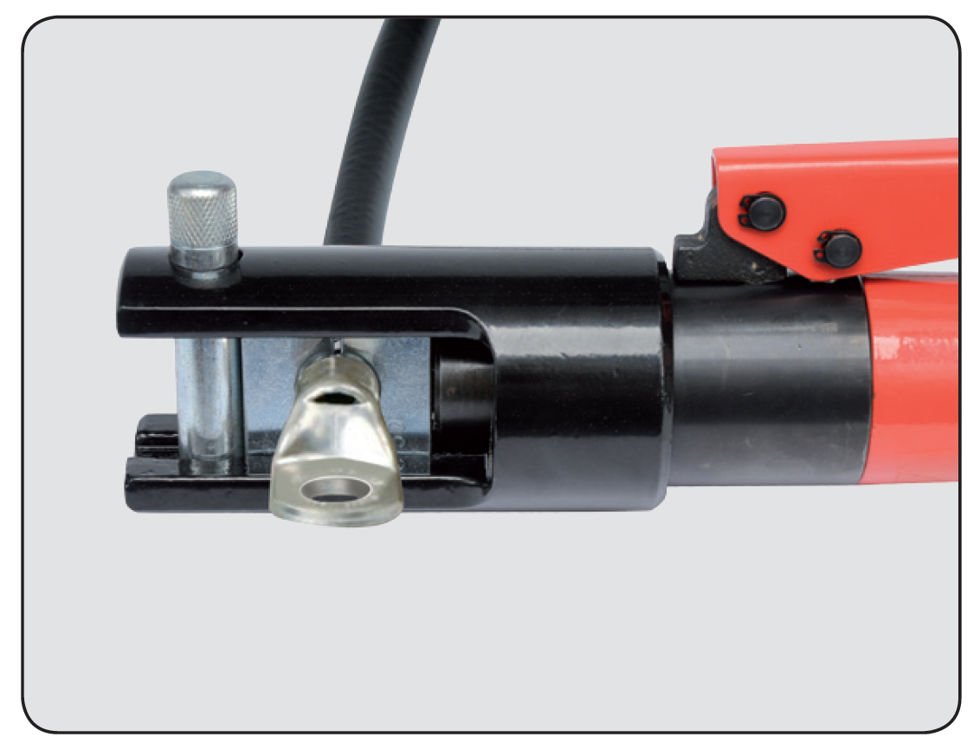

Effective clamping of the terminals on the electrical wires. Crimping of steel ropes.
Technical data
Index number YT-22862
EAN 5906083228629
Brand Yato
PCS unit
Gross Weight (kg) 6.0670
Master Carton MC 4
Pal 96
Size [mm] 16-300
Type Manual
Application of Electric

SIZE: 16-300M2; CRIMPING RANGE: ALUMINIUM TERMINAL- 16-240MM2, COPPER TERMINALS- 16-300MM2; WORKING PRESSURE: 18, 20T; DIE CONFIGURATION: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300MM2; USE 32# MECHANICAL OIL; HRC 15
