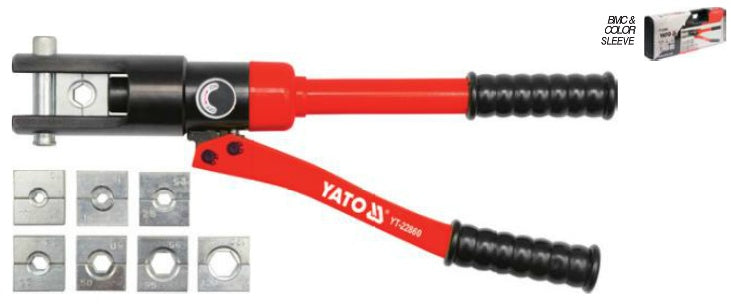

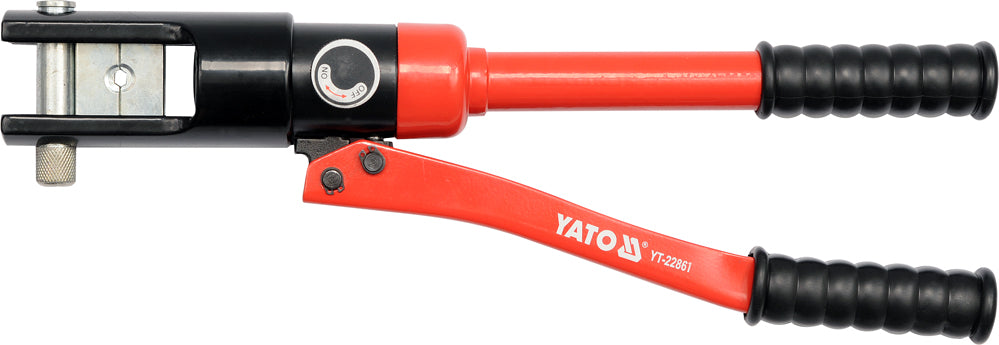

HYDRAULIC PLIERS 16-240MM2 (YT-22861)

Hand crimping pliers with hydraulic cylinder. Designed for crimping electrical conductors or tightening ropes

Number YT-22861
EAN 5906083228612
steel
length (mm) 470
number of parts (pcs) matrix 16/25/35/50/70/95/120/185/240 mm 2
Weight (kg) 5.90
Working range 16-185mm Al 2 Cu 16-240mm 2
force (t) 12

Product description
Hand operated hydraulic cylinder. Designed for effective crimping of terminals on electric wires or crimping cables.

Thanks to the hydraulic cylinder, clamping of large ends does not require effort.

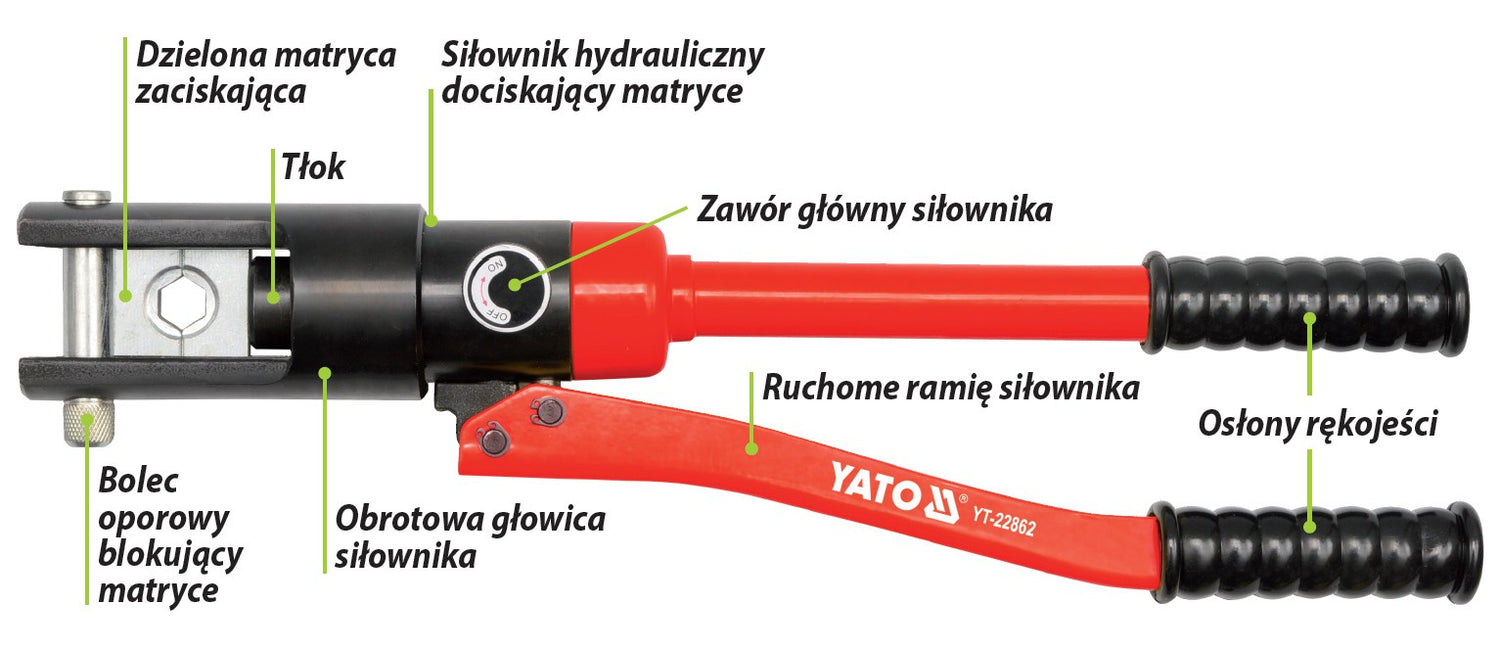

Features of the Prague brand YATO

- Retaining bolt blocking the matrix
- Divided crimping matrix
- Piston
- Rotary actuator head
- Actuator main valve
- The movable arm of the actuator
- Handle guard

Crimping range:
Aluminum: 10-185 mm2
Copper: 10-240 mm2

Length: L = 470mm
Pressure: 12T

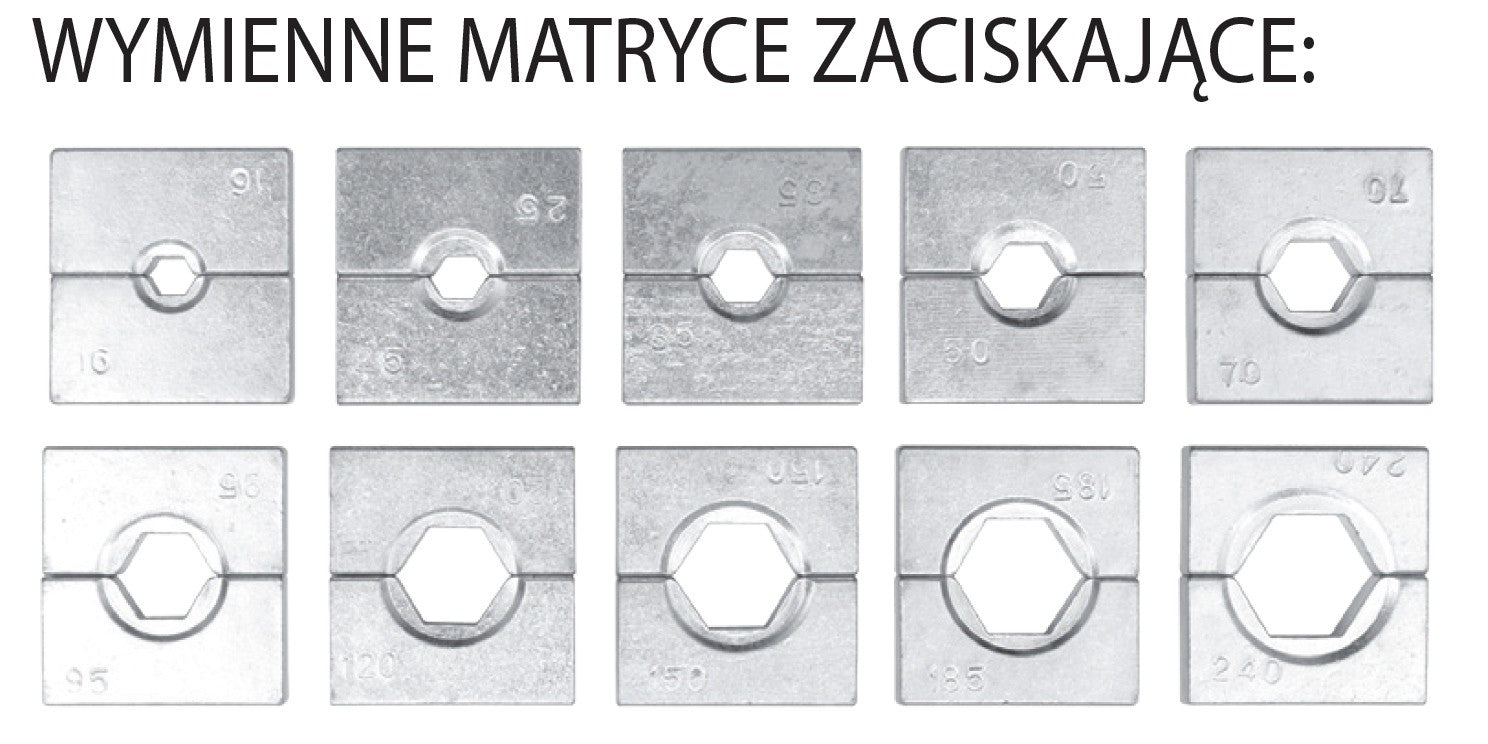

Size of clamping jaws (mm2): 16; 25; 35; 50; 70; 95; 120; 150; 185; 240
Destination / Application

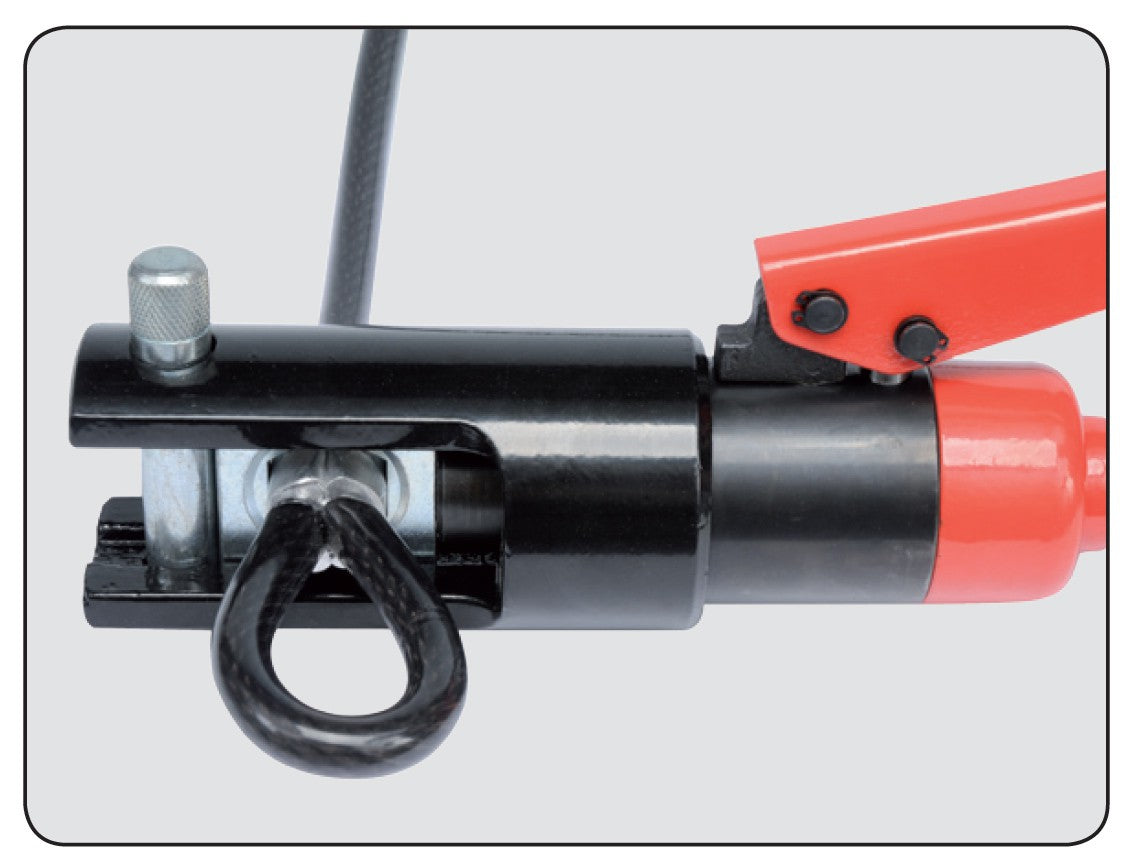

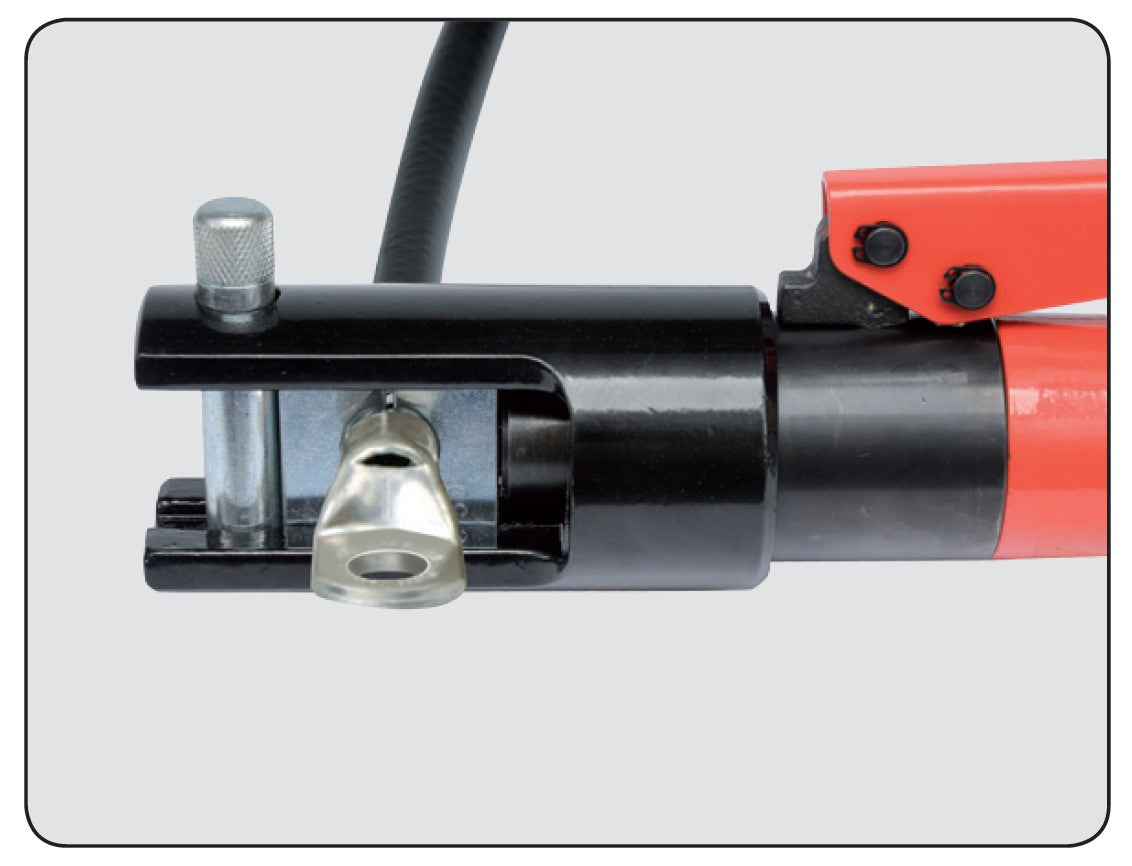

Effective clamping of the terminals on the electrical wires. Crimping of steel ropes.
Technical data
Index number YT-22861
EAN 5906083228612
Brand Yato
PCS unit
Gross Weight (kg) 5.6670
Master Carton MC 4
Pal 80
Size [mm] 16-240
Application of Electric

SIZE: 16-240M2; CRIMPING RANGE: ALUMINIUM TERMINAL- 16-185MM2, COPPER TERMINALS- 16-240MM2; WORKING PRESSURE: 12T; DIE CONFIGURATION: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240MM2; USE 32# MECHANICAL OIL; HRC 15
