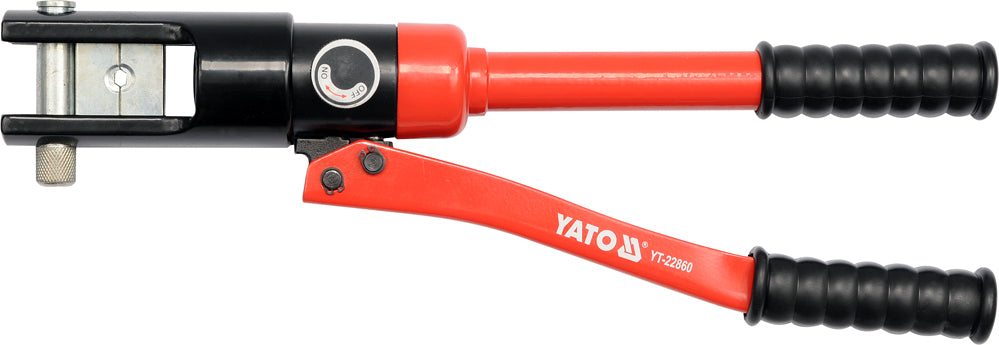

HYDRAULIC PLIERS 10-120MM2 (YT-22860)

Hydraulic crimping tool. Designed for crimping electrical conductors or tightening ropes

Model No. YT-22860
EAN 5906083228605
steel
length (mm) 415

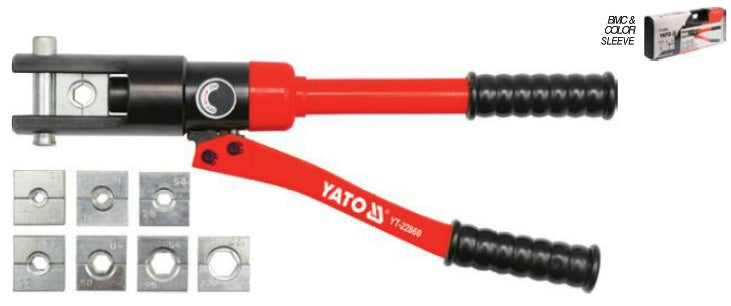

number of parts (pcs) die 10/16/25/35/50/70/95/120 mm 2
Weight (kg) 4.480
Working range Al 10-95mm 2 Cu 10-120mm 2
force (t) 8

Product description

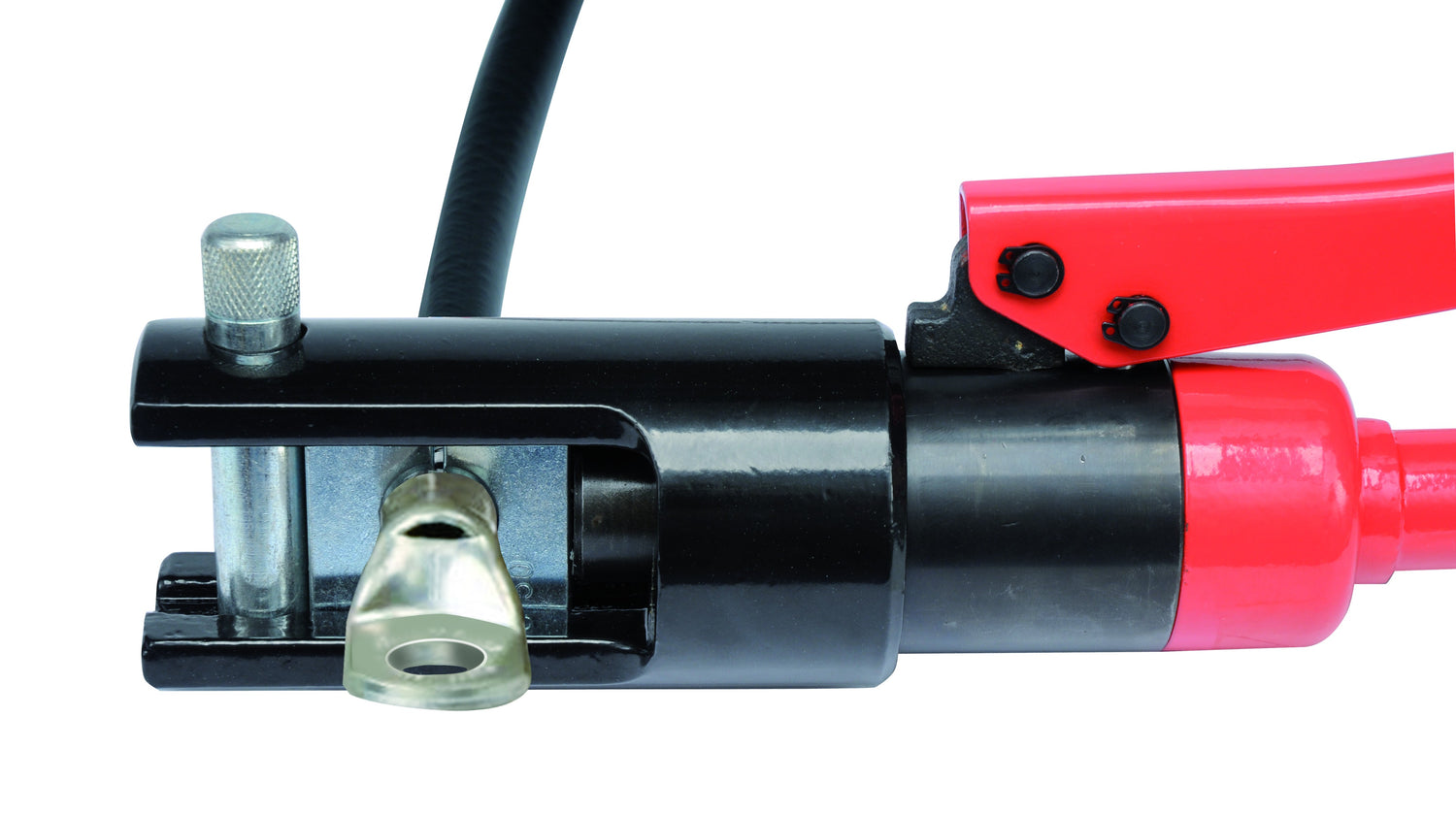

Hand operated hydraulic cylinder. Designed for the efficient crimping of terminals on electric wires or crimping cables.

Thanks to the hydraulic cylinder, clamping of large ends does not require effort.

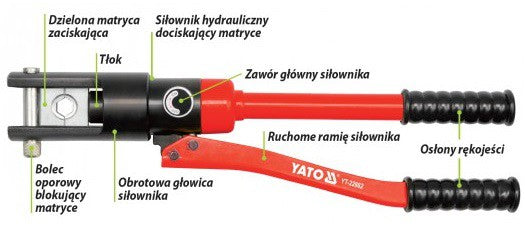

Features of the Prague brand YATO

Reactor locking pin
Divided clamping matrix
Piston
Rotary actuator head
Actuator main valve
The movable arm of the actuator
Handle guard

Crimping range:
Aluminum: 10-95 mm2
Copper: 10-120 mm2

Length: L = 415mm
Pressure: 8T

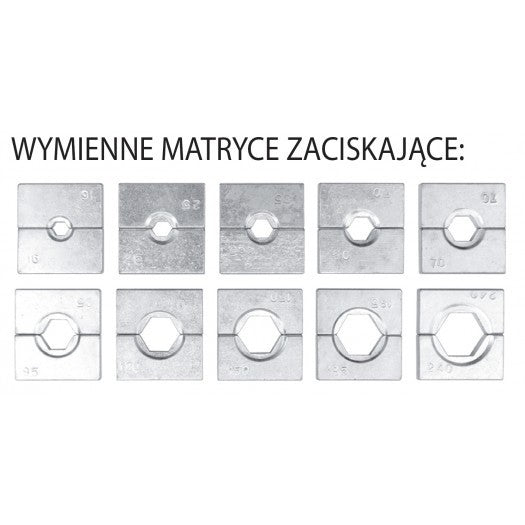

Size of clamping jaws (mm2): 10; 16; 25; 35; 50; 70; 95; 120
Destination / Application

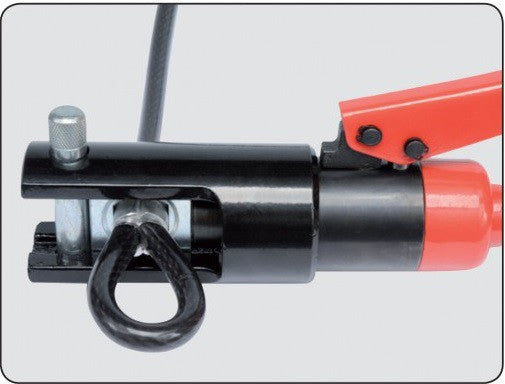

Effective crimping of the tips on the electrical wiring. Crimping of steel ropes.
Technical data
Index number YT-22860
EAN 5906083228605
Brand Yato
PCS unit
Gross Weight (kg) 4.5000
Size [mm] 10-120
Type Manual
Application of Electric

SIZE: 10-120M2; CRIMPING RANGE: ALUMINIUM TERMINAL- 10-95MM2, COPPER TERMINALS- 10-120MM2; WORKING PRESSURE: 8T; DIE CONFIGURATION: 10, 16, 25, 35, 50, 70, 95, 120MM2; USE 32# MECHANICAL OIL; HRC 15
