HYDRAULIC CYLINDER TOOL SET | WITH PULLING SPINDLES | FOR DIESEL INJECTOR EXTRACTOR | 17 T (74285)

for controlled disassembly of stuck injectors
a hydraulic cylinder with a collar nut is placed together with special pulling spindles on a puller bridge to pull out the injectors
to be used in combination with an injector extractor | for BMW (BGS 8782) and a hydraulic pump
working pressure: max. 700 bar
hydraulic piston diameter: 30 mm
hydraulic piston stroke: 16 mm
hydraulic cylinder diameter: 78 mm

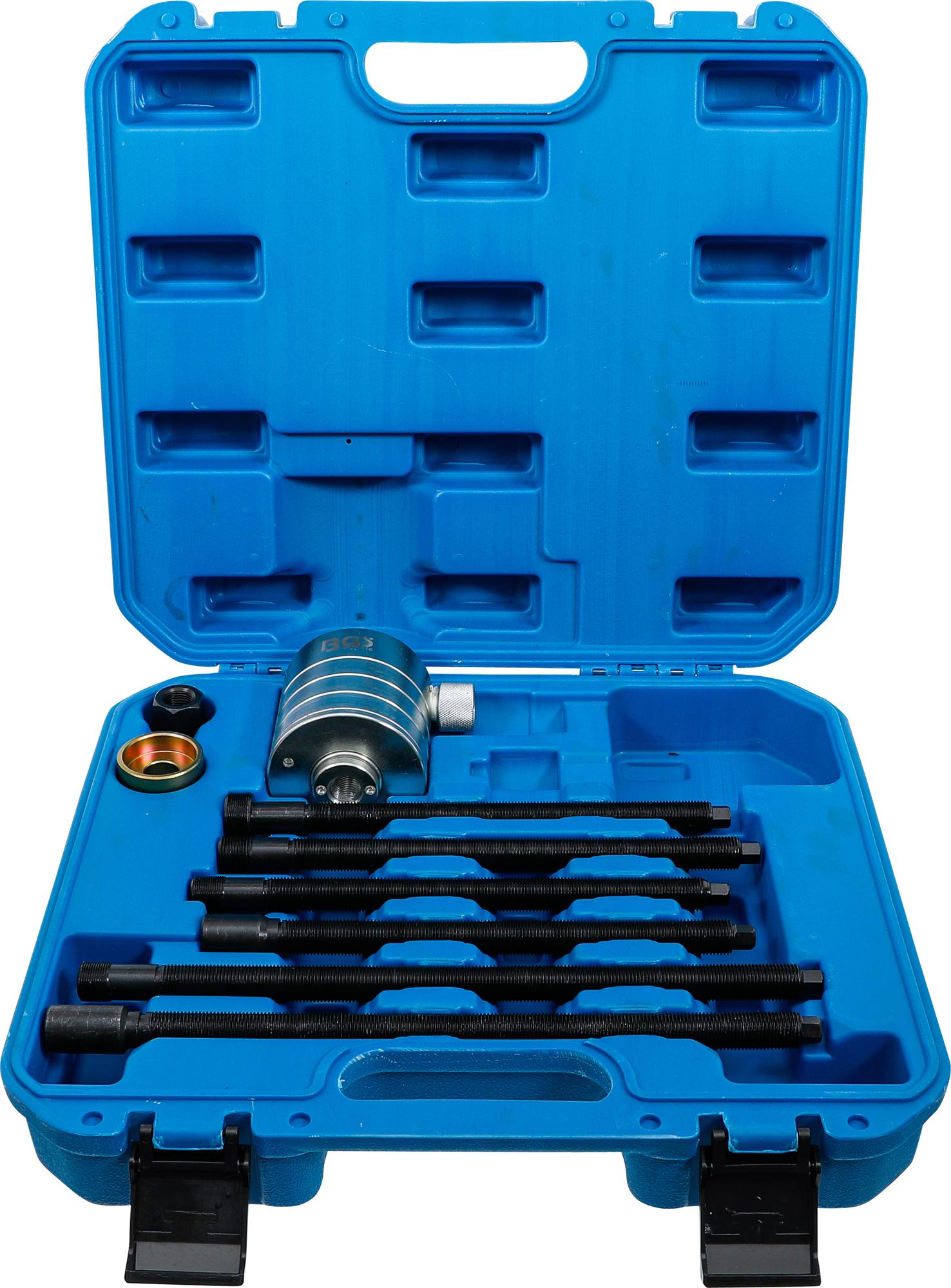

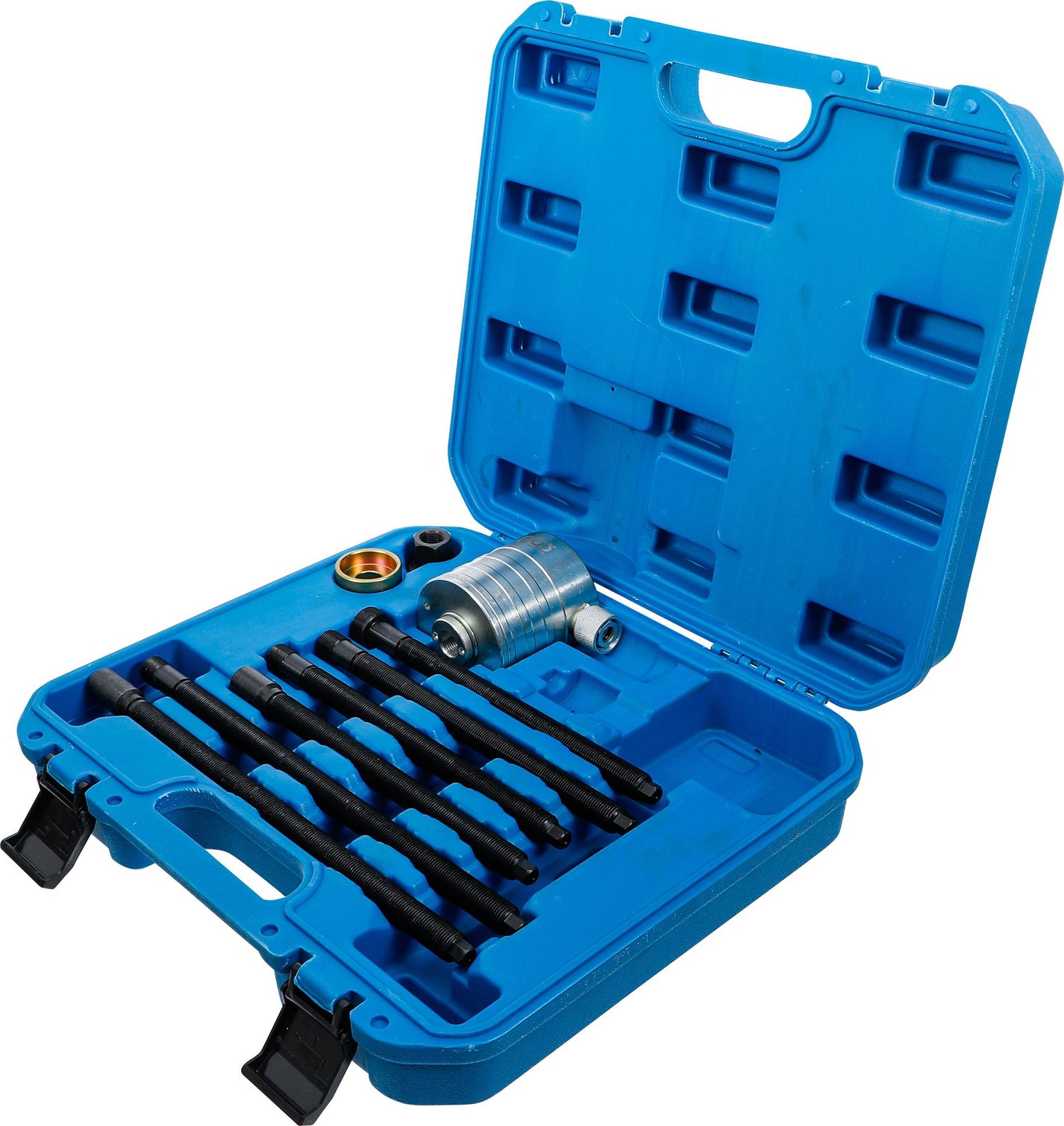

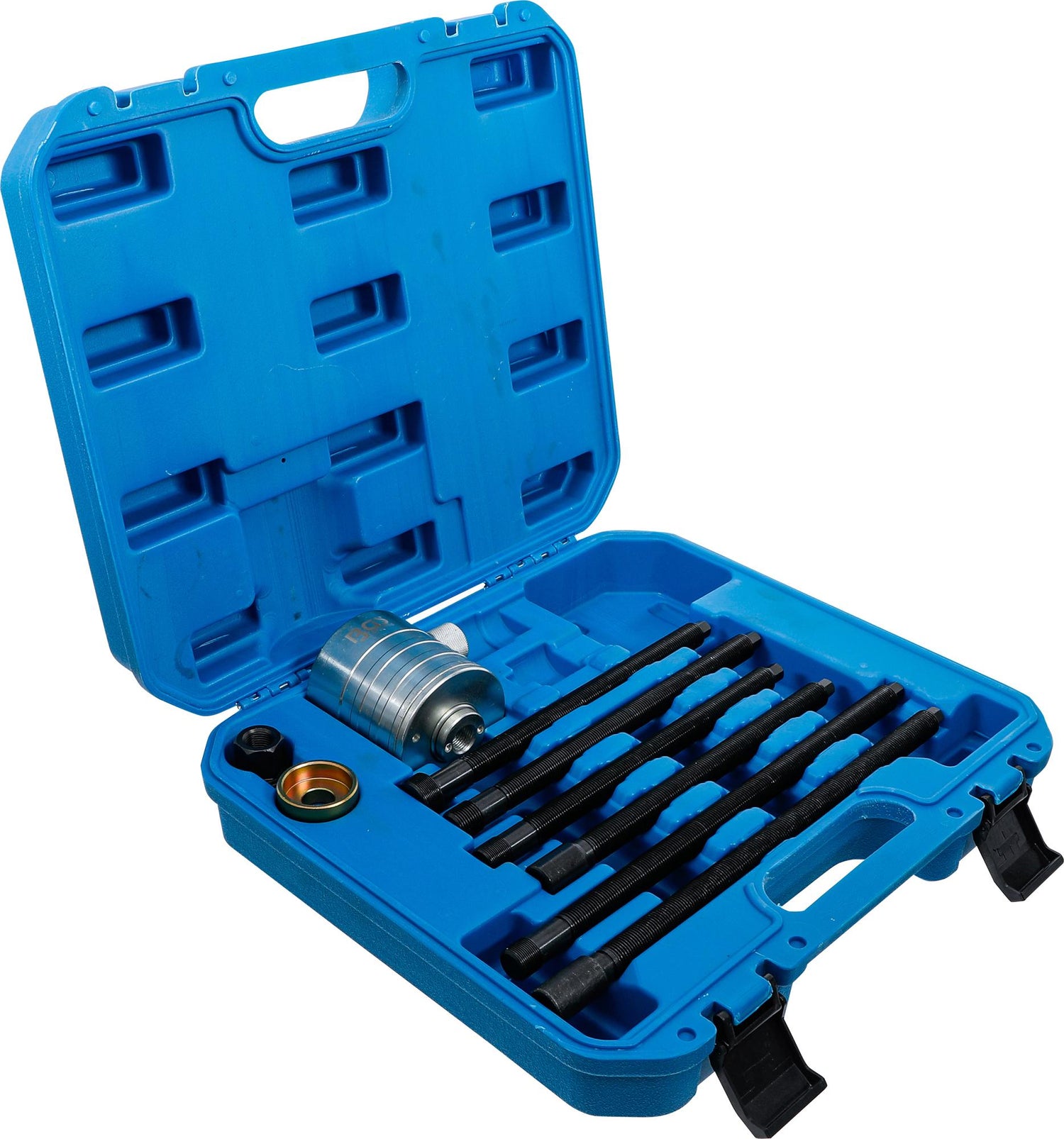

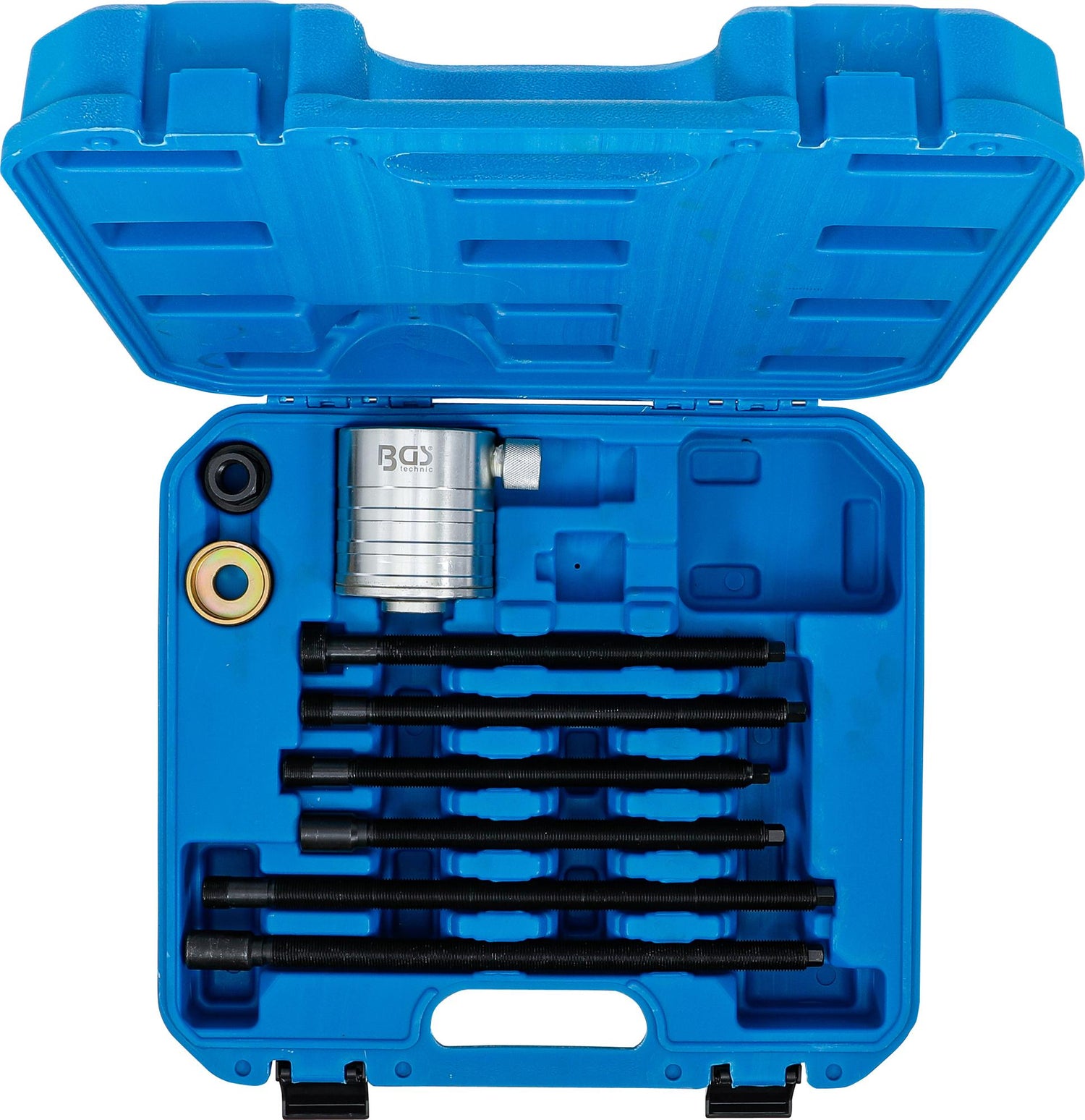

scope of delivery:

1 hydraulic cylinder internal thread M16 x 1.5 and coupling nut M21 x 1.25
1 puller spindle nut M16 x 1.5
1 distance washer
1 puller spindle M25 x 1.0 internal thread (240 mm)
1 puller spindle M14 x 1.5 external thread (240 mm)
1 puller spindle M17 x 1.0 internal thread (240 mm)
1 puller spindle M18 x 1.5 internal thread (250 mm)
1 puller spindle M17 x 1.0 internal thread (315 mm)
1 puller spindle M14 x 1.5 external thread (315 mm)
Technical data
Length380 mm
Width347 mm
Height112 mm
Gross weight6214 g
