HYDRAULIC CRANE | 1000 KG (11999)

heavy duty crane for daily garage use
suitable as an engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine
foldable for easy transport and space-saving storage
with hand lever pump
easy lifting and lowering by hydraulic cylinder
easy to manoeuvre with 4 castors and 2 heavy duty swivel castors
load carrier on the boom with stable chain and safety load hook

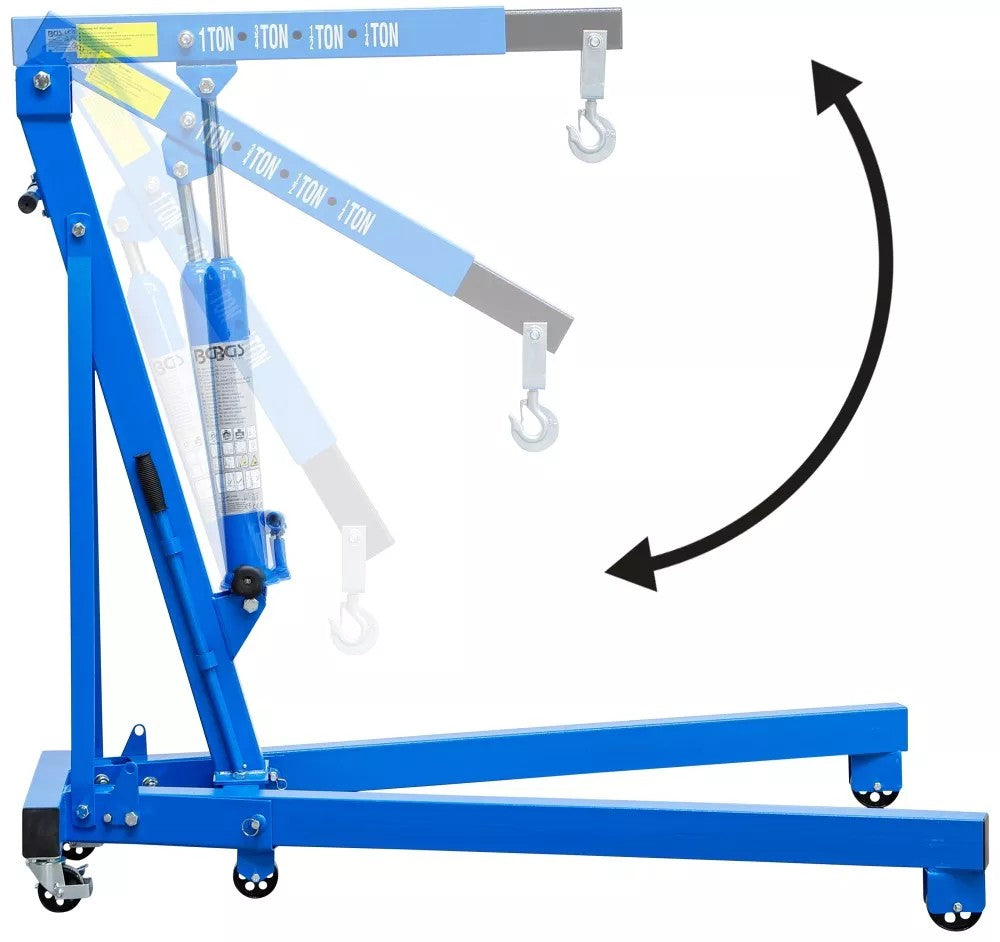

telescopic crane boom with 4-way adjustment options
adjustable lifting arm has following 4 positions:
rated load at 980 mm lifting arm length: 1000 kg
rated load at 1070 mm lifting arm length: 750 kg
rated load at 1160 mm lifting arm length: 500 kg
rated load at 1250 mm lifting arm length: 250 kg
lifting height at max. rated load: min. 178 mm | max. 1677 mm
lifting piston: 28 mm
pump piston: 12 mm
pump lever: 21.5 x 550 mm
Technical data
Length1540 mm
Width1040 mm
Height1450 mm
Packaging suitable for wall hangingNo
Gross weight68600 g
Weight65 kg
Operating temperature4 - 41 C
