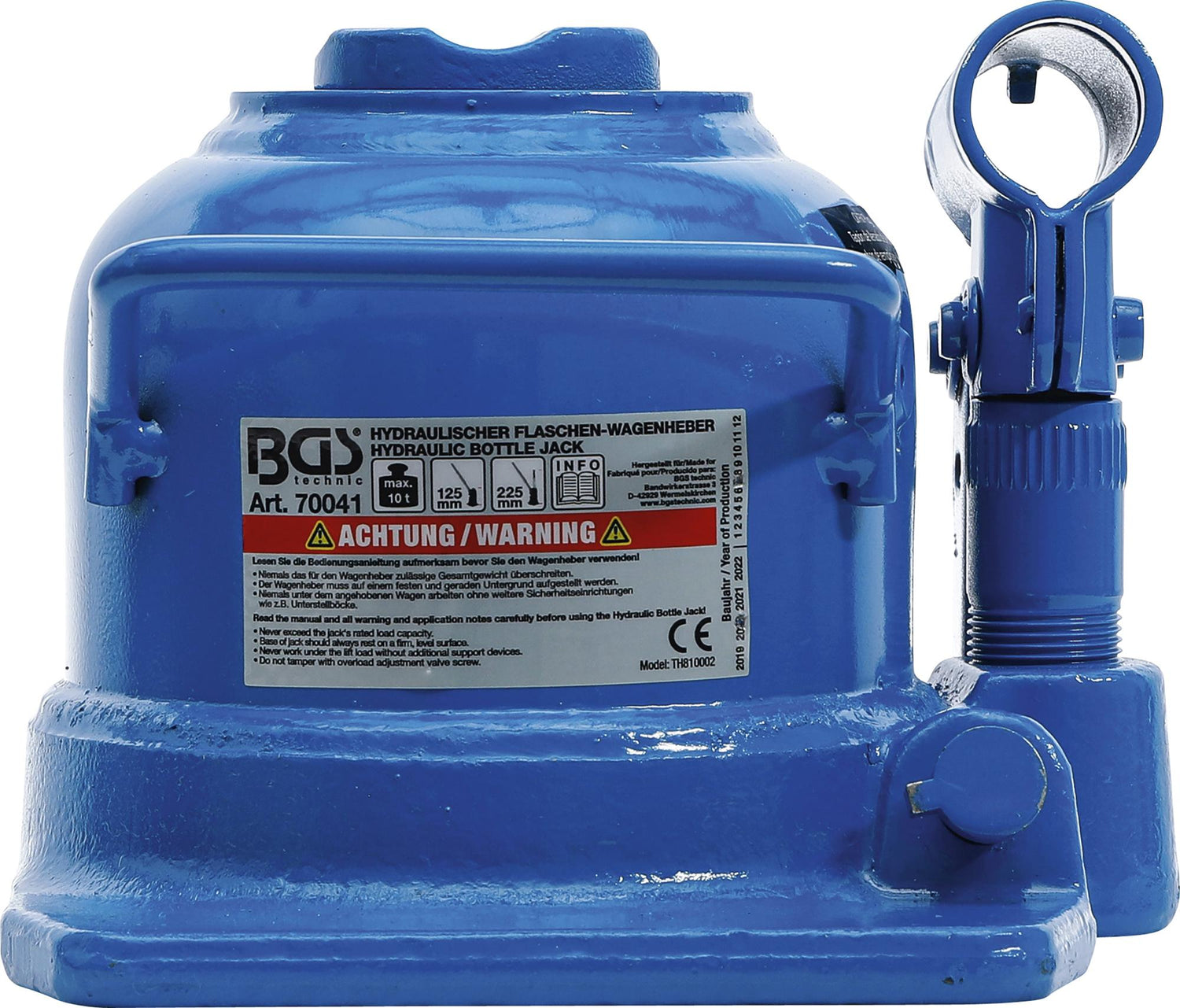

HYDRAULIC BOTTLE JACK | EXTRA FLAT | 10 T (70041)

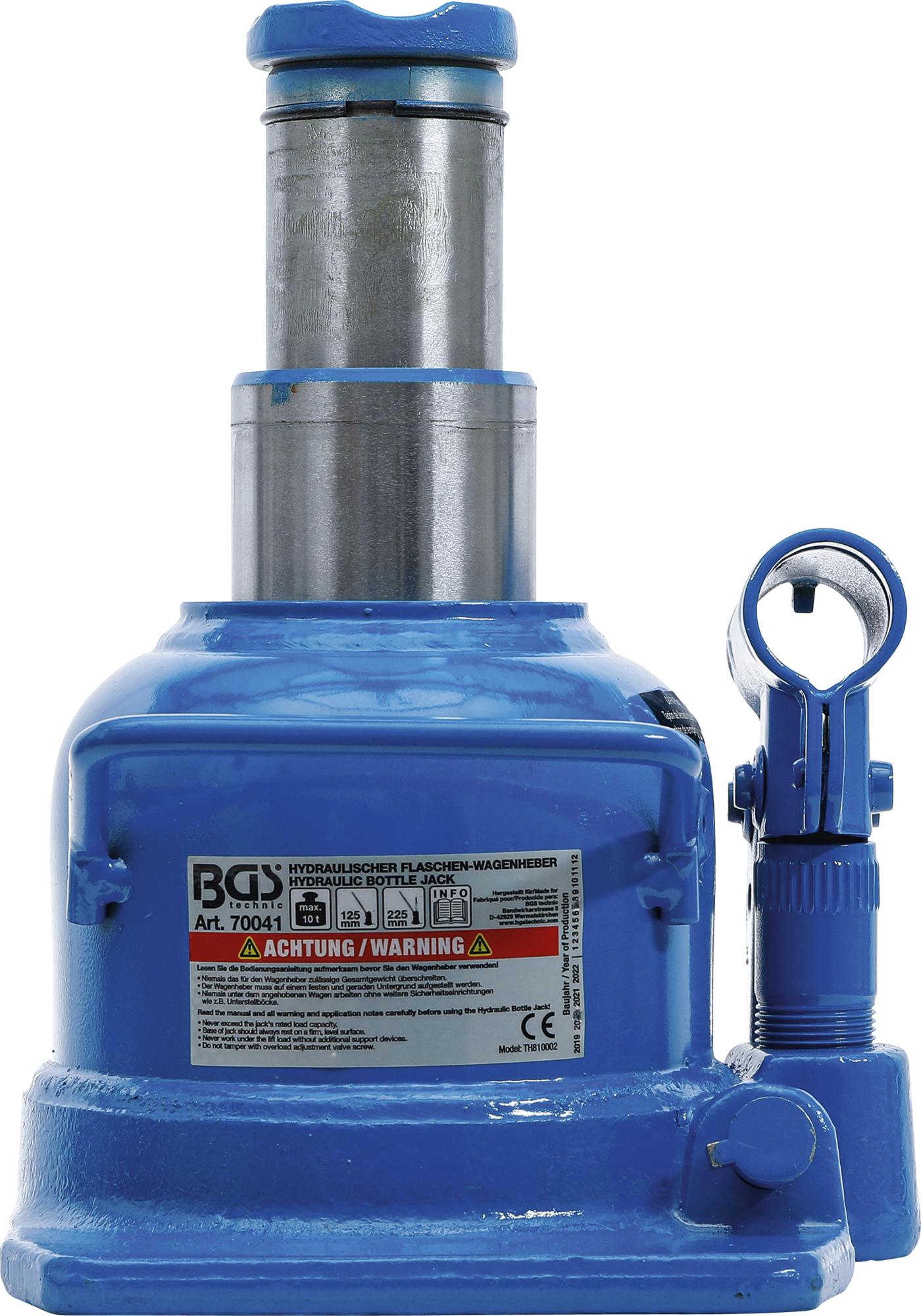

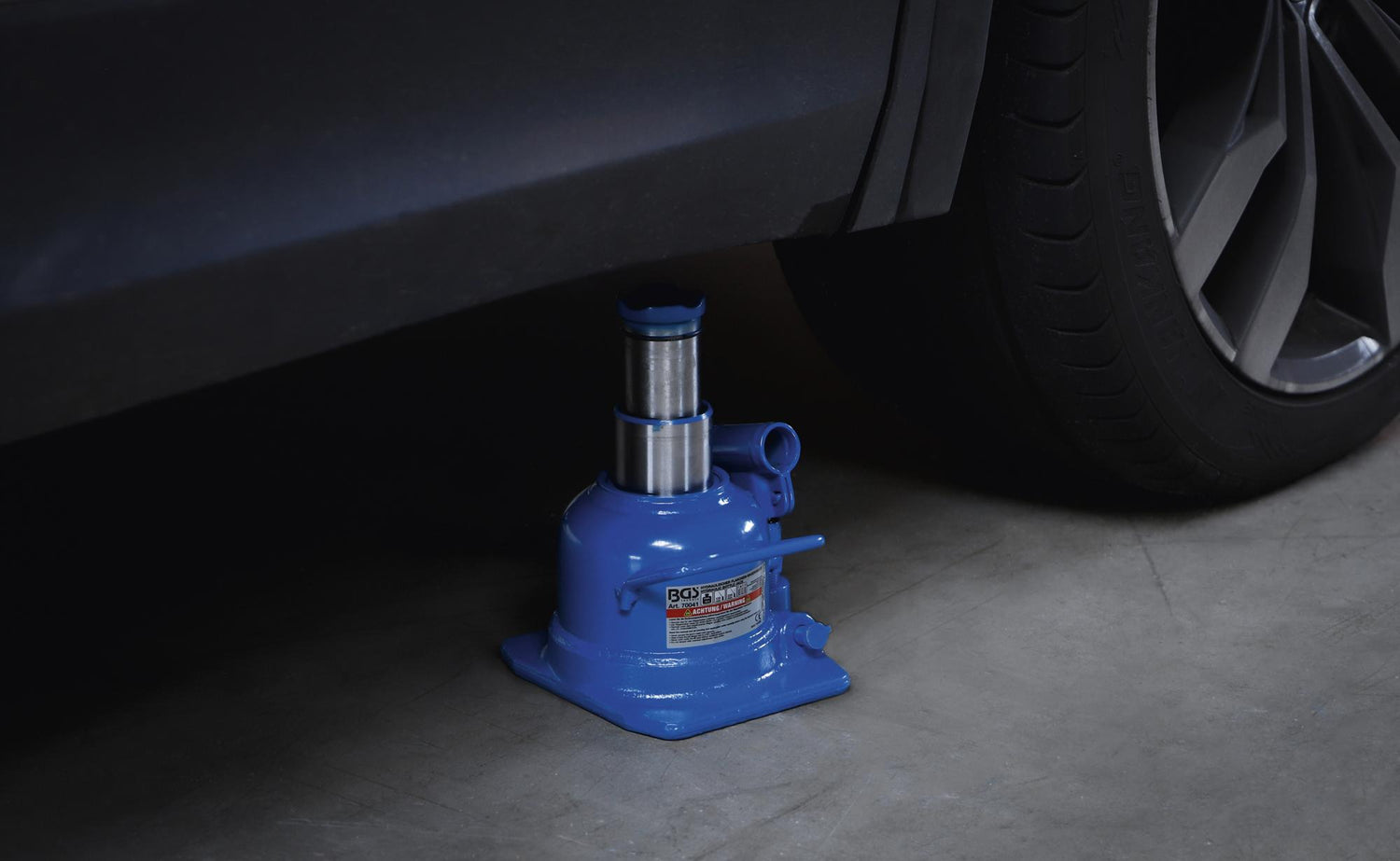

EAN 4048769055530 Low-profile two-stage hydraulic telescopic jack BGS Technic 70041 is a PRO+ class device designed for lifting vehicles, trailers, machinery, and other heavy loads. The telescopic jack consists of several interlocking sections, making these devices compact, easy to transport and store. Massive, stable construction made of welded steel. The hydraulic telescopic jack BGS Technic 70041 has a safety valve. The device is suitable for use in car services, workshops or garages.

Piston diameter [mm]: 54 | 42

Lifting height max. [mm]: 100

Lifting range [mm]: 125-225

Lifting cycle [mm]: 4

Saddle diameter [mm]: 48

Base dimensions [mm]: 165x160

Load capacity max. [kg]: 10,000

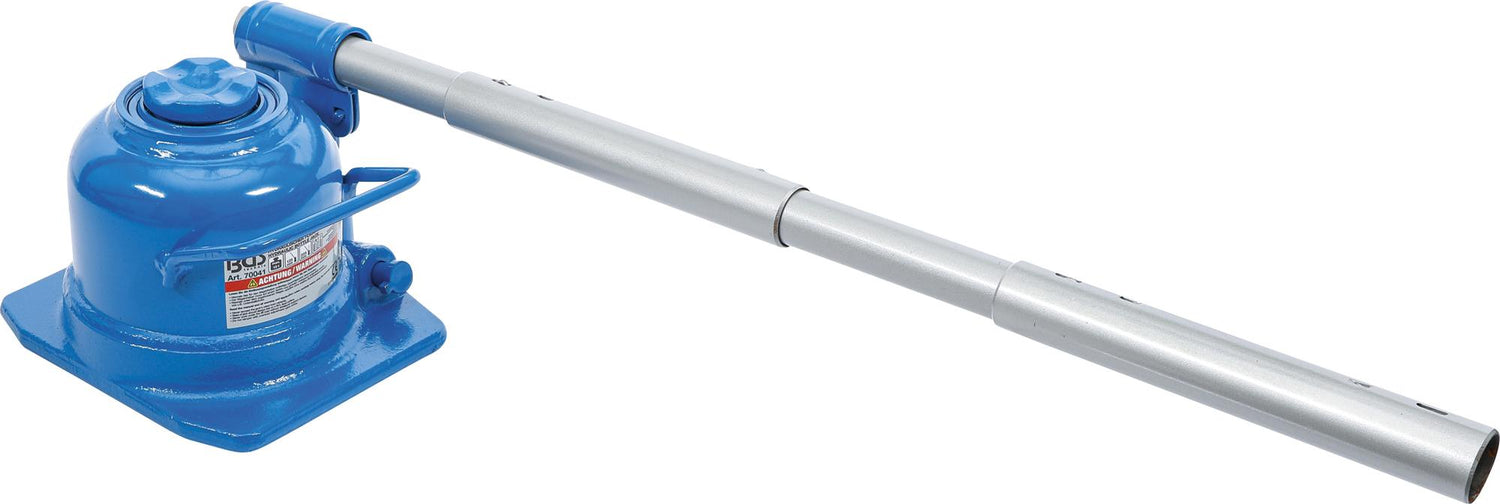

Lever length [mm]: 555

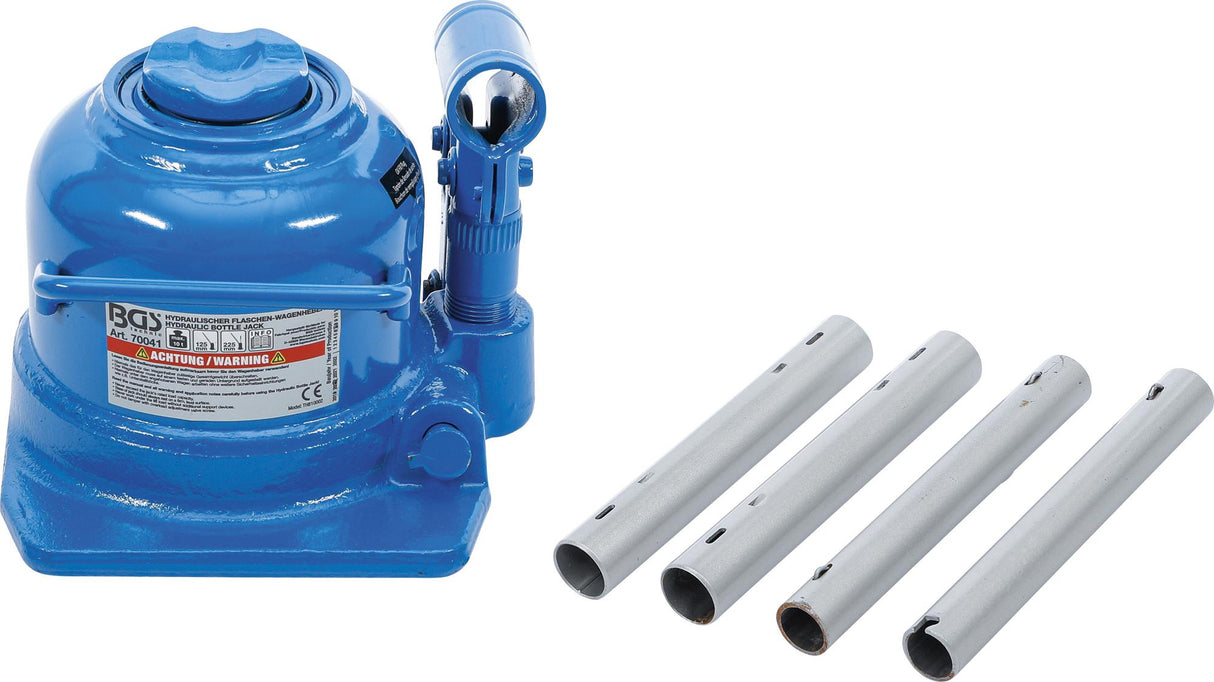

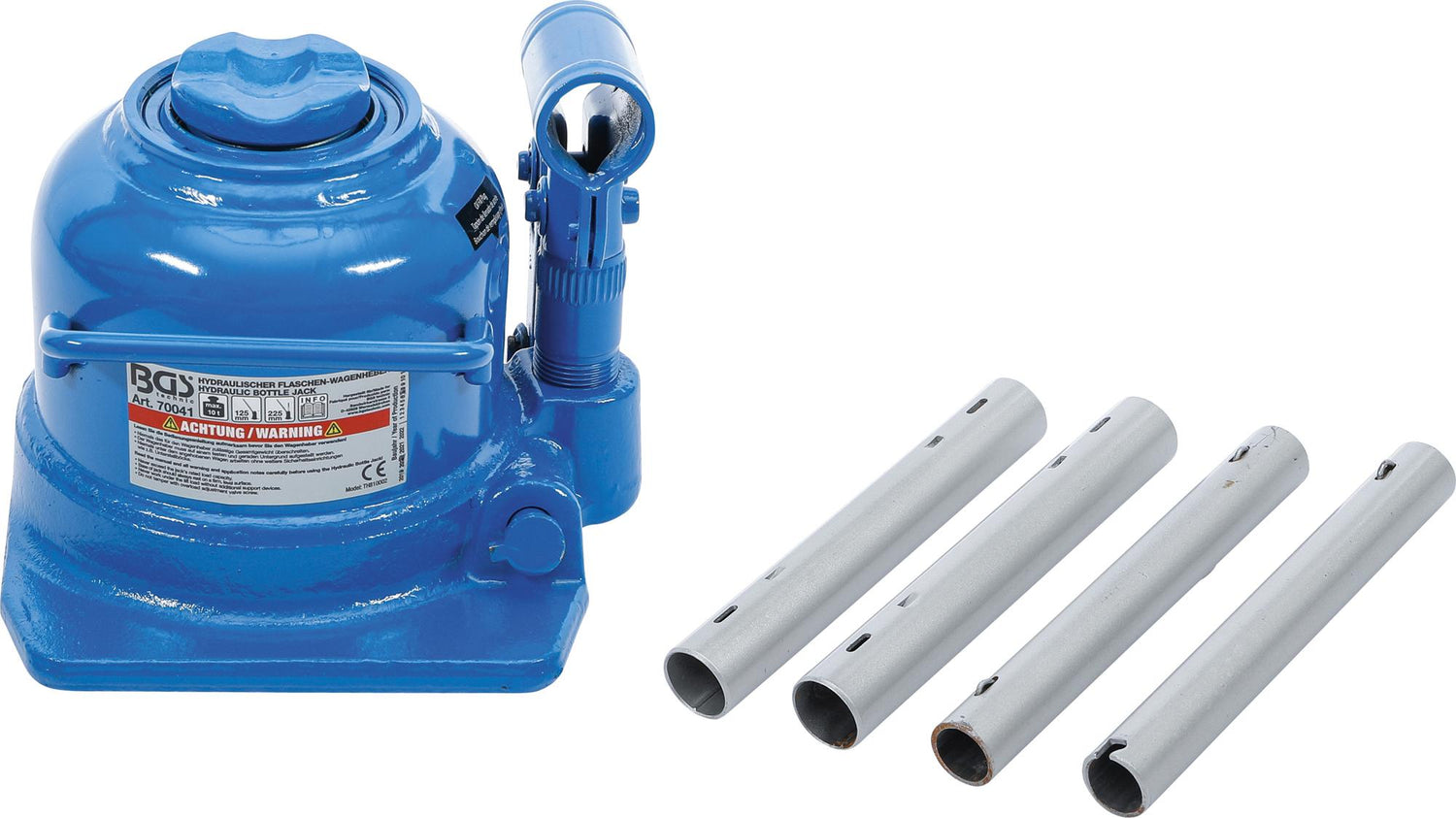

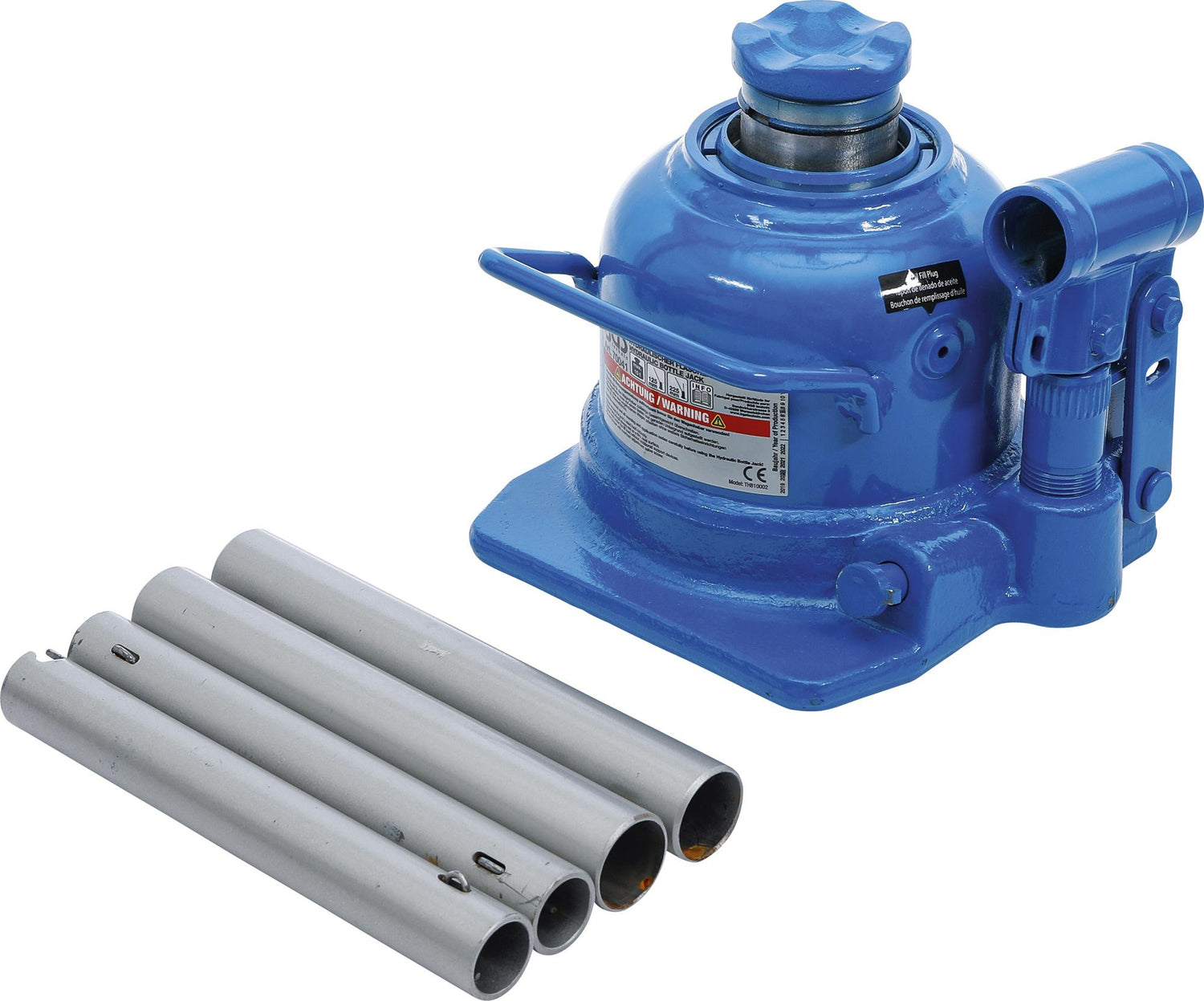

Handle dimensions [diameter x length x thickness, mm]: 25.5x170x1.5 | 22x170x2.0 | 25.5x170x1.5 | 22x170x2.0

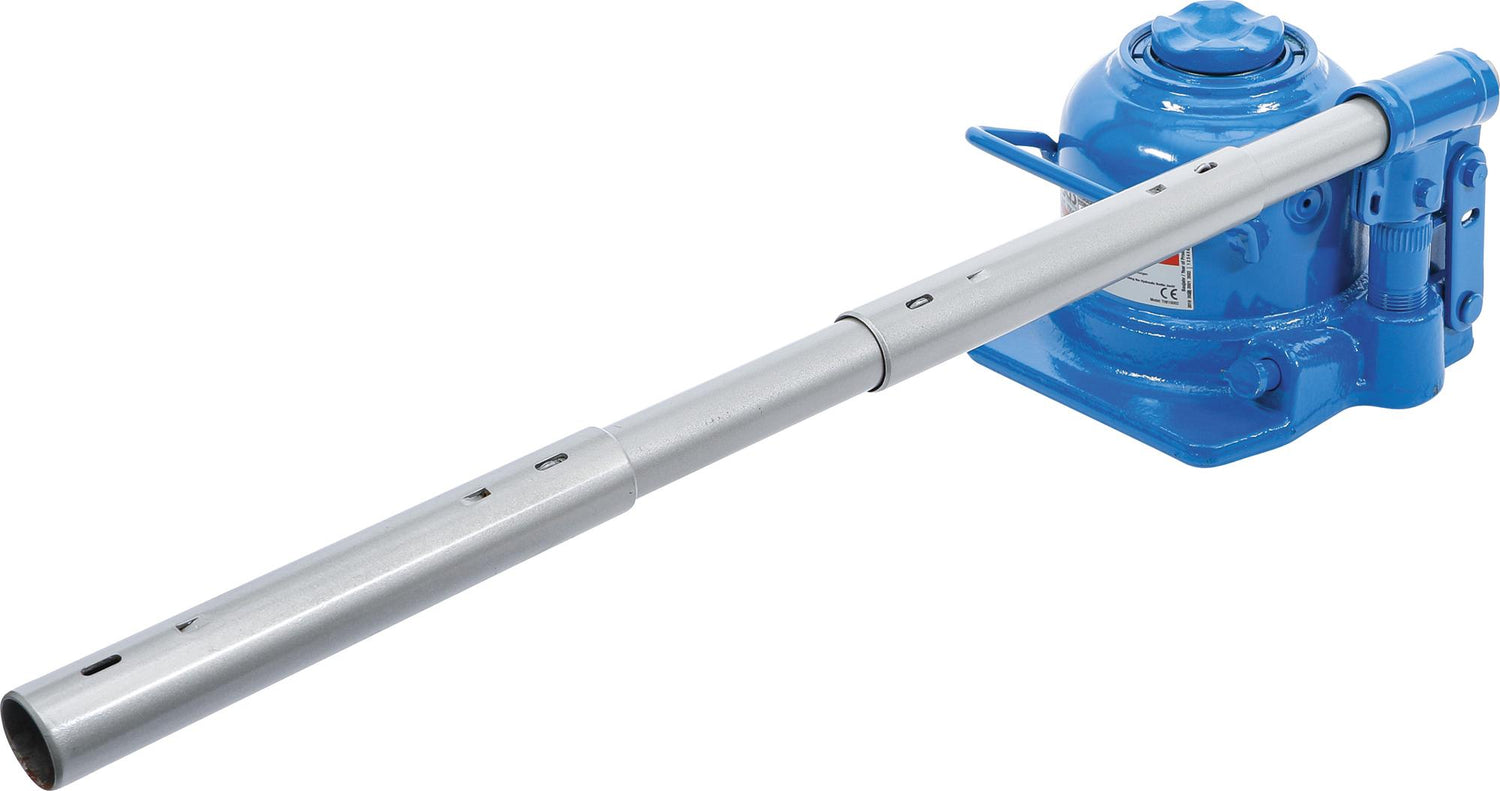

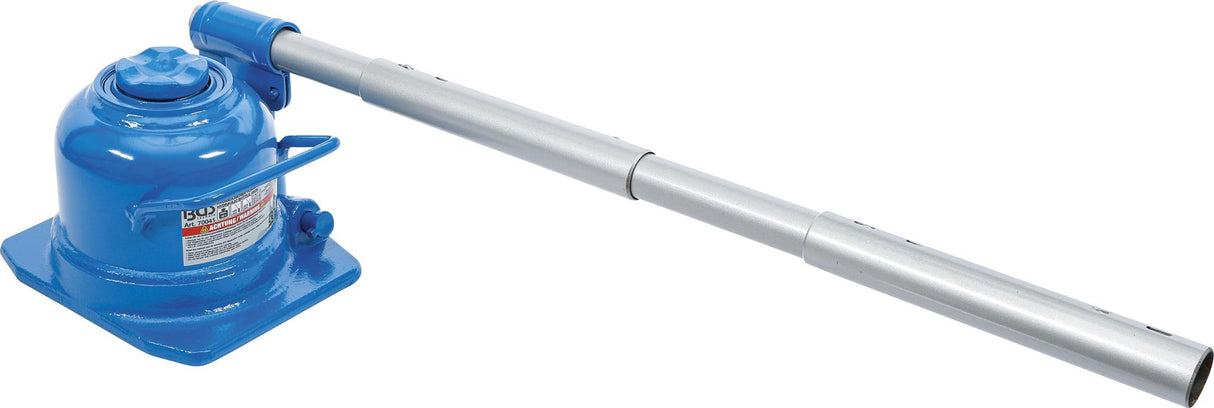

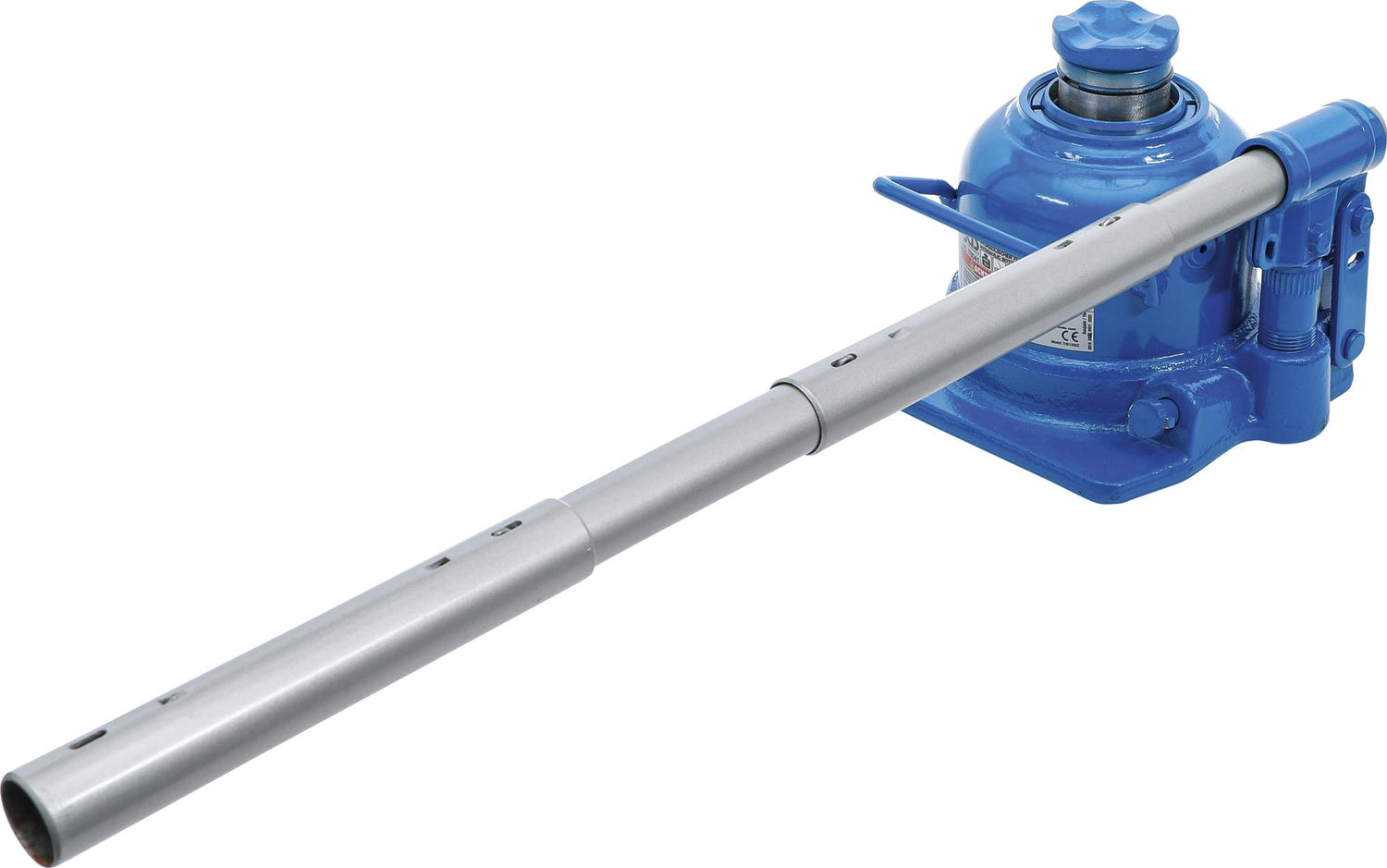

The product includes a lifting handle.

Total weight [kg]: 8.810
