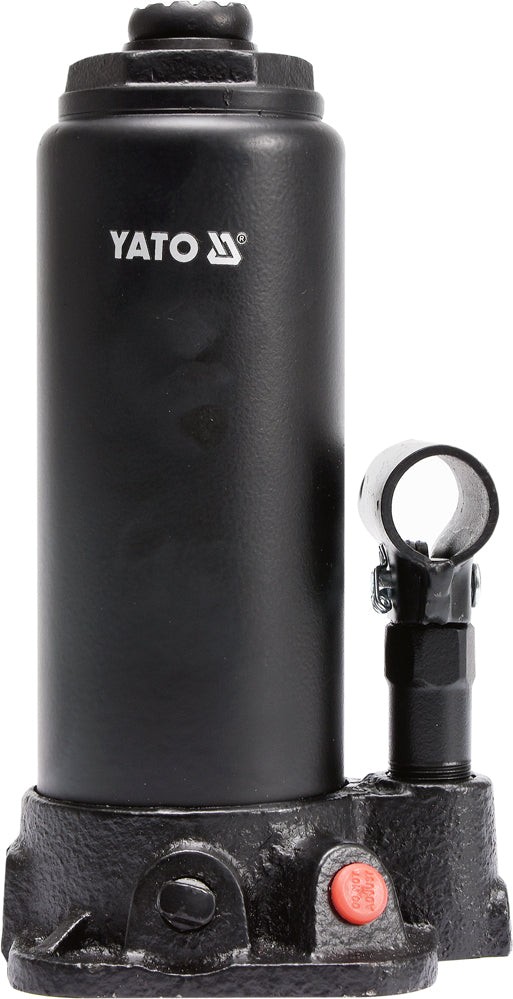

HYDRAULIC BOTTLE JACK 5T (YT-17002)

€2599
Tax included, shipping calculated at checkout.

Description

The hydraulic telescopic jack YATO YT-17002 is a PRO-class device designed for lifting heavy loads. A telescopic jack consists of several telescoping sections. Thanks to this design, telescopic jacks are compact, easy to transport and store. The YATO YT-17002 hydraulic telescopic jack has a valve system that precisely doses the oil flow, ensuring high operating efficiency at maximum load despite the small piston stroke. The device is suitable for use in car services, workshops, or garages.

Piston length [mm]: 137

Thread length max. [mm]: 60

Lifting range [mm]: 216-413

Saddle diameter [mm]: 29

Base dimensions [mm]: 96x110

Lifting capacity max. [kg]: 5,000

The hydraulic telescopic jack YATO YT-17002 complies with the following European standards: EN 1494:2000 + A1:2008 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements.

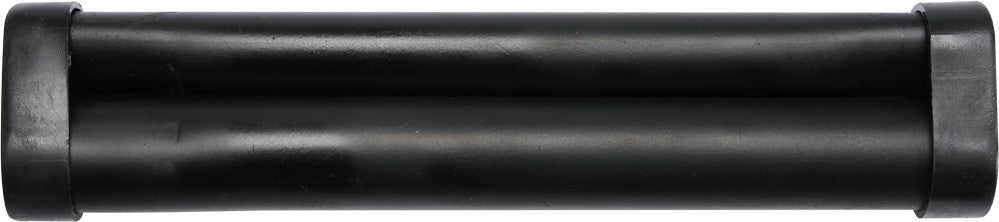

The product set includes a lifting handle.

Model year: 2023

Gross weight [kg]: 4.300

YATO YT-17002 user manual PDF

YATO YT-17002 diagram PDF
