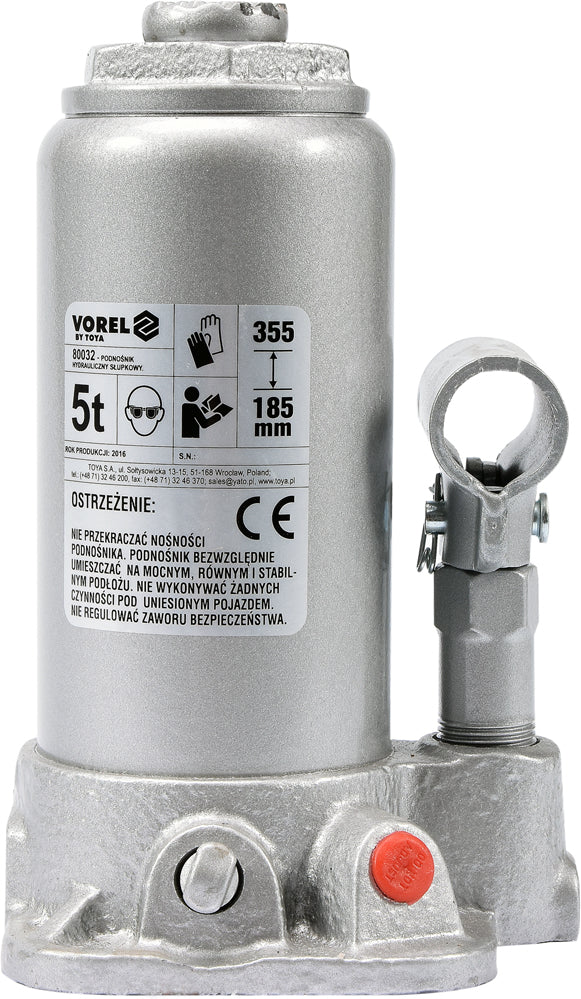

HYDRAULIC BOTTLE JACK 5T (80032)

The VOREL 80032 hydraulic telescopic jack is a DIY+ class device designed for lifting heavy loads. A telescopic jack consists of several sections that slide into each other. Thanks to this design, telescopic jacks are compact, easy to transport and store. The VOREL 80032 hydraulic telescopic jack has a valve system that precisely meters the oil flow, ensuring high working efficiency under maximum load, despite the small piston stroke. The device is suitable for use in car repair shops, workshops, or garages.

Piston stroke [mm]: 110

Thread length Max. [mm]: 60

Lifting range [mm]: 185-355

Base dimensions [mm]: 96x112

Lifting capacity Max. [kg]: 5 000

The VOREL 80032 hydraulic telescopic jack complies with the following European standards: EN 1494:2000 + A1:2008 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements.

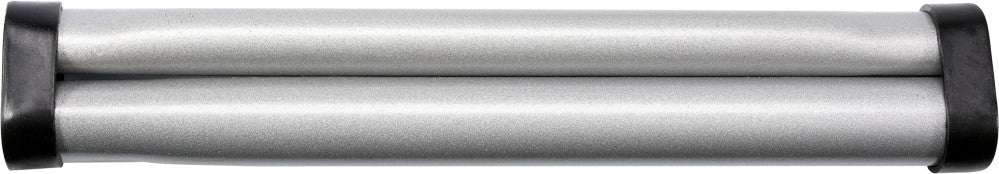

The product includes a lifting handle.

Model year: 2023

Gross weight [kg]: 3.900

VOREL 80032 user manual PDF
