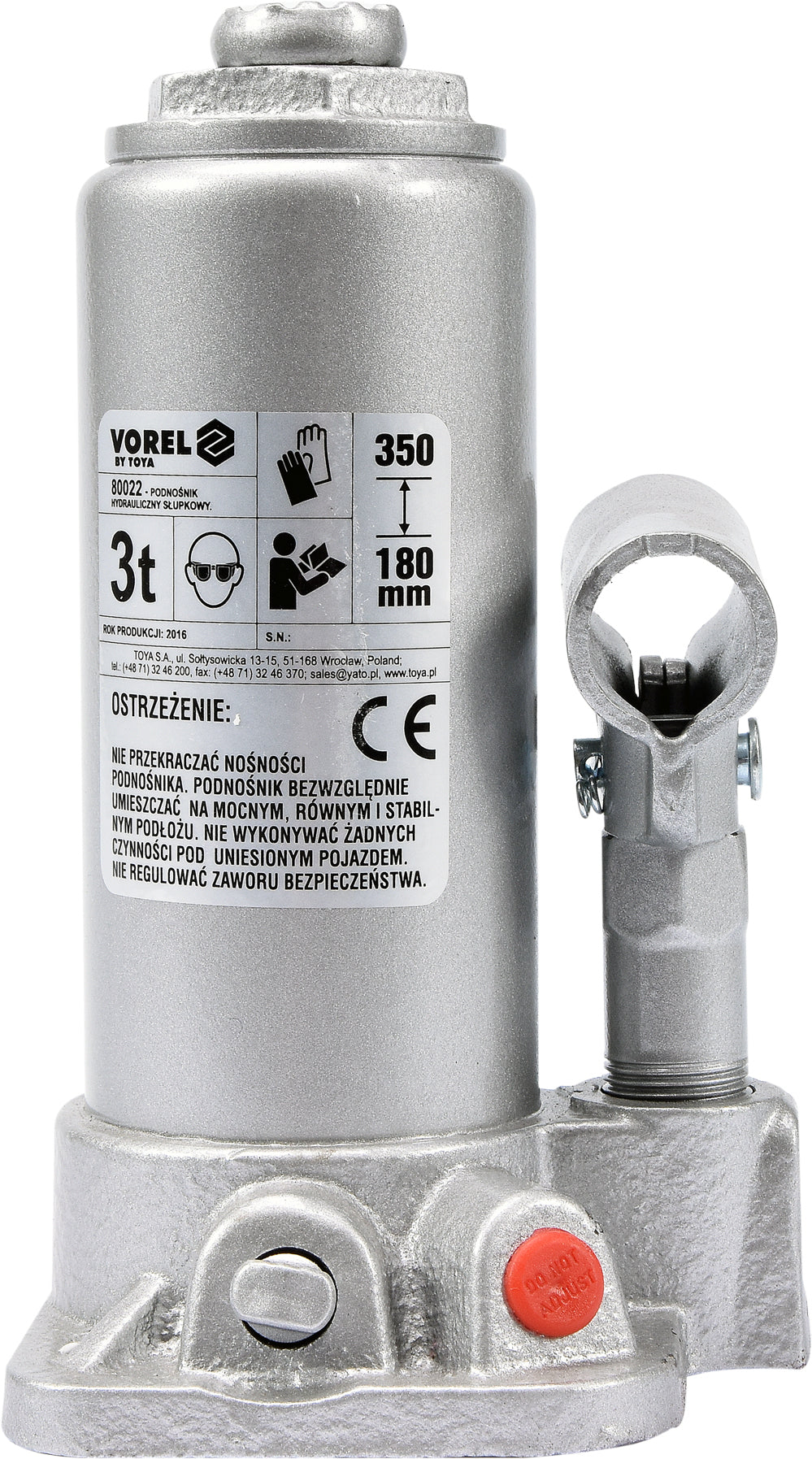

HYDRAULIC BOTTLE JACK 3T (80022)

The hydraulic telescopic jack VOREL 80022 is a DIY+ class device designed for lifting heavy loads. A telescopic jack consists of several sections that slide into one another. Thanks to this design, telescopic jacks are compact, easy to transport and store. The hydraulic telescopic jack VOREL 80022 has a valve system that precisely doses the oil flow, ensuring high work efficiency even at maximum load, despite the small piston stroke. The device is suitable for use in car services, workshops, or garages.

Piston length [mm]: 110

Thread length Max. [mm]: 60

Lifting range [mm]: 168-326

Base dimensions [mm]: 92x100

Lifting capacity Max. [kg]: 3 000

The hydraulic telescopic jack VOREL 80022 complies with the European standards: EN 1494:2000 + A1:2008 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and safety elements.

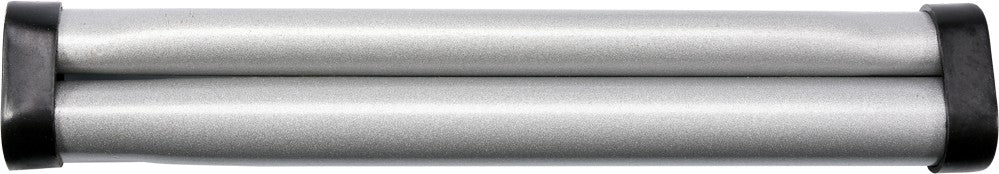

The product set includes a lifting handle.

Model year: 2023

Total weight [kg]: 3.100

VOREL 80022 user manual PDF
