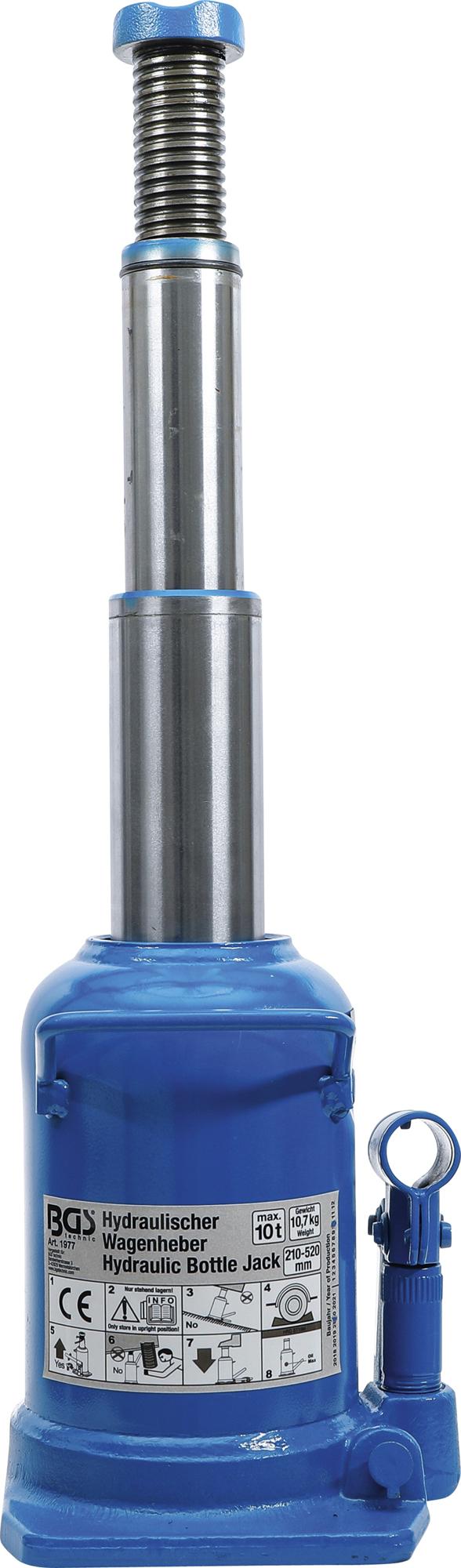

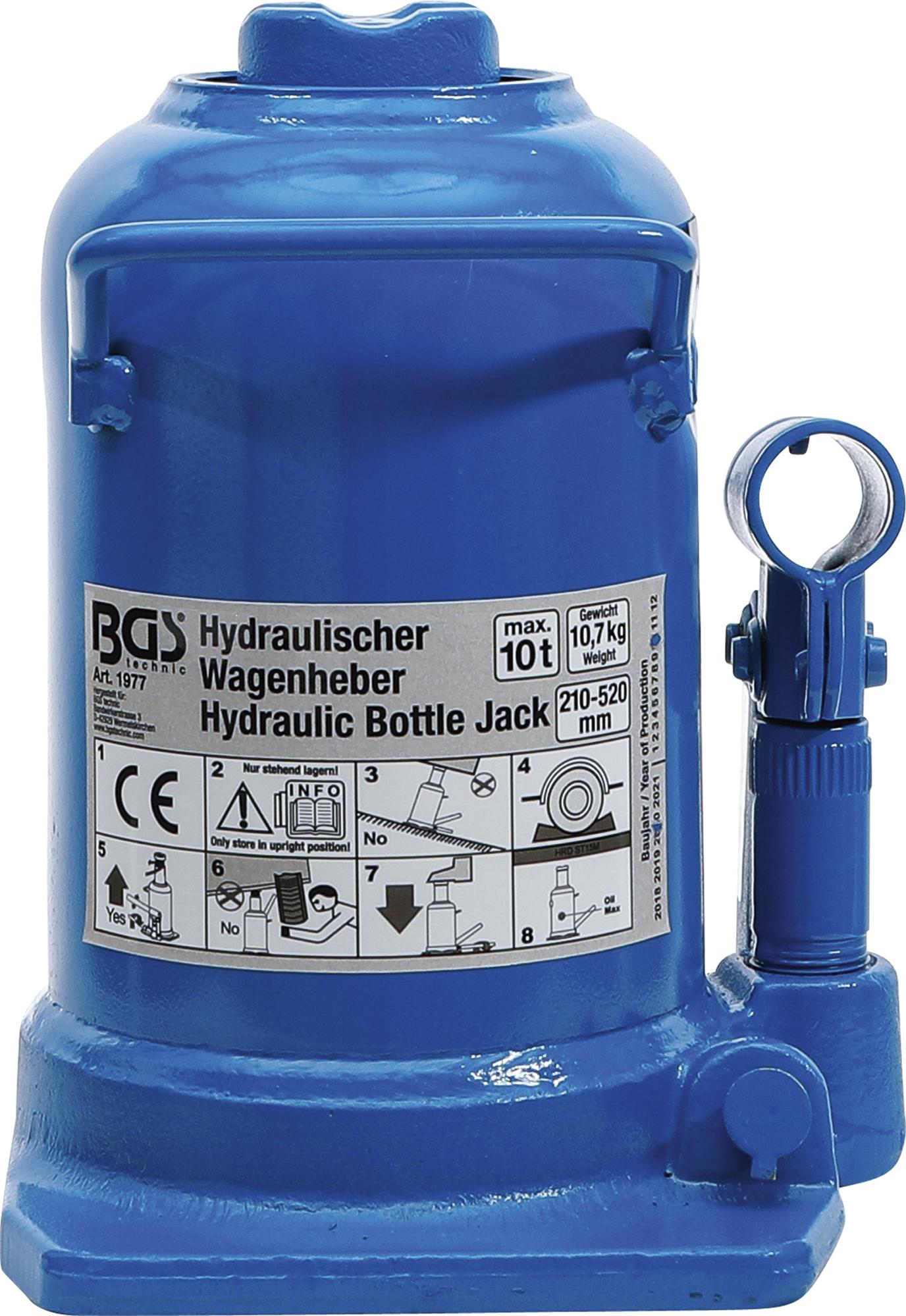

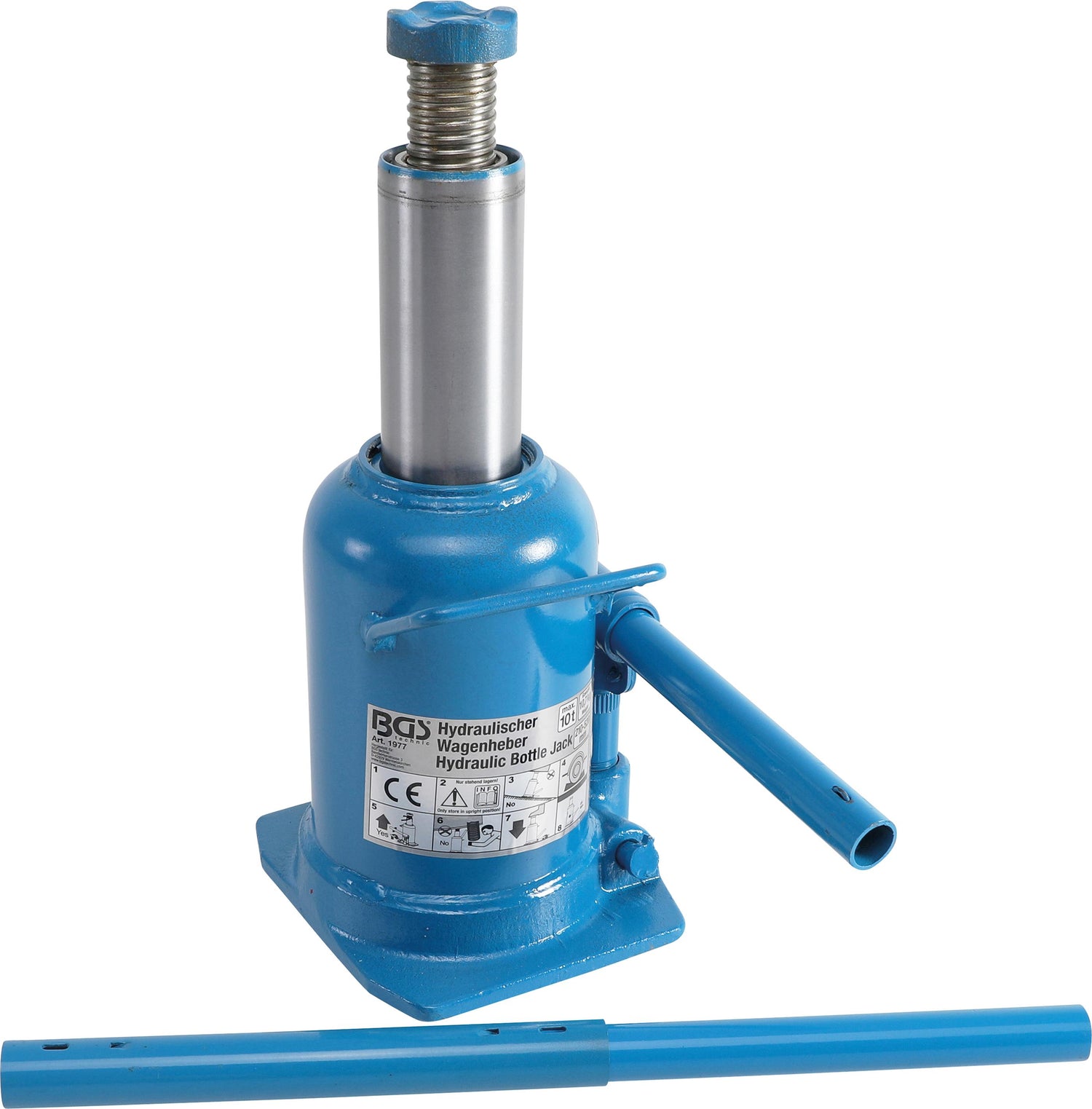

HYDRAULIC BOTTLE JACK | 10 T (1977)

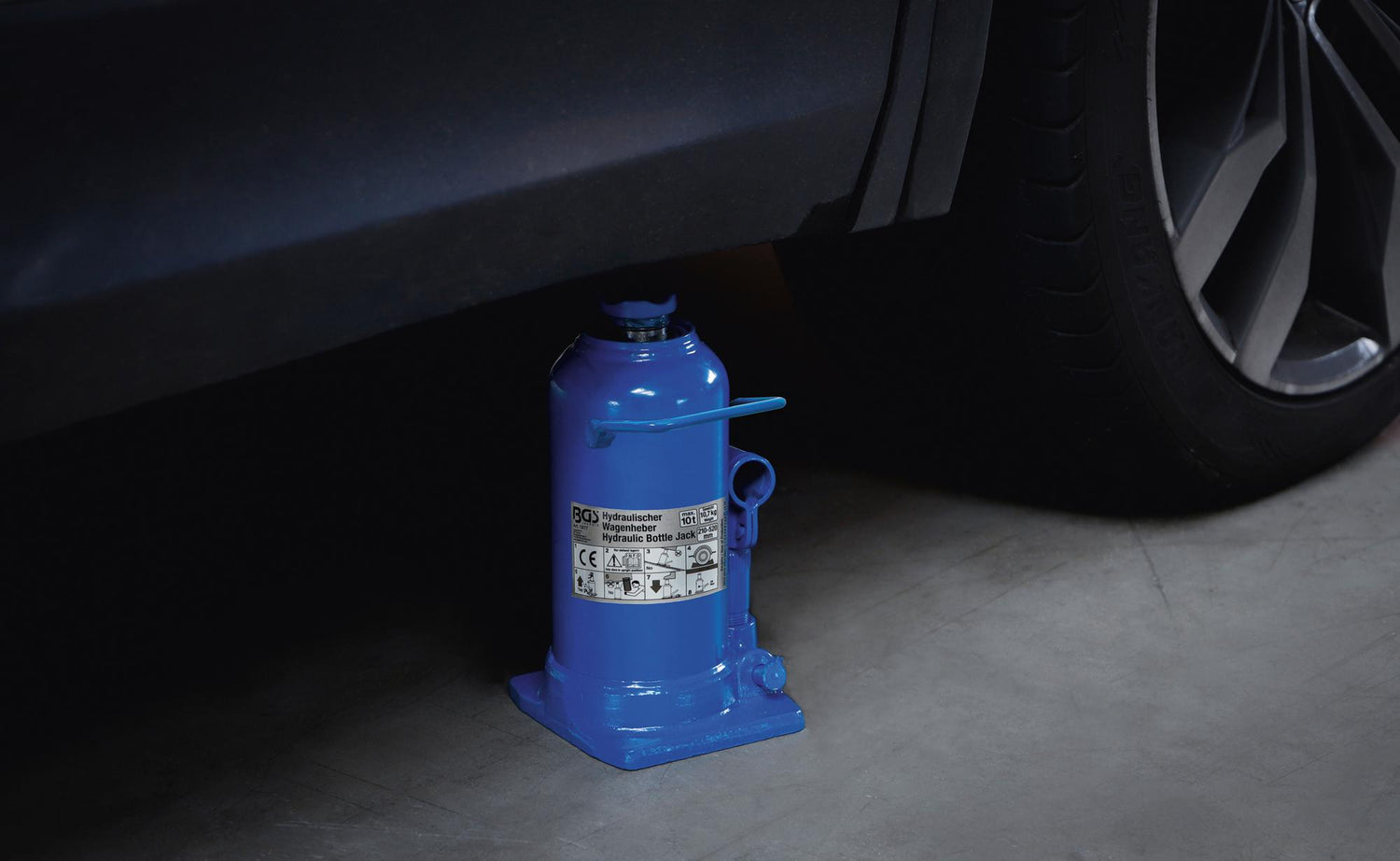

The two-stage hydraulic telescopic jack BGS Technic 1977 is a PRO+ class device designed for lifting vehicles, trailers, machinery, and other heavy loads. The telescopic jack consists of several sections that slide into each other, making these devices compact, easy to transport, and store. It features a massive, stable construction made of welded steel. The BGS Technic 1977 hydraulic telescopic jack has a safety valve. The device is suitable for use in car services, workshops, or garages.

piston diameter [mm]: 54 | 42

lifting height Max. [mm]: 242

lifting range [mm]: 210-520

lifting cycle [mm]: 4

saddle diameter [mm]: 47

base dimensions [mm]: 166x162

lifting capacity Max. [kg]: 10 000

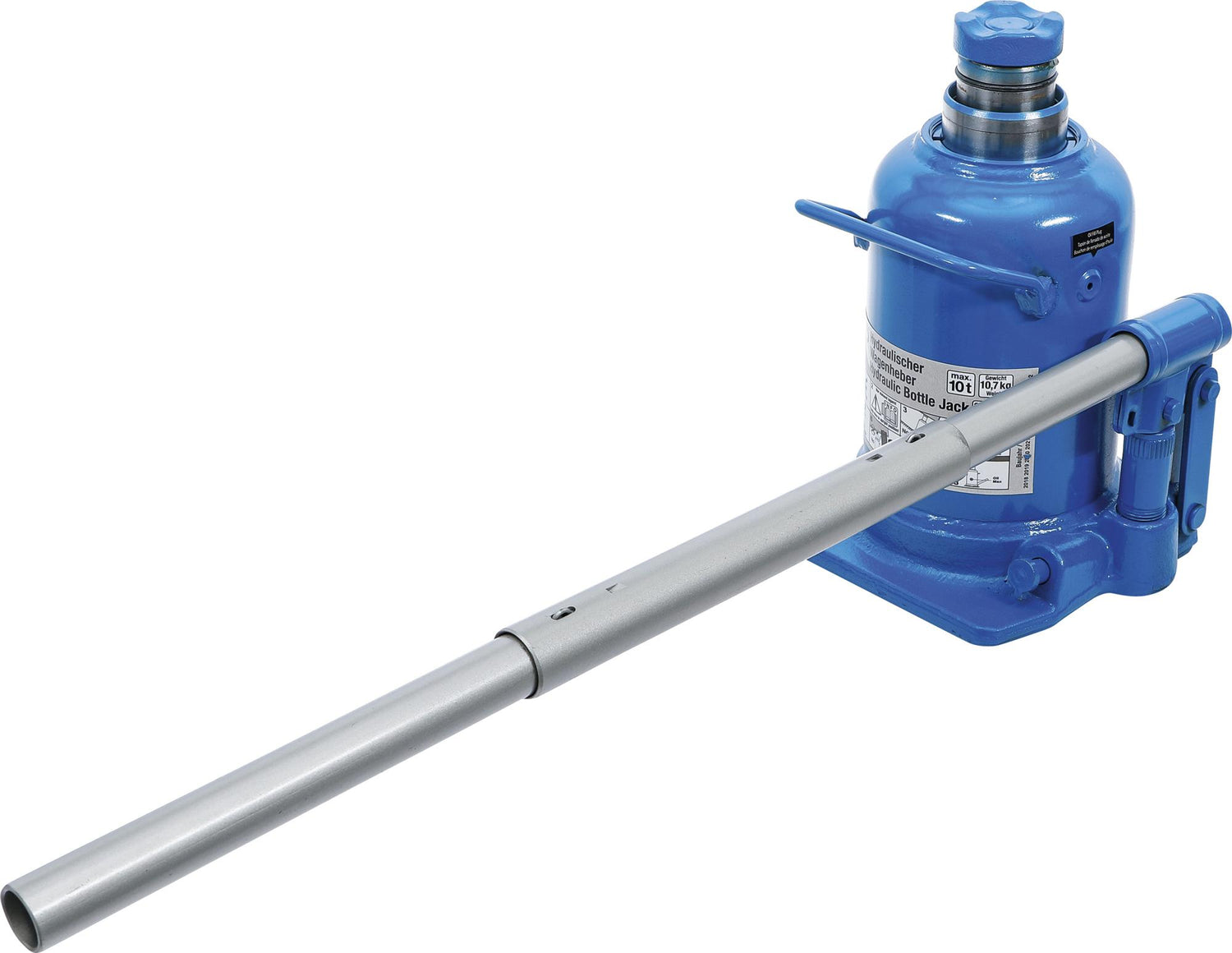

lever length [mm]: 578

handle dimensions [diameter x length x thickness, mm]: 22x218x2.0 | 25.5x218x1.6 | 22x218x2.0

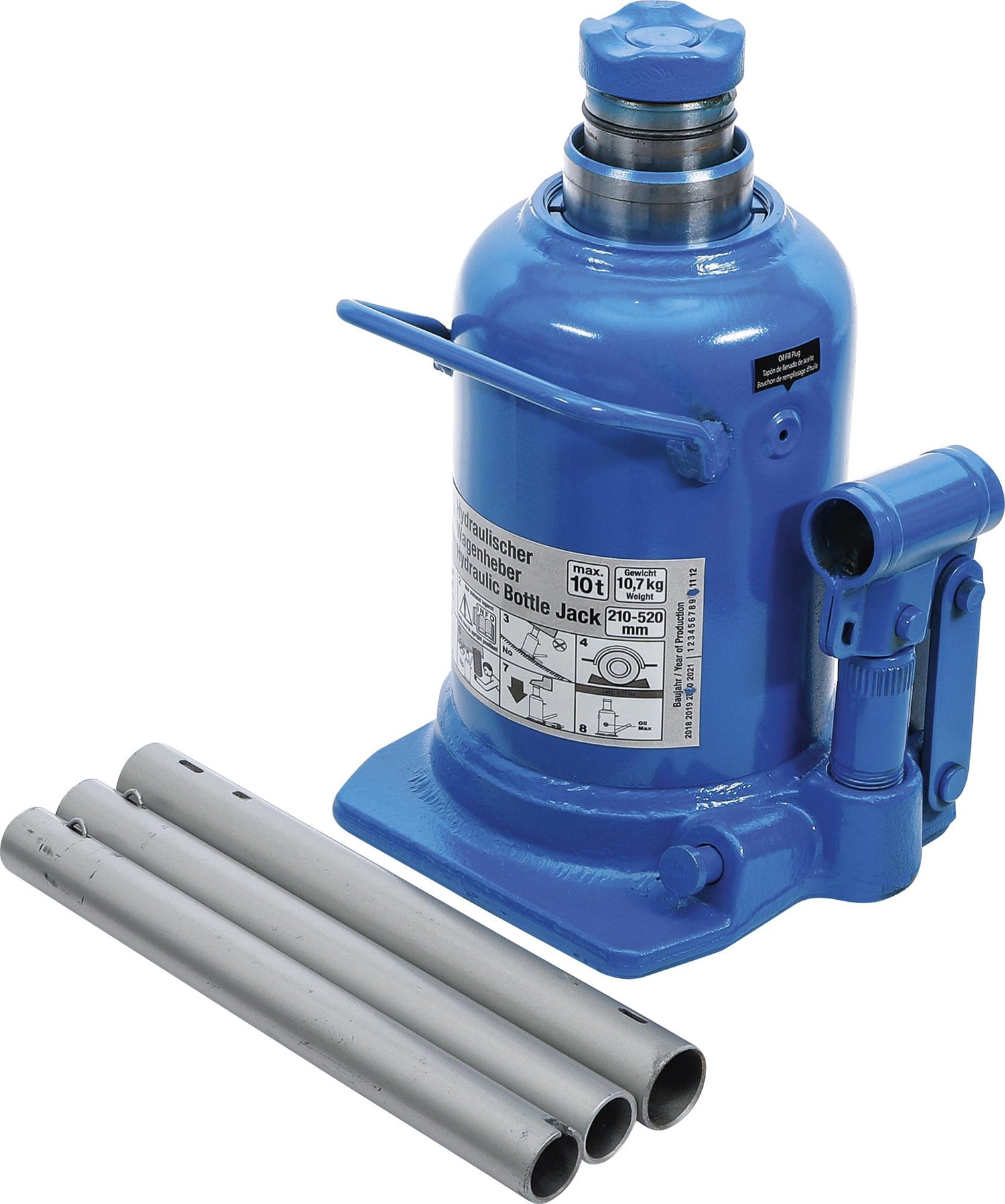

The product includes a lifting handle.

Total weight [kg]: 10.910
