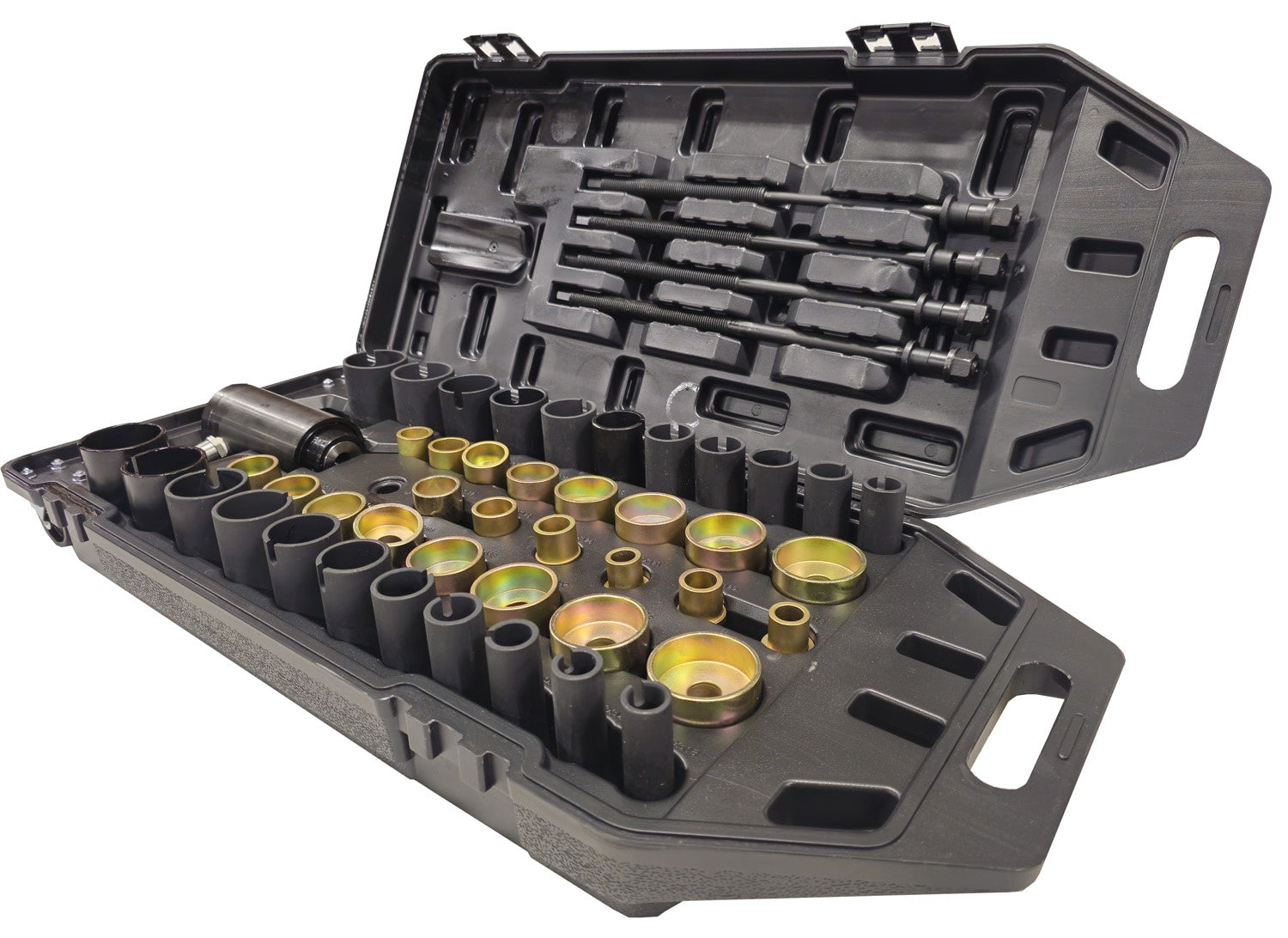

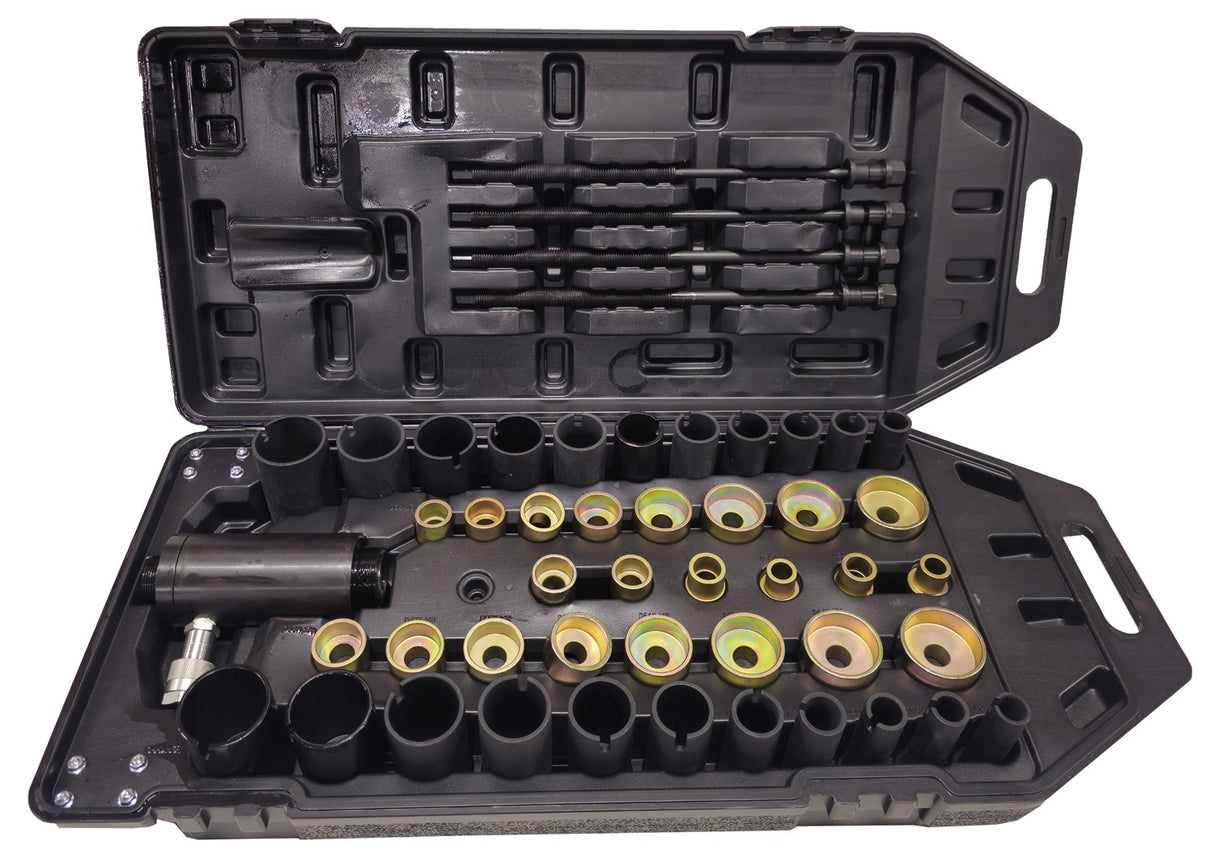

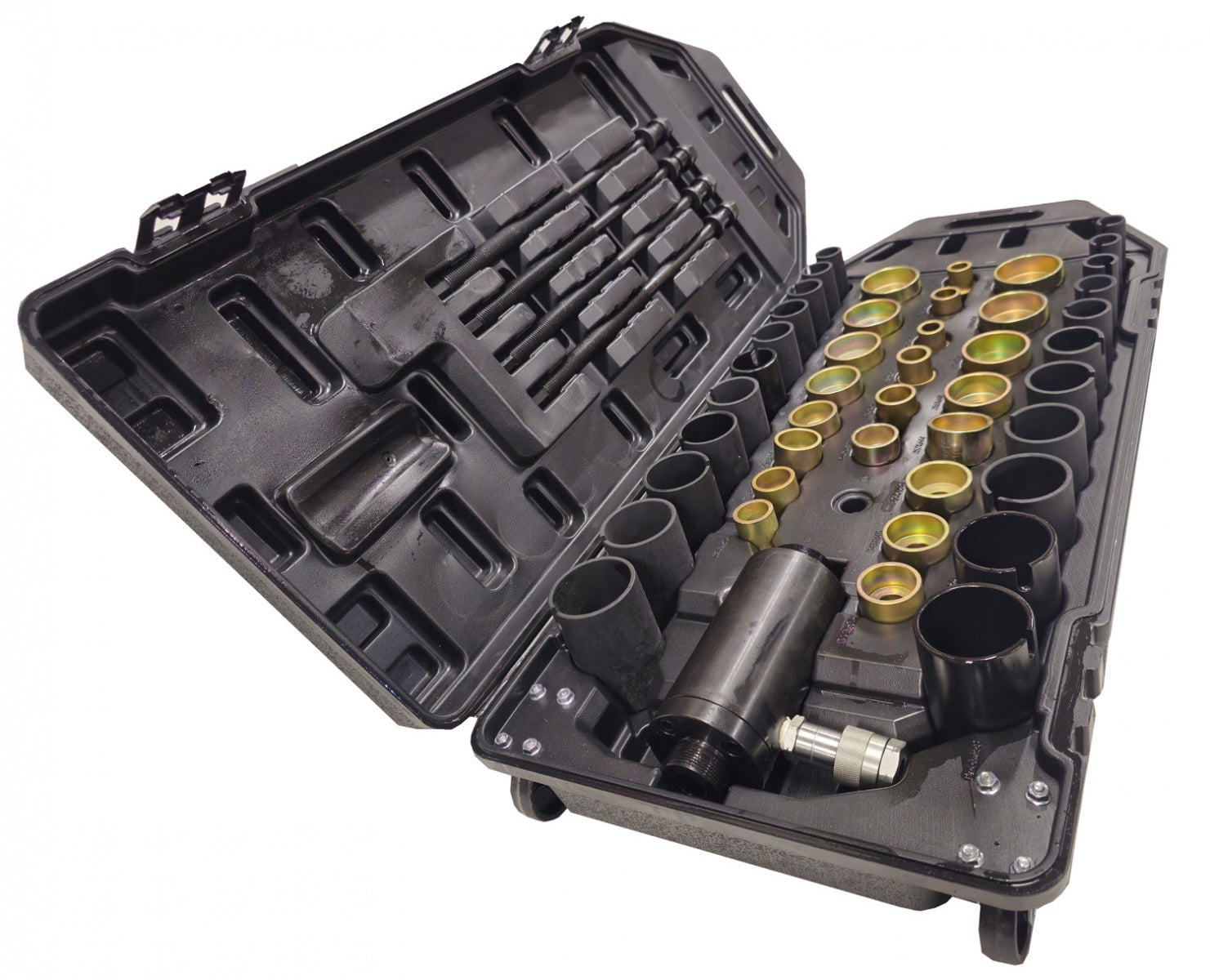

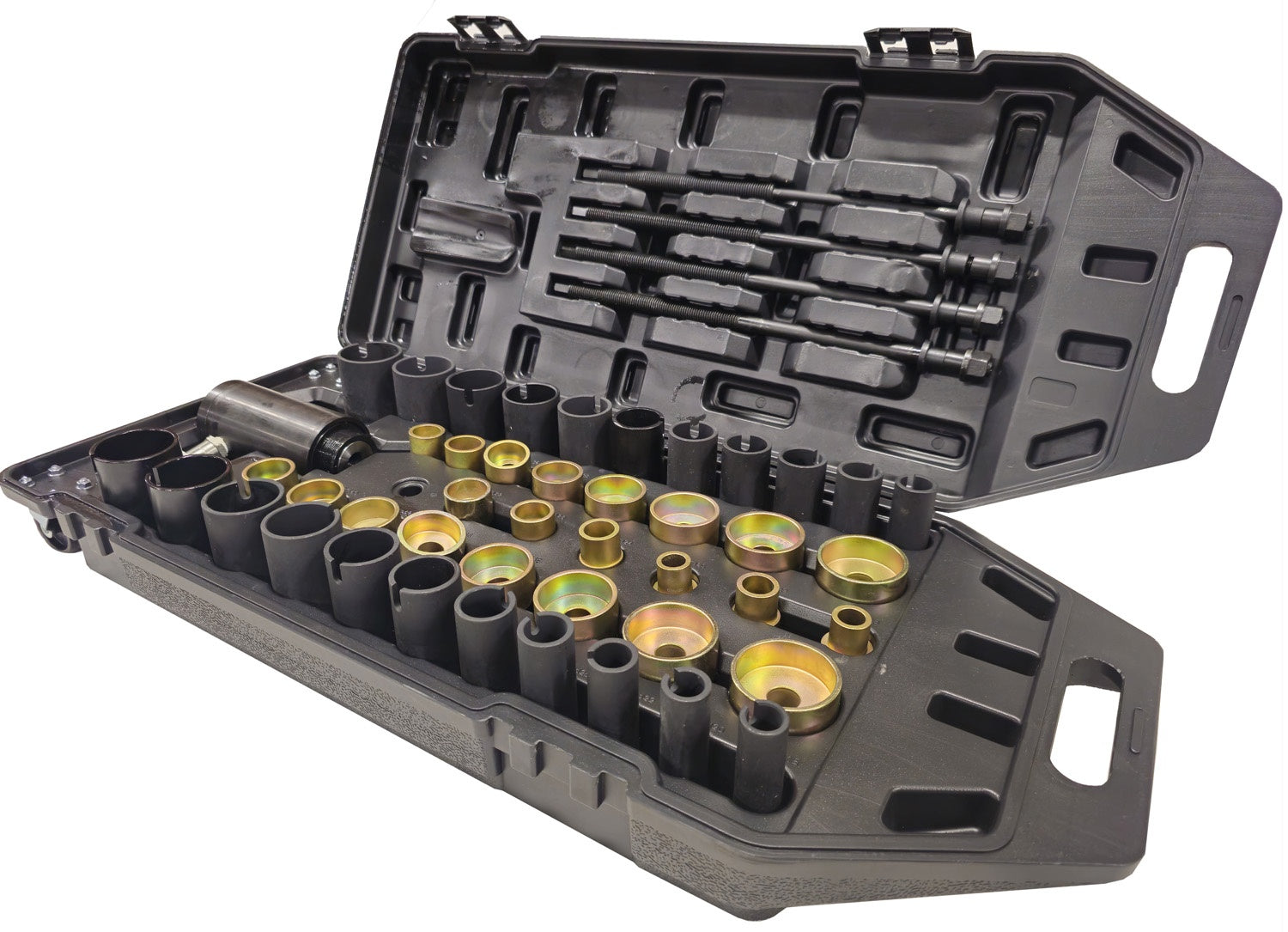

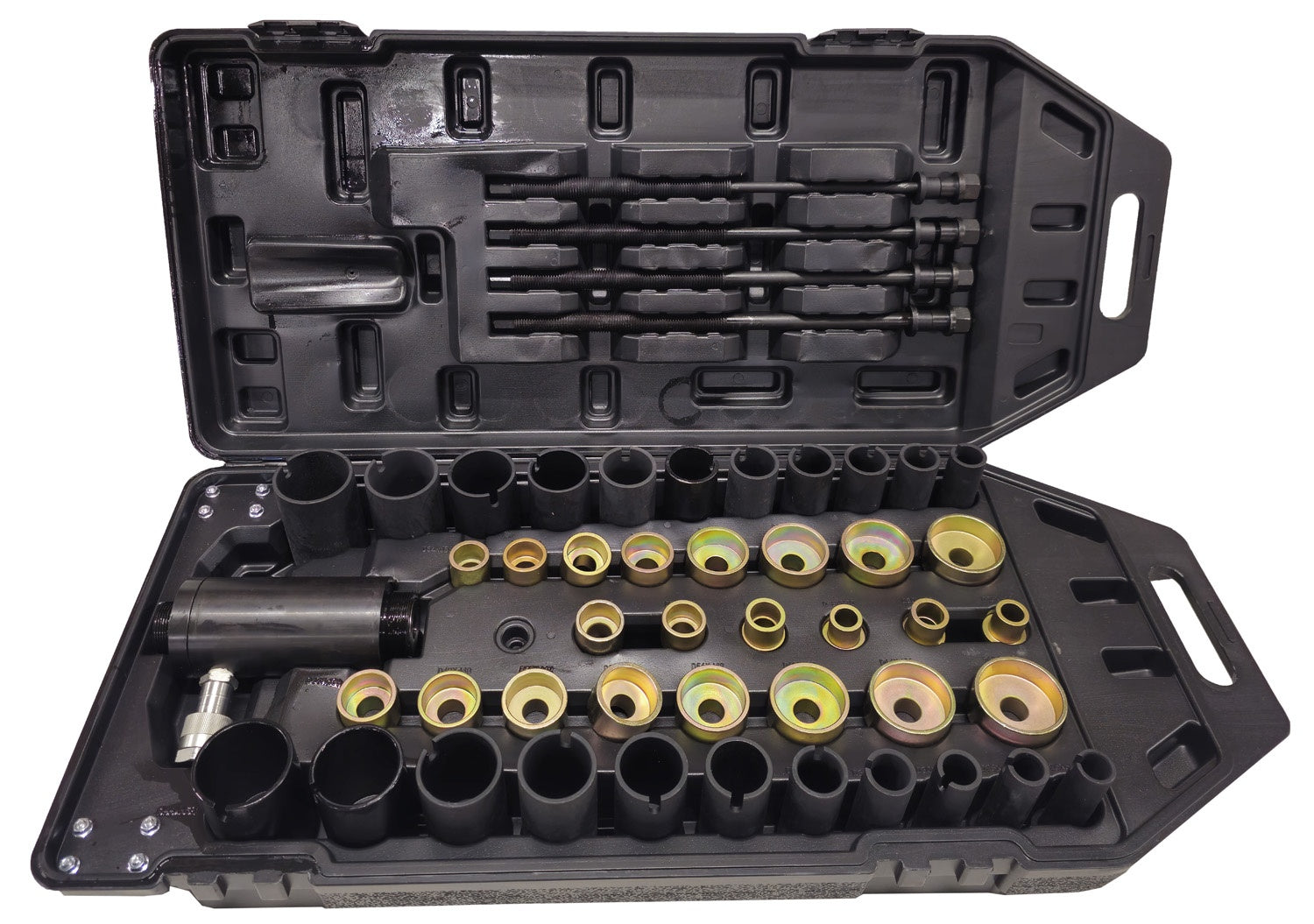

HYDRAULIC BEARING PRESS SET | FOR PRESSING IN AND OUT (SL2016)

The SL2016 universal pneumatic-hydraulic press tool kit is a PRO class toolset designed for quick and efficient removal and pressing of silent blocks, ball bearings, bushings, shaft seals, and other components without damaging them.

The tools operate with the help of a hydraulic cylinder, which can be controlled manually or by connecting a foot pump.

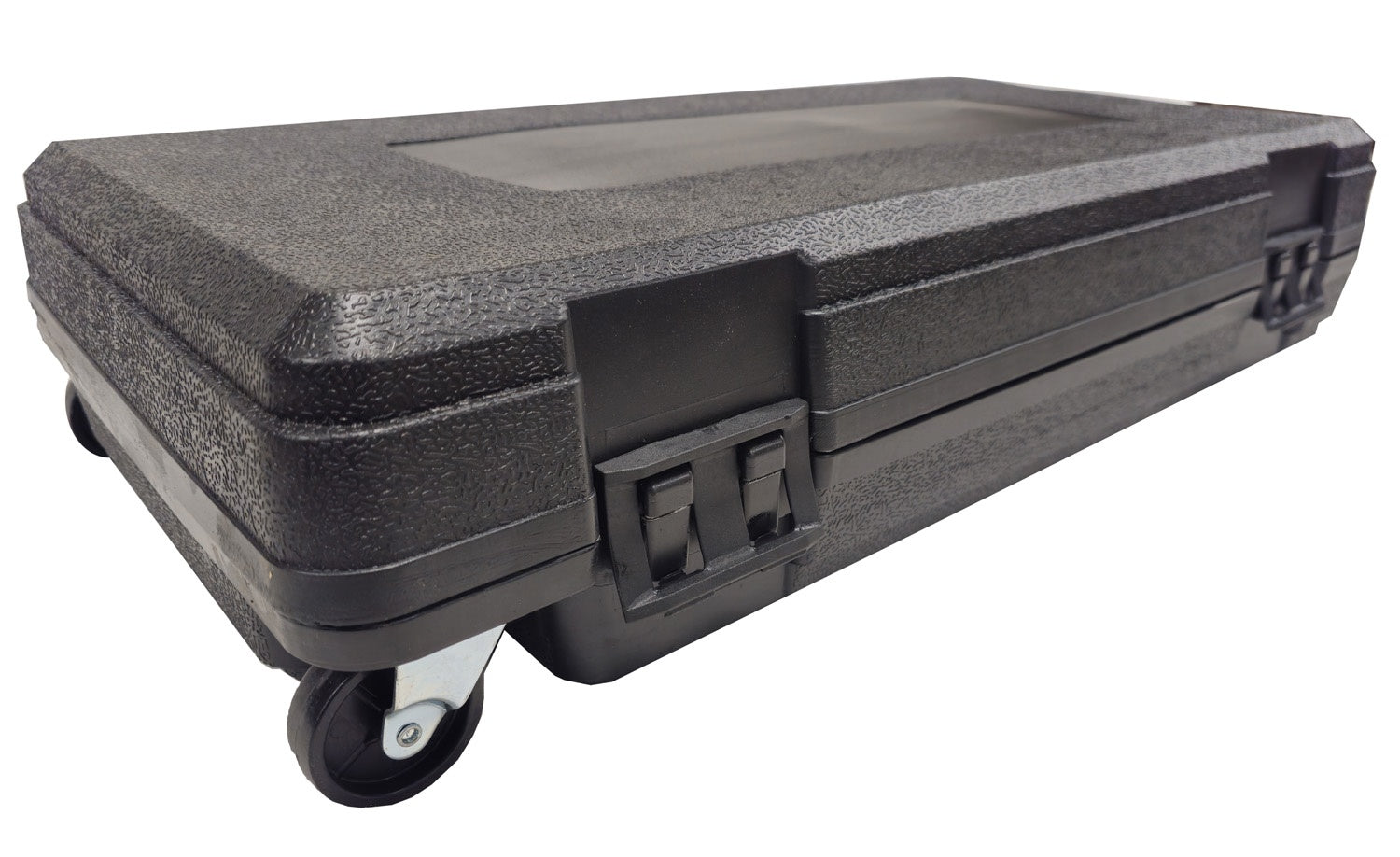

The tools are supplied in a convenient plastic case with wheels for easier transport at the workplace.

Suitable for Mercedes-Benz, BMW, Audi cars.

Kit contents and technical specifications:

44 x pressing sleeves [Ø, mm]: 68x60 | 64x65 | 68x60 | 56x48 | 52x44 | 48x40 | 44x36 | 42x34 | 40x32 | 36x28 | 32x24 | 66x58 | 62x54 | 58x50 | 54x46 | 50x42 | 46x38 | 38x30 | 34x26 | 30x22 | 28x20 | 26x18 | 34x26 | 38x30 | 42x34 | 46x38 | 54x46 | 58x50 | 62x54 | 66x58 | 40x32 | 36x28 | 32x24 | 28x20 | 30x22 | 26x18 | 44x36 | 48x40 | 50x42 | 52x44 | 56x48 | 60x52 | 64x56 | 68x60

4 x extraction spindles with nuts [mm]: M10 | M12 | M14 | M16

1 x hydraulic cylinder: PT 3/8"-19 | M24.5P1.25

1 x tool case

gross weight [kg]: 31.000
