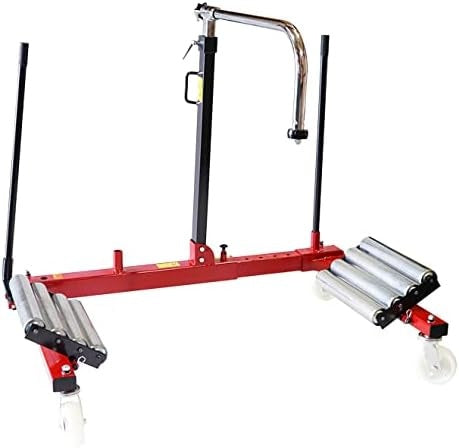

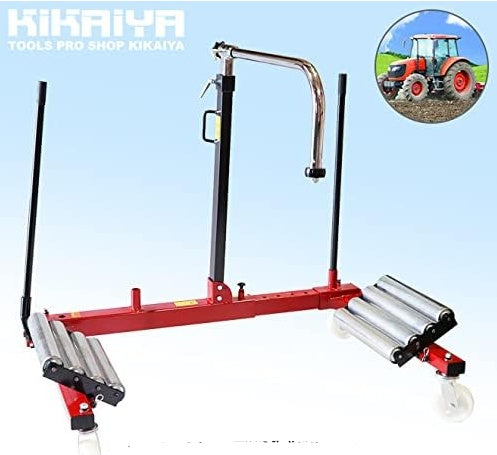

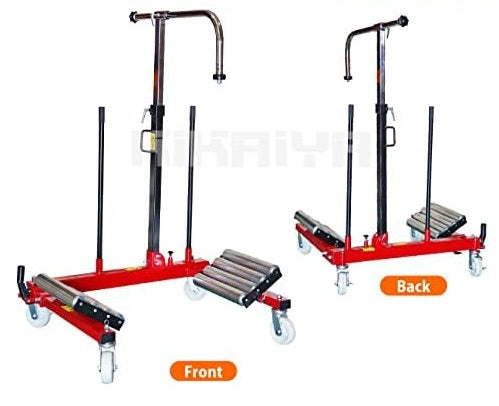

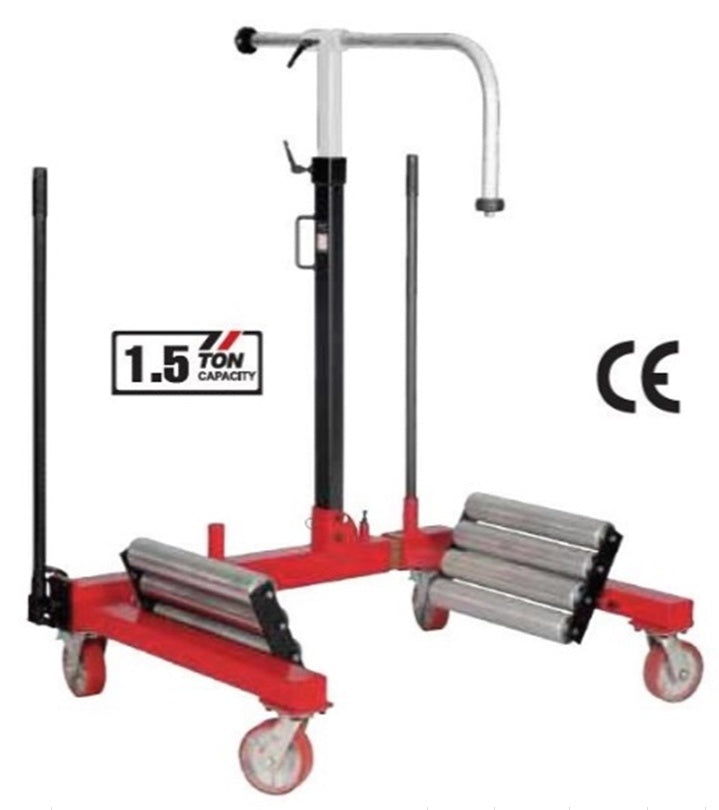

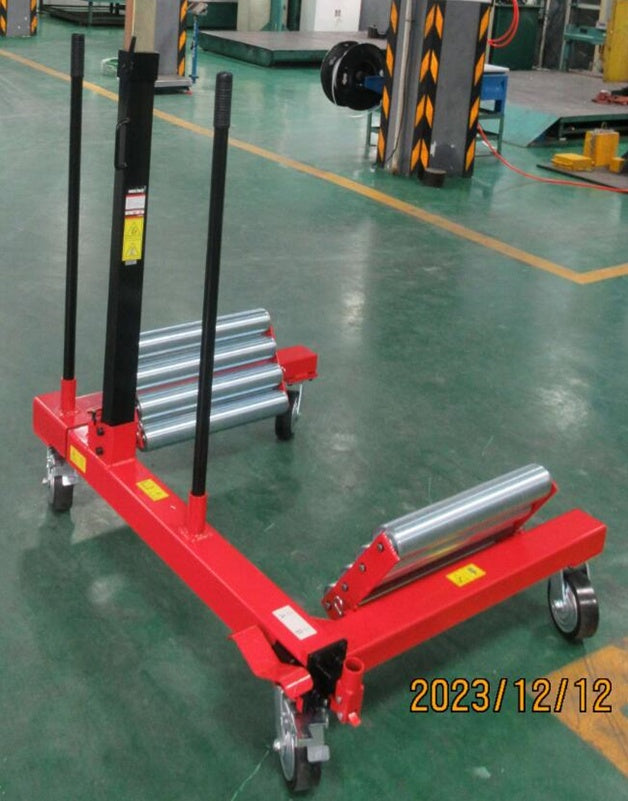

HIGH-PERFORMANCE POSITIONING / WHEEL TROLLEY | 1.5 T (LWD15)

The hydraulic wheel transport trolley LWD15 is a PRO class device designed for changing and transporting wheels of heavy vehicles such as trucks, tractors, and other heavy commercial, construction or agricultural machinery. It features a particularly strong steel construction.

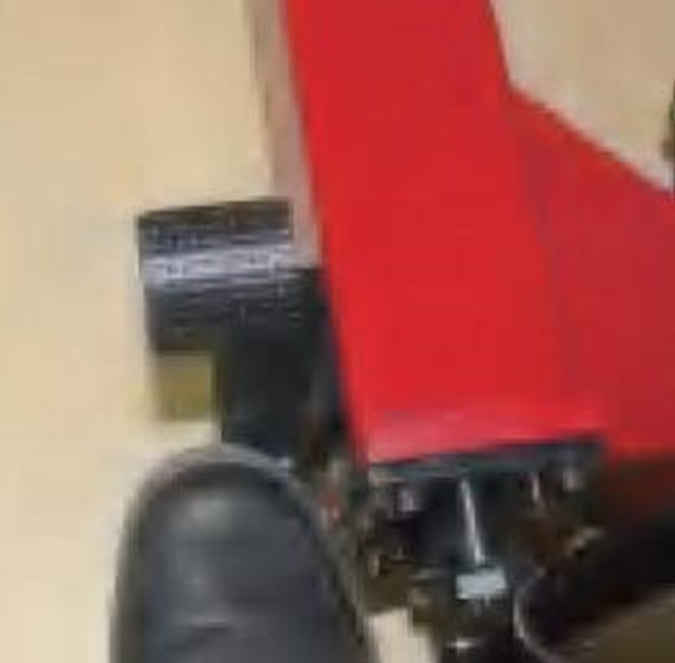

Eight adjustable rollers (four on each side) allow for easy rotation of large, deep tires. The extra-large lifting handle allows one person to conveniently operate the trolley. A support strap with composite protection encircles the wheel to ensure stability during transport. With the help of the locking mechanism, the rollers can be fixed in eight pre-set positions.

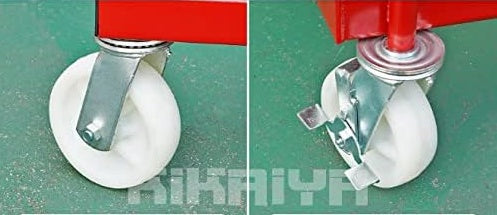

The trolley is mounted on two fixed and two non-fixed swivel castors, ensuring greater stability and easy maneuverability. It is ideal for use with agricultural and commercial wheels and tires.

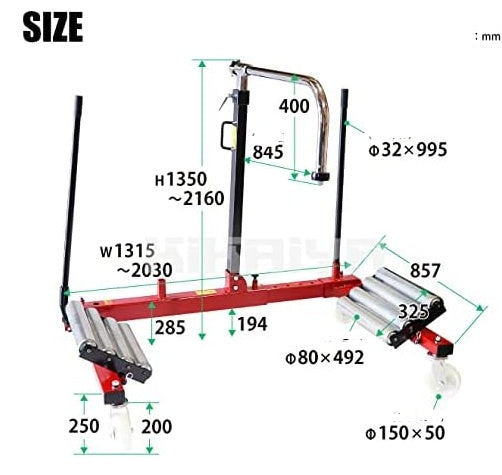

Technical specifications:

lifting capacity Max. [t]: 1.5

lifting height Max. [mm]: 750

wheel diameter [mm]: 1000-2000

roller length [mm]: 490

overall dimensions [mm]: 1300x1015x1500

total weight [kg]: 118

LWD15 user manual PDF
