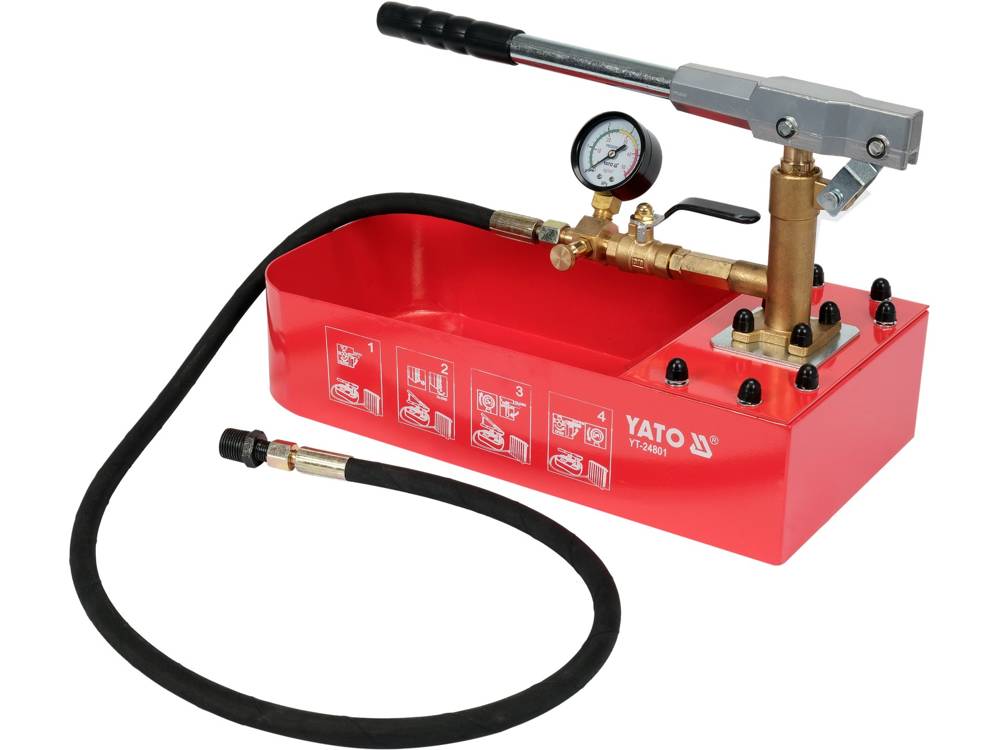

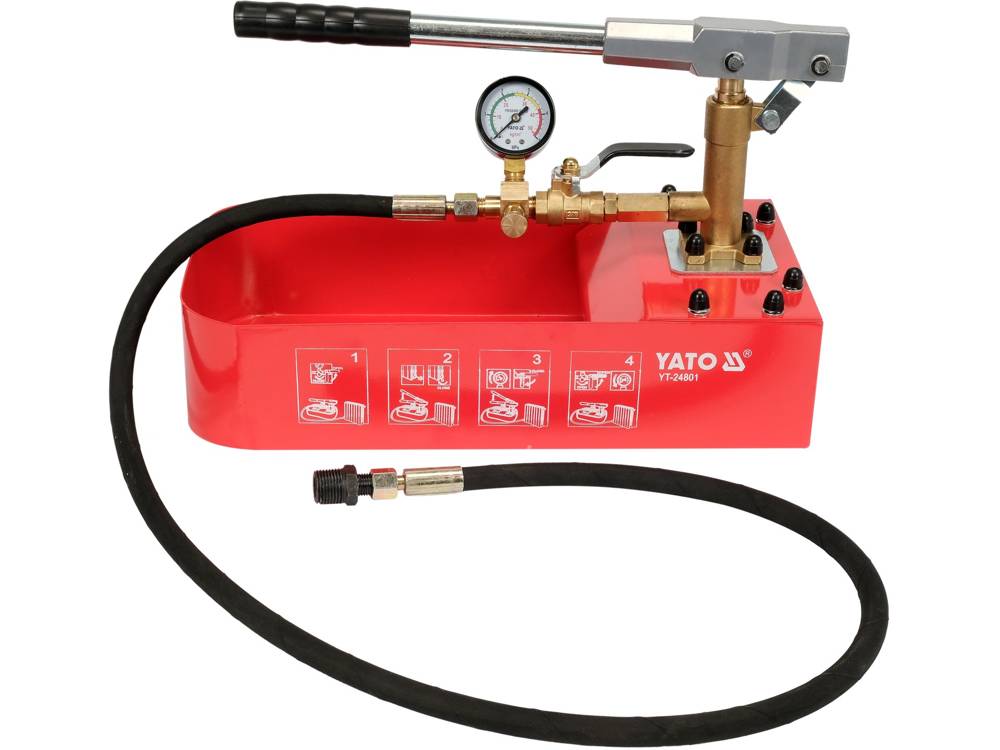

HAND TEST PUMP (YT-24801)

MANUAL PRESSURE TESTING PUMP

Symbol
YT-24801
Application
carrying out pressure tests and testing the tightness of pipe systems (water, central heating, compressed air, oil systems)|filling solar installations
Surface finish
powder coated
Handle finish
chrome
Body material
aluminum
Hose length
1400mm
pressure
5 MPa
Connection thread size
G1/2
Tank capacity
7 l
Valve
Yes
arm length
360mm
fluid temperature
50 C

Pump with valve designed for:

carrying out pressure tests
tightness testing of piping systems (water, central heating, compressed air, oil systems)
filling solar installations
introduction of antifreeze agents to the central heating system
parameters:

pressure: 0-50 bar
tank capacity: 7 l
1 cycle: 40 ml
arm length: 360 mm
hose length: 1400 mm
