HAND CUTTING SYSTEM WITH CONNECTABLE GUI (YT-36980)

TILE CUTTER UP TO 320CM

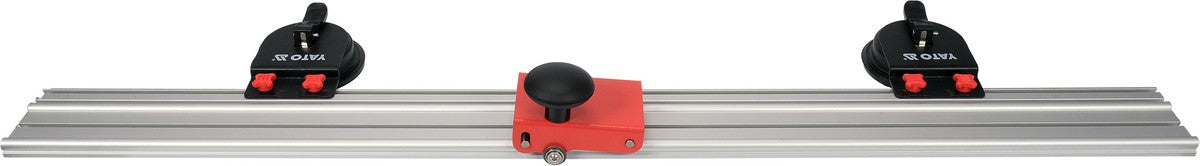

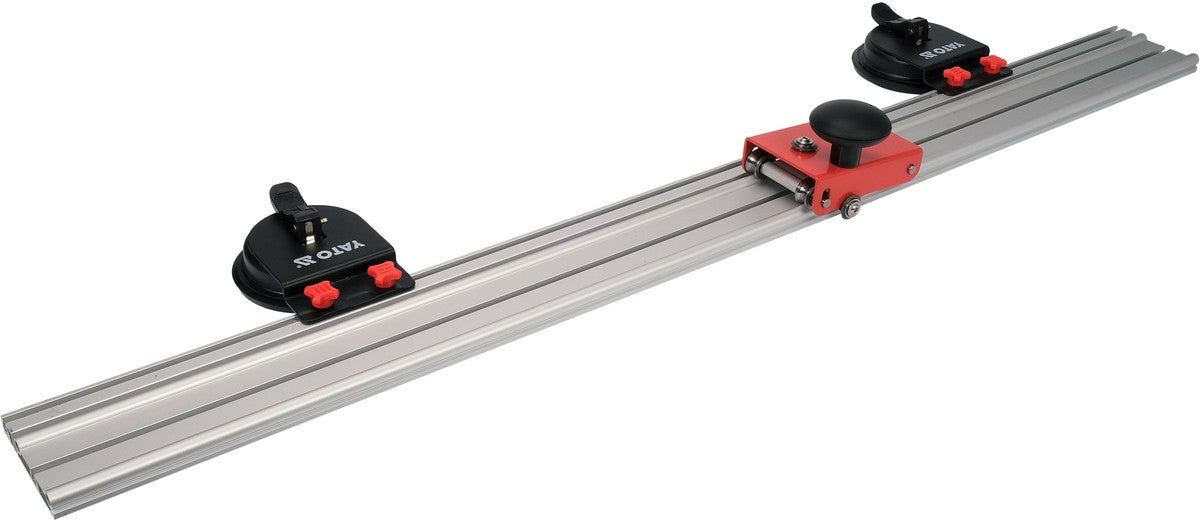

Cutter for ceramic slabs up to approx. 320 cm long. The kit includes:

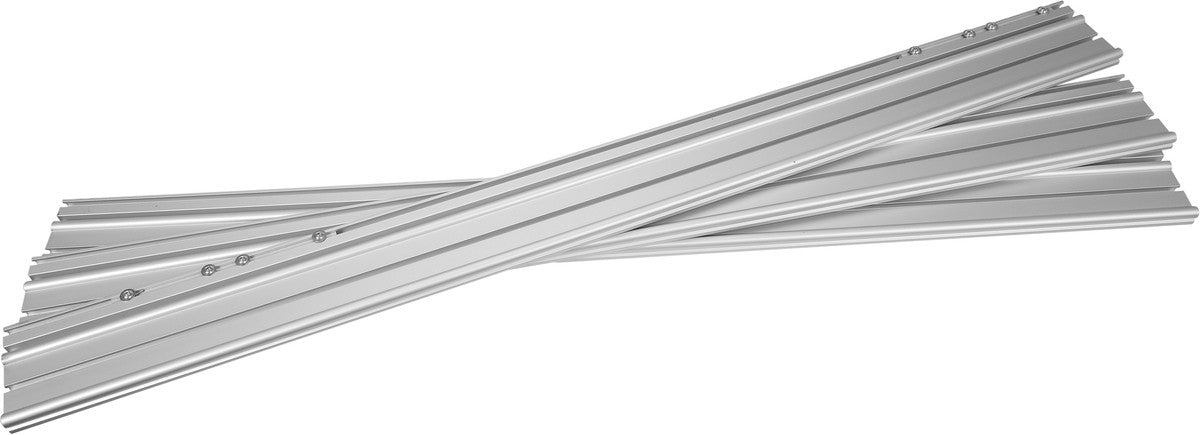

three rails - aluminum guides

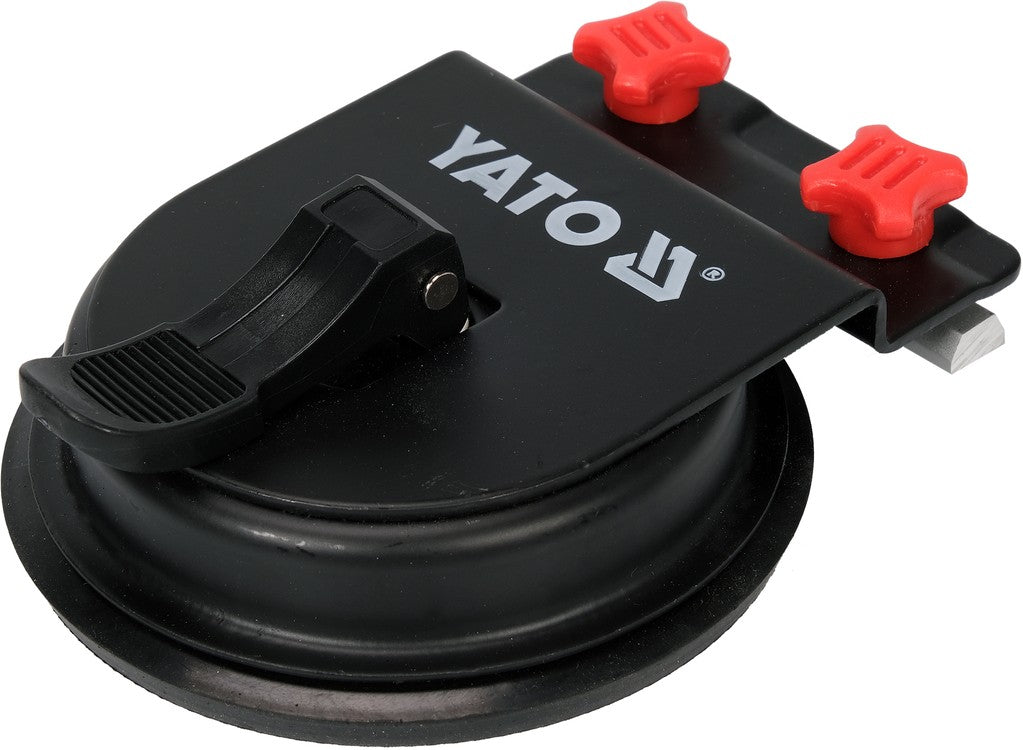

four mounting suction cups that also serve as rail connectors

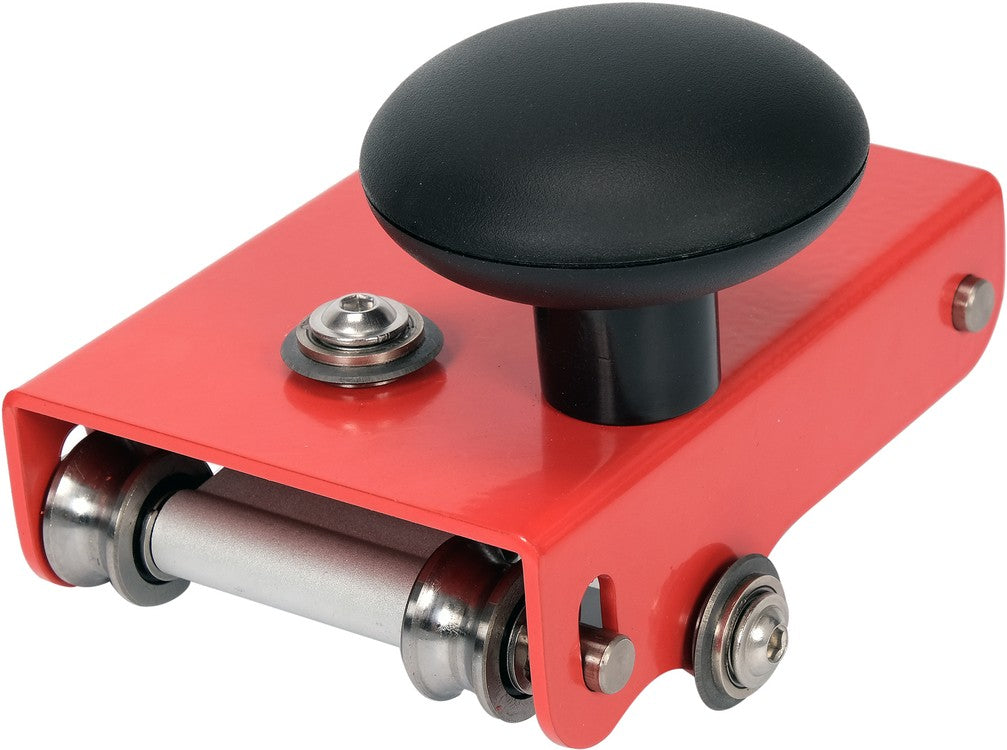

one cutting unit on four rollers for guiding along the rail.

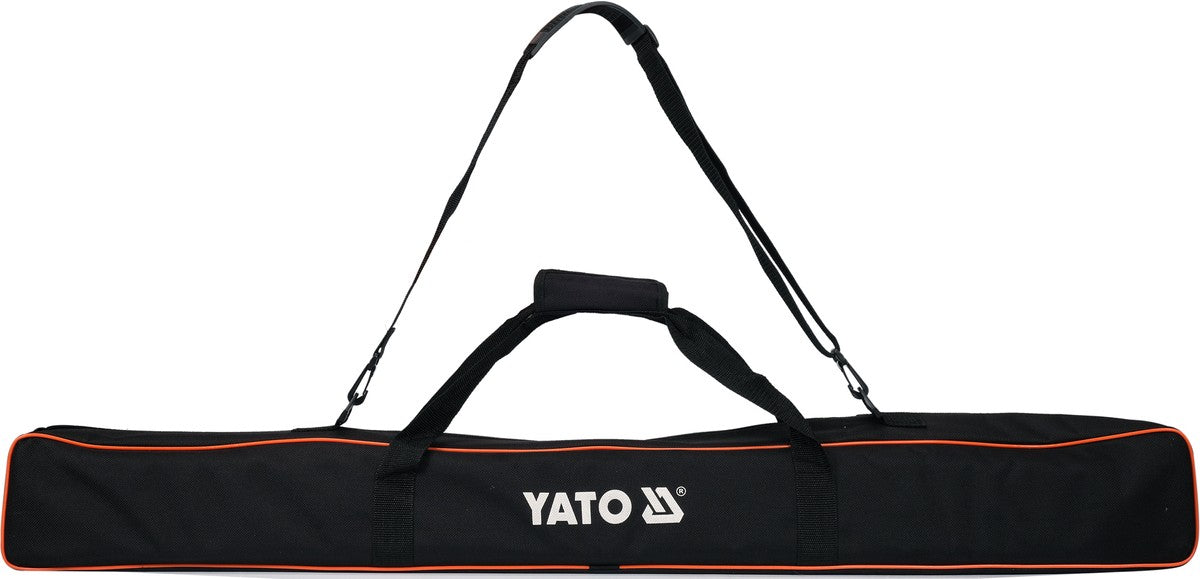

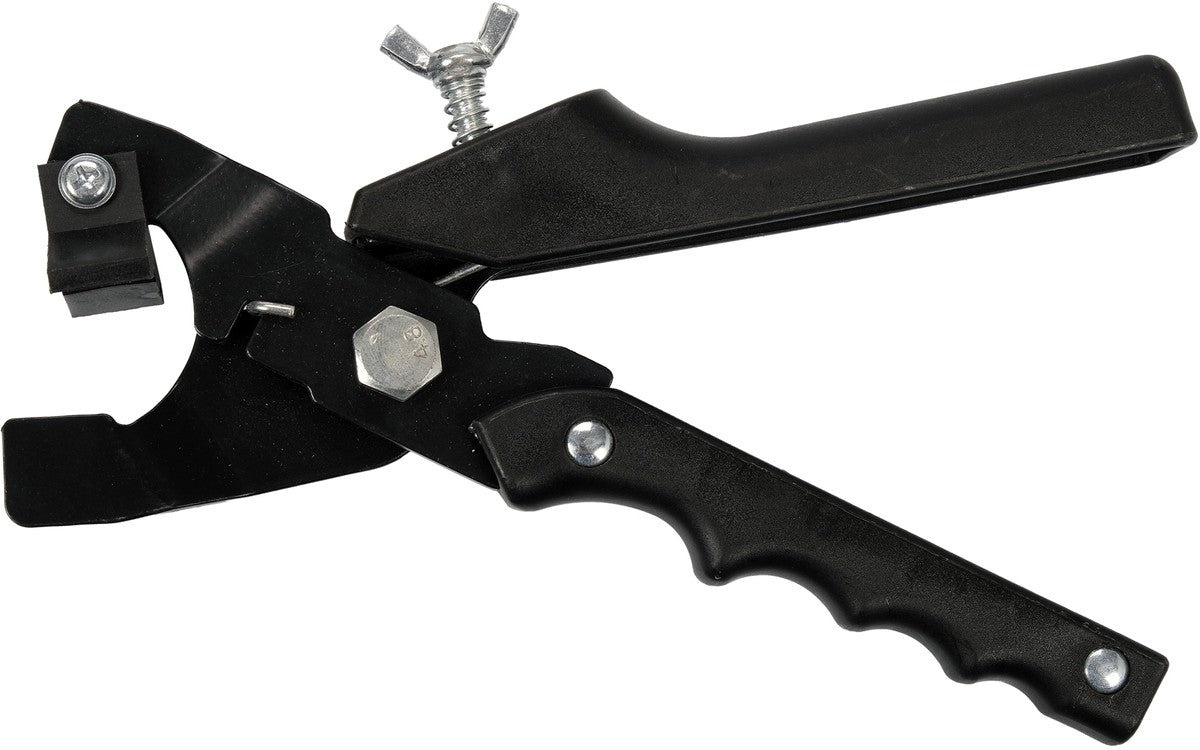

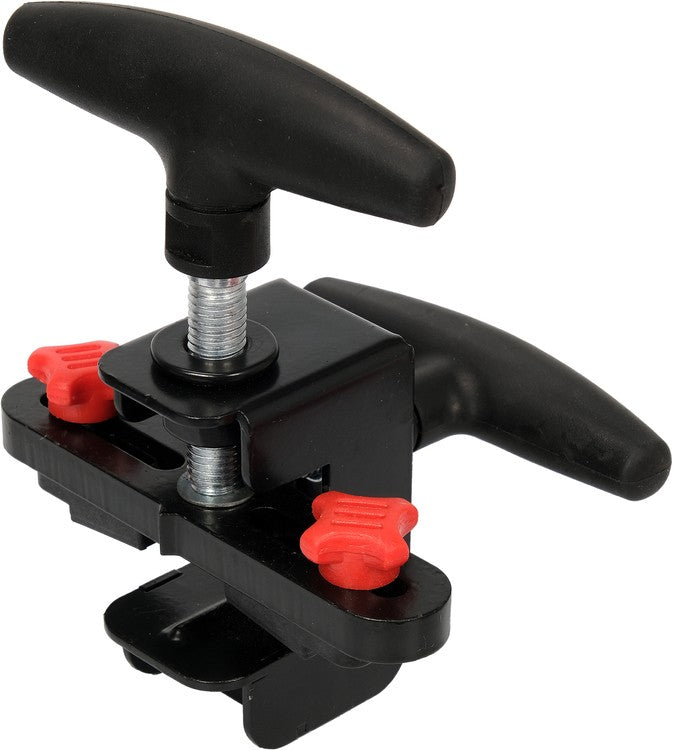

The set includes manual pliers for breaking the cut slab and a wide handle for breaking larger pieces of the slab. The set is packed in a bag - a thick nylon cover.

The cutting element is a ball-bearing scoring wheel with a diameter of 22 mm. It can be pressed by the operator against the material during cutting. The cutter is designed for cutting large ceramic slabs with a thickness of 3 to 8 mm. Maximum cutting length approx. 320 cm.

Directions for use:
depending on the size of the slab to be cut, one, two, or three combined guides are attached to its surface.
attach the carriage with the cutting unit to the guide mounted on the suction cups
By moving the cutting unit along the guide, press it carefully against the surface of the slab, creating the required score line
breaking is done using the pliers or breaker included in the set


Purpose / application
For cutting large ceramic tiles.
Parameters
Cutting length [mm]: 3200
Max slab thickness [mm]: 8
Application: Cutting tiles
