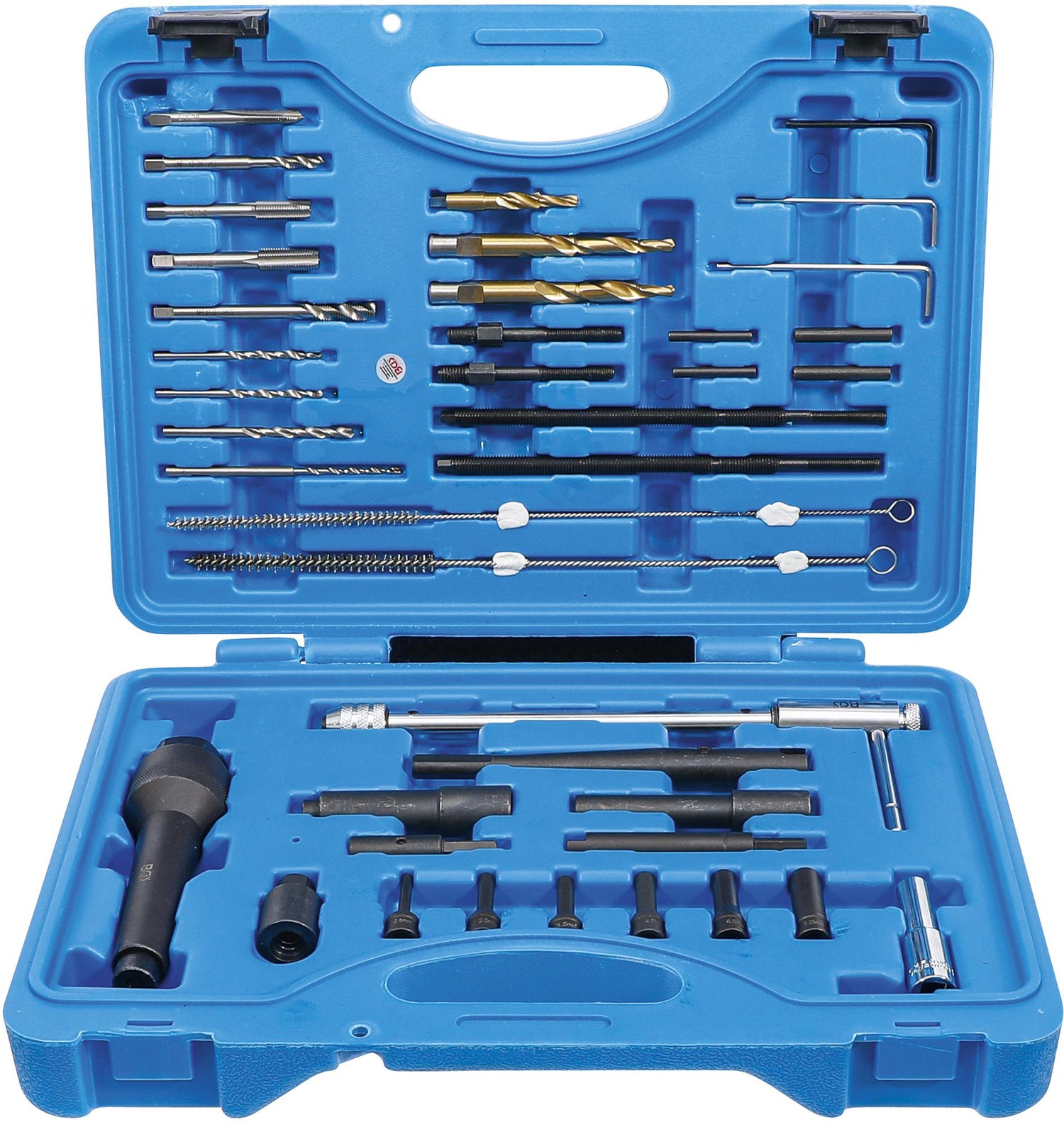

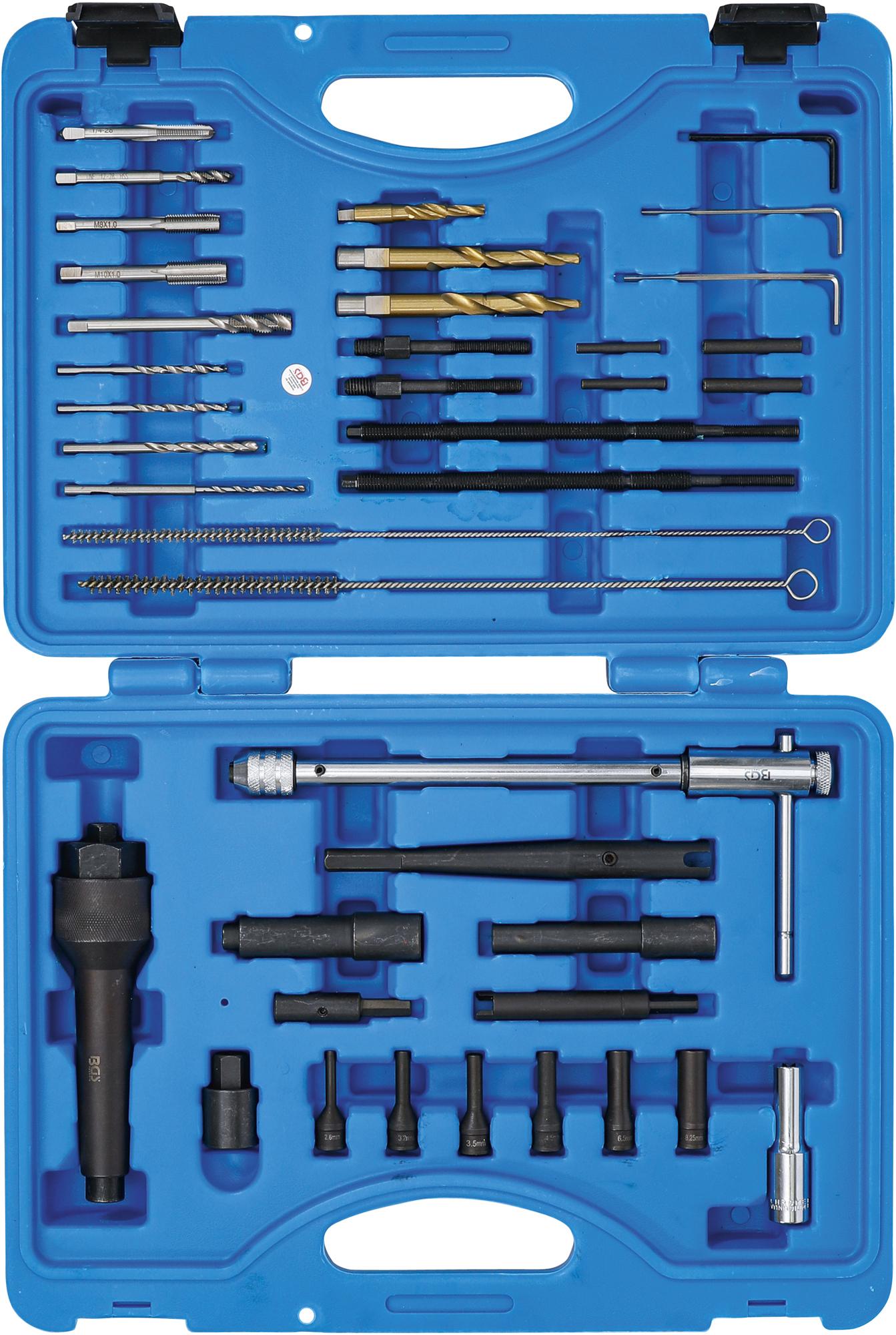

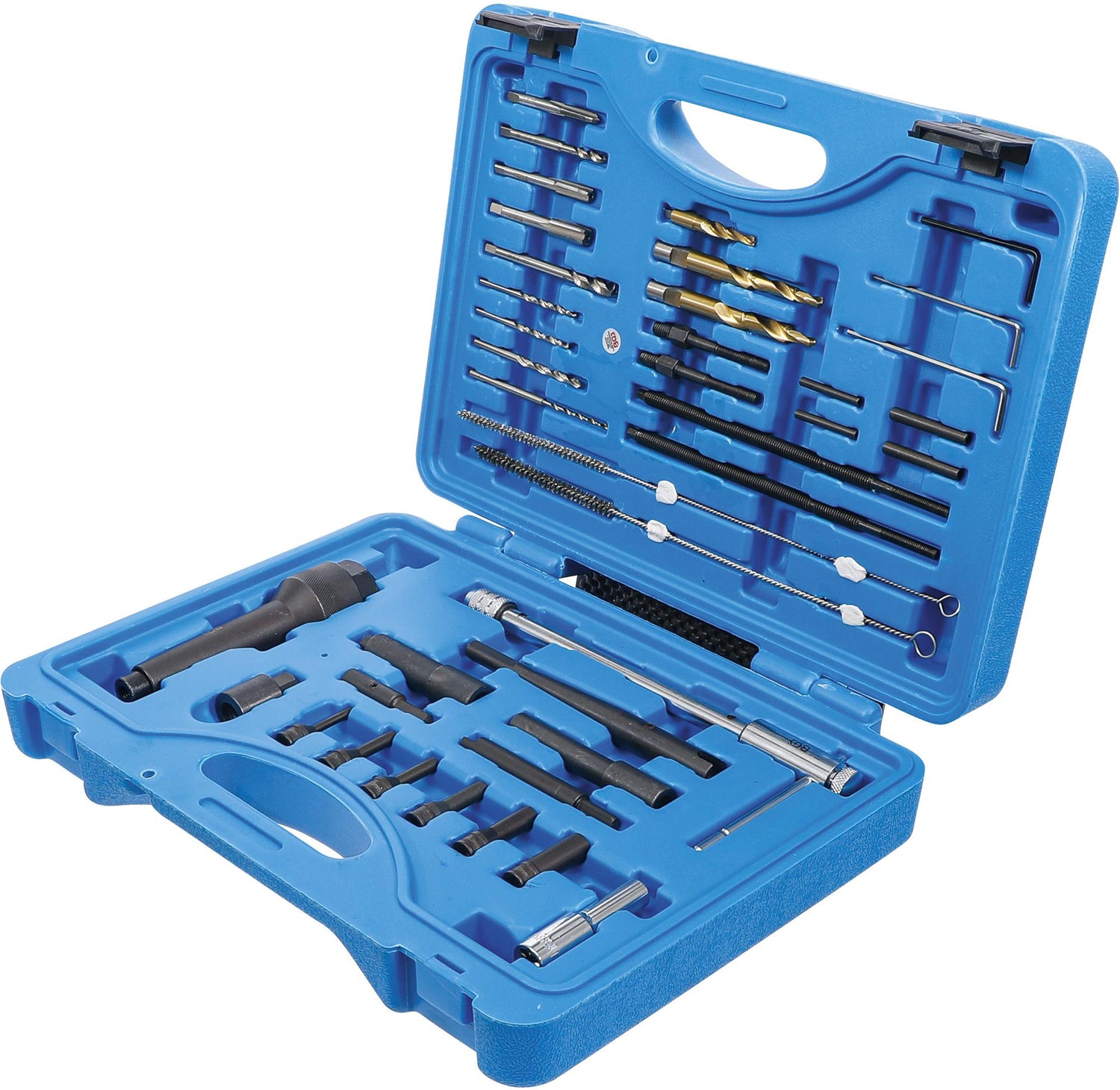

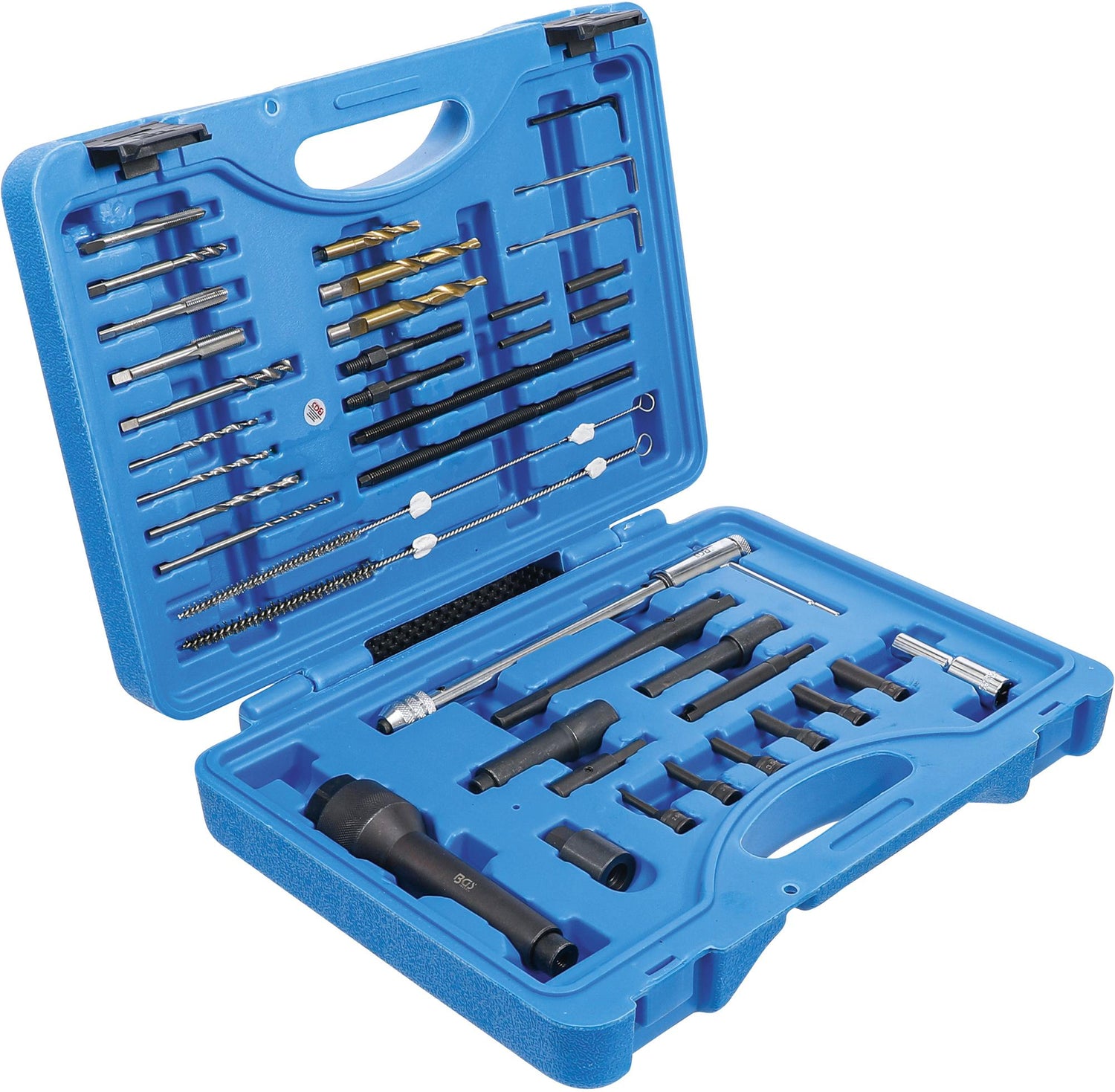

GLOW PLUG REMOVAL AND THREAD REPAIR SET | M8, M10 | 41 PCS. (9565)

for assembly and disassembly of glow plugs and professional repair of glow plug threads
thread cutter for regrinding glow plug threads M8 x 1 and M10 x 1
tools for cleaning the filament bore in the cylinder head
ratcheting tap holder
scope of delivery:

5 taps 1/4 "x 28UNF - 12 x 28UNF - M8 x 1.0 - M10 x 1.0 - M8 x 1.0
4 twist drills 2.6 - 3.4 - 3.4 - 4.4 mm
3 step drills for drilling out torn off glow plugs 4.4 x 7 - 5.4 x 7 - 5.5 x 9 mm
2 tie bolts
2 tension spindles
4 drill centering sleeves 2.6 - 3.7 mm
3 L-type wrenches, hexagon 2 - 2.5 - 3 mm
2 round steel brushes 5 x 300 - 7 x 300 mm
2 tap holders
1 centering device with ball bearing and pulling spindle
2 spindle nuts
2 twist drill holders
1 centering sleeve
1 pull-out sleeve
6 calibration inserts for glow plug electrodes, 6.3 mm (1/4 ") square drive, 2.6 - 3.2 - 3.5 - 4.5 - 6.5 - 8.25 mm
1 socket, square drive 10 mm (3/8 "), E-Star E10
Technical data
Gross weight2830 g
