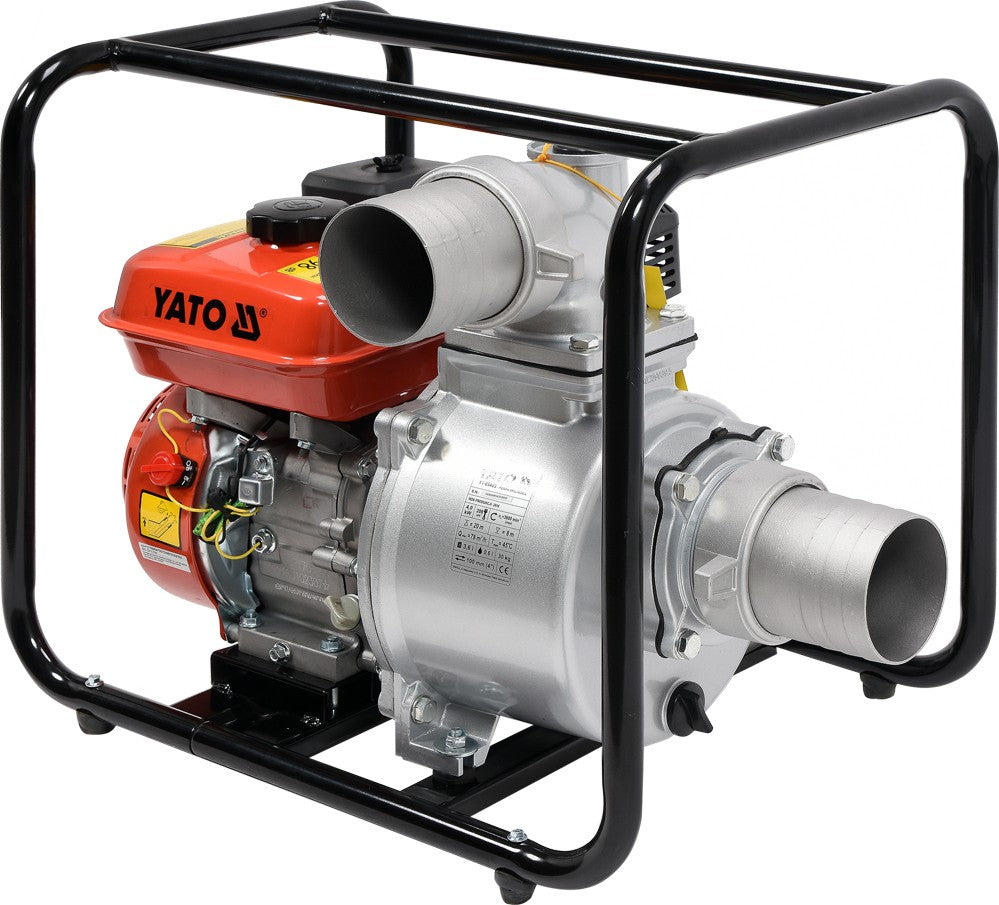

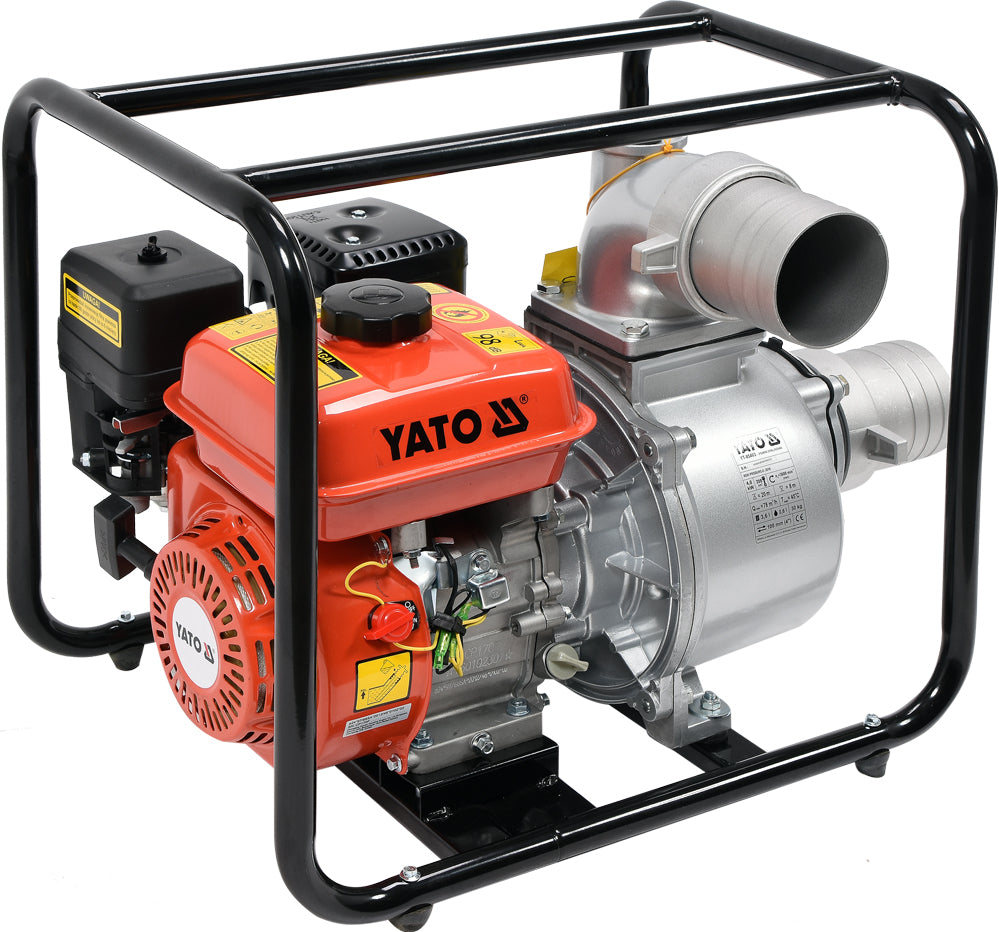

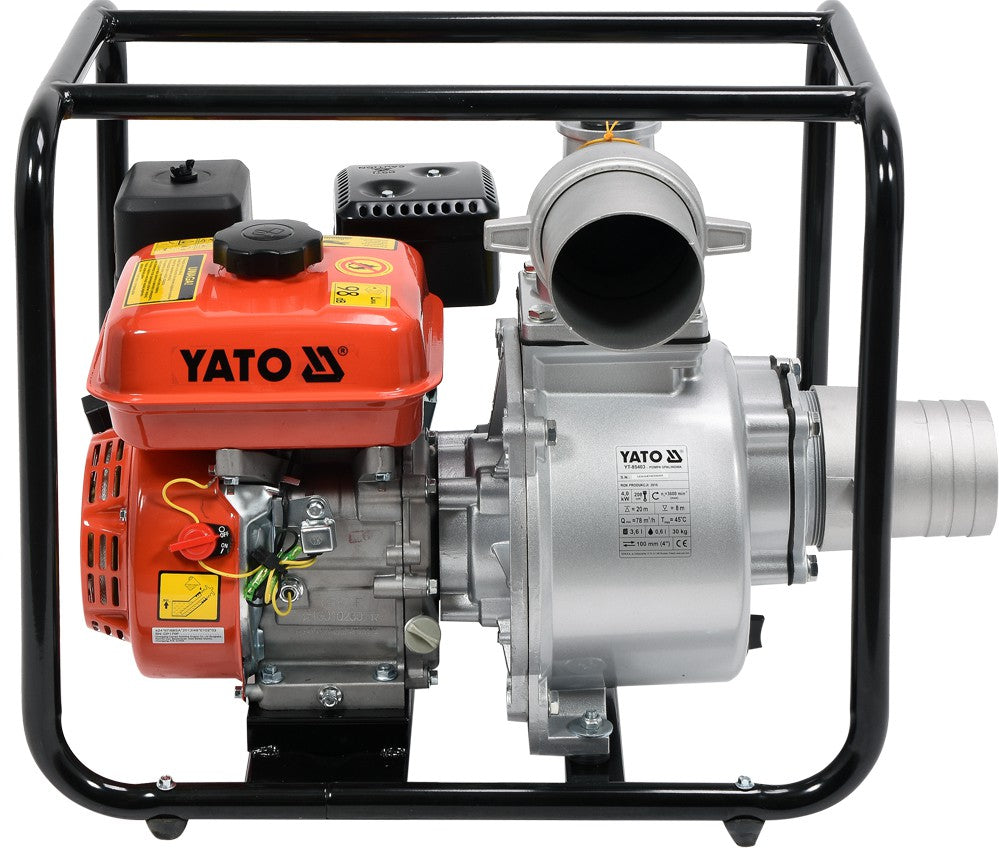

GASOLINE WATER PUMP 4” 4 KW 78M3/H (YT-85403)

The YATO YT-85403 gasoline water pump is a reliable PRO-class tool designed for pumping large quantities of water wherever there is no access to the electrical grid. It is suitable for work after failures or natural disasters. The pump is built into a steel frame that protects the device from damage and facilitates transport. The YATO YT-85403 gasoline water pump is powered by a four-stroke, 1-cylinder, air-cooled DJ170F type internal combustion engine.

The pump has an oil level indicator, which stops the engine or prevents it from starting if the engine oil level is too low. The upper connection serves as the water outlet, the lower as the inlet. Hoses must be connected to both connections, ensuring complete sealing. Fuel - unleaded gasoline with an octane rating of no less than 93.

Engine power: 4000W

Engine displacement: 208 cm3

Nominal speed: 3600 min-1

Capacity: 78 m3/h

Maximum height: 20m

Maximum depth: 8m

Water connection: 4" / 100mm

Fuel consumption: 2000 g/h

Engine oil type: SAE 20W-40

Spark plug type: F7TC

Fuel tank capacity: 3.6L

Oil tank capacity: 0.6L

The YATO YT-85403 gasoline water pump complies with the following European standards: EN 809:1998 + A1:2009 and EN 55012:2007 + A1:2009 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2004/108/EC Electromagnetic Compatibility, 97/68/EC Emission of Gaseous and Particulate Pollutants from Internal Combustion Engines and 2000/14/EC Noise Emission in the Environment by Equipment for use Outdoors.

Model year: 2014

Total weight [kg]: 33.0

YATO YT-85403 user manual PDF
