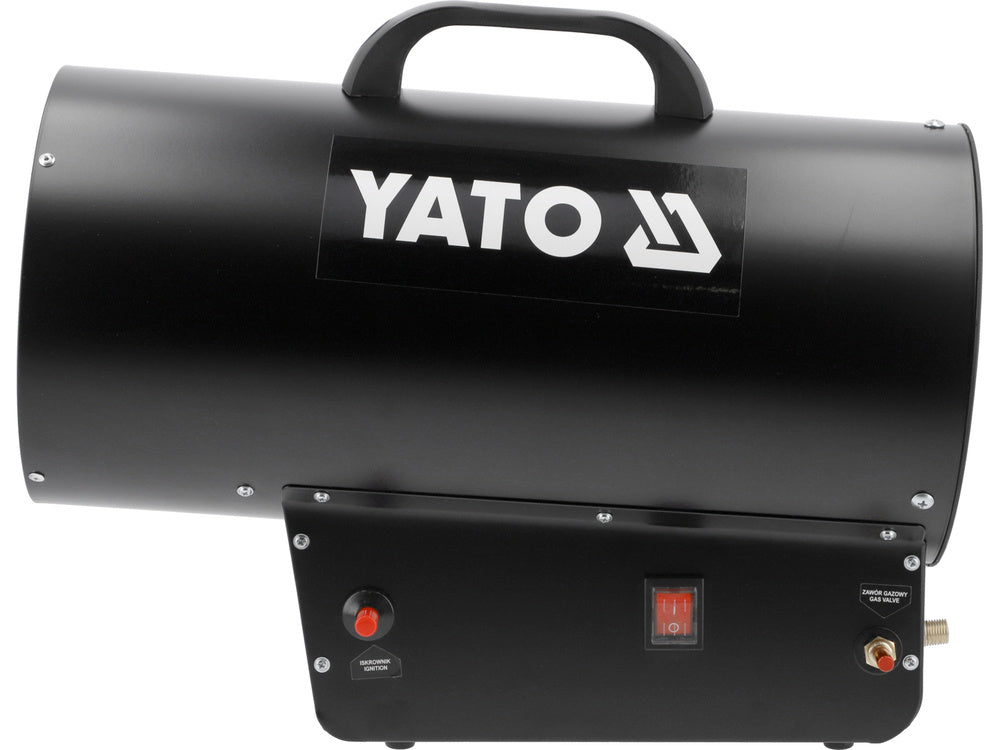

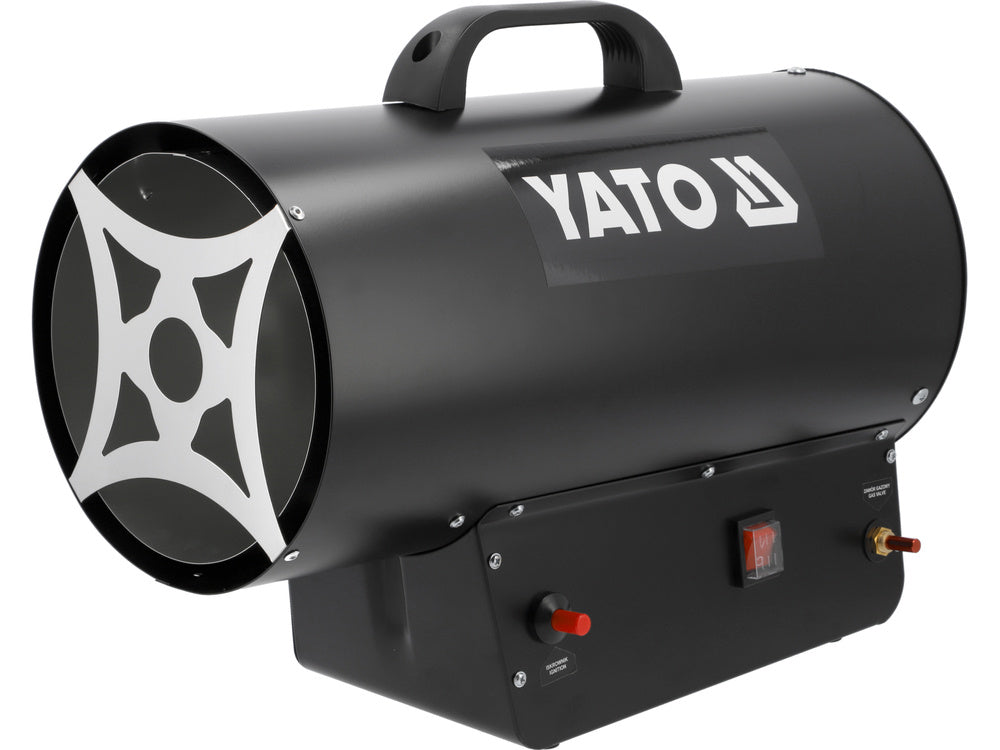

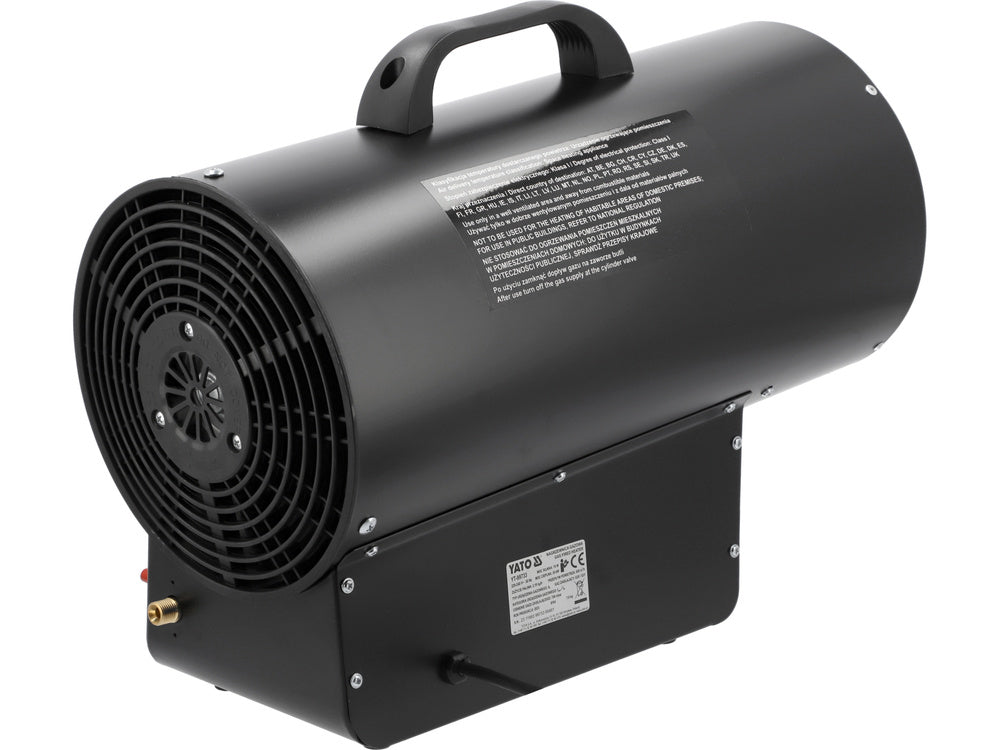

GAS FIRED HEATER 30KW (YT-99733)

Brand
Yato
Symbol
YT-99733
Series
GRF
Dimensions
460x230x360mm
Application
for heating public spaces
Nozzle diameter
1.28mm
Weight
7.6kg
Voltage
220-240 V a.c.
Hose length
1.5 m
Cable length
1.2 m
Protection level
IPX4
Frequency
50 Hz
Electrical insulation class
I
Overheating protection
75 C
Air flow
650 m3/h
Motor power
70 W
Type of supply gas
G30/G31
Piezo ignition
Yes
Thermal power
30 kW
Supply gas pressure
70 MPa
Gas appliance category
I3B/P / I3P
Type of gas appliance
A3
Fuel consumption
2.18 kg/h

Portable gas heater in a metal casing. It is used for heating public utility rooms - workshops, halls and for drying during renovation and construction works. The casing is powder-coated, which protects the heater against rust. The heater has double protection against overheating. The device cuts off the fuel supply when the flame disappears or when the temperature exceeds 75 C.

thermal power: 30 kW
supply gas: propane-butane G30 / G31
air flow: 650 m3/h
fuel consumption: 2.18 kg/h
air pressure: 0.7 bar
weight: 7.6 kg
protection level: IPX4
motor power: 70 W
ignition: piezo
insulation level: class I
gas device category: I3B/P/I3P
gas device type: A3
connection diameter: 1.28 mm
dimensions: 460x230x360 mm
cable length: 1.2 m
voltage: 220-240V/50Hz

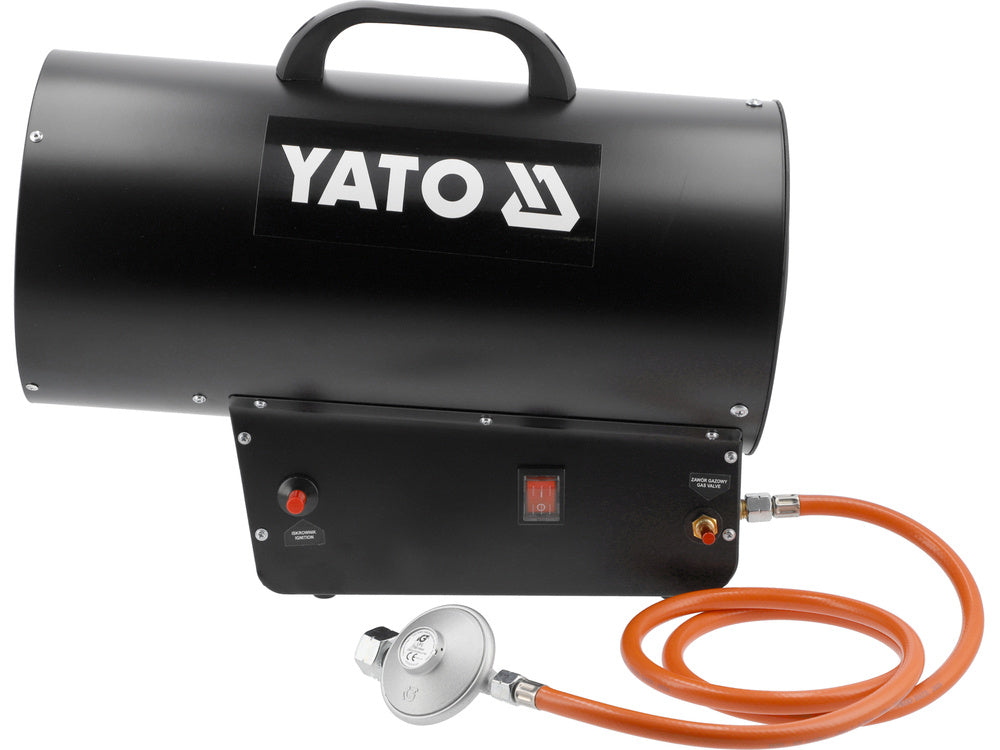

The set includes a pressure reducer and a 1.5 m hose
