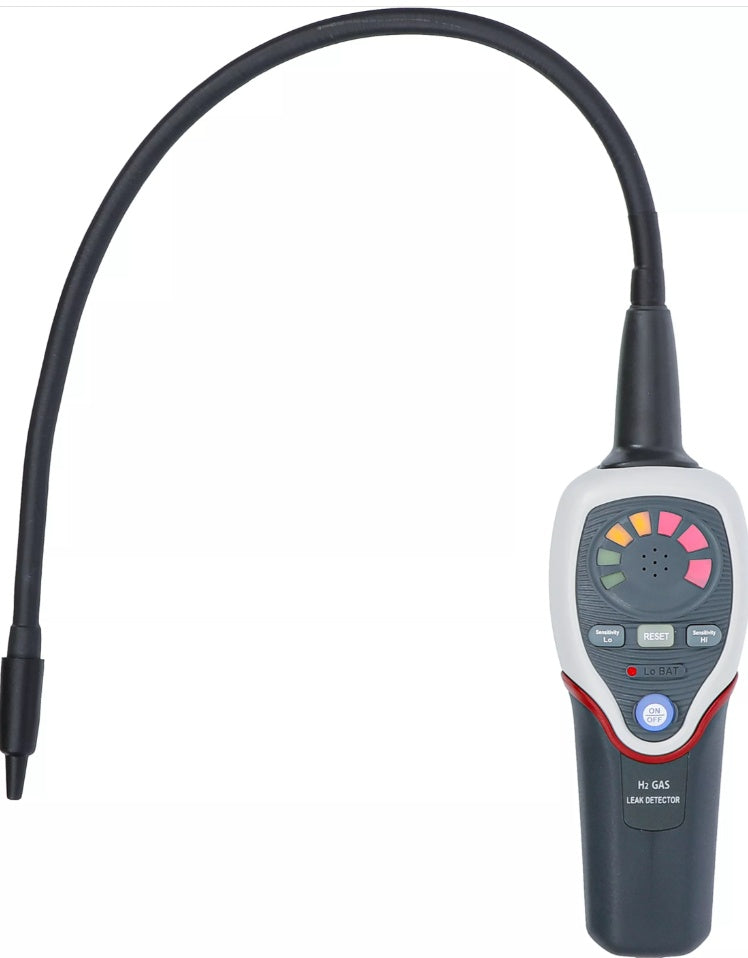

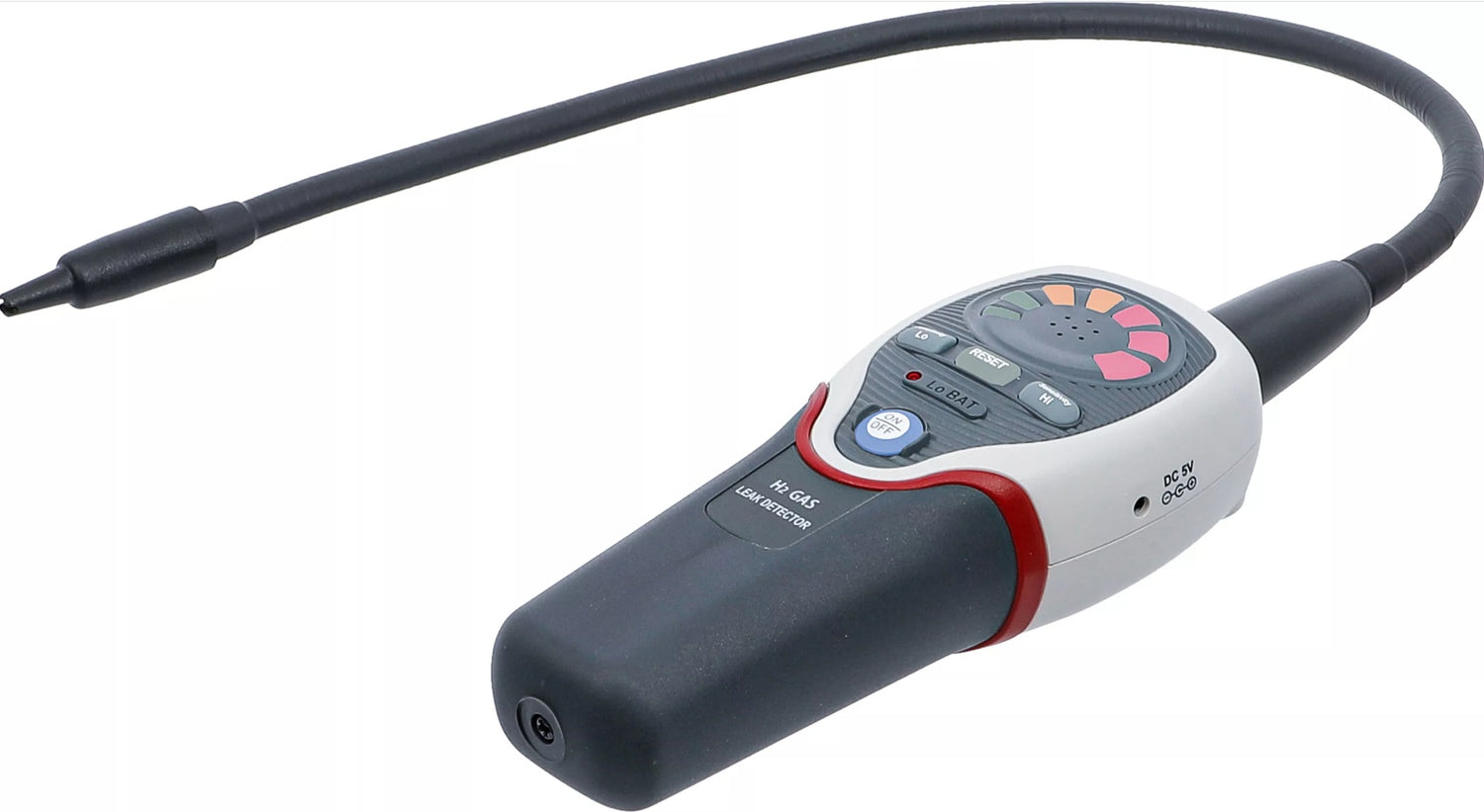

FORMING GAS LEAK DETECTOR (3401)

for leakage testing of air conditioners that have been filled for test purposes with forming gas (forming gas = mixture of 5% Hydrogen H2 + 95% Nitrogen N)
allows quick and reliable leakage detection
microprocessor control with advanced digital signal processing
tricolor LED bar indicator
adjustable sensitivity
low battery indication
semiconductor gas sensor
flexible stainless probe, length: 40 cm
automatic zeroing and compensating of ambient concentration
sensitivity: less than 5 ppm
alarm method: buzzer, LED bar
battery life: approx. 7 hours (normal use)
automatic power off
dimensions: 173 x 66 x 56 mm
weight approx. 400 g
warm-up time: approx. 45 sec.
operating temperature: 0 - 40C

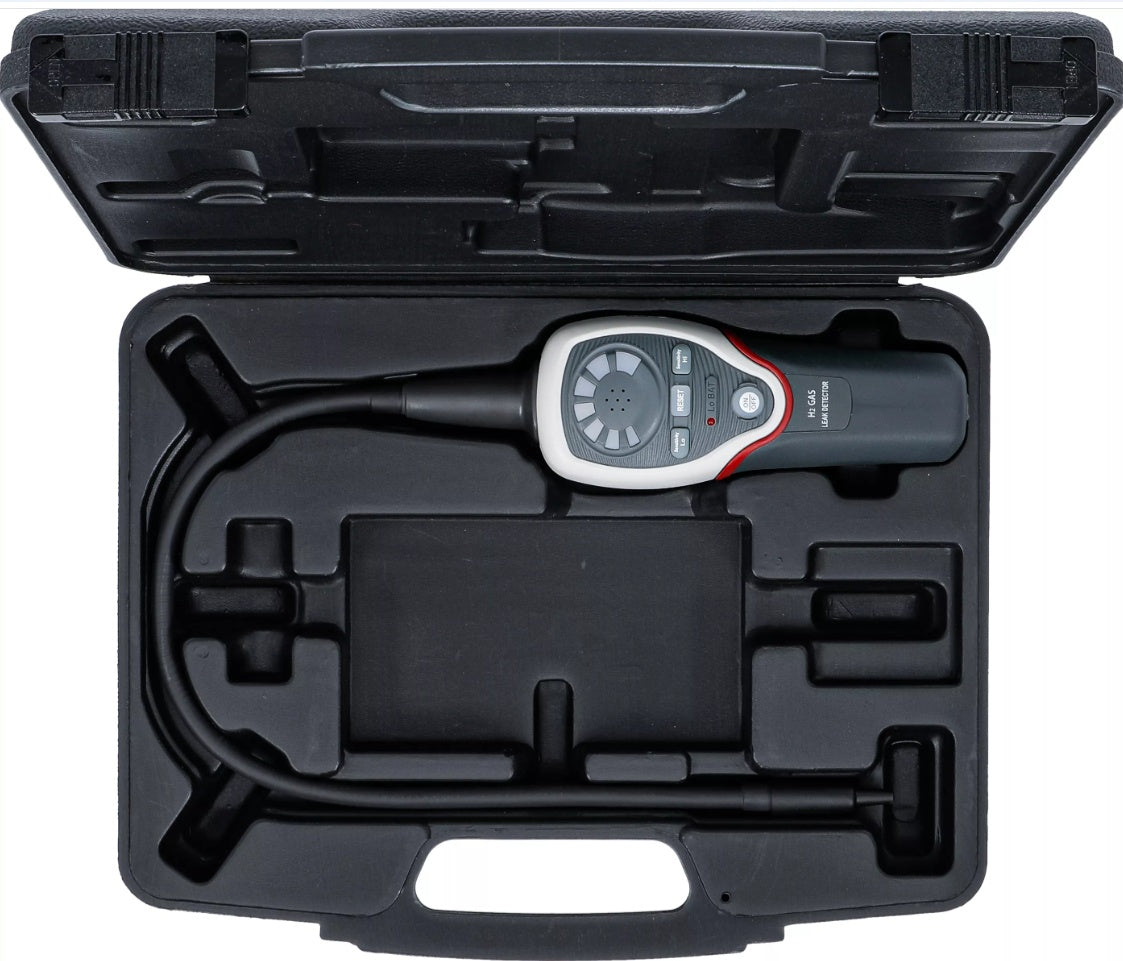

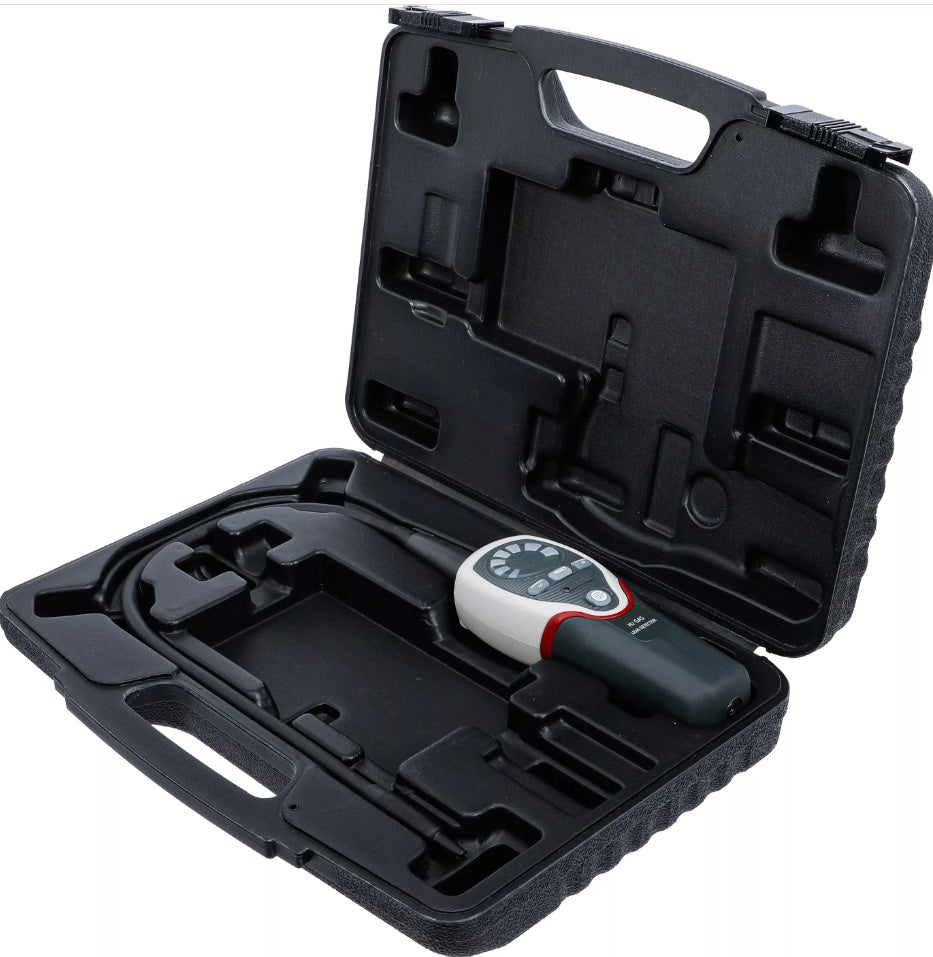

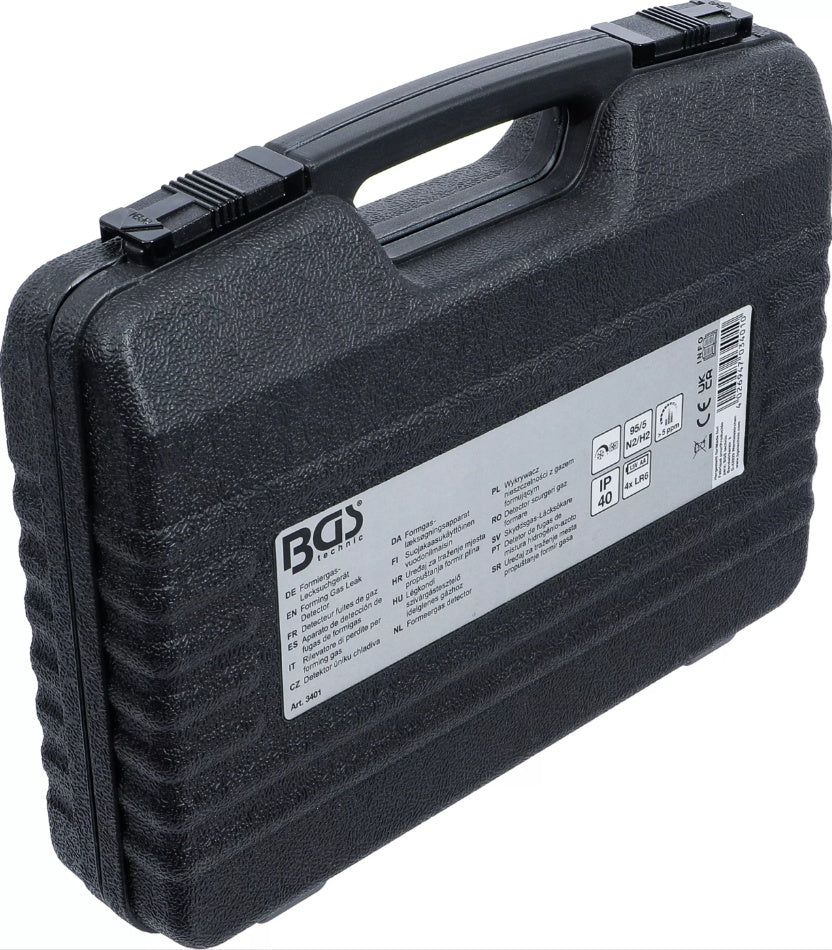

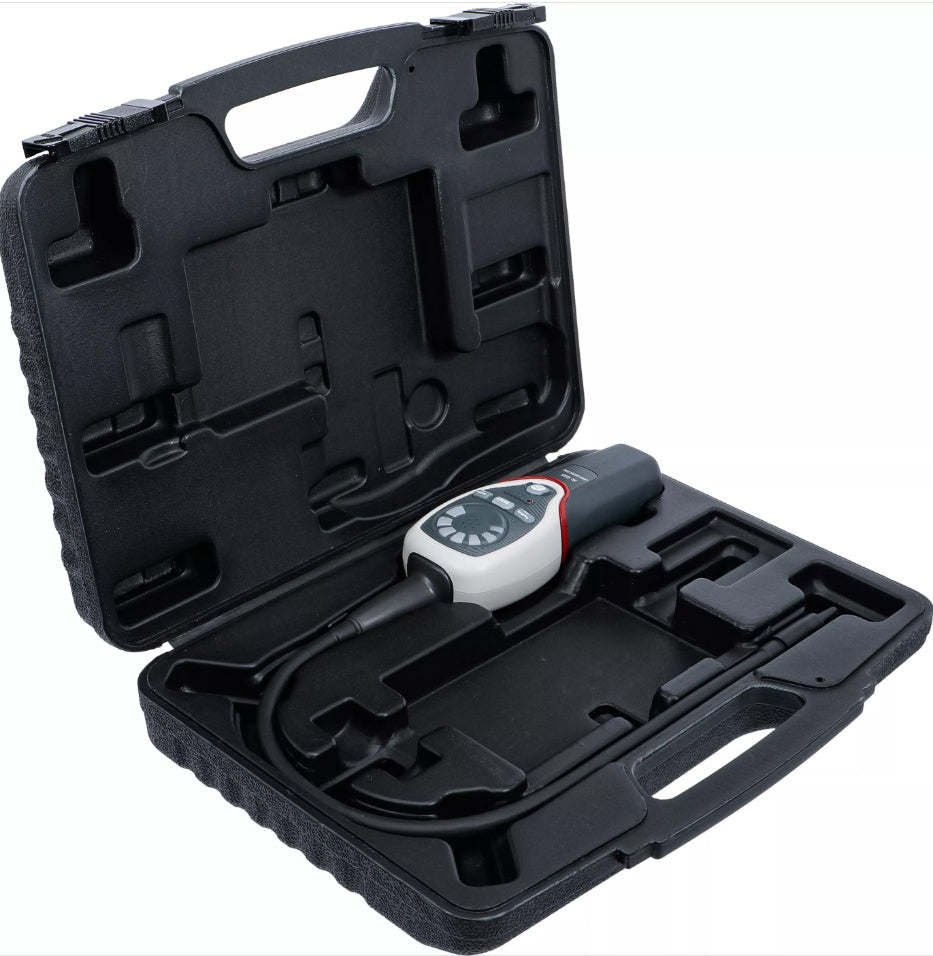

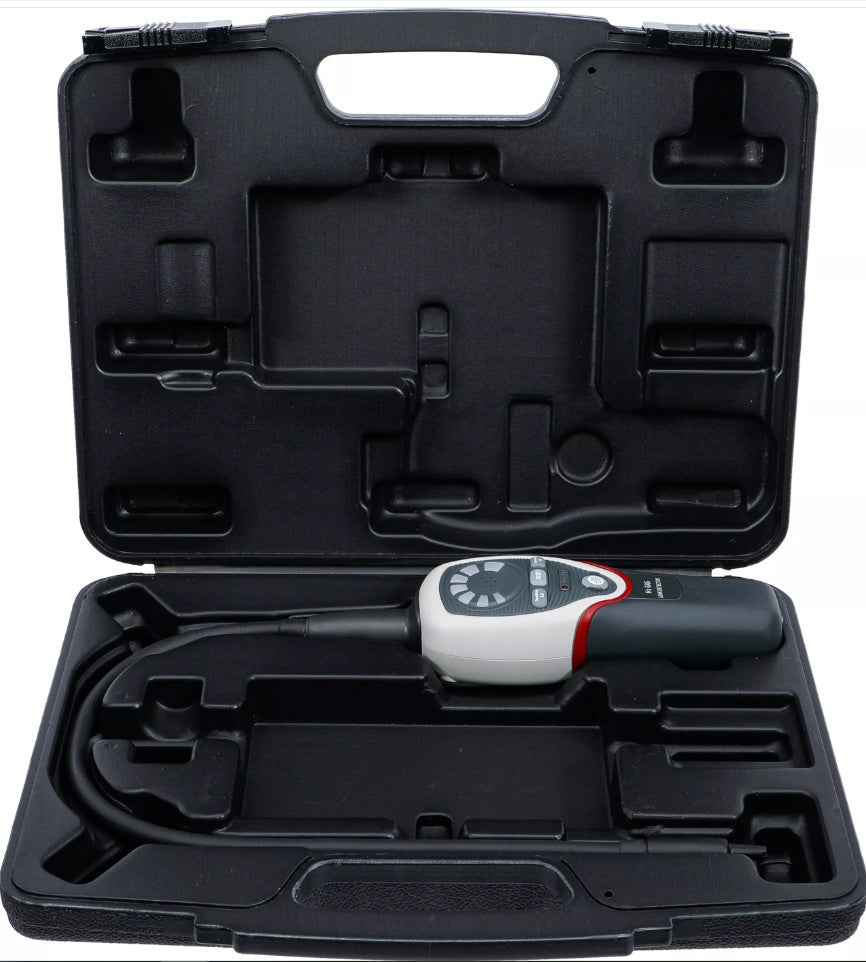

accessories: 4 pcs. batteries (AA), user manual, carry case
Technical data
Gross weight1120 g
