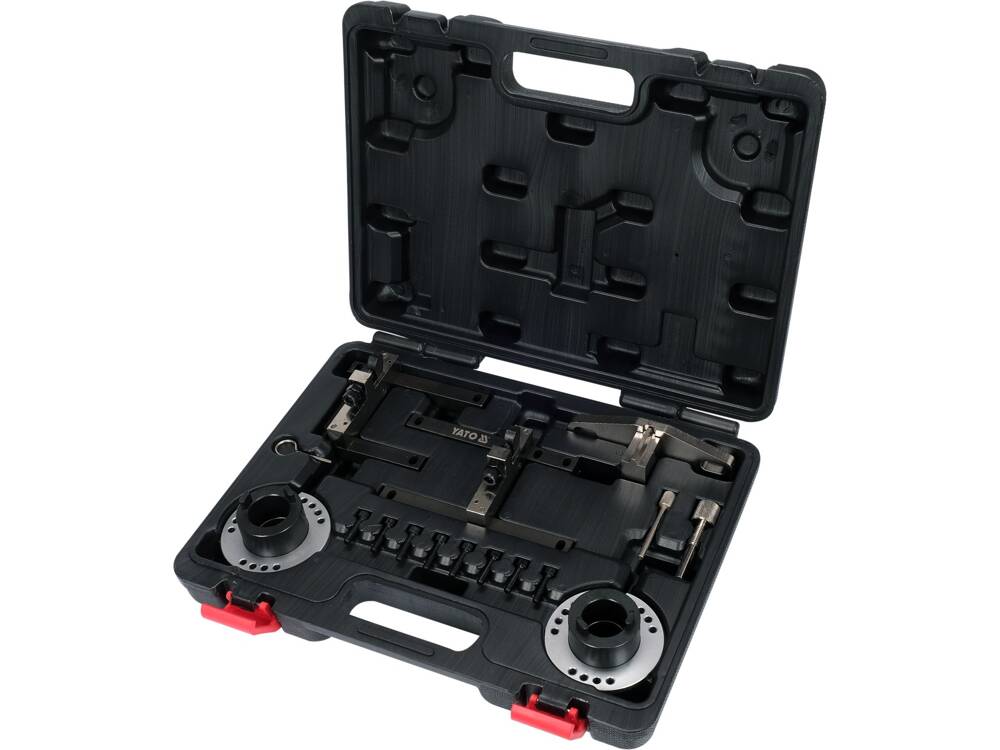

FORD ENGINE TIMING TOOL ECOBOOST (YT-060262)

Product description

This timing tool kit is designed for use with Ford EcoBoost gasoline engines, specifically for setting, locking, and positioning the timing units during maintenance or repair. The kit includes specialized tools for locking the intake and exhaust camshafts, flywheel, crankshaft, crankshaft pulley, and belt tensioner. It is suitable for working on the timing system of Ford vehicles equipped with 1.0 EcoBoost and 1.0 SCTi EcoBoost petrol engines.

The kit serves a range of Ford models, making it applicable for workshops and technicians handling timing procedures on popular Ford vehicles. The included tools correspond to specific OEM reference numbers, ensuring compatibility with the designated engine codes and precise fitment during timing system servicing.

Compatible vehicles

• Ford B-Max
• Ford C-Max
• Ford EcoSport
• Ford Fiesta
• Ford Focus
• Ford Grand C-Max
• Ford Tourneo Connect
• Ford Transit Courier
• Ford Transit Connect

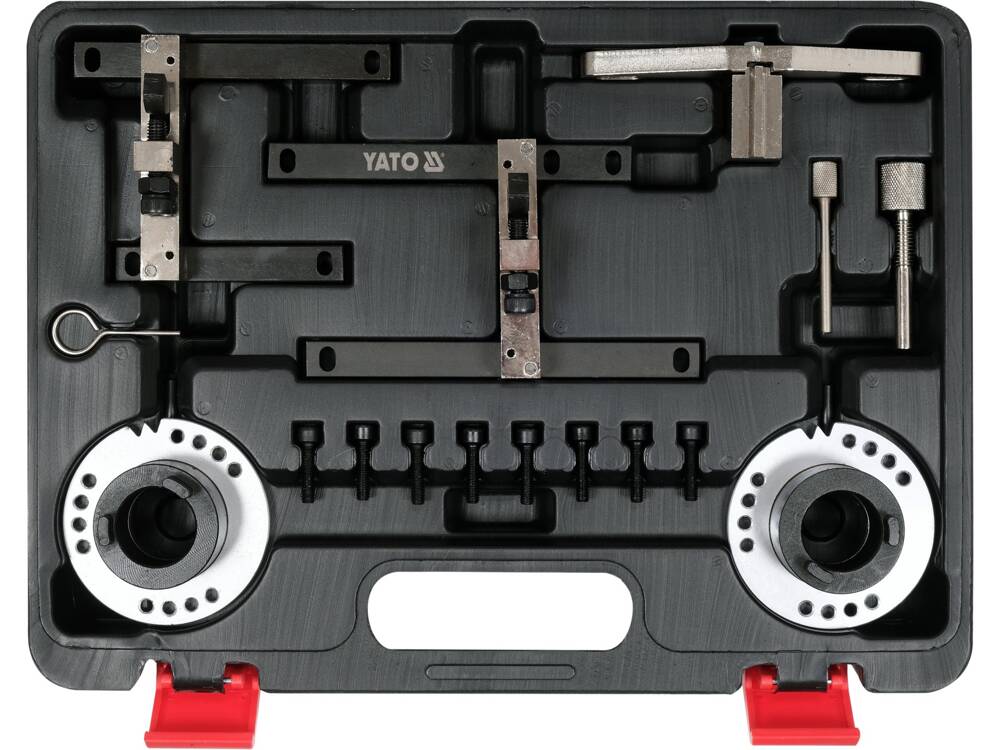

Kit contents

• Intake camshaft lock (OEM 303 - 1605/1)
• Exhaust camshaft lock (OEM 303 - 1605/2 for 1.0 3 cyl. EcoBoost and 1.0 SCTi EcoBoost petrol engines)
• Flywheel lock (OEM 303 - 1602)
• Crankshaft lock (OEM 303 - 1604, pin F16)
• Intake camshaft lock (OEM 303 - 1606/1)
• Exhaust camshaft lock (OEM 303 - 1606/2)
• Crankshaft pulley lock (OEM 303 - 732, pin F6)
• Belt tensioner lock (OEM 303 - 1054, pin 1.8, for 1.0 3 cyl. EcoBoost and 1.0 SCTi EcoBoost petrol engines)

Technical specifications

• Material: carbon steel

OEM reference table:

• Ford: 303 - 1605/1, 303 - 1605/2, 303 - 1602, 303 - 1604, 303 - 1606/1, 303 - 1606/2, 303 - 732, 303 - 1054
