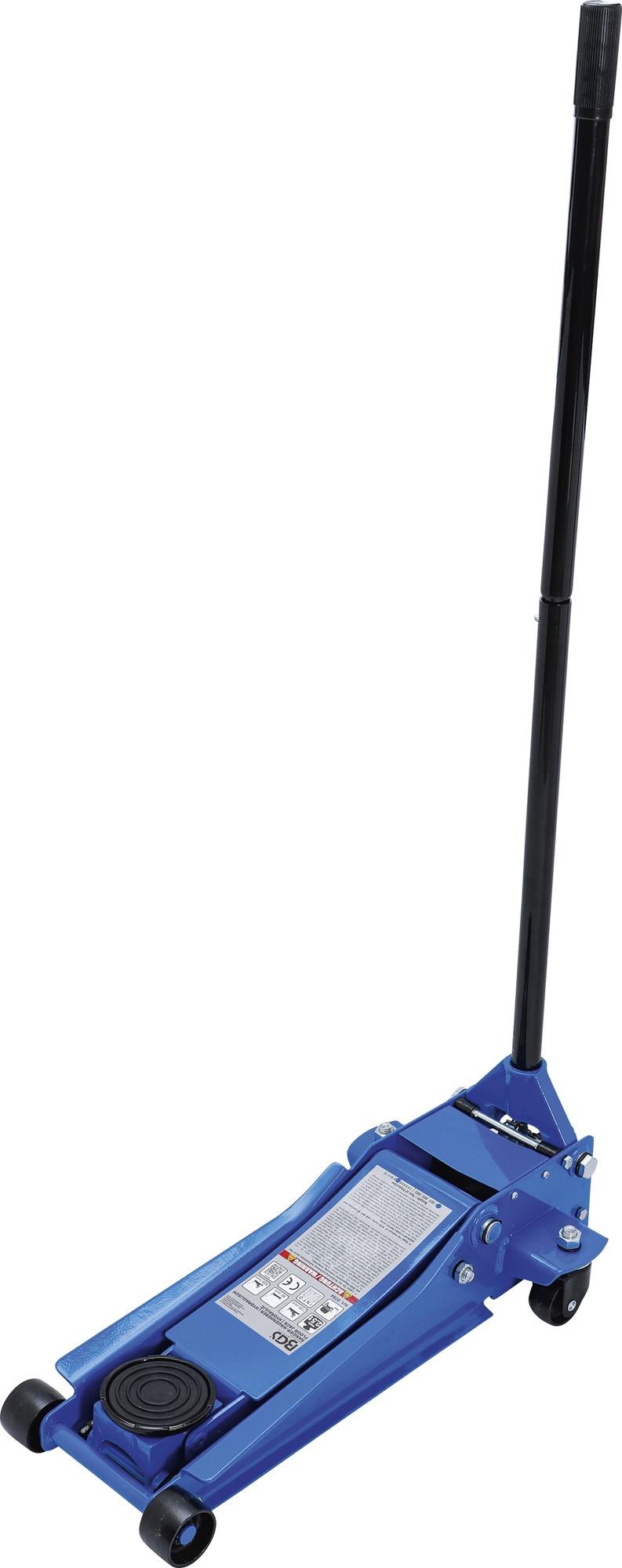

FLOOR JACK | HYDRAULIC | EXTRA FLAT | 2.5 T (9784)

The low-profile car hydraulic jack BGS Technic 9784 is a compact PRO+ class device designed for lifting heavy loads. It features a robust steel construction on four wheels, 2 of which are swivelling. The rubber-covered saddle protects the body of the lifted vehicle from damage. Its low initial height allows the jack to be placed under any car. The device is especially useful for low-profile sports cars. The hydraulic jack with wheels is suitable for use in car services, tire repair shops, maintenance stations, or garages.

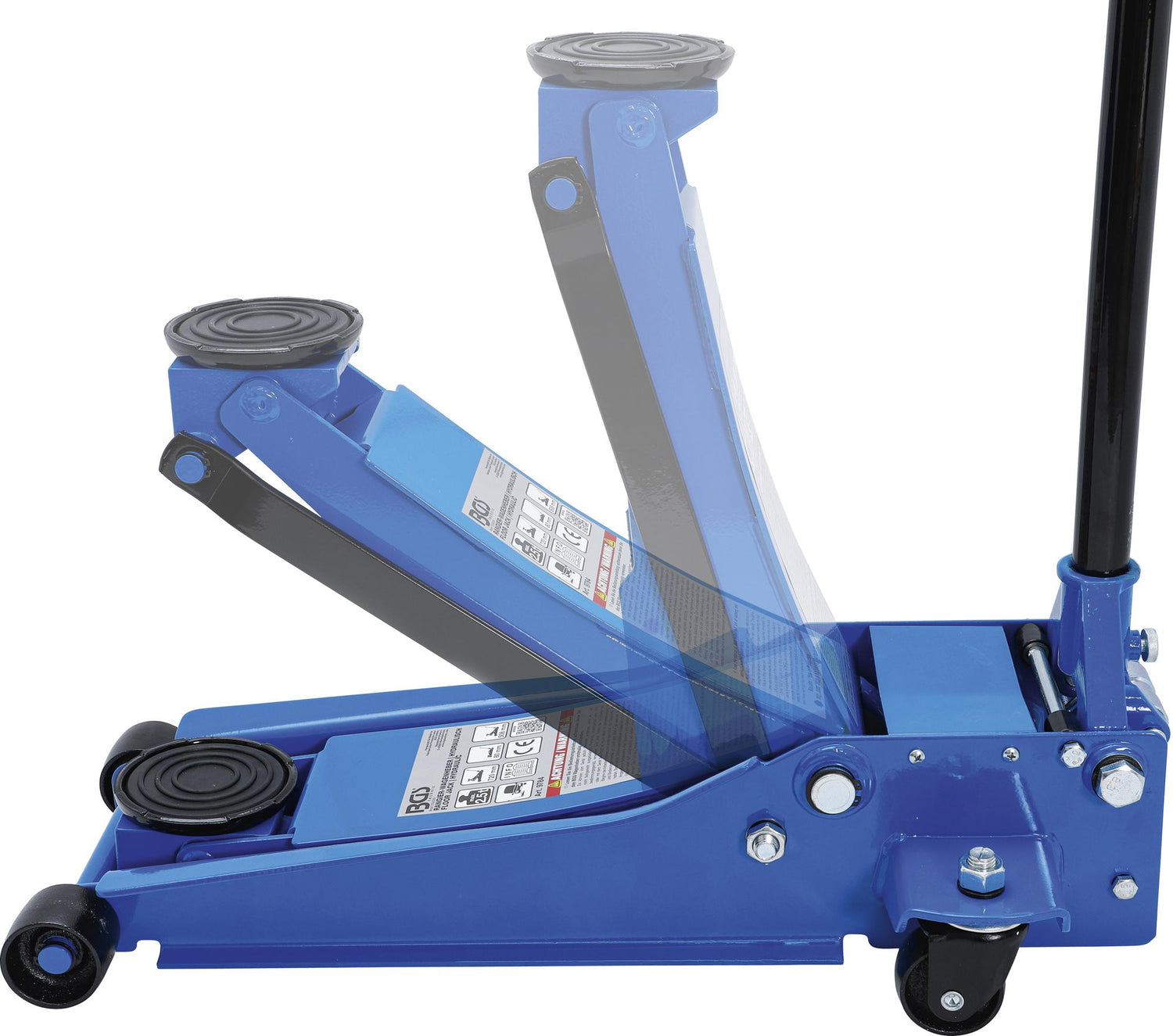

lifting range [mm]: 80-508

max. lifting capacity [kg]: 2 500

dimensions [mm]: 720x326x150

lever length [mm]: 1173

lever dimensions [mm]: Ø32x610x2.5/Ø32x615x1.5

front wheel dimensions [mm]: 60x43

rear wheel dimensions [mm]: 60x30

saddle diameter [mm]: 110

pump piston rod diameter [mm]: Ø22/Ø15

working piston rod diameter [mm]: Ø30

The product set includes a lifting lever.

Total weight [kg]: 31.500
