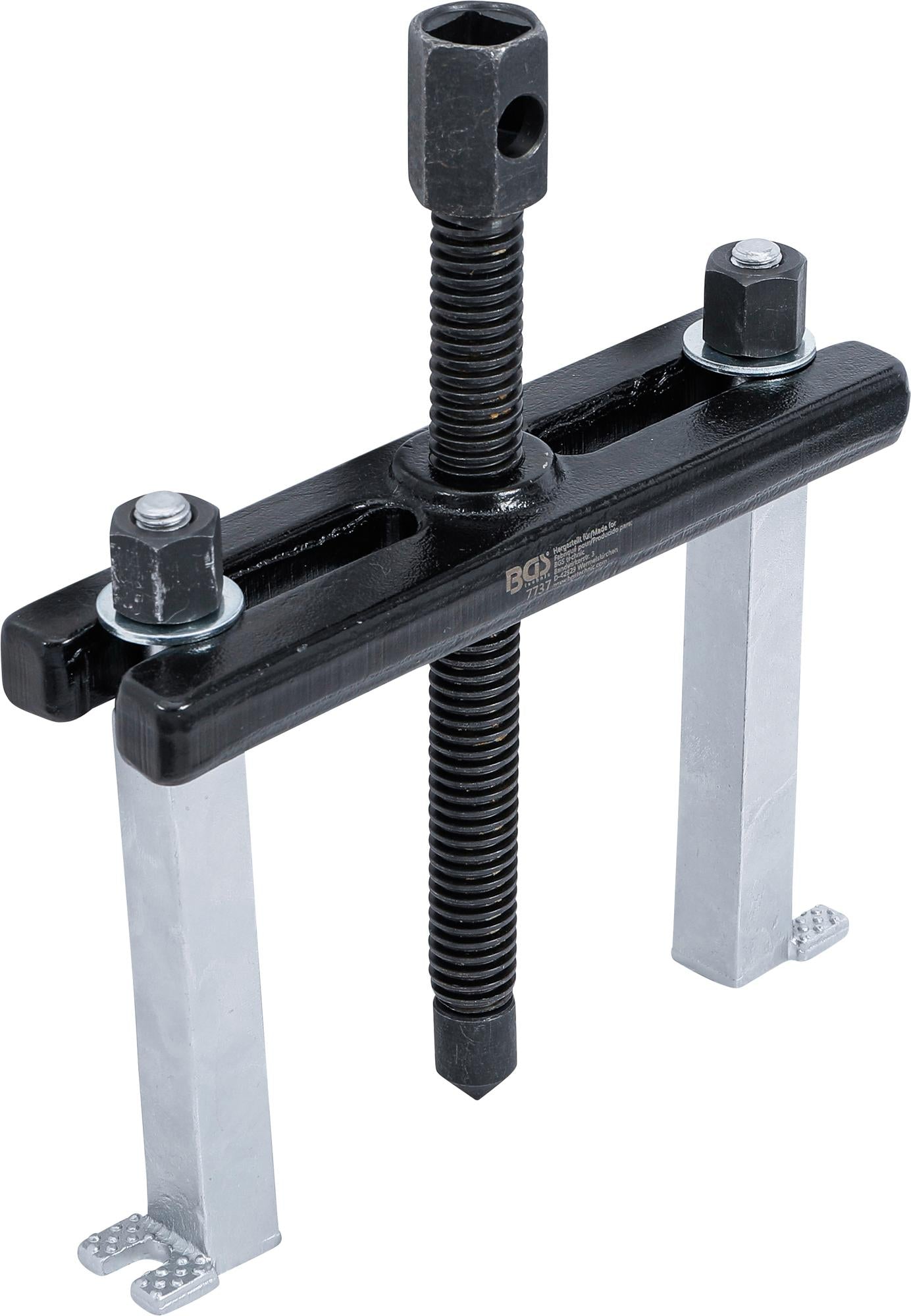

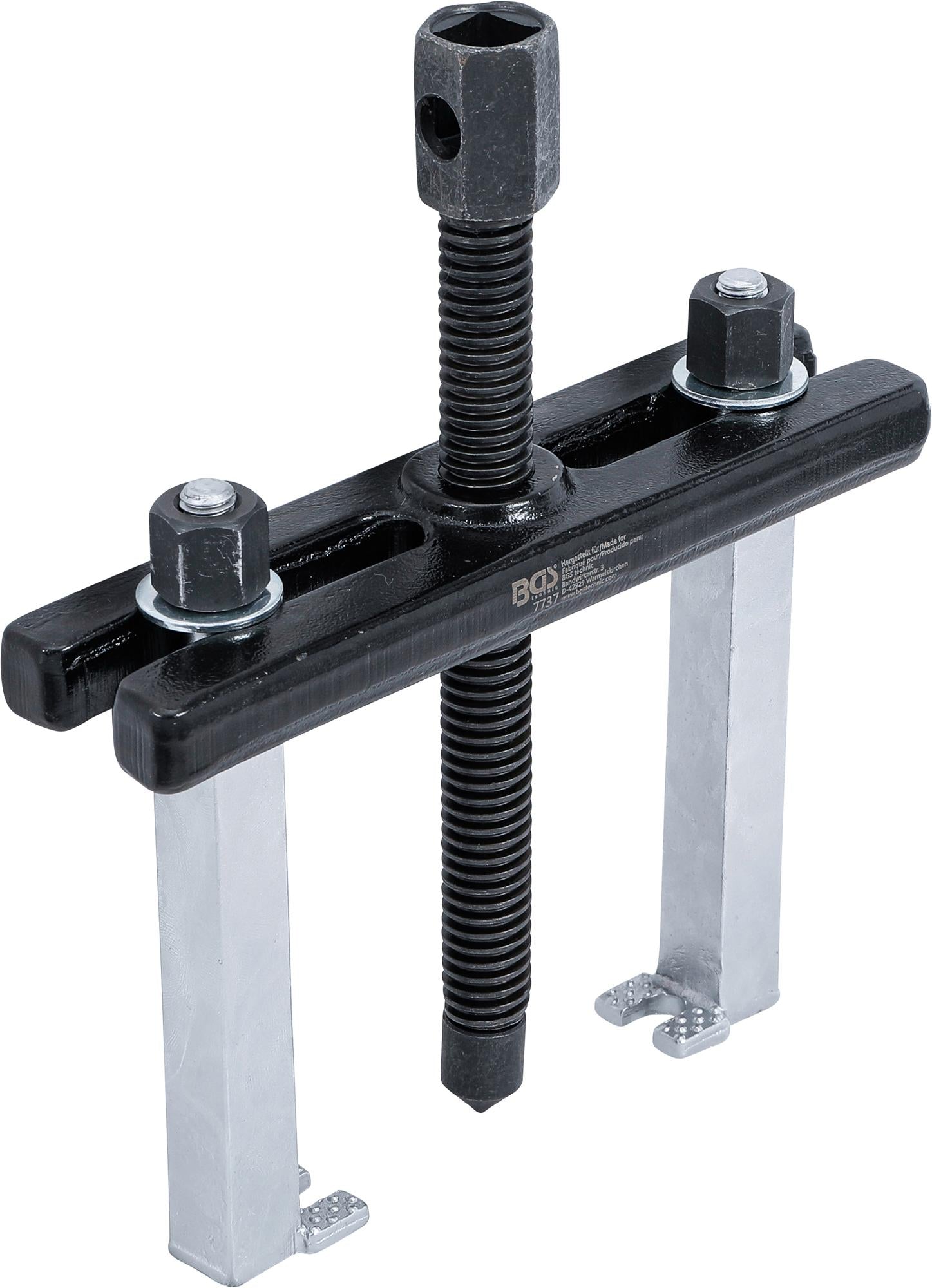

EXTERNAL / INTERNAL 2-ARM PULLER | 40 - 145 MM / 70 - 170 MM (7737)

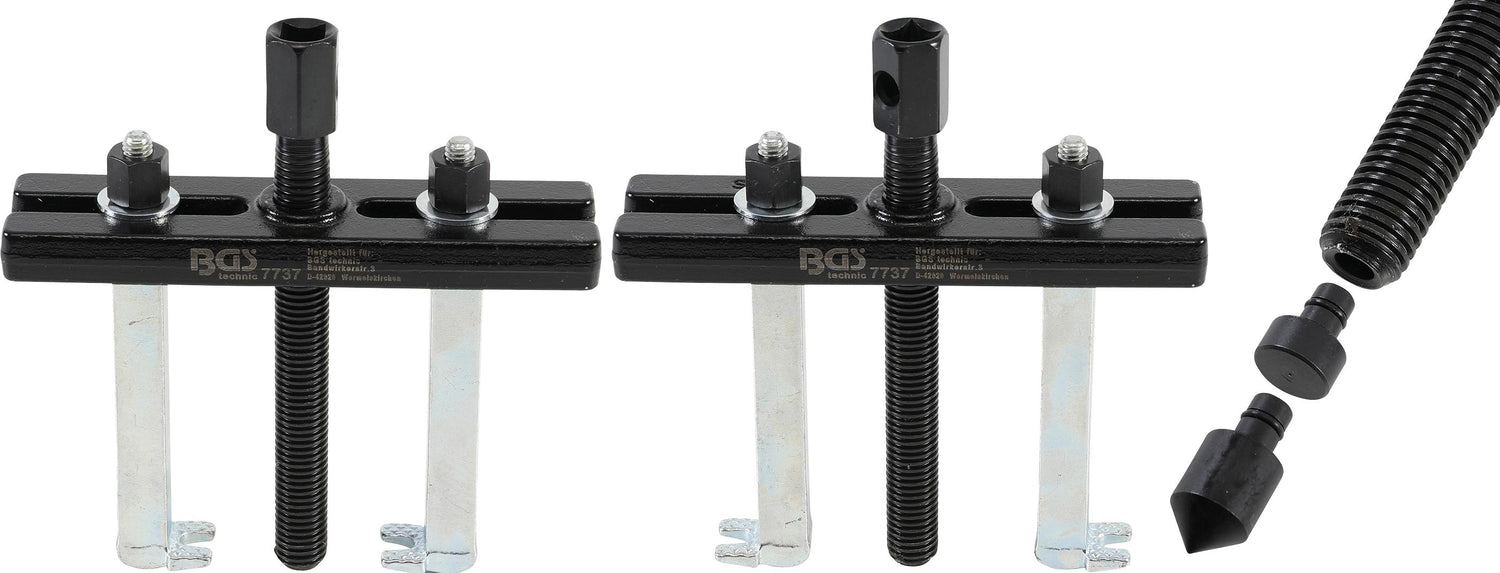

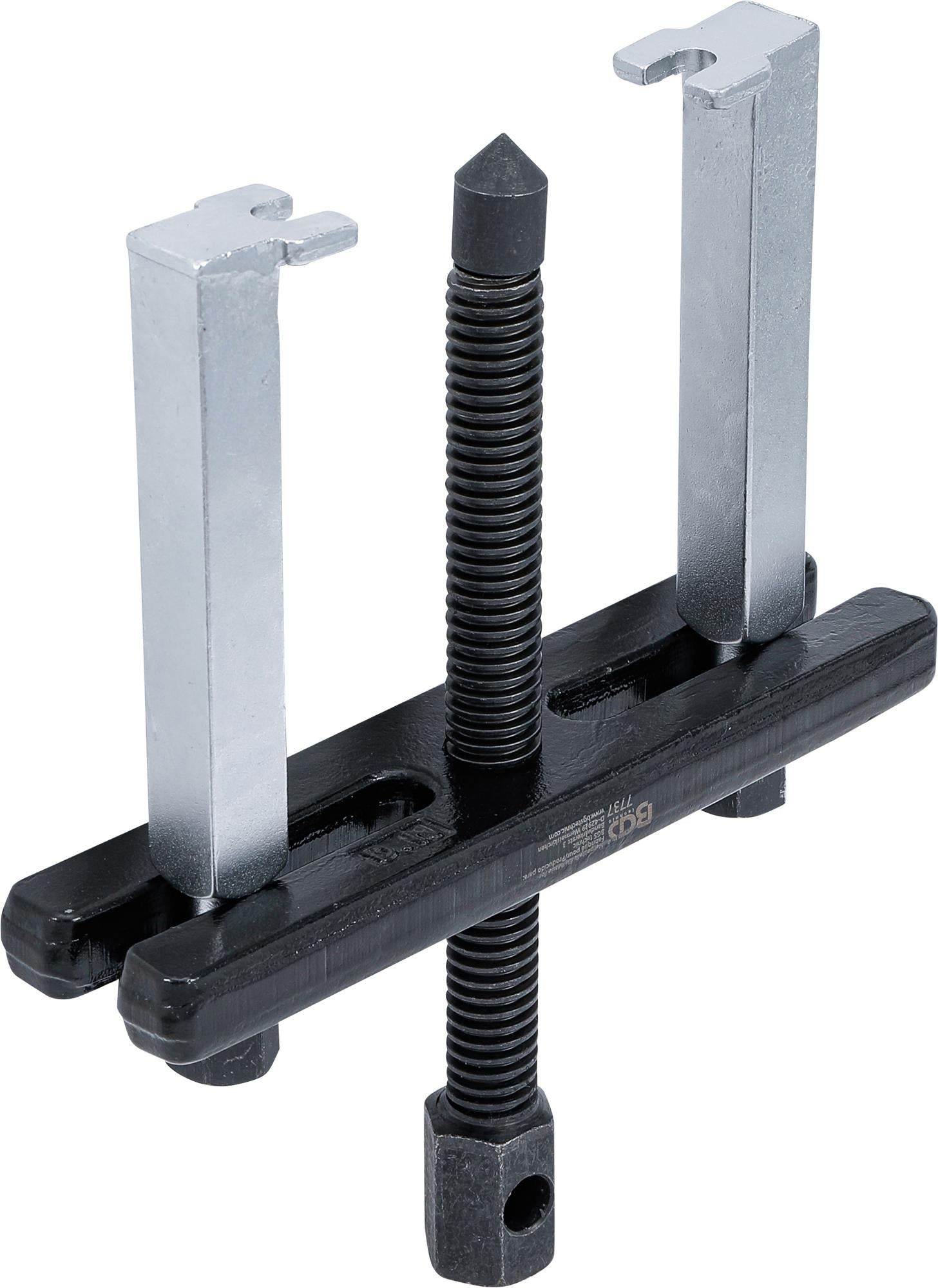

suitable as inside and outside puller
Clamping range as inside puller 40 - 145 mm
Clamping range as external puller 70 - 170 mm
slotted puller arm also suitable for small sleeves, bearing, gears, pulleys etc.
structured puller arm for better grip

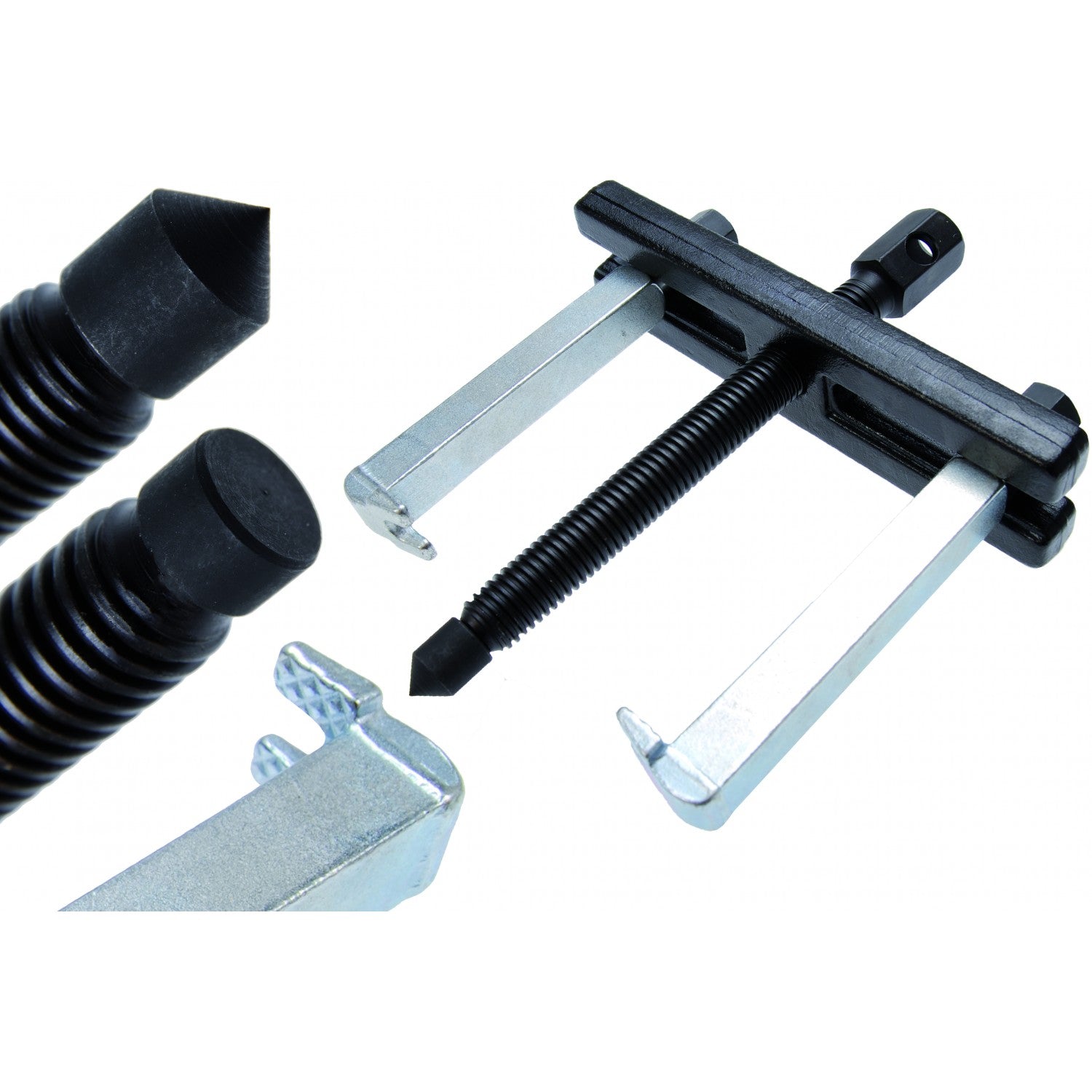

good centering by cone-shaped pressure piece

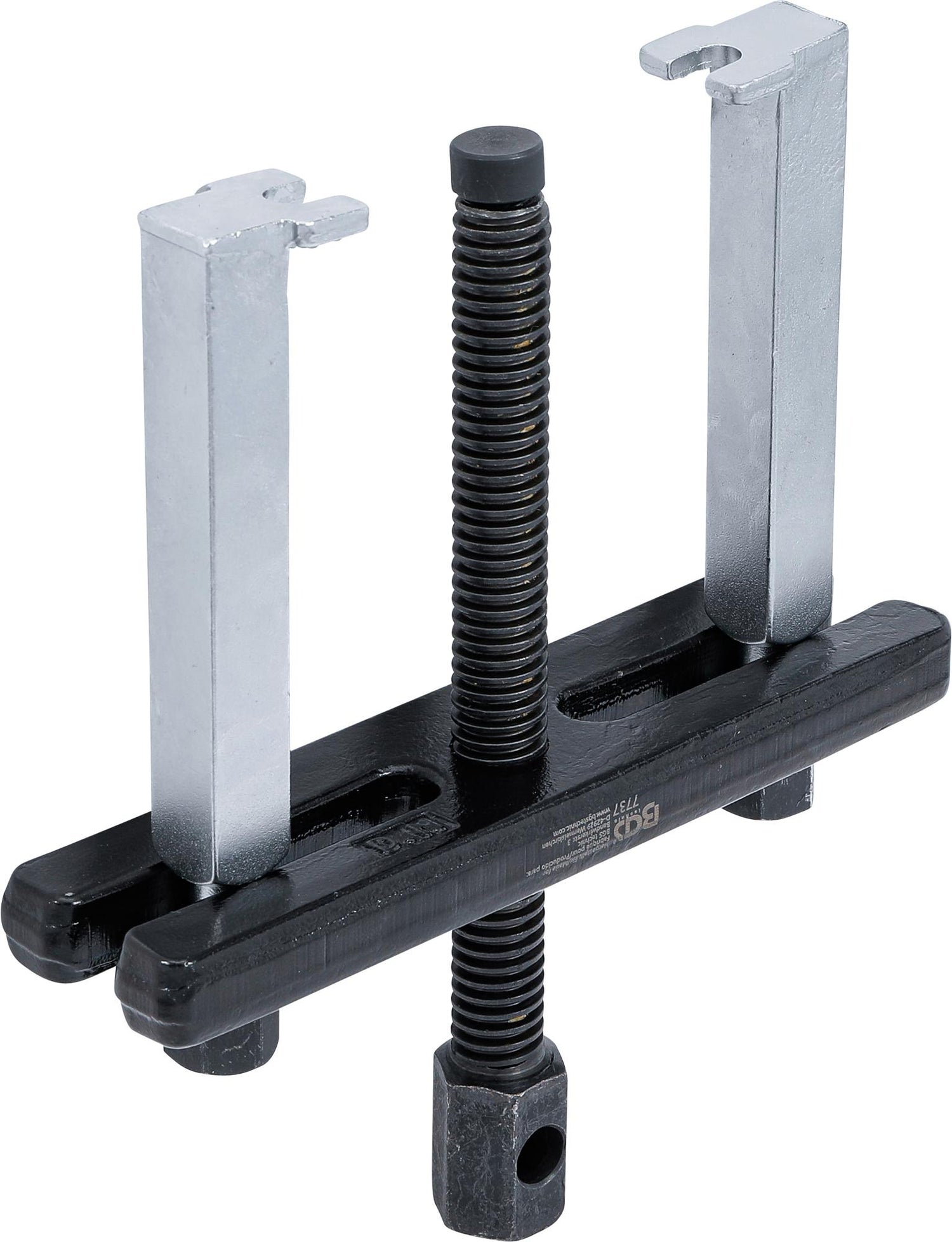

incl. flat pressure piece
spindle drive is possible via internal square 1/2", external hexagon 21 mm or rod
spindle made of carbon steel
Technical data
Clamping depth100 mm
Hook depth14 mm
Hook length31.5 mm
DriveSliding Handle
Wrench size 112.5 mm (1/2") | Sliding Handle
Min. clamping width40 mm
Spindle length155 mm
Hex drive size21 mm
Max. clamping width145 mm
Hook foot thickness at the tip6.5 mm
Max. clamping width inside puller145 mm
Min. clamping width inside puller40 mm
Min. clamping width outside puller70 mm
Max. clamping width outside puller170 mm
Hook foot hole8 mm
Gross weight1780 g
Drive profile 1Internal square
Drive profile 2External hexagon
Drive profile 1, inch1/2 "
Drive profile size 1, metric12.5 mm
