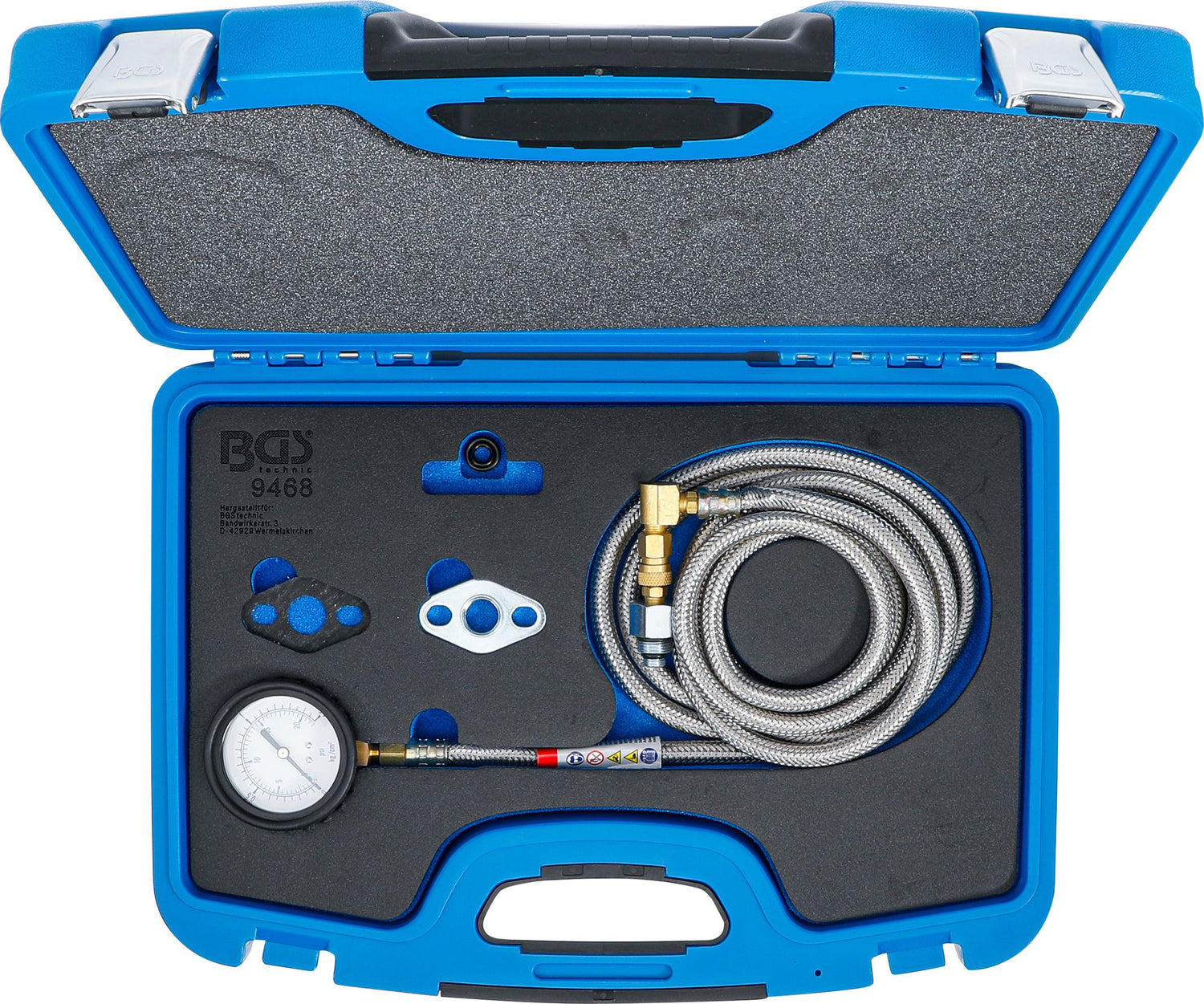

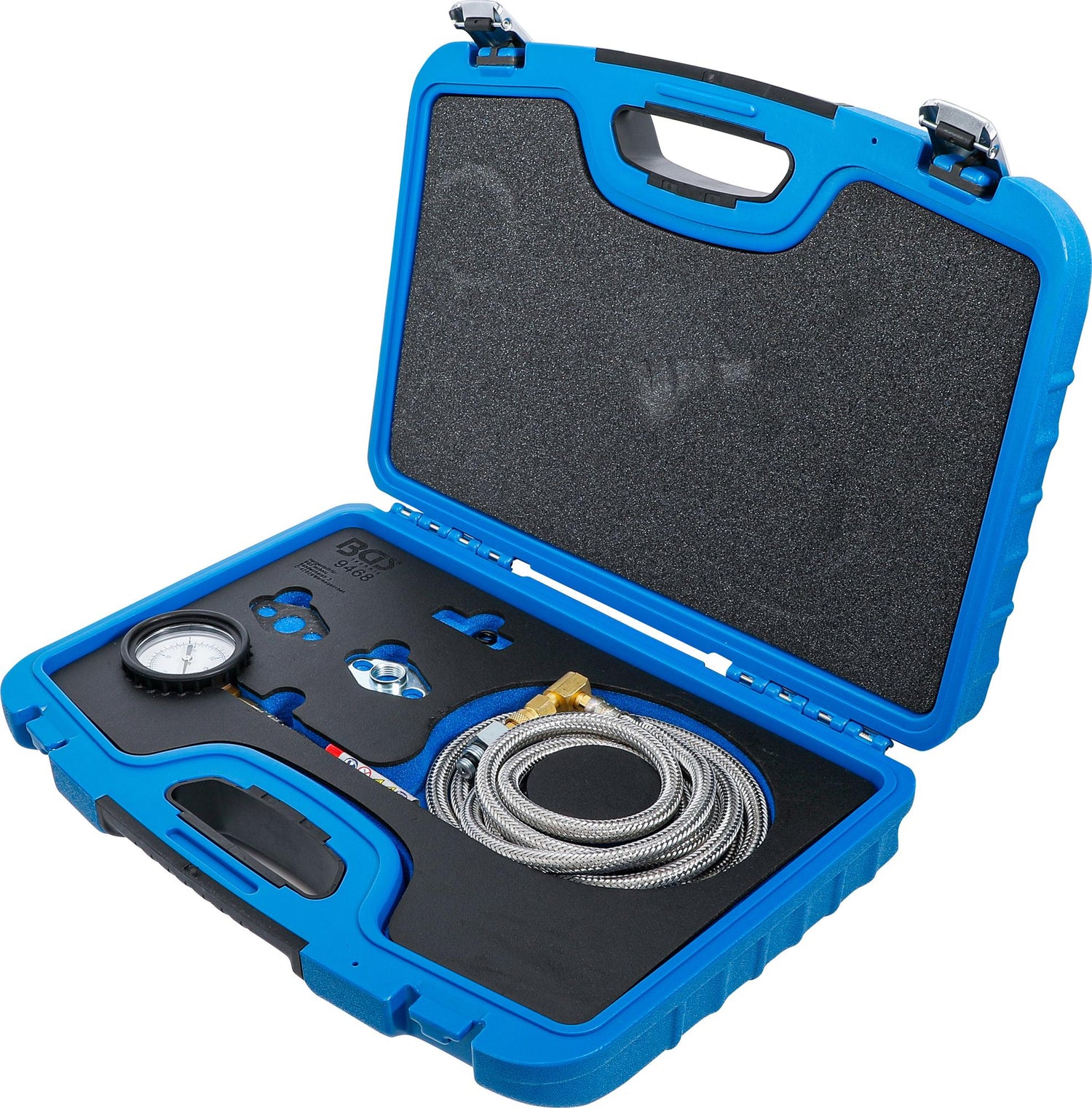

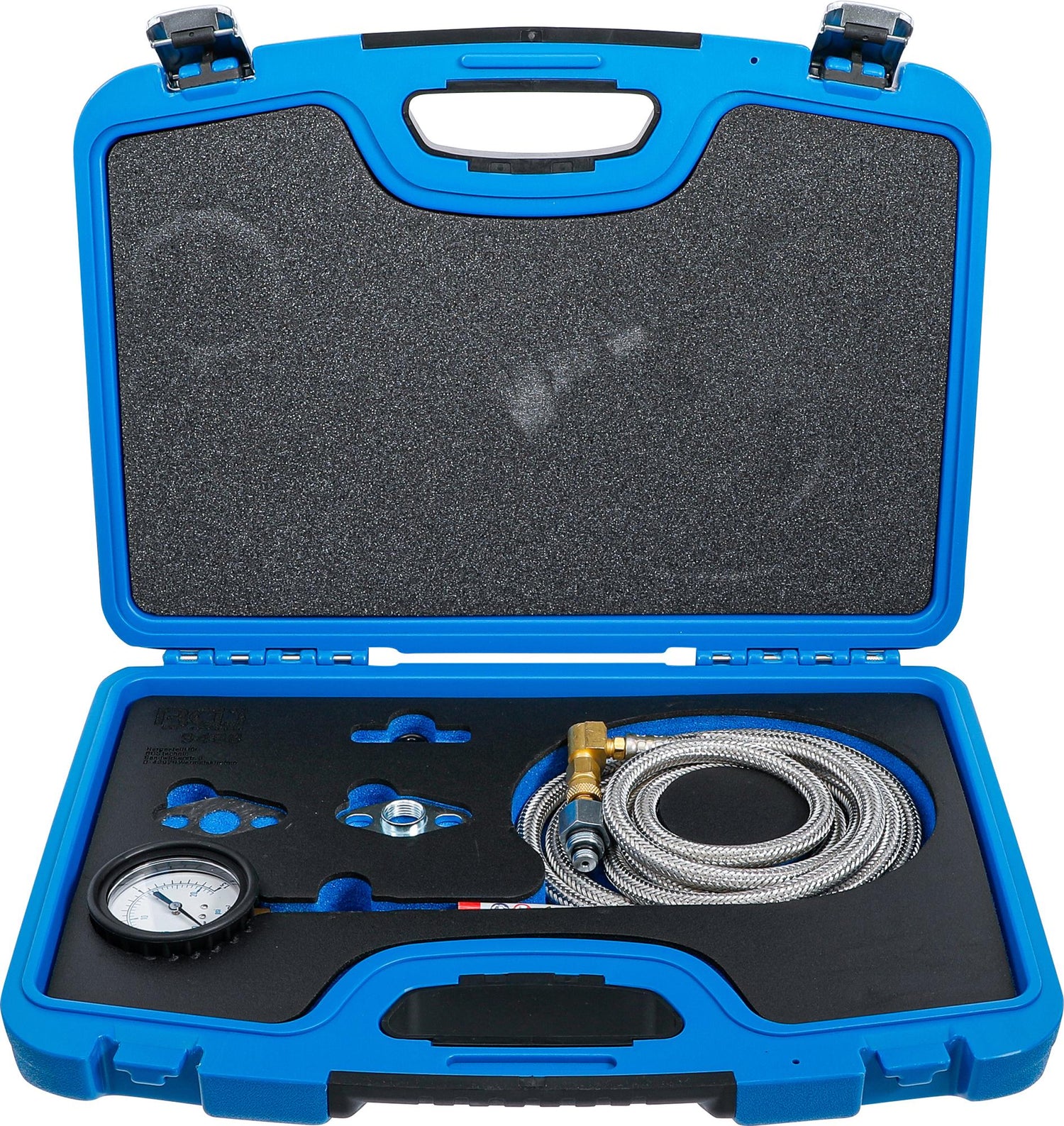

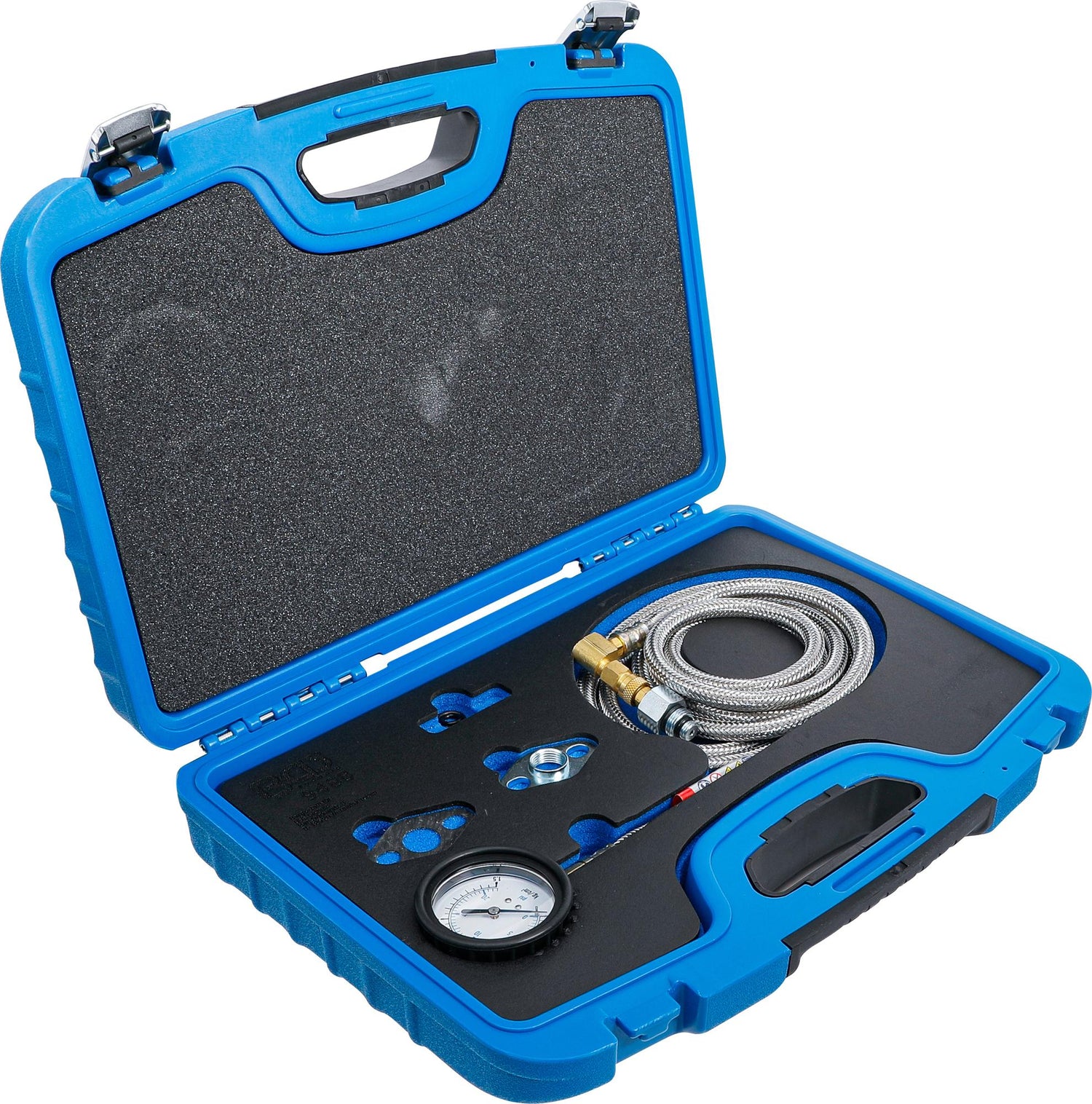

EXHAUST GAS COUNTER-PRESSURE TESTER (9468)

for testing of the exhaust back pressure
to be connected to oxygen sensor thread of the exhaust system or to flange of exhaust gas recirculation valve
allows conclusions on blockages or constrictions, such as e.g. clogged catalysts or particulate filters, thereby preventing expensive repair costs due to damage to the turbocharger
scope of delivery:

1 adapter for oxygen sensor thread M12x1.25
1 adapter for oxygen sensor thread M18x1.5
1 flange adapter for exhaust gas recirculation valve (EGR)
1 pressure gauge, 57 mm with two ranges in psi & kg/cm2
1 braided stainless steel casing hose, length 1.9 m
Technical data
Gross weight2330 g
