ENGINE TIMING TOOL SET (YT-060181)

Product description

This timing lock set is designed for use on BMW diesel engines equipped with chain-driven timing systems. The kit enables precise alignment and locking of the camshaft, crankshaft, and injection pump during service procedures such as timing chain replacement, seal changes, or timing repairs. By securing key engine components in their correct positions, the set helps maintain accurate timing phase settings throughout maintenance work.

The set is compatible with a wide range of BMW diesel models, particularly those using the 2.0 N47 and N47S engines produced between 2007 and 2015. It includes specialized adapters and locking tools for the camshaft, crankshaft, and injection pump, as well as a camshaft chain tensioner, supporting comprehensive timing system service.

Compatible vehicles

Series 1: 116d, 118d, 120d, 123d (E81, E82, E87, E88, F20)

Series 3: 316d, 318d, 320d, 325d, 330d (E90, E91, E92, E93, F30)

Series 5: 520d, 525d, 530d, 535d, 535d GT, GT, M550d (E60, E61, F07, F10, F11)

Series 6: 640d (F12)

Series 7: 730d, 740d, 750D (F01)

Series X1: 1.8d, 2.0d, 2.3d (E84)

Series X3: 1.8d, 2.0d, 3.0d, 3.5D (F25, E83)

Series X5: 3.0d, 4.0d, M5.0d (E70)

Series X6: 3.0d, 4.0d, M5.0d (E71)

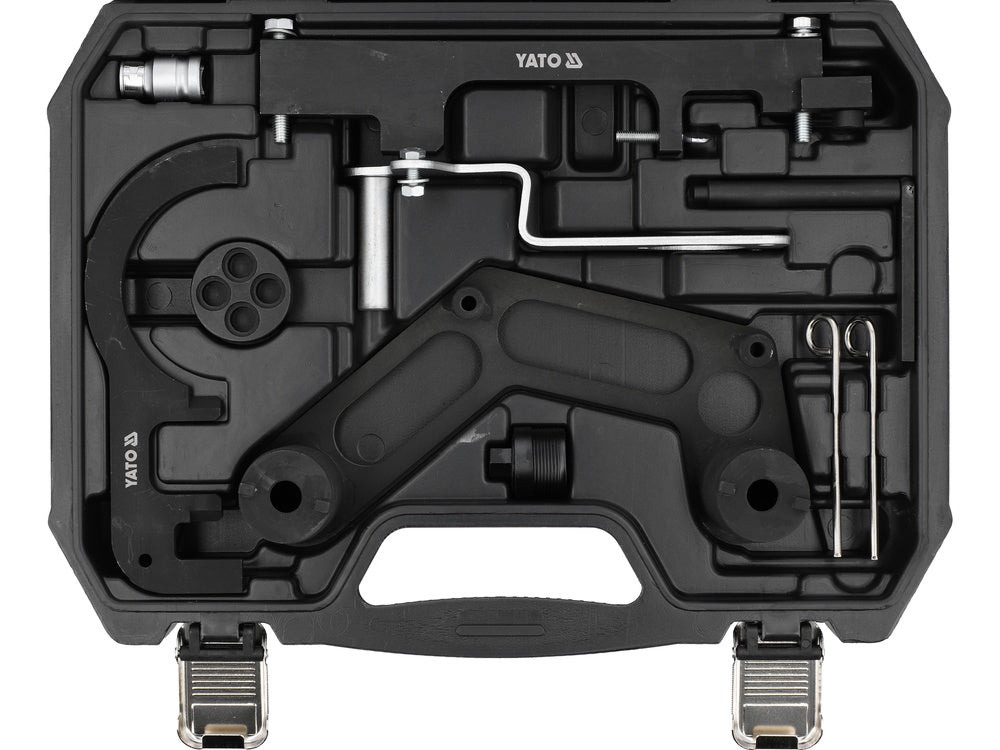

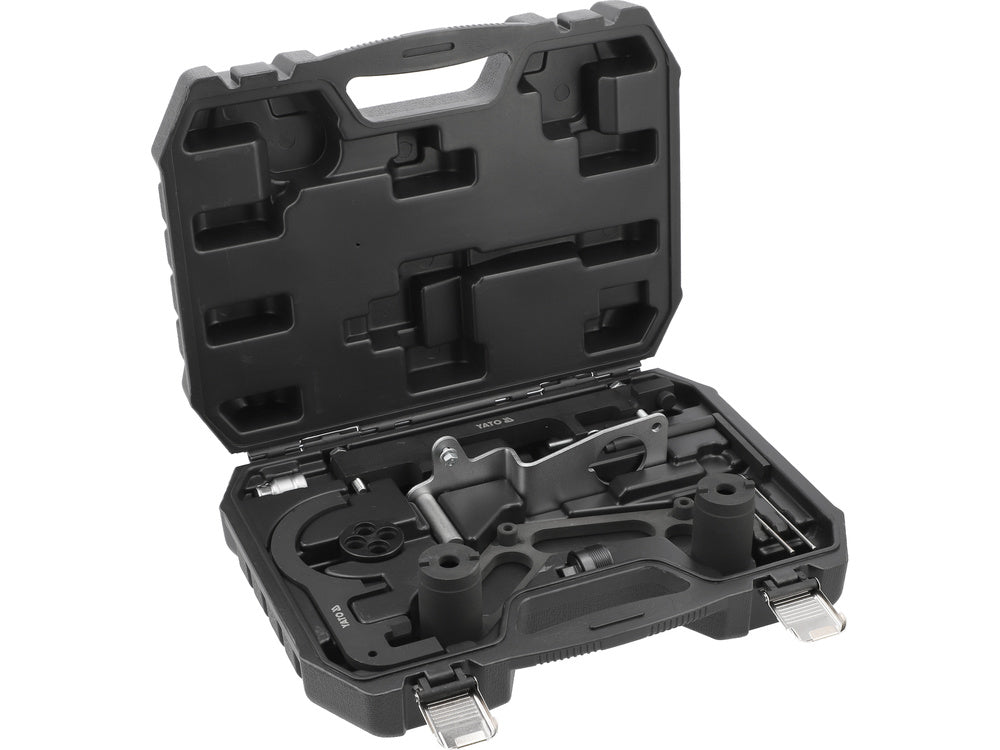

Kit contents

Injection pump locking adapter

Camshaft locking tool

Crankshaft locking tool

Camshaft chain tensioner

Technical specifications

Material: carbon steel

Number of pieces: 10
