ENGINE TIMING TOOL SET VAG TSI/TFSI (YT-06025)

Product description

This timing tool kit is designed for use with VAG group gasoline engines, specifically for working on the timing system during maintenance or repair procedures. The set is suitable for a range of 1.0, 1.2, and 1.4 TSI/TFSI engines, including hybrid and multi-fuel variants. It is used to lock and align engine components such as camshafts and crankshafts, ensuring correct timing during timing belt or chain replacement, cylinder head work, or other engine repairs.

The kit is constructed from carbon steel and contains six pieces tailored to fit the specific requirements of the listed VAG engines. It is applicable to various models from Audi, Skoda, Seat, and Volkswagen, covering a range of engine codes including CHYA, CHYB, CPGA, CJZA, CJZB, CMBA, CXSA, CHPA, CPWA, CPVA, CZDA, CZDB, CZDC, and CRJA.

Compatible vehicles

Audi:

• A3 (since 2013) 1.2/1.4 TSI

Skoda:

• Citigo 1.0/1.0 Ecofuel/1.0 Green Tech
• Octavia (since 2013)

Seat:

• Leon (since 2013)
• Mii 1.0/1.0 Ecofuel/1.0 Ecomotive

VW:

• Golf VII (since 2012)
• Jetta (since 2012)
• Up 1.0/1.0 BlueMotion/1.0 Ecofuel

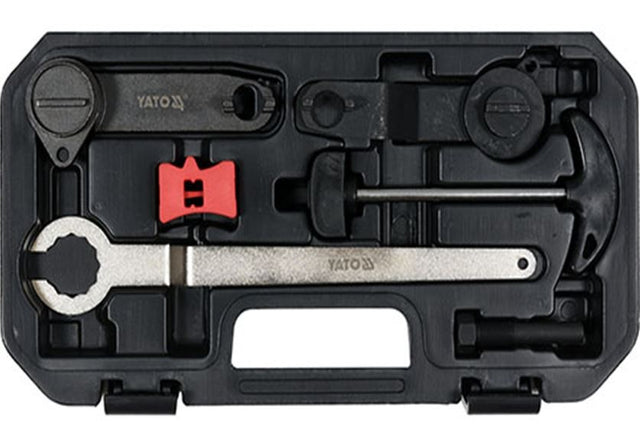

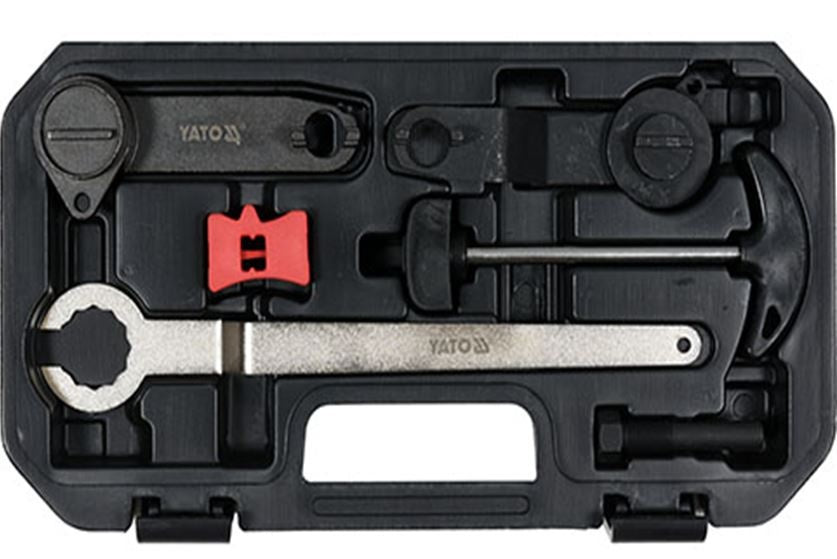

Kit contents

• 6 timing system locking tools (no individual OEM numbers provided)

Technical specifications

• Material: carbon steel
• Number of pieces: 6

Engine codes covered:

• 1.0 CHYA, CHYB, CPGA
• 1.2 TFSI: CJZA, CJZB
• 1.4 TFSI: CMBA, CXSA, CHPA
• 1.4 TGI: CPWA
• 1.4 TSI Multi Fuel: CPVA, CZDA, CZDB, CZDC
• 1.4 Hybrid: CRJA
