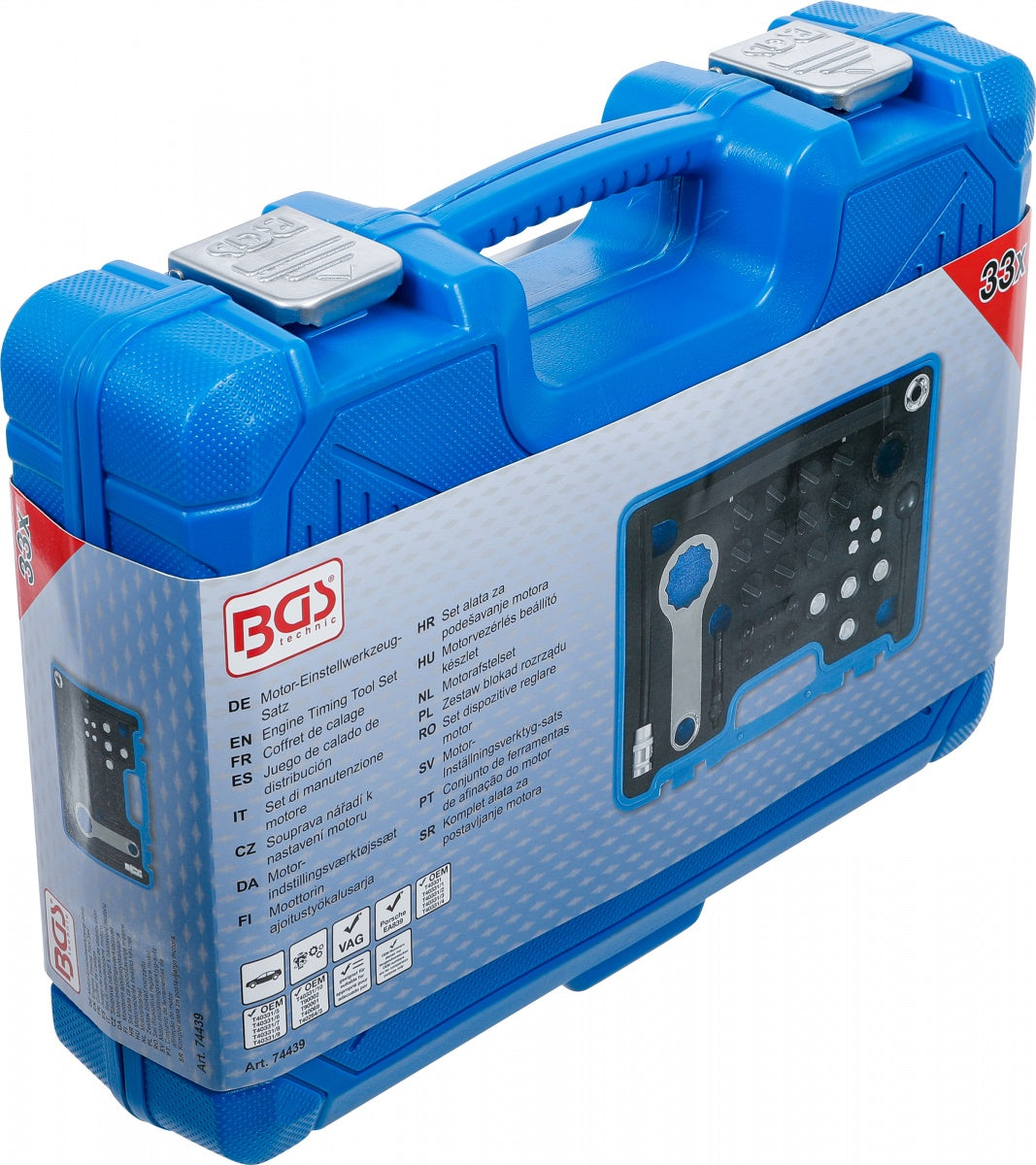

ENGINE TIMING TOOL SET | FOR VAG, PORSCHE EA839 (74439)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on VAG group engines, specifically the EA839 series. It is suitable for use with 2.9 and 3.0 TFSI engines with the following engine codes: DECA, CWGD, CZSA, CZSE, DCBD, and DLZA. The kit provides the necessary tools to lock the camshafts and crankshaft, as well as to hold and adjust the camshaft adjusters during timing procedures.

This tool set is used during timing belt or chain replacement, engine rebuilds, or any service where precise timing alignment is required. It is tailored for professional workshops and technicians working on the specified VAG and Porsche engines.

Compatible vehicles

Porsche:

• Panamera II (11/2016-)
• Cayenne III (08/2017-)
• Macan (12/2018-)

Audi:

• S4 B9 (11/2016-)
• S5 F5 (07/2016-)
• S6 C8 (07/2019-)
• S7 C8 (07/2019-)
• RS4 B9 (11/2017-)
• RS5 F5 (06/2017-)
• SQ5 FY (06/2017-)
• A6 C8 (01/2019-)
• A7 C8 (02/2018-)
• A8 D5 (09/2017-)
• Q7 (09/2019-)
• Q8 (02/2019-)

VW:

• Touareg (04/2018-)

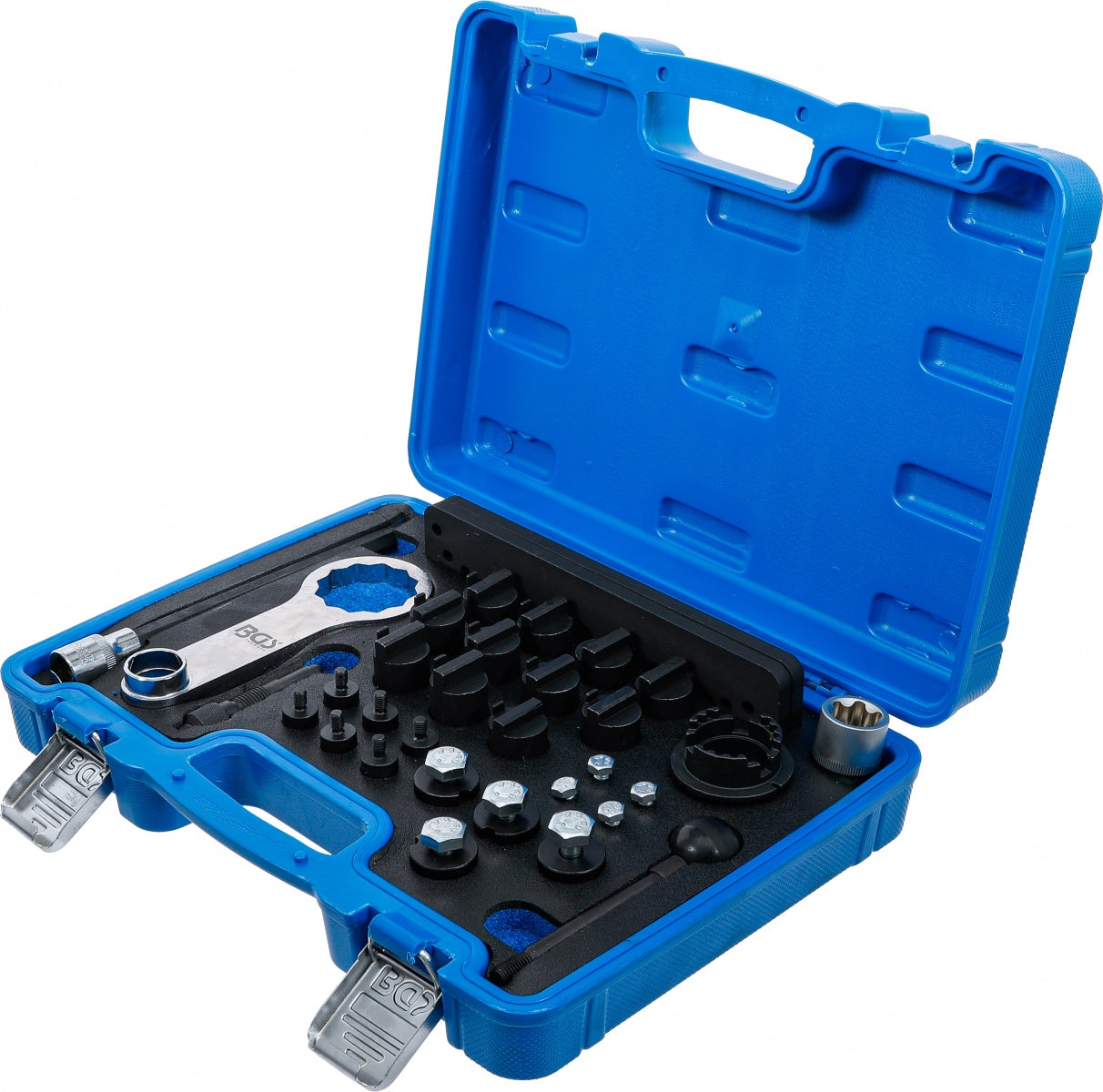

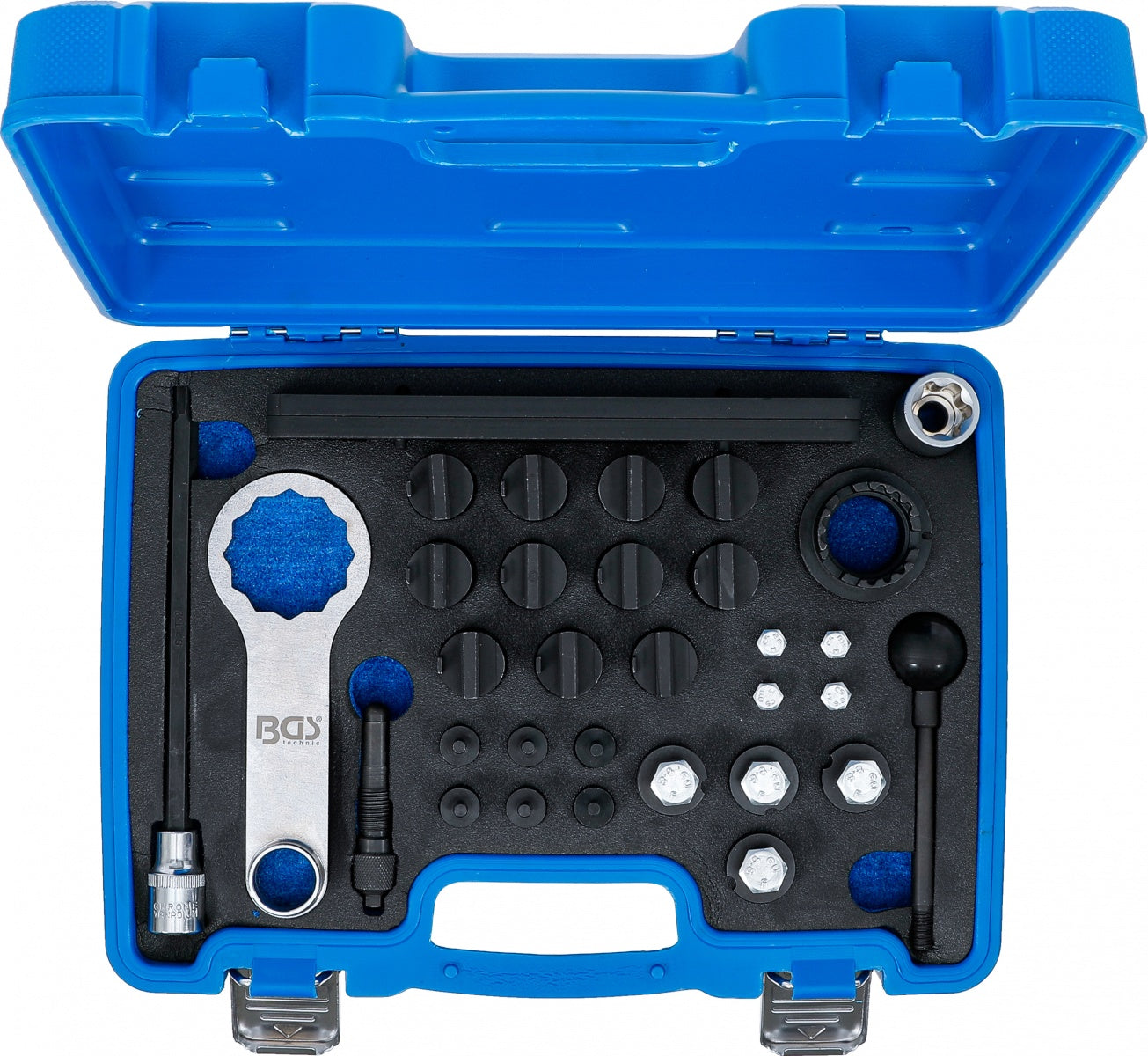

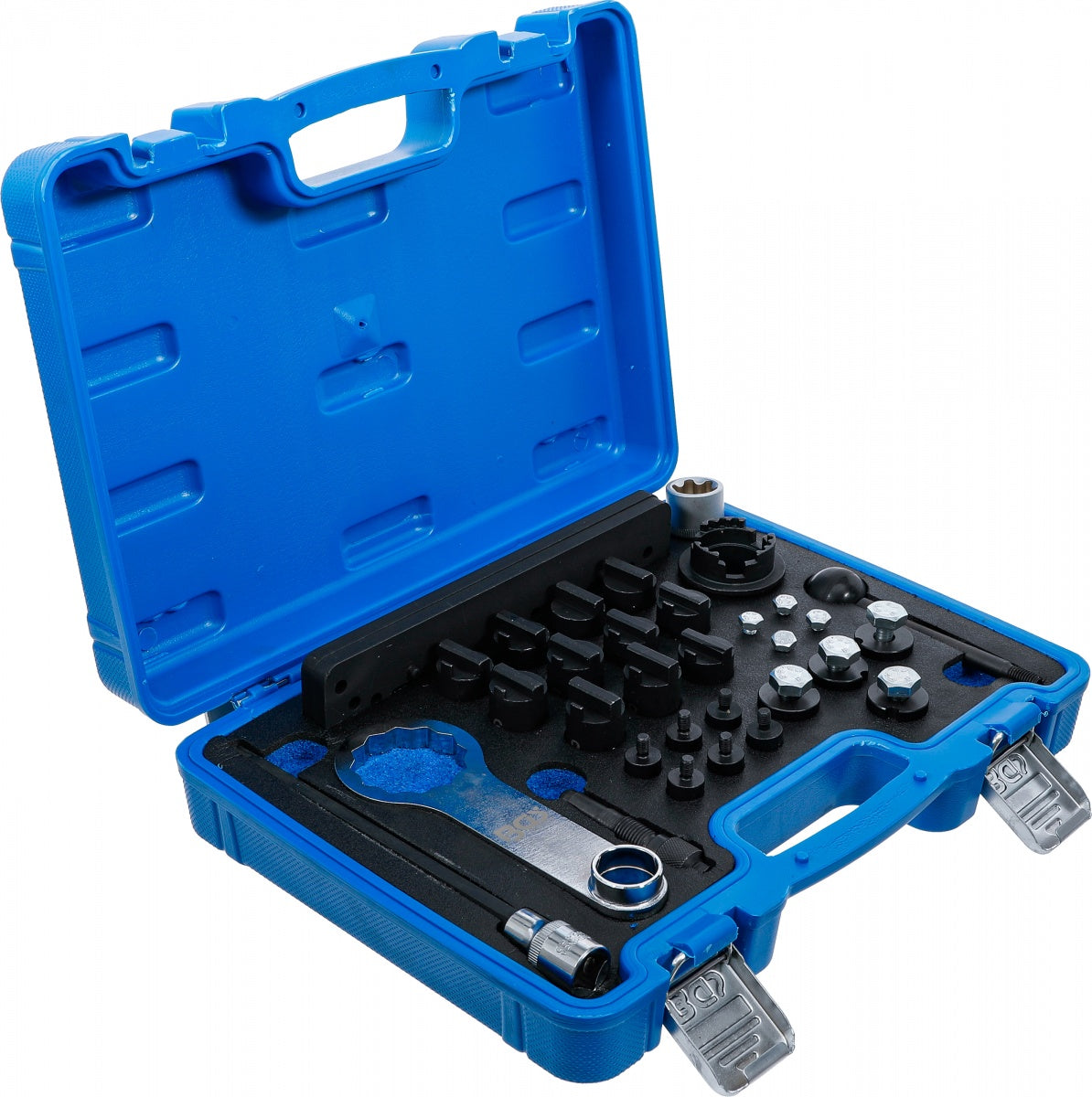

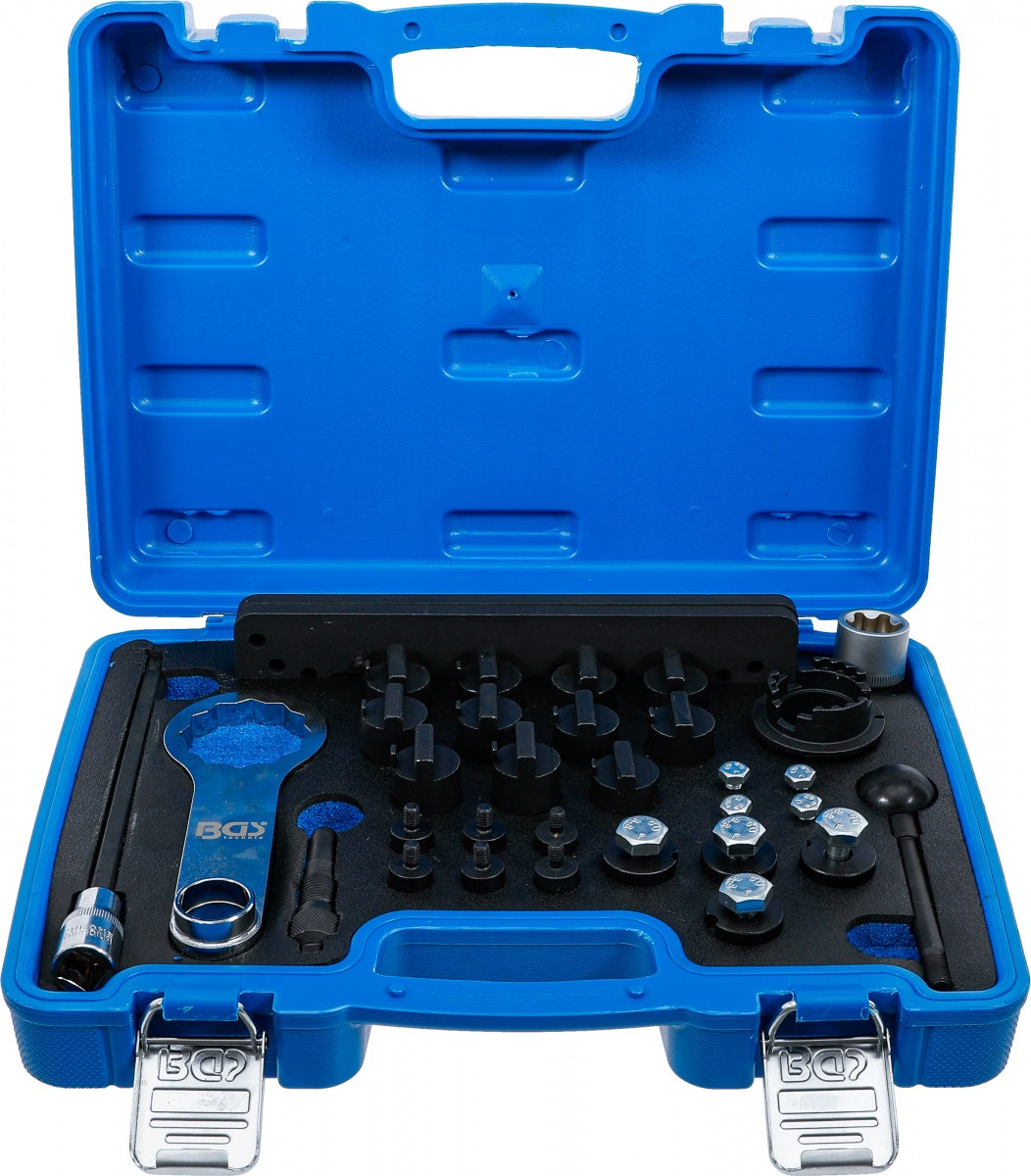

Kit contents

• Camshaft locking tool set (OEM T40331, /1, /2, /3, /4, /5, /6, /7, /8, /9, /10)
• Socket E24 for camshaft adjuster
• Adaptor for camshaft adjuster holding tool (OEM T90002)
• Camshaft adjuster holding tool (OEM T90001)
• Crankshaft locking bolt (OEM T40069)
• Locking pin for crankshaft pulley (OEM T40264/3)
• Bit socket T52, drive 12.5 mm (1/2"), length 200 mm

Technical specifications

• For checking and adjusting the engine timing on VAG EA839 engines
• Engine codes: 2.9 / 3.0 TFSI (DECA, CWGD, CZSA, CZSE, DCBD, DLZA)

OEM reference numbers:

• T40331, /1, /2, /3, /4, /5, /6, /7, /8, /9, /10
• T90002
• T90001
• T40069
• T40264/3
