ENGINE TIMING TOOL SET | FOR VAG FSI, TSI 1.4, 1.6 WITH TIMING CHAIN (62625)

Product description

This timing tool kit is designed for checking and adjusting camshaft timing on VAG FSI and TFSI 1.4L and 1.6L engines. It is used when replacing timing chains to ensure correct alignment and timing of the camshaft and crankshaft components. The kit provides the necessary fixtures to lock the camshaft and crankshaft in position, as well as tools for securing the tensioner and setting gauge during service.

The kit is compatible with a range of VAG group vehicles equipped with FSI and TFSI engines, specifically those with engine codes AXU, BLG, BAG, BMY, BKG, BMK, BLF, CAVA, BLN, CAVB, BLP, CAVC, CAVE, CAVF, CAVD, CAXA, CAXC, CDGA, and BTS. It is suitable for use during timing chain replacement and camshaft timing adjustment procedures.

Compatible vehicles

• Audi:
• A3 (2003-2010)
• Seat:
• Ibiza
• Leon
• Altea
• Skoda:
• Octavia (2004-2009)
• Fabia (2007-2009)
• Superb (2009-2010)
• Roomster (2006-2009)
• Volkswagen (VW):
• Golf (2003-2009)
• Golf Plus (2005-2009)
• Jetta (2006-2009)
• Passat (2005-2009)
• Polo (2002-2008)
• Scirocco (2009-2010)
• Tiguan (2007-2009)
• Touran (2003-2009)
• Eos (2006-2009)

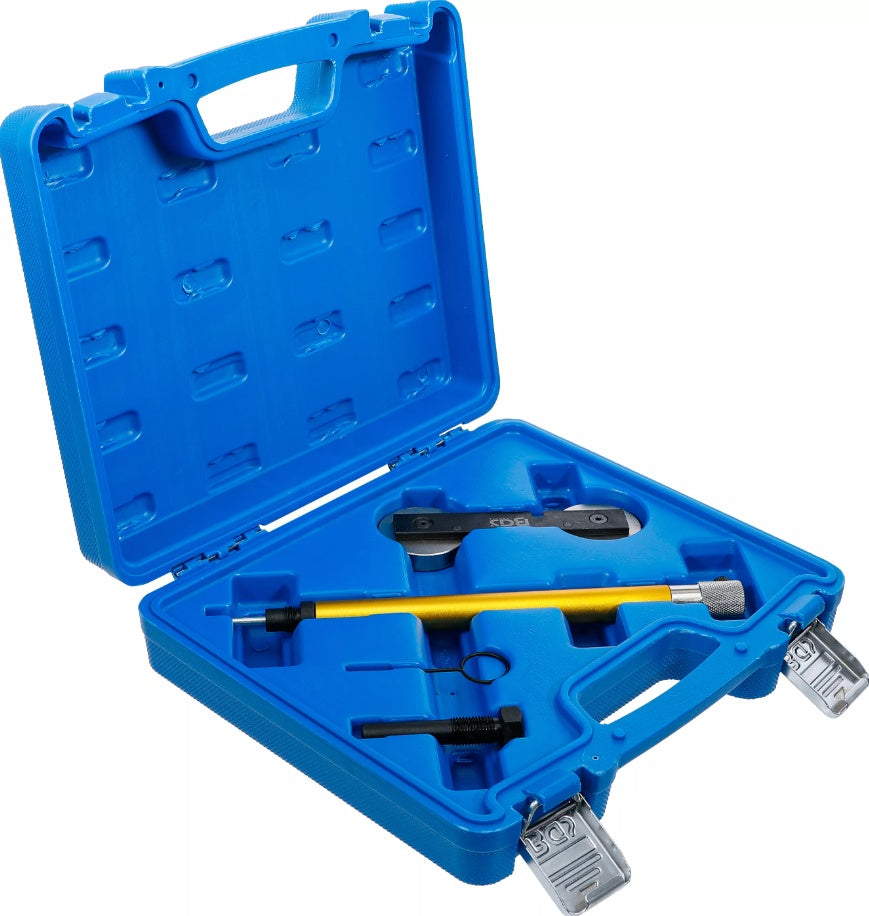

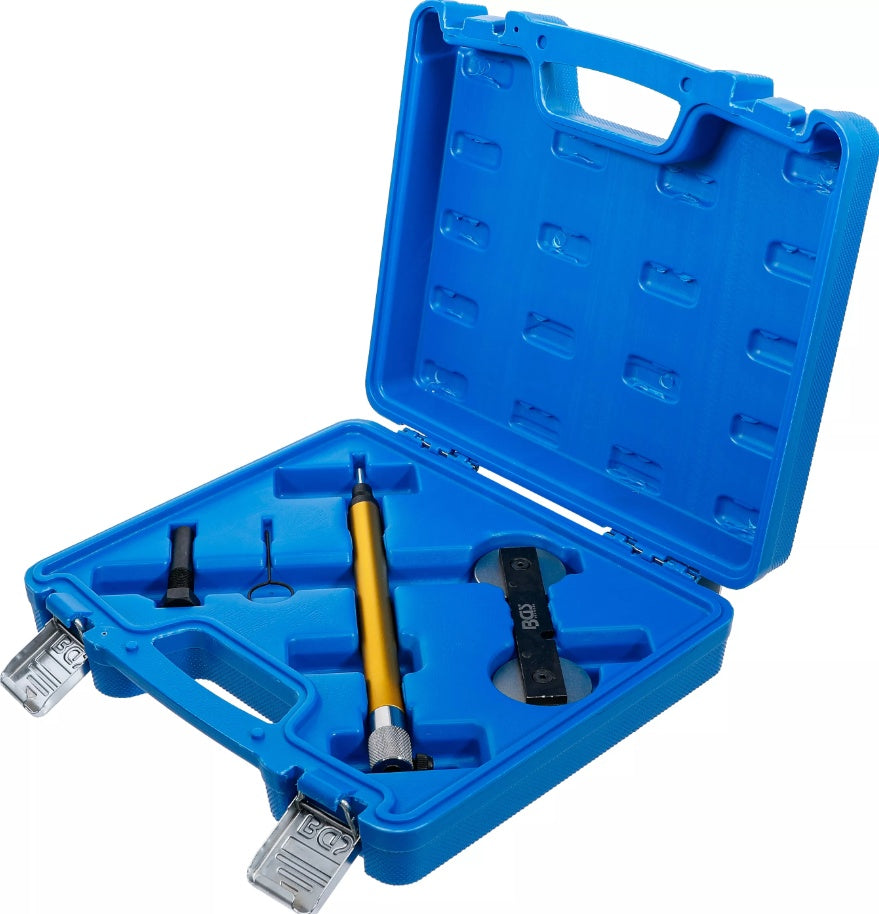

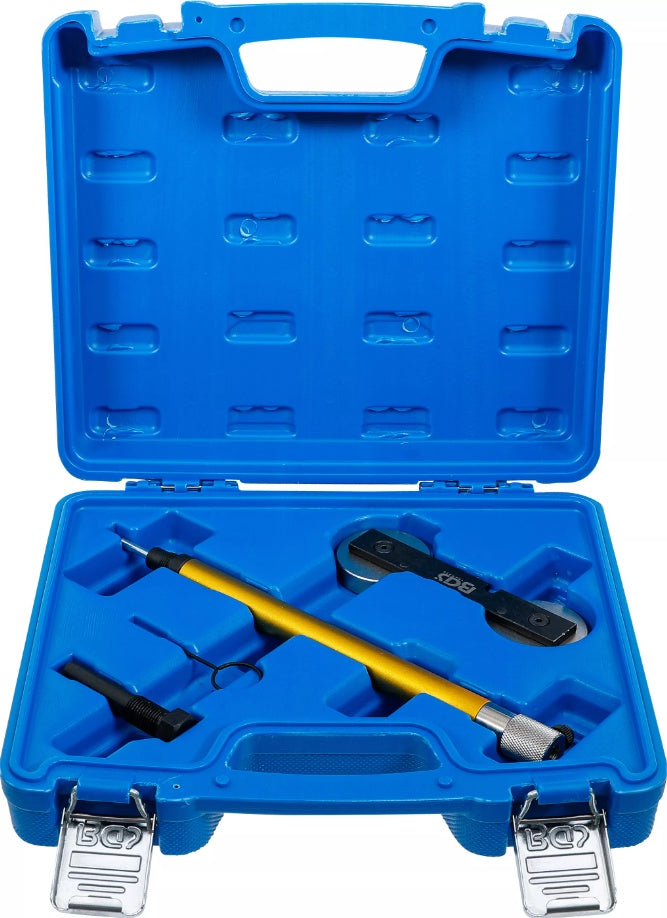

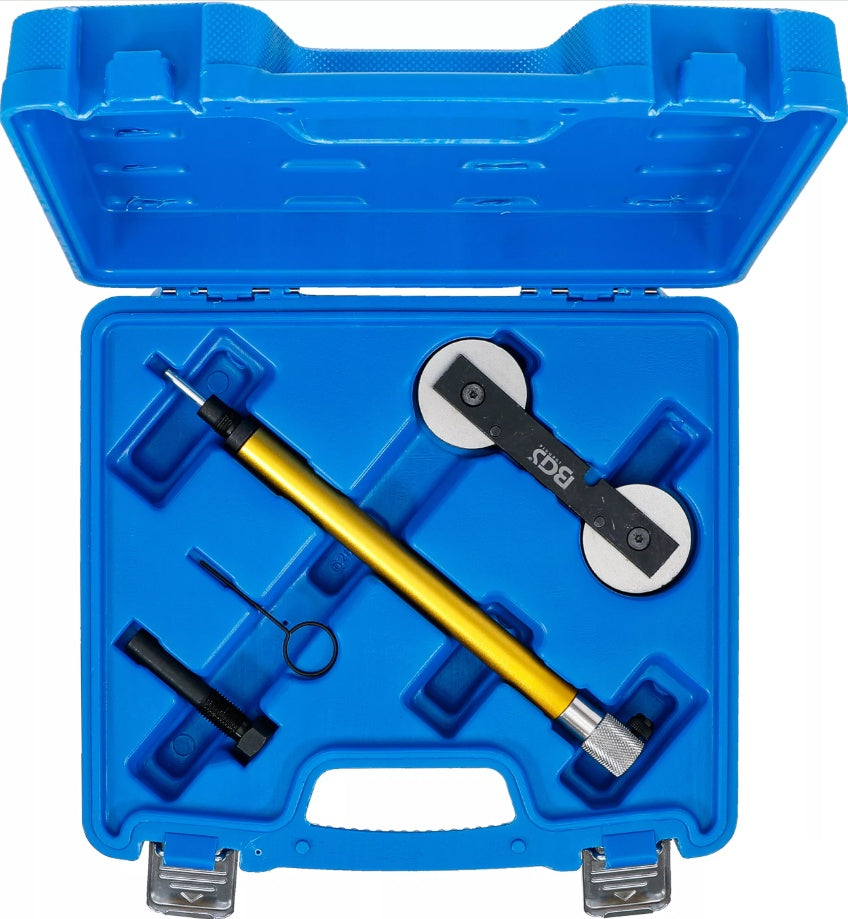

Kit contents

• Camshaft locking tool (OEM T10171)
• Setting gauge holder (OEM T10170)
• Crankshaft locking tool (OEM T10340)
• Tensioner locking tool (OEM T40011)

Technical specifications

• Gross weight: 1236 g

OEM reference table:

• Audi: T10171, T10170, T10340, T40011
• Seat: T10171, T10170, T10340, T40011
• Skoda: T10171, T10170, T10340, T40011
• Volkswagen: T10171, T10170, T10340, T40011
