ENGINE TIMING TOOL SET | FOR VAG (8261)

Product description

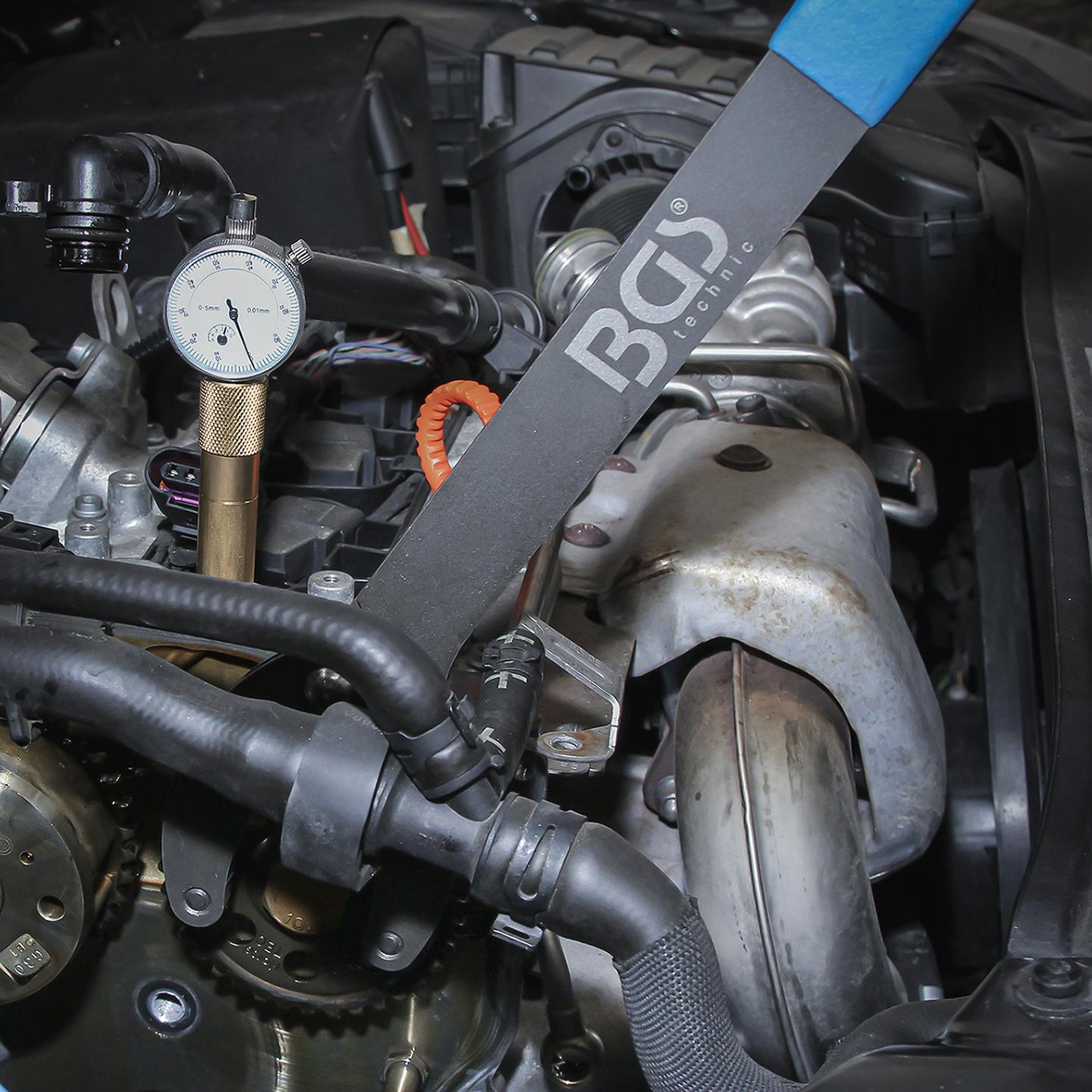

This engine timing tool kit is designed for use on 1.8L turbo and 1.6L FSI engines from the VAG group. It is intended for locking and holding the crankshaft, camshaft, and other timing components during timing belt or chain replacement, engine repair, or other maintenance tasks requiring precise alignment. The kit includes specialized tools for securing the camshaft and crankshaft, holding the timing chain sprocket, and managing the chain adjuster and tensioner pulley.

The kit is suitable for a wide range of Audi, Volkswagen, Seat, and Skoda vehicles equipped with the specified 1.8L turbo and 1.6L FSI engines. It covers various engine codes and production years, making it applicable for many models within these brands.

Compatible vehicles

Audi:

• A3 1.8 Turbo (AGN AGU AJQ APG APP AQA ARX ARY ARZ AUM AUQ) 1996-2003
• A3 1.6 FSI (BAG) 2003-2006
• S3 1.8 Turbo (AMK APY BAM) 1996
• A4 1.8 Turbo (ADR AEB AJL AJP ANB APU AVJ AWT) 1994-2006
• A6 1.8 Turbo (ADR AEB AJL AJP ANB APU AVJ AWT) 1994-2006
• Cabriolet 1.8 (ADR) 1997-2000
• TT 1.8 Turbo (AJQ APP APX AUM AUQ BAM) 1998-2006

Volkswagen:

• Beetle 1.8 Turbo (AVC) 1999-2006
• Touran 1.6 FSI (BAG BLP) 2003-2007
• Golf 1.8 Turbo (AGN AGU AQA ARZ AUM AUQ) 1997-2005
• Bora 1.8 Turbo (AGN AGU AQA ARZ AUM AUQ) 1997-2005
• Passat 1.8 Turbo (ADR AEB ANB APT APU ARG AWT) 1996-2005

Seat:

• Sharan 1.8 Turbo (AJH AWC) 1997-2007
• Ibiza 1.8 Turbo (AQX AYP) 1999-2002
• Cordoba 1.8 Turbo (AQX AYP) 1999-2002
• Leon 1.8 Turbo (AJQ AQN APG APP APT ARYAUQ) 1999-2005
• Toledo Turbo (AQN APG APT ARY AUQ) 1999-2005
• Alhambra 1.8 Turbo (AJW AWC) 1997-2007

Skoda:

• Octavia 1.8 FSI Turbo (AGN AGU ARX ARZ AUM) 1996-2005
• Octavia 1.8 Turbo 20V RS (AUQ) 2000-2006
• Octavia 1.6 FSI (BLF) 2004-2007

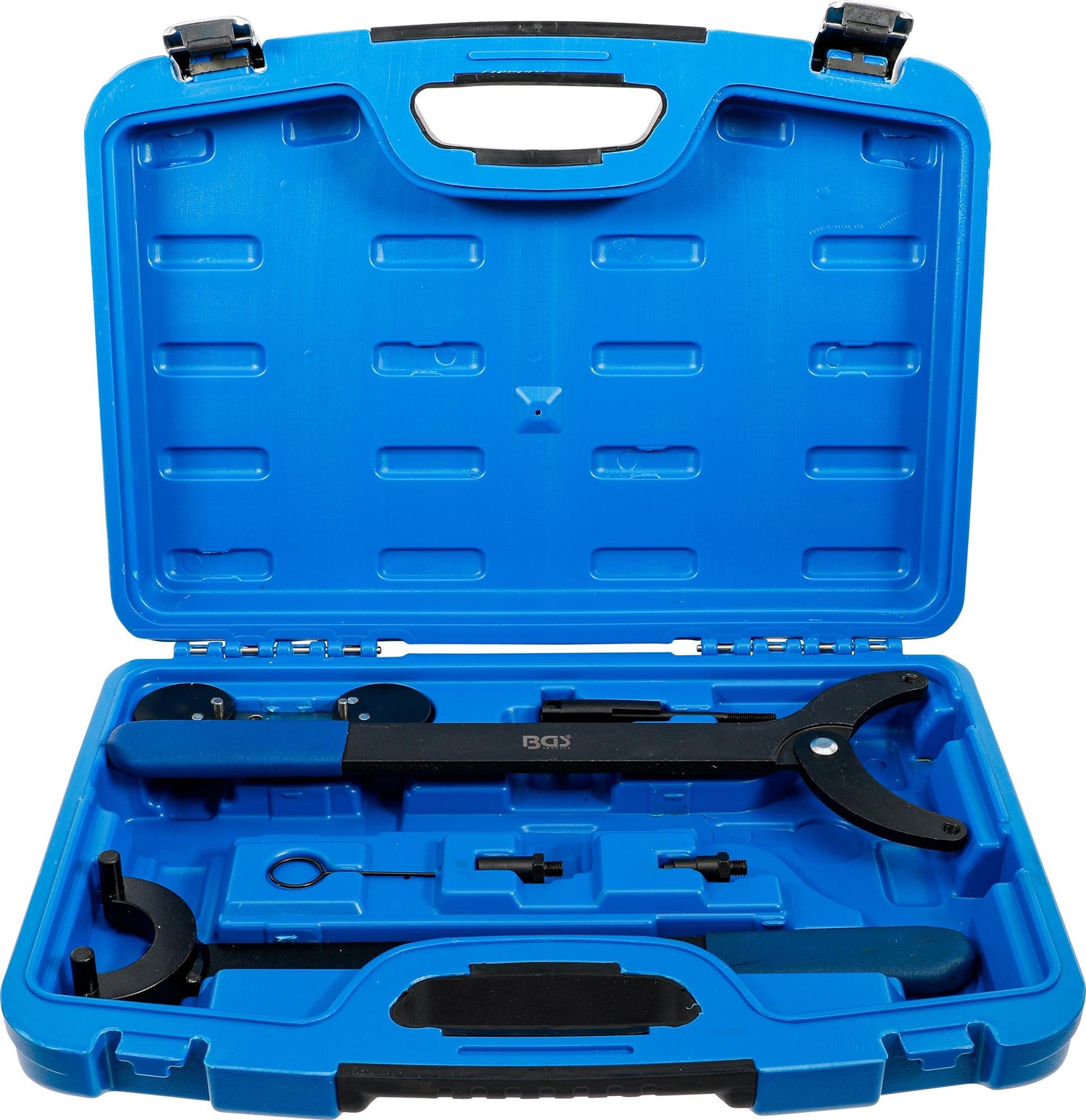

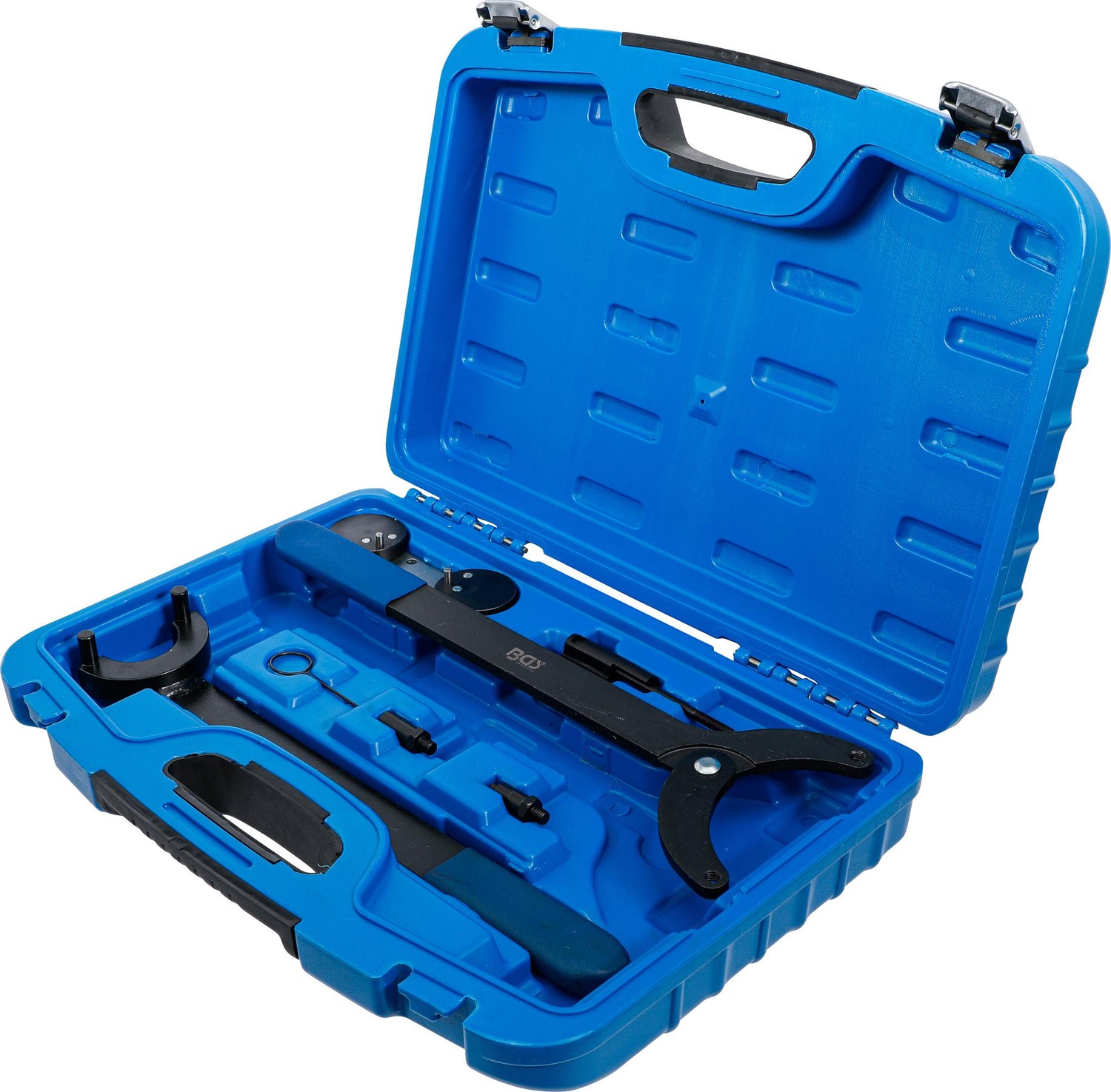

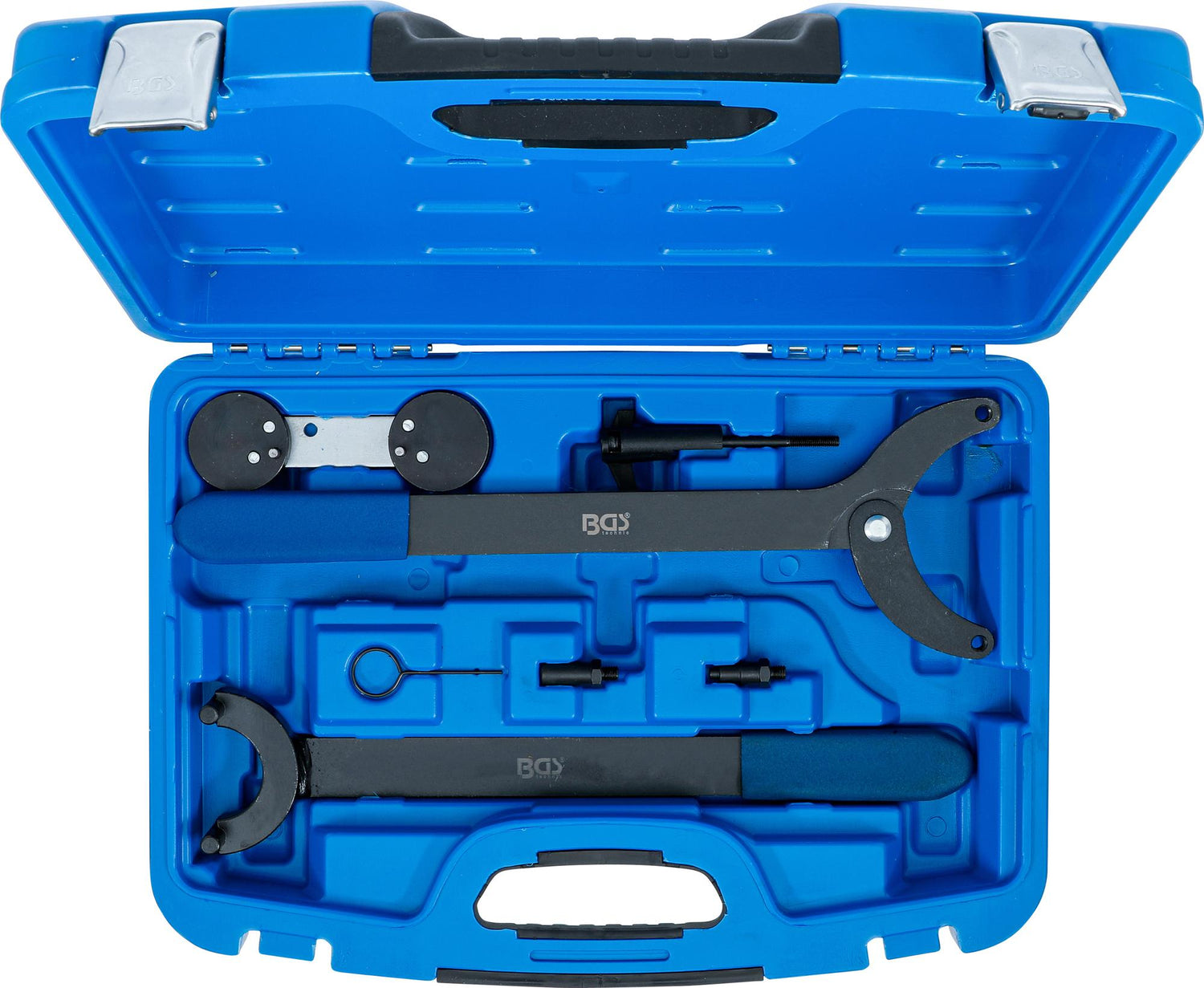

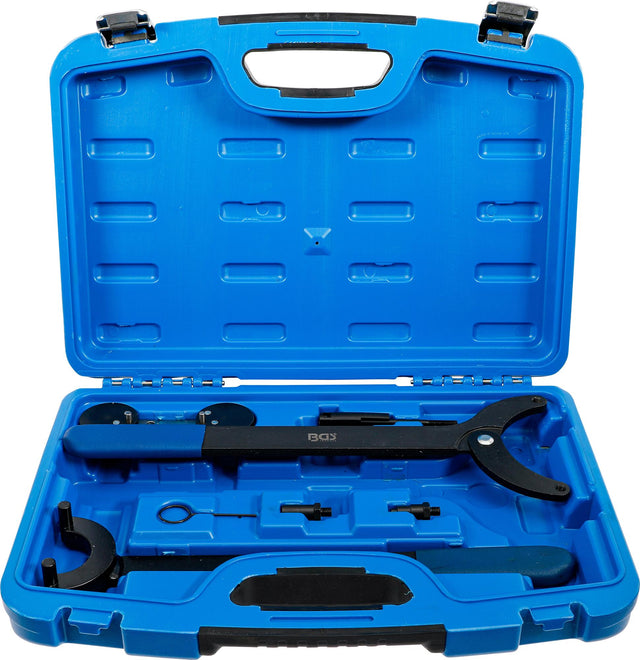

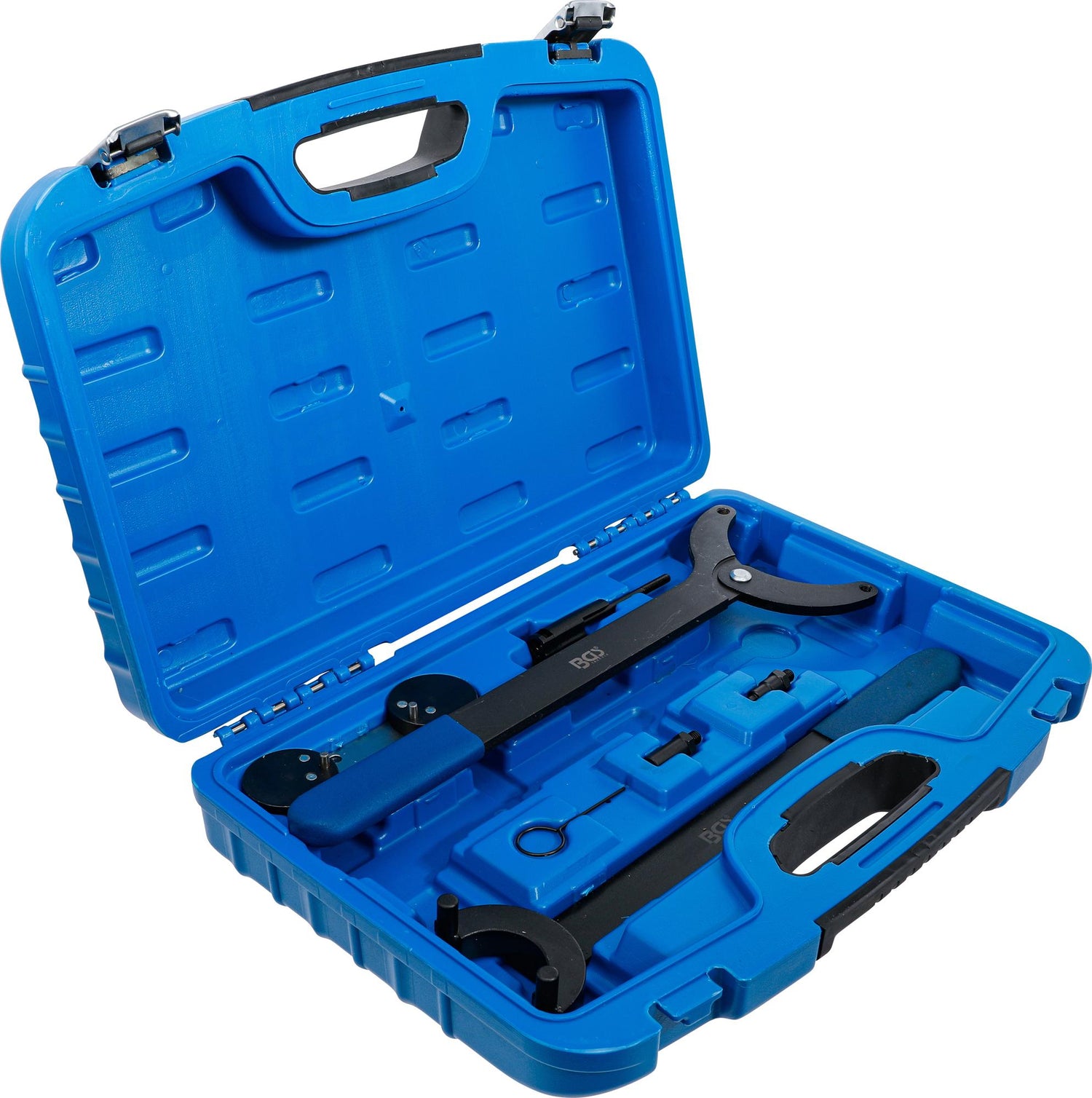

Kit contents

• Crankshaft counterholder (OEM 3036)

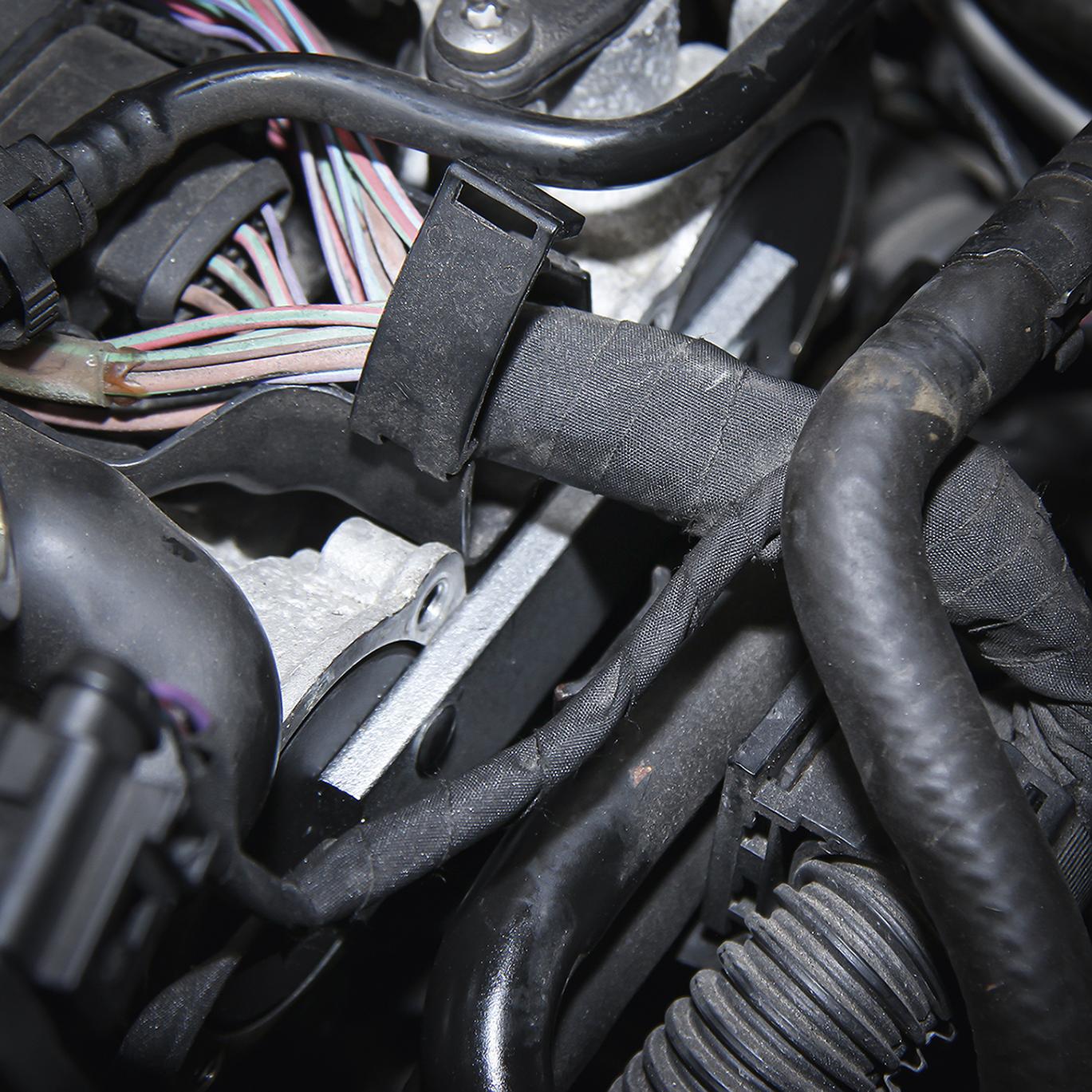

• Camshaft locking tool (OEM T10171)
• Counterholder for timing chain sprocket camshaft, vibration damper (OEM T10172)
• Adaptors for counterholder (OEM T10172)

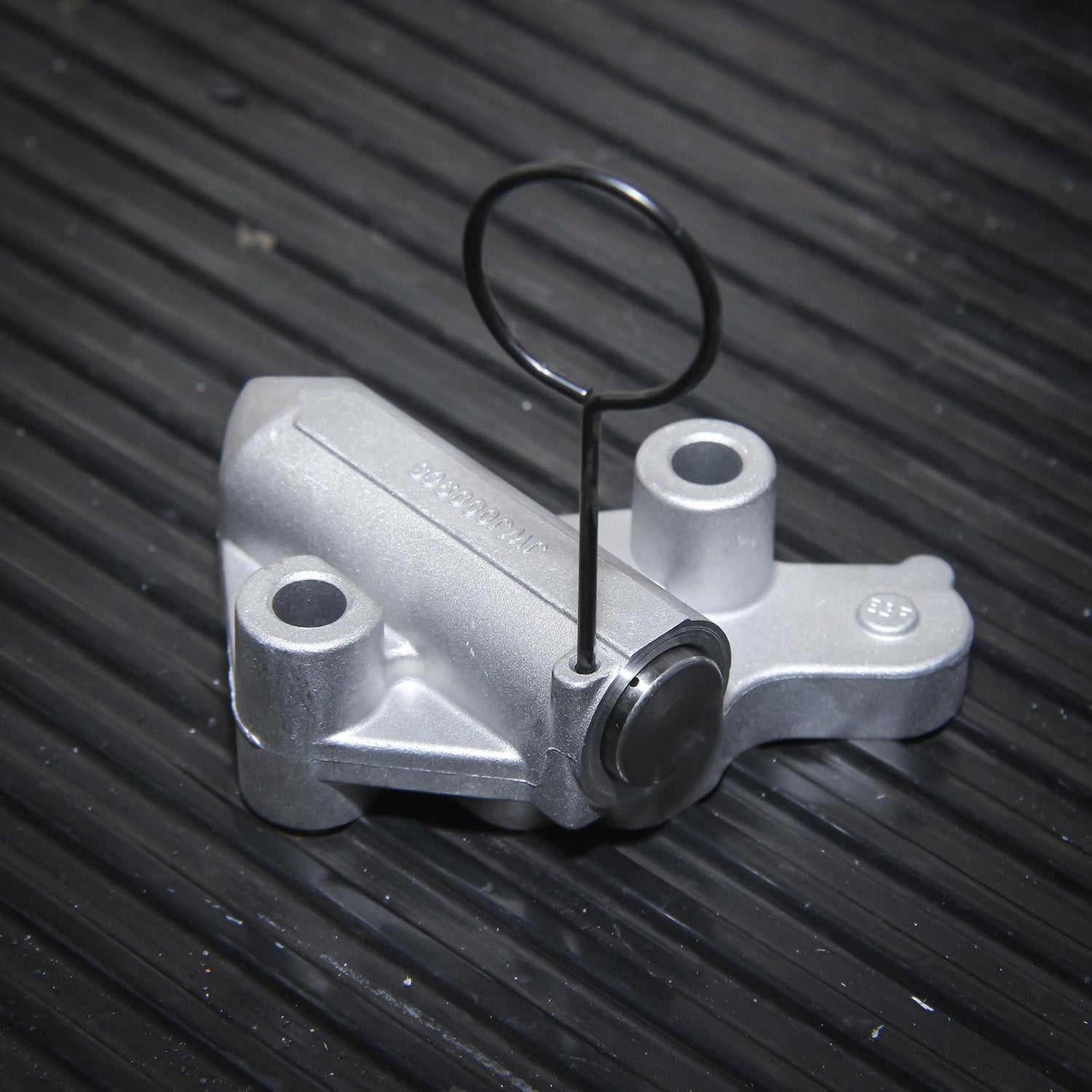

• Holder for chain adjuster for assembly and disassembly of the chain adjuster (OEM T20018 / 3366)
• Fixing pin for tensioner pulley (OEM T40011)

Technical specifications

• Gross weight: 3261 g

OEM reference table:

• Audi: T10171, T10172, T40011, 3036, T20018 / 3366
• Seat: T10171, T10172, T40011, 3036, T20018 / 3366
• Skoda: T10171, T10172, T40011, 3036, T20018 / 3366
• Volkswagen: T10171, T10172, T40011, 3036, T20018 / 3366
