ENGINE TIMING TOOL SET | FOR VAG 2.5 / 4.9D / TDI PUMP NOZZLE UNIT (98443)

Product description

This engine timing tool kit is designed for use on VAG 2.5 and 4.9D/TDI engines, specifically for working with the pump nozzle system. The kit is intended for testing and setting camshaft timing, as well as for the removal and installation of camshaft guides on 5- and 10-cylinder engines. It also includes tools for turning and locking the crankshaft, which are necessary during timing belt or chain replacement, cylinder head work, or other engine repairs that require precise alignment of engine components.

The kit is suitable for use on select Volkswagen Group vehicles equipped with 5- and 10-cylinder engines. It is applicable when performing maintenance or repair tasks that involve the camshaft or crankshaft, such as timing adjustments or component replacement.

Compatible vehicles

• VW T5 (from 2004)
• VW Touareg (from 2003)
• VW Phaeton (from 2003)

(All with 5- and 10-cylinder engines)

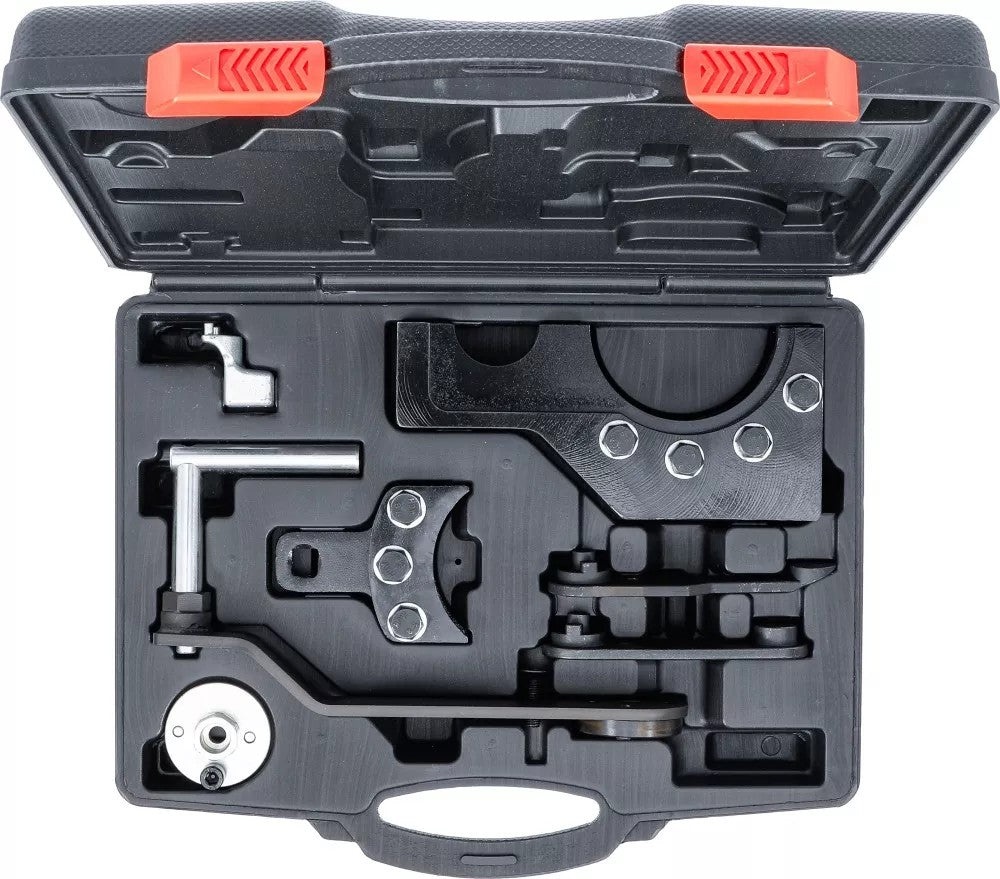

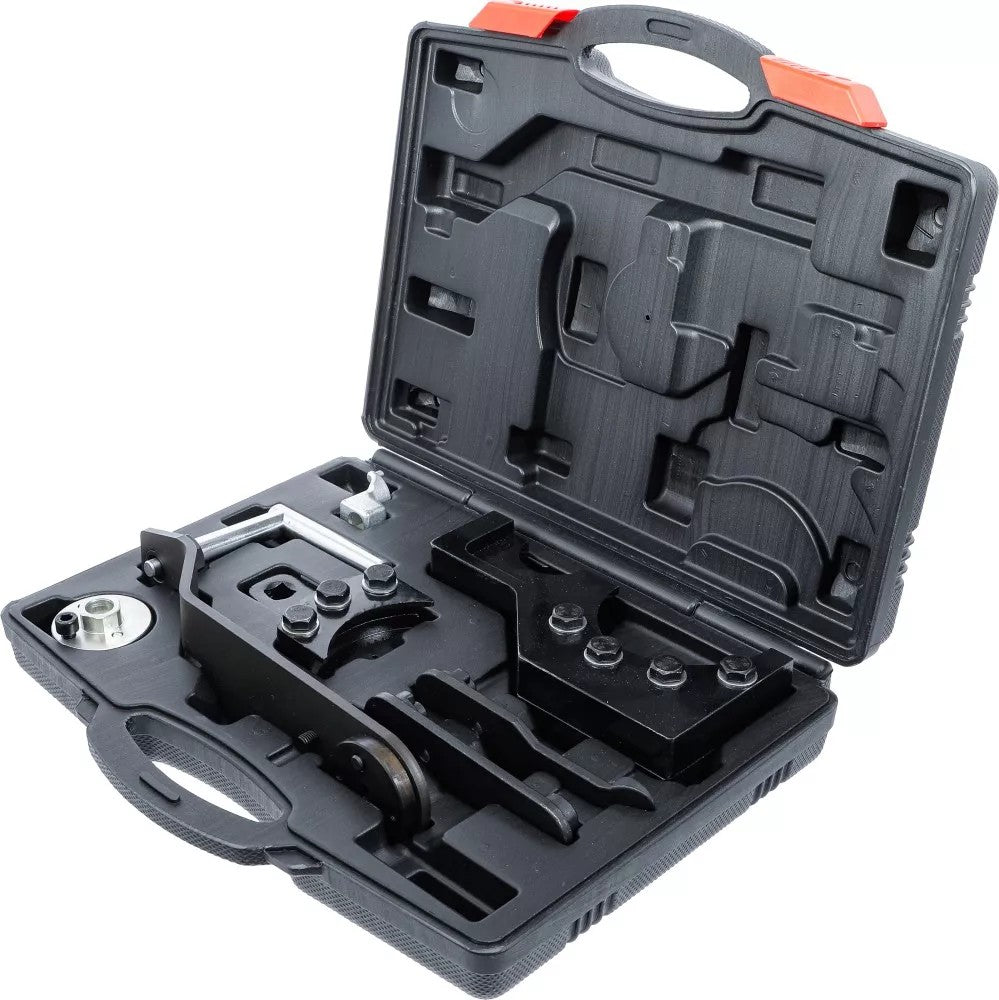

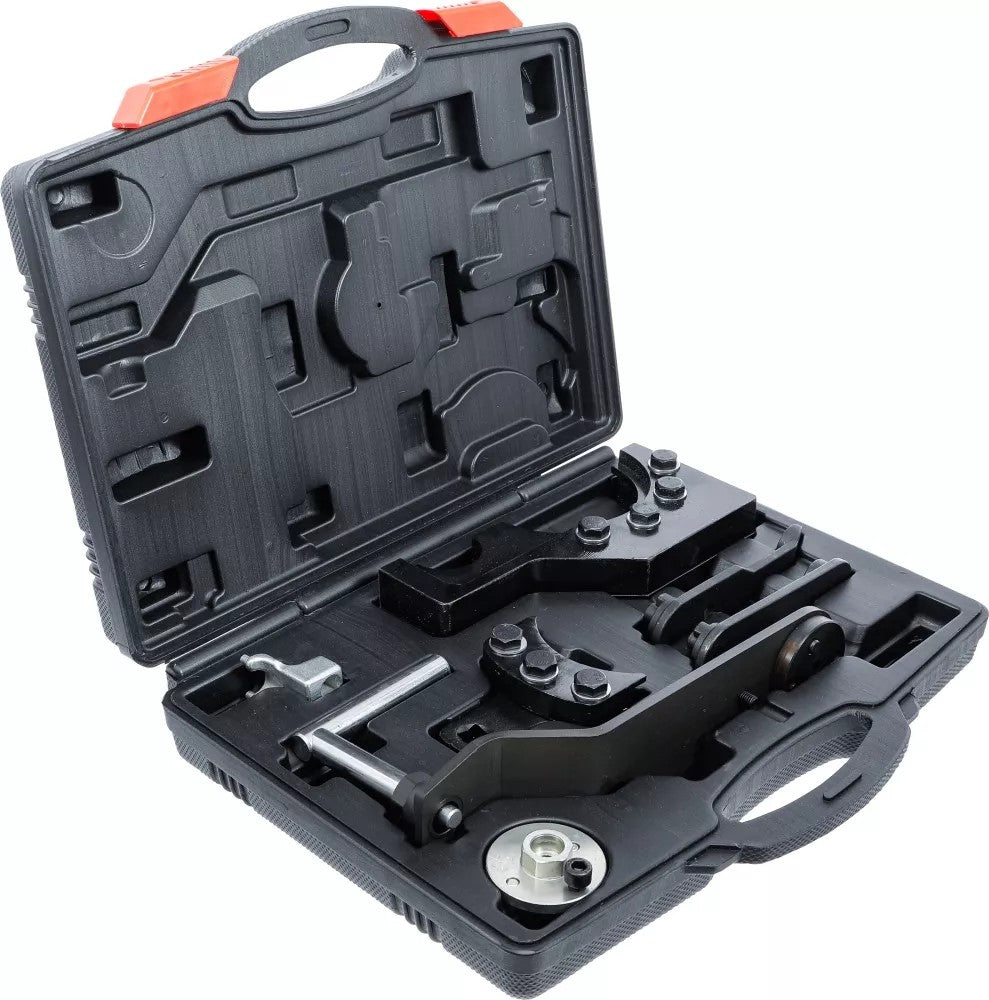

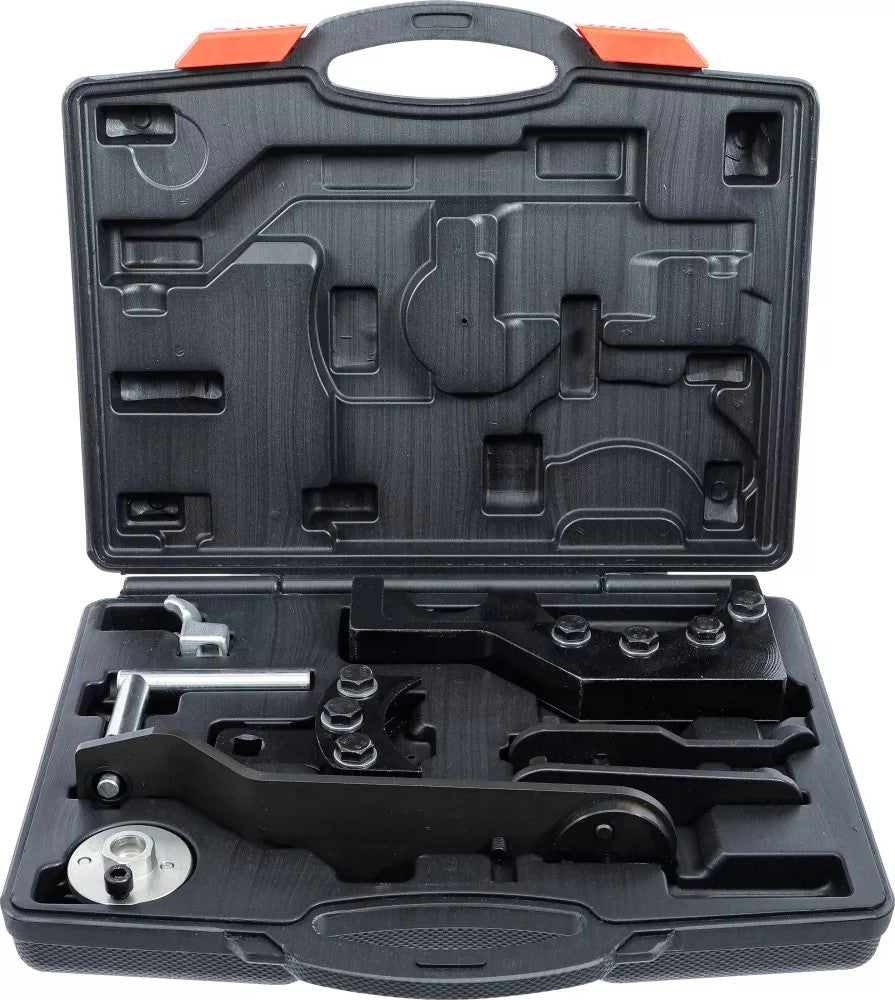

Kit contents

• Camshaft locking mechanism for testing and setting control times on 5 and 10-cylinder engines (OEM T10193)
• Camshaft locking mechanism for testing and setting control times on 10-cylinder engines (OEM T10194)
• Clamping device for removing and installing the camshaft guide of 5 and 10-cylinder engines (OEM T10199)
• Special insert for turning the crankshaft on 5-cylinder engines (OEM T10225)
• Crankshaft locking key for 5-cylinder engines (OEM T10226)
• Tensioner wrench

Technical specifications

OEM table

• Audi: T10193, T10194, T10199, T10225, T10226
• Seat: T10193, T10194, T10199, T10225, T10226
• Skoda: T10193, T10194, T10199, T10225, T10226
• Volkswagen: T10193, T10194, T10199, T10225, T10226
