ENGINE TIMING TOOL SET | FOR VAG 1.6, 2.0 CR TDI (66200)

Product description

This engine timing tool kit is designed for use with VAG group 1.6 and 2.0 liter CR TDI diesel engines, including earlier pump-nozzle types. The kit provides the necessary tools for checking and adjusting engine timing, particularly after procedures such as timing belt replacement. It is suitable for a wide range of engine codes including CAYB, CAYC, CBAB, CBBB, CBAA, CFFB, CAGA, CAHA, CAGB, CAHB, CAGC, FCA, CAAA, CAAB, CAAC, CCHA, CAVA, CBAB, CBDA, CBDD, CBAC, CBDA, CBDC, and others.

The set includes specialized locking pins, holding tools, and pullers required to secure the crankshaft, camshaft, injection pump, and tensioner pulleys during service. It also contains tools for aligning the oil pump balancer shaft and removing the camshaft sprocket hub. This kit is intended for use during maintenance and repair tasks that involve disassembly or adjustment of engine timing components.

Compatible vehicles

Audi

• A1
• A3 (8P)
• A4 (B8)
• A5
• A6 (C6, C7)
• TT (8J)
• Q3
• Q5

Skoda

• Fabia II
• Roomster
• Praktik
• Oktavia II
• Suberb II
• Yeti

Seat

• Ibiza (6J)
• Leon III
• Exeo
• Altea
• Alhambra II

Volkswagen (VW)

• Golf V, VI and Plus
• Eos
• Polo V
• Jetta V and VI
• Scirocco III
• Beetle II
• Caddy II
• Passat B6, B7 and CC
• Touran
• Sharan II
• T5
• Amarok

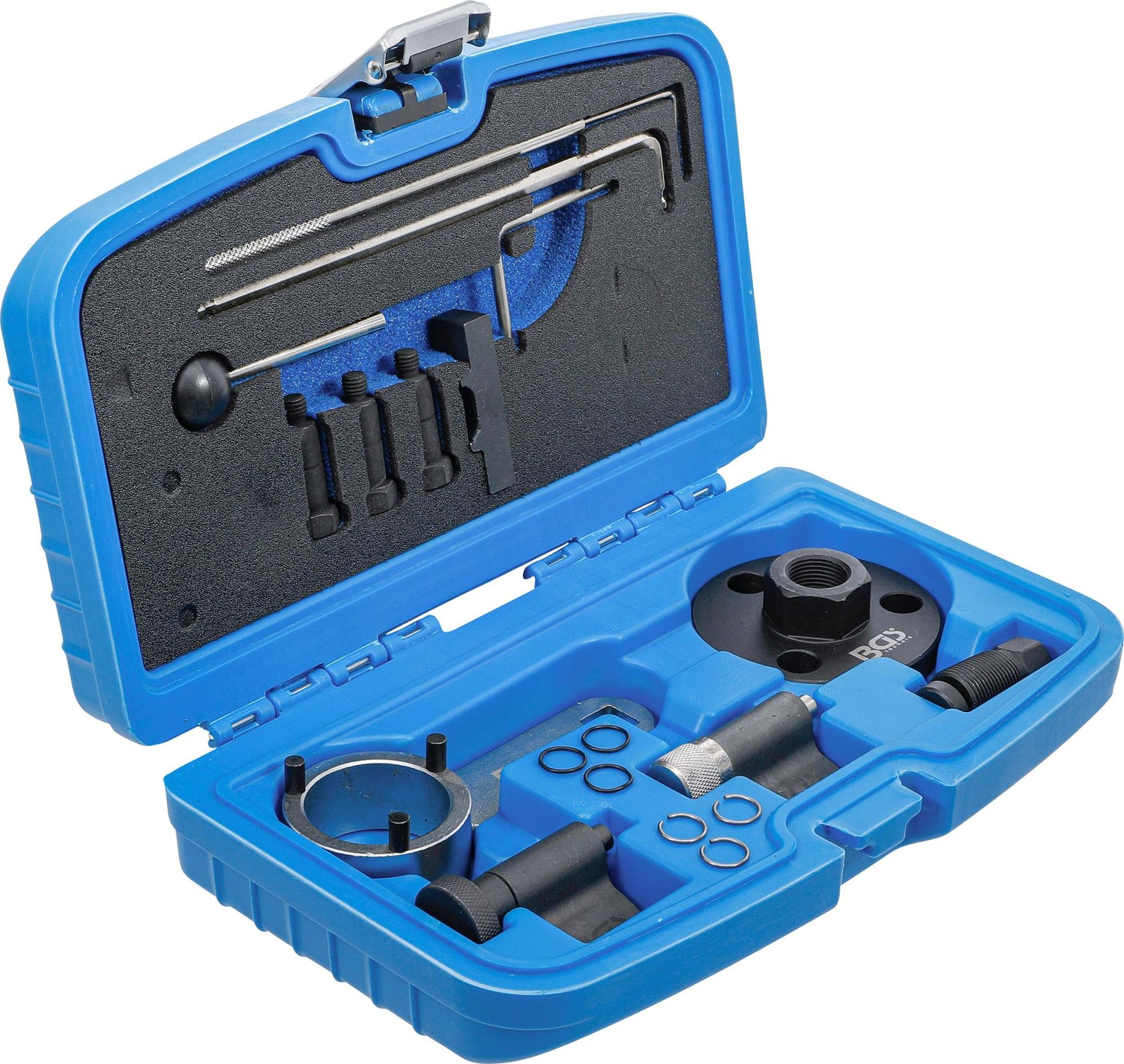

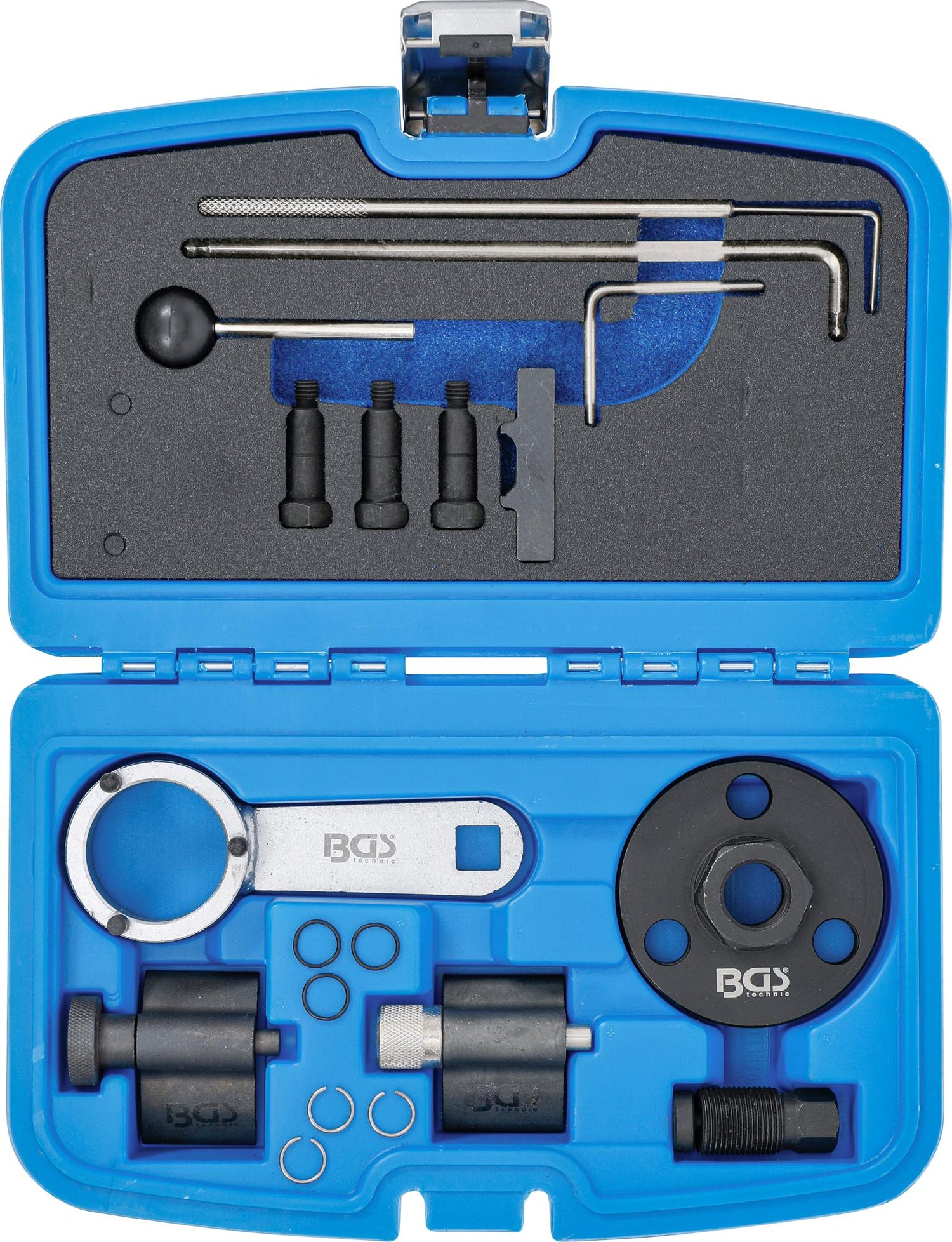

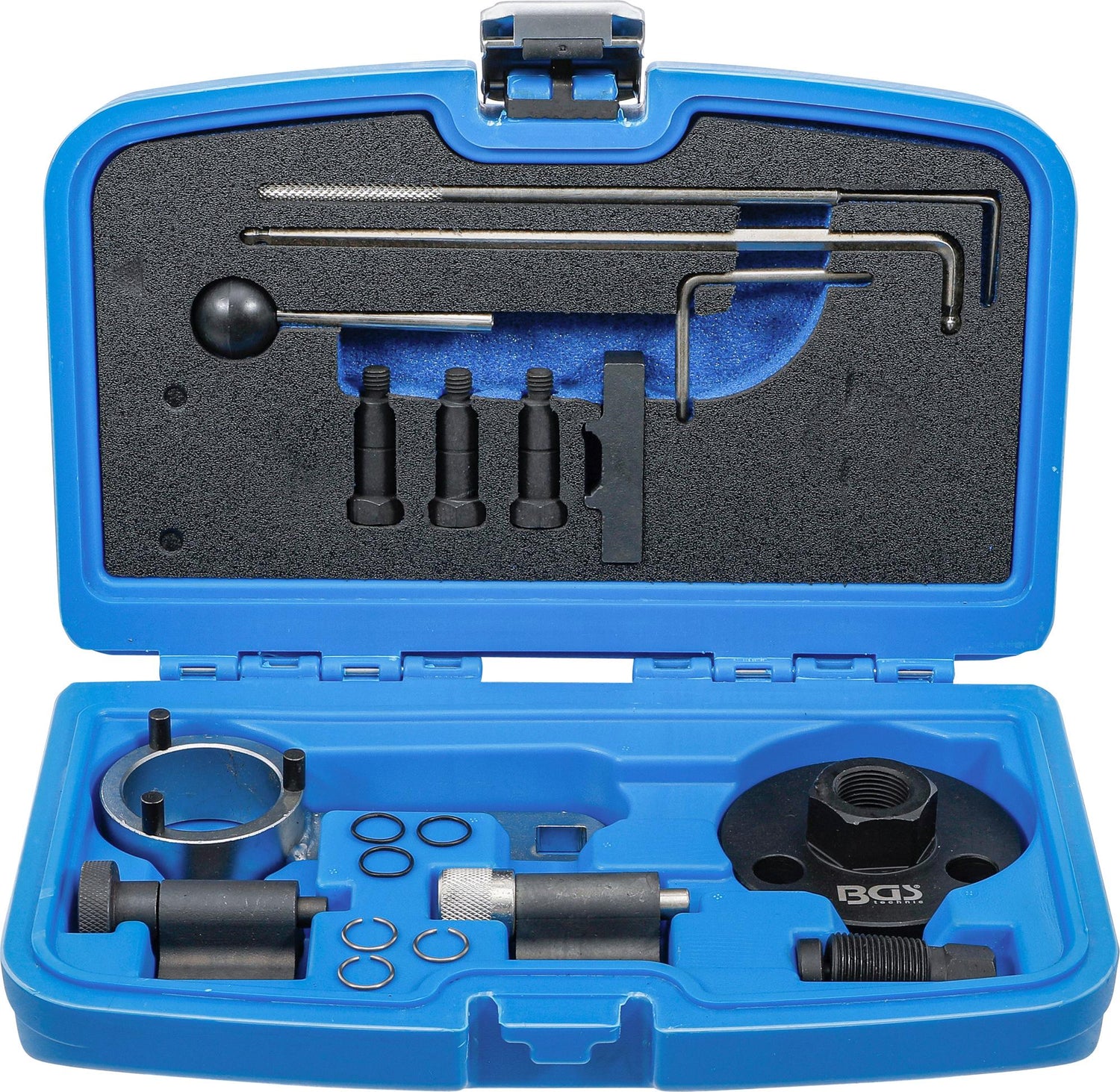

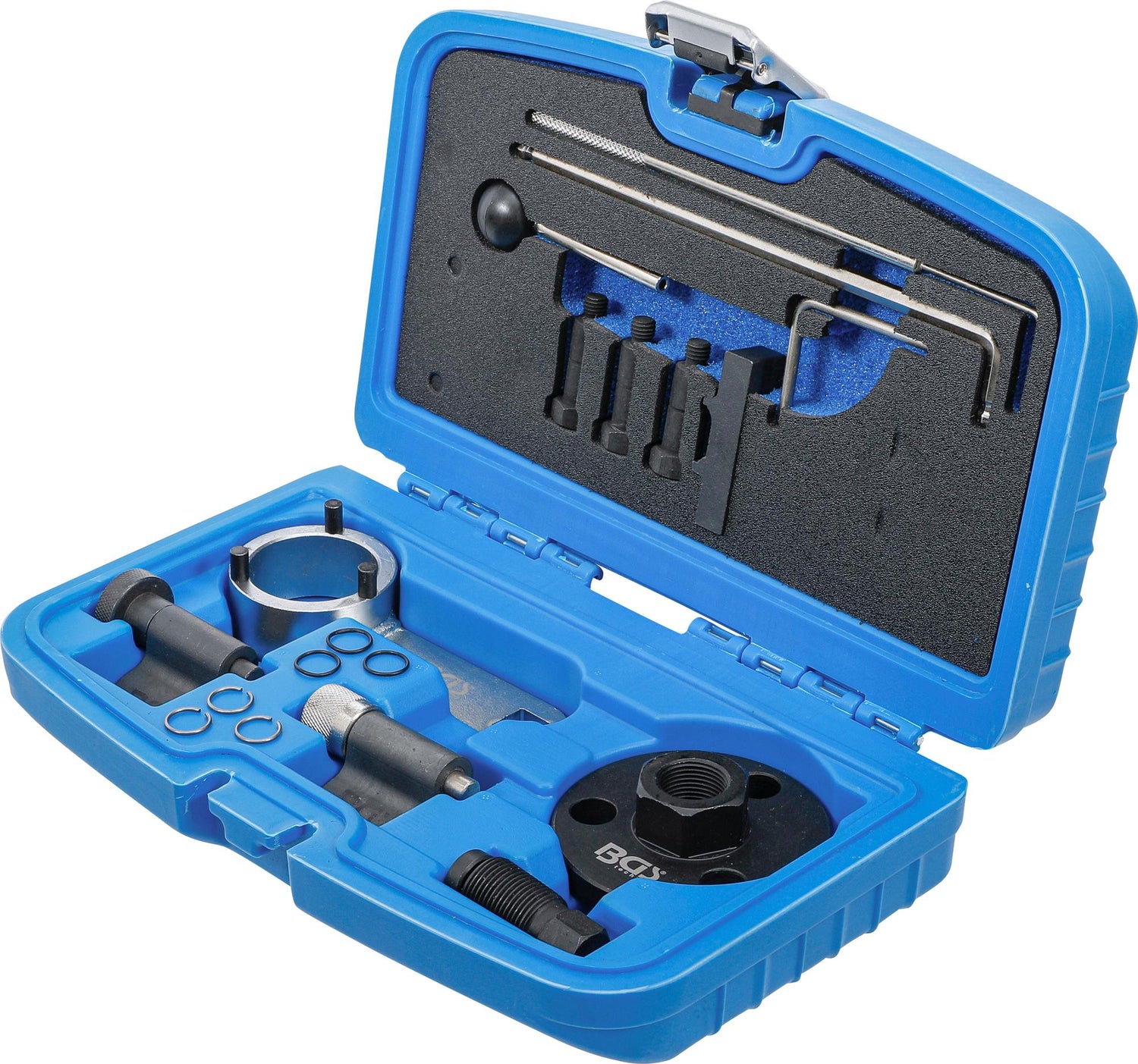

Kit contents

• Injection pump locking pin (OEM T20102, U40074, 3359)
• Crankshaft locking tool (OEM T10050, T10100)
• Ball end hex key 6 mm (OEM T10264)
• 2.5mm tensioner pulley locking pin (OEM T10265)
• 3.9mm tensioner pulley locking pin (OEM T40098)
• Sprocket holding tool (OEM T10051)
• Camshaft sprocket hub puller (OEM T10052)
• Oil pump balancer shaft alignment tool (OEM T10255)

Technical specifications

• Gross weight: 2030 g

OEM reference table:

• Volkswagen: OEM T20102, U40074, 3359, T10050, T10100, T10264, T10265, T40098, T10051, T10052, T10255
• Skoda: OEM T20102, U40074, 3359, T10050, T10100, T10264, T10265, T40098, T10051, T10052, T10255
• Seat: OEM T20102, U40074, 3359, T10050, T10100, T10264, T10265, T40098, T10051, T10052, T10255
• Audi: OEM T20102, U40074, 3359, T10050, T10100, T10264, T10265, T40098, T10051, T10052, T10255
